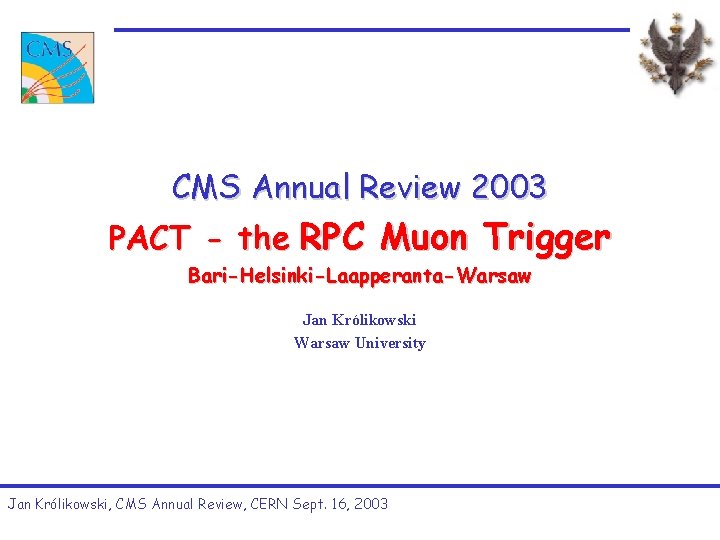

CMS Annual Review 2003 PACT - the RPC Muon Trigger Bari-Helsinki-Laapperanta-Warsaw Jan Królikowski Warsaw University Jan Królikowski, CMS Annual Review, CERN Sept. 16, 2003

PACT tasks Jan Królikowski, CMS Annual Review, CERN Sept. 16, 2003 2

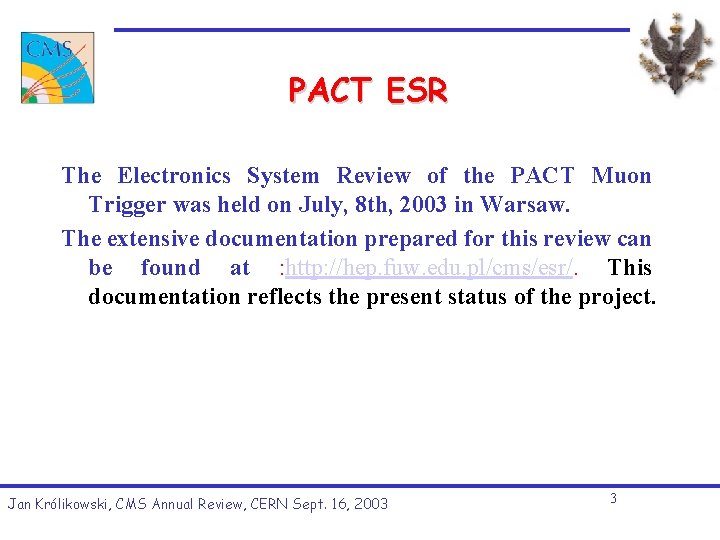

PACT ESR The Electronics System Review of the PACT Muon Trigger was held on July, 8 th, 2003 in Warsaw. The extensive documentation prepared for this review can be found at : http: //hep. fuw. edu. pl/cms/esr/. This documentation reflects the present status of the project. Jan Królikowski, CMS Annual Review, CERN Sept. 16, 2003 3

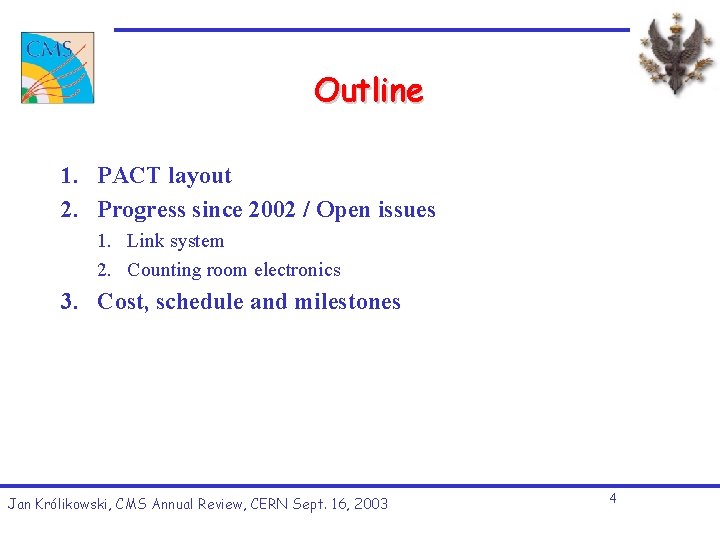

Outline 1. PACT layout 2. Progress since 2002 / Open issues 1. Link system 2. Counting room electronics 3. Cost, schedule and milestones Jan Królikowski, CMS Annual Review, CERN Sept. 16, 2003 4

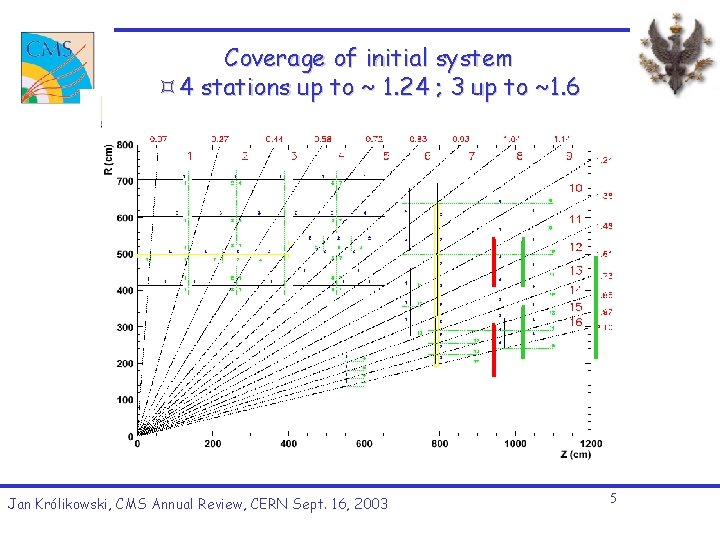

Coverage of initial system 4 stations up to ~ 1. 24 ; 3 up to ~1. 6 Jan Królikowski, CMS Annual Review, CERN Sept. 16, 2003 5

PACT electronics: layout and main components Jan Królikowski, CMS Annual Review, CERN Sept. 16, 2003 6

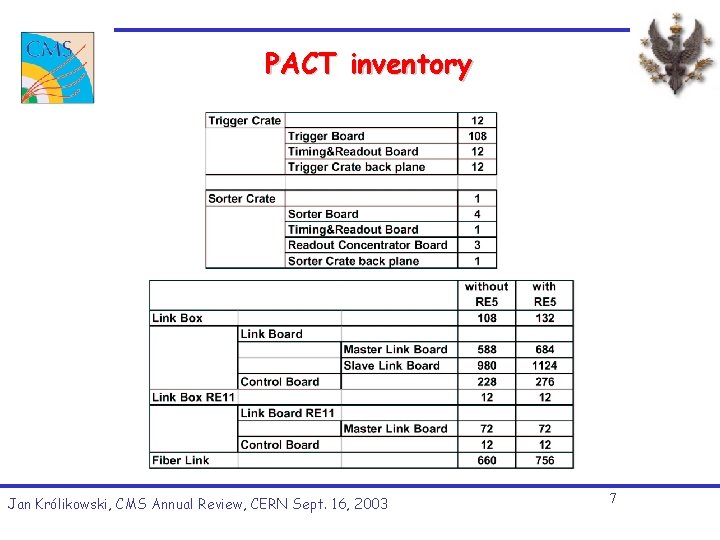

PACT inventory Jan Królikowski, CMS Annual Review, CERN Sept. 16, 2003 7

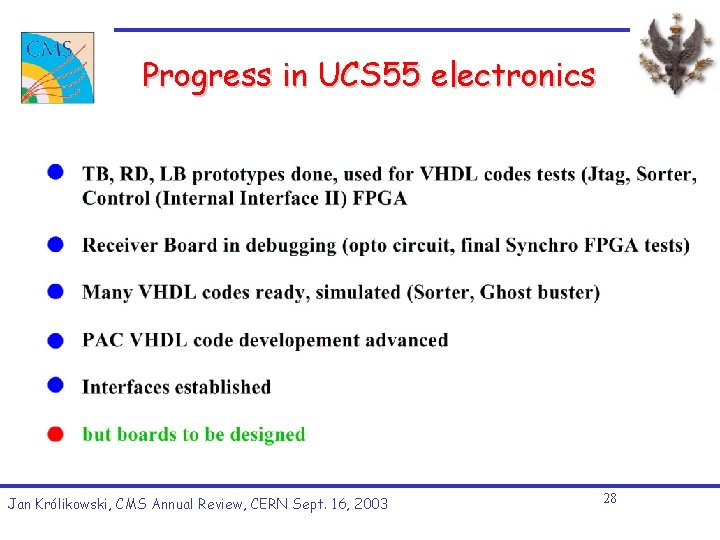

Progress since 2002 • UXC 55 electronics: – progress in the Link System prototypes and design. Now entering preparation of production phase. – Firming up of the LB boxes installation plans. • UCS 55 electronics: – progress in PAC algorithms and FPGA implementation of 4/6 plane algorithms, – VHDL codes for many compnents (sorters, Ghost. Busters) developed and tested, – New Sorter Crate architechture • Overall organization of the project – New division of tasks between Bari/ Laapperanta/ Warsaw Jan Królikowski, CMS Annual Review, CERN Sept. 16, 2003 8

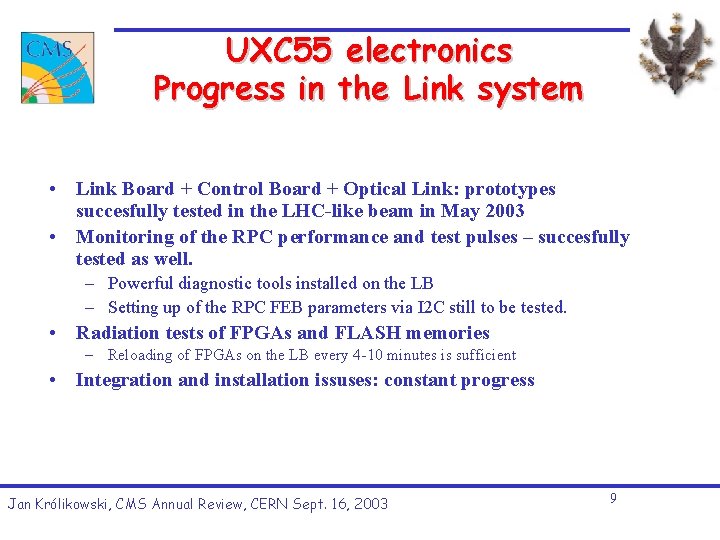

UXC 55 electronics Progress in the Link system • Link Board + Control Board + Optical Link: prototypes succesfully tested in the LHC-like beam in May 2003 • Monitoring of the RPC performance and test pulses – succesfully tested as well. – Powerful diagnostic tools installed on the LB – Setting up of the RPC FEB parameters via I 2 C still to be tested. • Radiation tests of FPGAs and FLASH memories – Reloading of FPGAs on the LB every 4 -10 minutes is sufficient • Integration and installation issuses: constant progress Jan Królikowski, CMS Annual Review, CERN Sept. 16, 2003 9

LB functionalities Jan Królikowski, CMS Annual Review, CERN Sept. 16, 2003 10

LB RE 1/1 prototype 2003 Jan Królikowski, CMS Annual Review, CERN Sept. 16, 2003 11

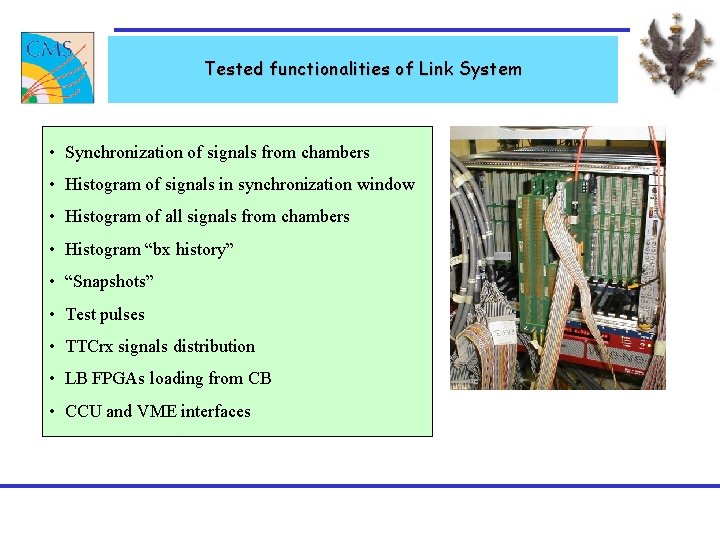

Tested functionalities of Link System • Synchronization of signals from chambers • Histogram of signals in synchronization window • Histogram of all signals from chambers • Histogram “bx history” • “Snapshots” • Test pulses • TTCrx signals distribution • LB FPGAs loading from CB • CCU and VME interfaces

Tested functionalities of Link System • Synchronization of signals from chambers • Histogram of signals in synchronization window • Histogram of all signals from chambers • Histogram “bx history” • “Snapshots” • Test pulses • TTCrx signals distribution • LB FPGAs loading from CB • CCU and VME interfaces

Test Pulses Sharpness of the Synchronization Window Test pulse directly connected to input channel with short (~5 cm) cable Test pulse Synchronization window widow open widow close The sharpness of the synchronization window edge is ~0. 3 ns (one channel) Jan Królikowski, CMS Annual Review, CERN Sept. 16, 2003 14

Test Pulses Input Channels Skew One test pulse directly connected to each input channel Found the source of the problem: big skew between input channels (~1 ns) Reason: differences in paths lengths on the PCB After fixing the paths lengths the skew should be reduced to ~0. 4 ns Jan Królikowski, CMS Annual Review, CERN Sept. 16, 2003 15

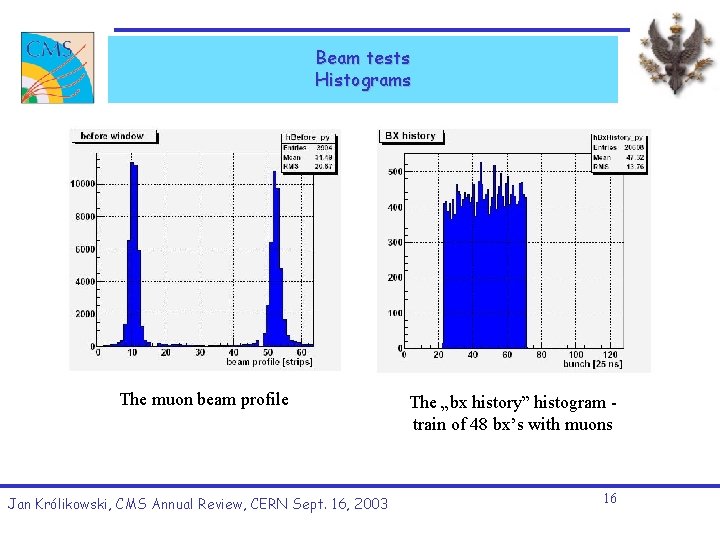

Beam tests Histograms The muon beam profile Jan Królikowski, CMS Annual Review, CERN Sept. 16, 2003 The „bx history” histogram train of 48 bx’s with muons 16

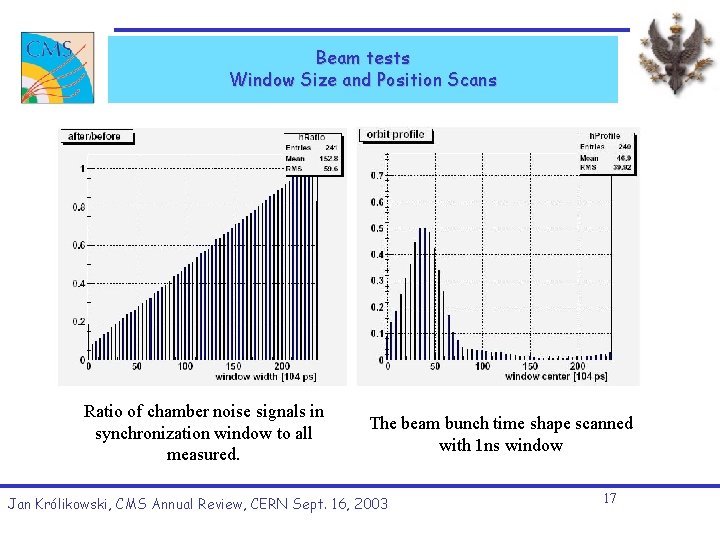

Beam tests Window Size and Position Scans Ratio of chamber noise signals in synchronization window to all measured. The beam bunch time shape scanned with 1 ns window Jan Królikowski, CMS Annual Review, CERN Sept. 16, 2003 17

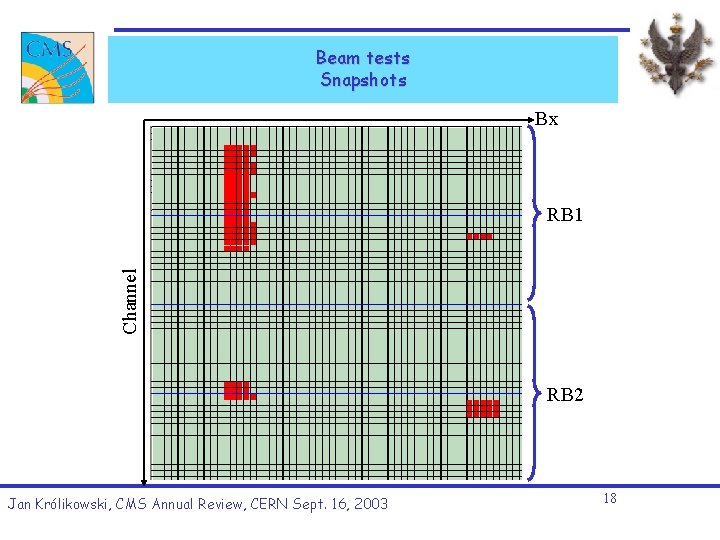

Beam tests Snapshots Bx Channel RB 1 RB 2 Jan Królikowski, CMS Annual Review, CERN Sept. 16, 2003 18

Beam tests Snapshots, Clusters Size Distribution Jan Królikowski, CMS Annual Review, CERN Sept. 16, 2003 19

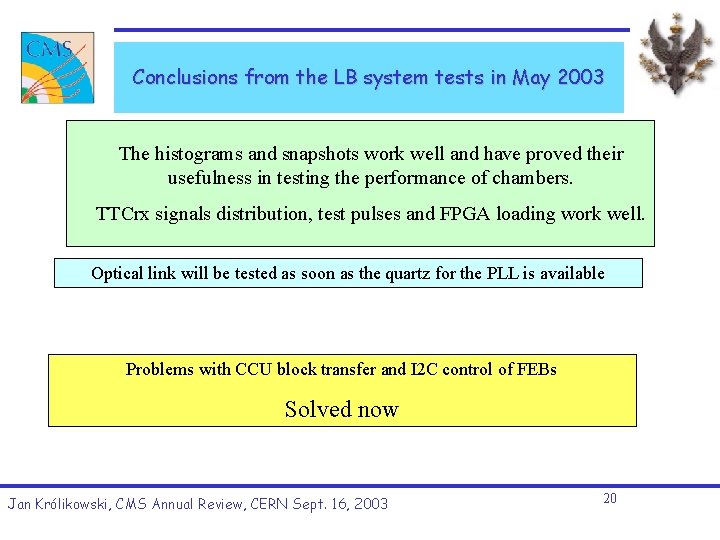

Conclusions from the LB system tests in May 2003 The histograms and snapshots work well and have proved their usefulness in testing the performance of chambers. TTCrx signals distribution, test pulses and FPGA loading work well. Optical link will be tested as soon as the quartz for the PLL is available Problems with CCU block transfer and I 2 C control of FEBs Solved now Jan Królikowski, CMS Annual Review, CERN Sept. 16, 2003 20

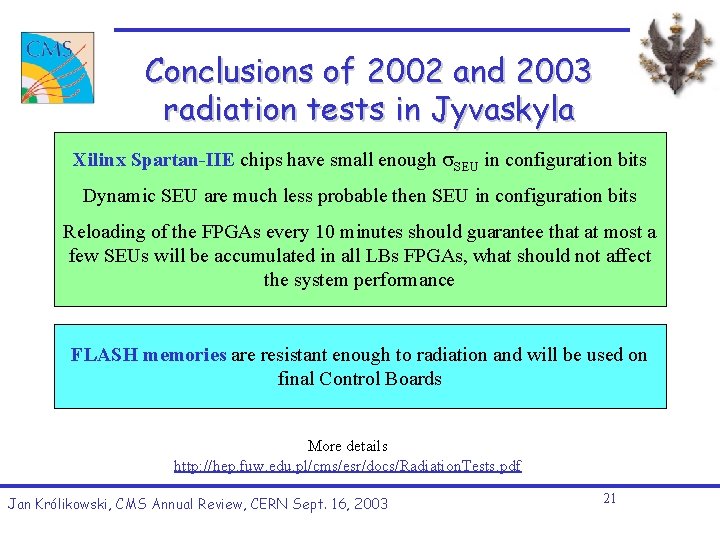

Conclusions of 2002 and 2003 radiation tests in Jyvaskyla Xilinx Spartan-IIE chips have small enough SEU in configuration bits Dynamic SEU are much less probable then SEU in configuration bits Reloading of the FPGAs every 10 minutes should guarantee that at most a few SEUs will be accumulated in all LBs FPGAs, what should not affect the system performance FLASH memories are resistant enough to radiation and will be used on final Control Boards More details http: //hep. fuw. edu. pl/cms/esr/docs/Radiation. Tests. pdf Jan Królikowski, CMS Annual Review, CERN Sept. 16, 2003 21

LB boxes (LBx) inventory Jan Królikowski, CMS Annual Review, CERN Sept. 16, 2003 22

RE 1/1 LB boxes – a special case Jan Królikowski, CMS Annual Review, CERN Sept. 16, 2003 23

Standard LB boxes VME crates Jan Królikowski, CMS Annual Review, CERN Sept. 16, 2003 24

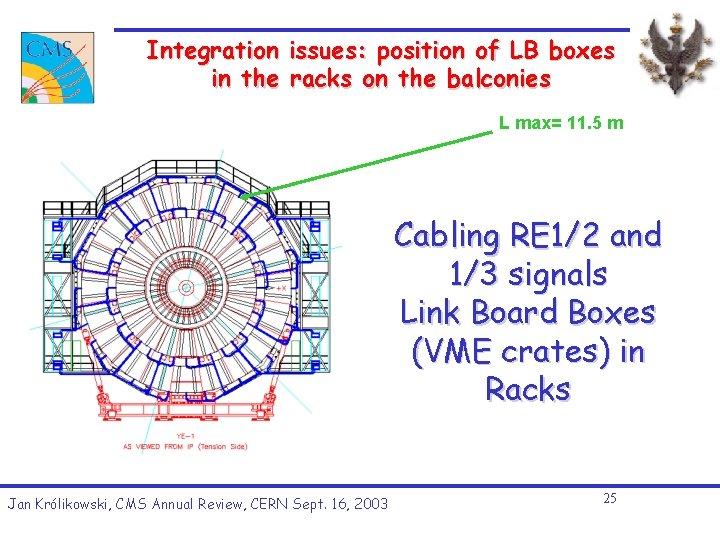

Integration issues: position of LB boxes in the racks on the balconies L max= 11. 5 m Cabling RE 1/2 and 1/3 signals Link Board Boxes (VME crates) in Racks Jan Królikowski, CMS Annual Review, CERN Sept. 16, 2003 25

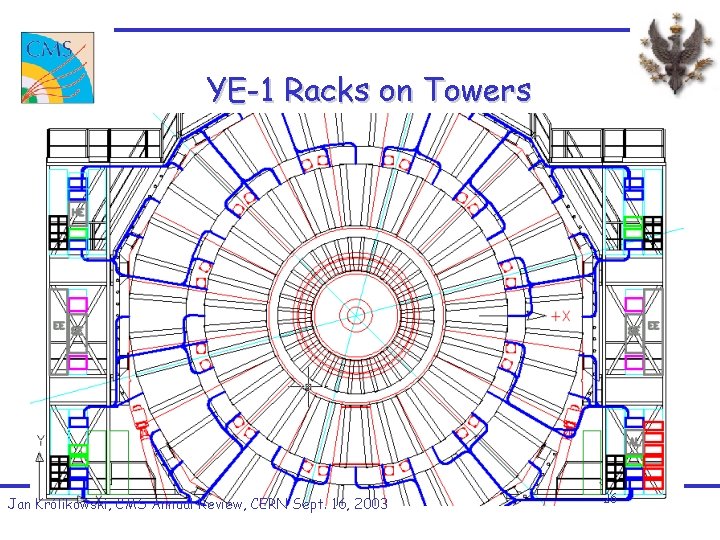

YE-1 Racks on Towers Jan Królikowski, CMS Annual Review, CERN Sept. 16, 2003 26

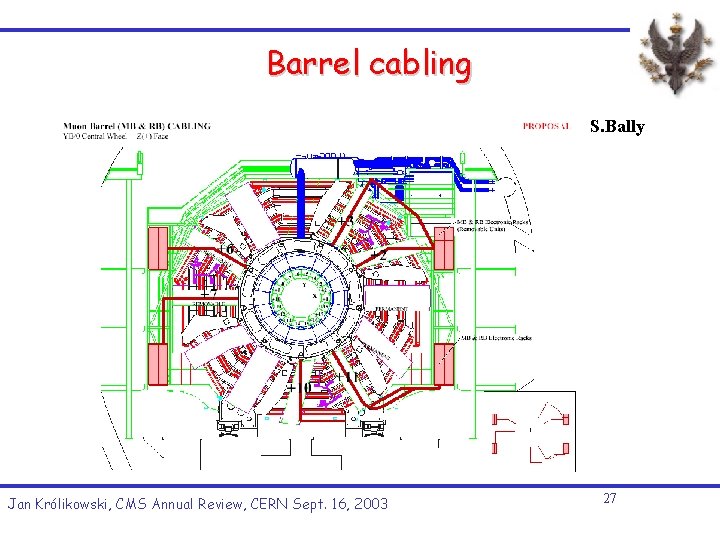

Barrel cabling S. Bally Jan Królikowski, CMS Annual Review, CERN Sept. 16, 2003 27

Progress in UCS 55 electronics Jan Królikowski, CMS Annual Review, CERN Sept. 16, 2003 28

USC 55 inventory Jan Królikowski, CMS Annual Review, CERN Sept. 16, 2003 29

PAC processor – progress in the VHDL codes Jan Królikowski, CMS Annual Review, CERN Sept. 16, 2003 30

FPGA PAC in the barrel Jan Królikowski, CMS Annual Review, CERN Sept. 16, 2003 31

FPGA PAC in the endcaps Jan Królikowski, CMS Annual Review, CERN Sept. 16, 2003 32

Jan Królikowski, CMS Annual Review, CERN Sept. 16, 2003 33

Jan Królikowski, CMS Annual Review, CERN Sept. 16, 2003 34

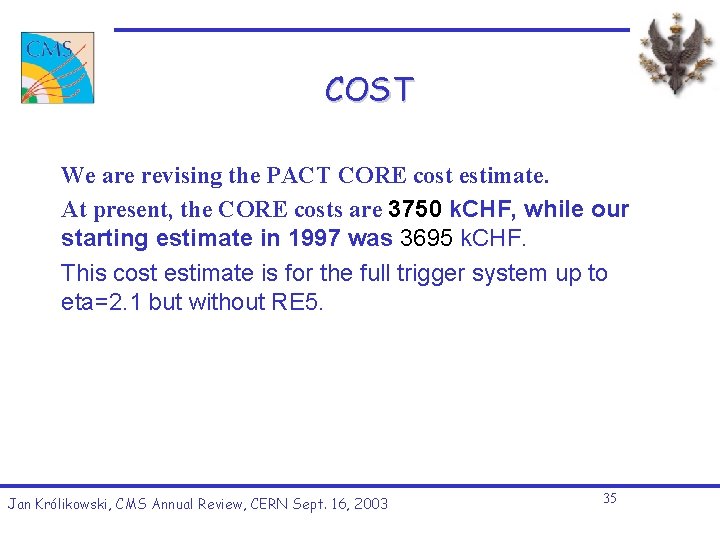

COST We are revising the PACT CORE cost estimate. At present, the CORE costs are 3750 k. CHF, while our starting estimate in 1997 was 3695 k. CHF. This cost estimate is for the full trigger system up to eta=2. 1 but without RE 5. Jan Królikowski, CMS Annual Review, CERN Sept. 16, 2003 35

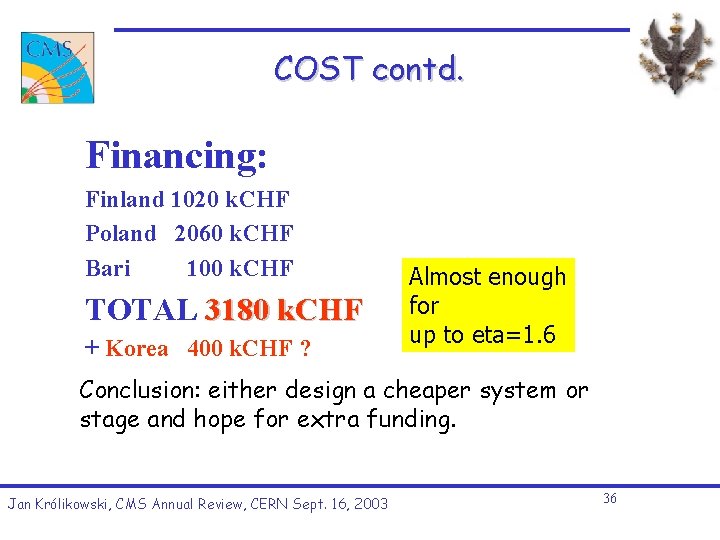

COST contd. Financing: Finland 1020 k. CHF Poland 2060 k. CHF Bari 100 k. CHF TOTAL 3180 k. CHF + Korea 400 k. CHF ? Almost enough for up to eta=1. 6 Conclusion: either design a cheaper system or stage and hope for extra funding. Jan Królikowski, CMS Annual Review, CERN Sept. 16, 2003 36

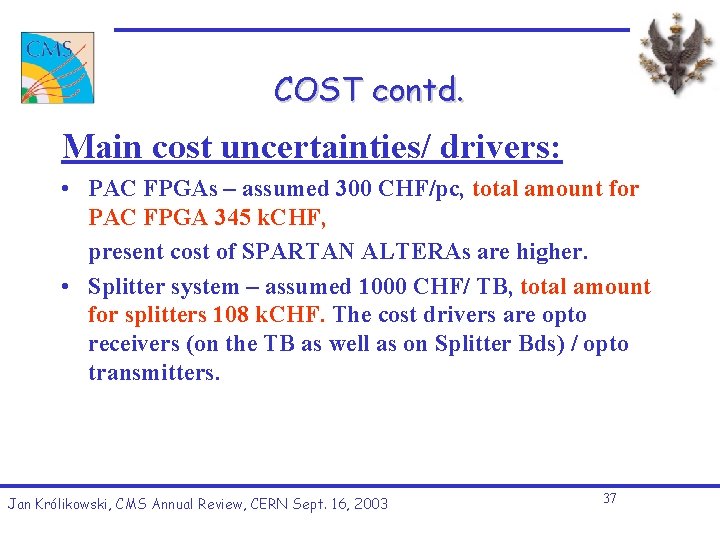

COST contd. Main cost uncertainties/ drivers: • PAC FPGAs – assumed 300 CHF/pc, total amount for PAC FPGA 345 k. CHF, present cost of SPARTAN ALTERAs are higher. • Splitter system – assumed 1000 CHF/ TB, total amount for splitters 108 k. CHF. The cost drivers are opto receivers (on the TB as well as on Splitter Bds) / opto transmitters. Jan Królikowski, CMS Annual Review, CERN Sept. 16, 2003 37

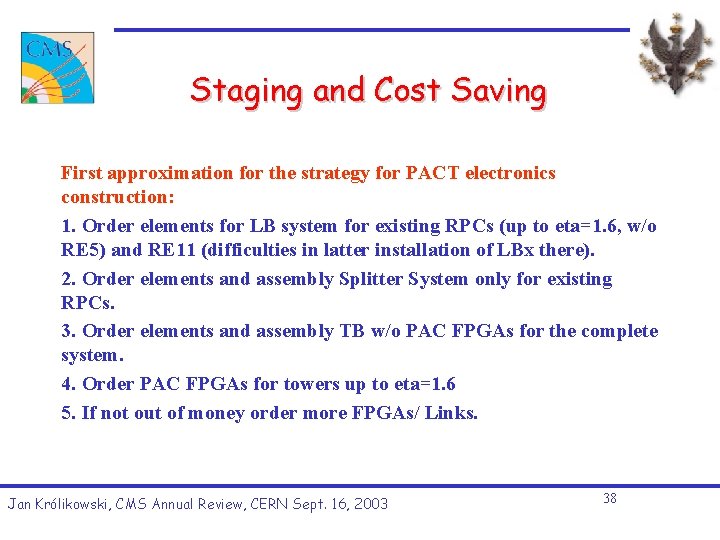

Staging and Cost Saving First approximation for the strategy for PACT electronics construction: 1. Order elements for LB system for existing RPCs (up to eta=1. 6, w/o RE 5) and RE 11 (difficulties in latter installation of LBx there). 2. Order elements and assembly Splitter System only for existing RPCs. 3. Order elements and assembly TB w/o PAC FPGAs for the complete system. 4. Order PAC FPGAs for towers up to eta=1. 6 5. If not out of money order more FPGAs/ Links. Jan Królikowski, CMS Annual Review, CERN Sept. 16, 2003 38

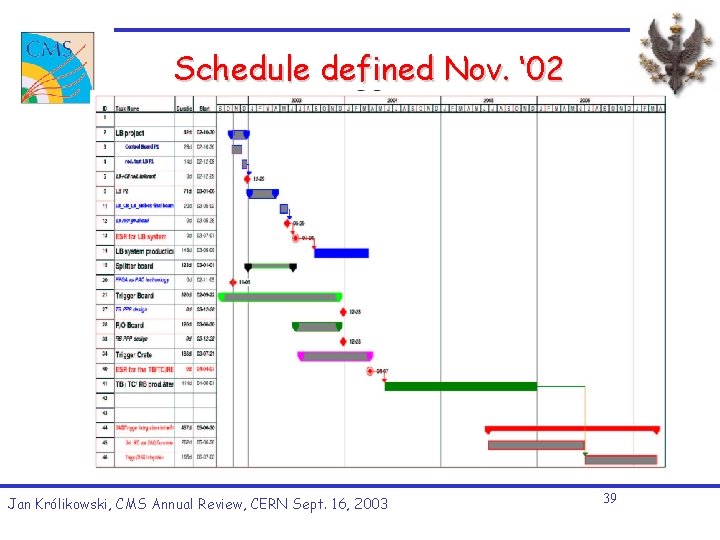

Schedule defined Nov. ‘ 02 Jan Królikowski, CMS Annual Review, CERN Sept. 16, 2003 39

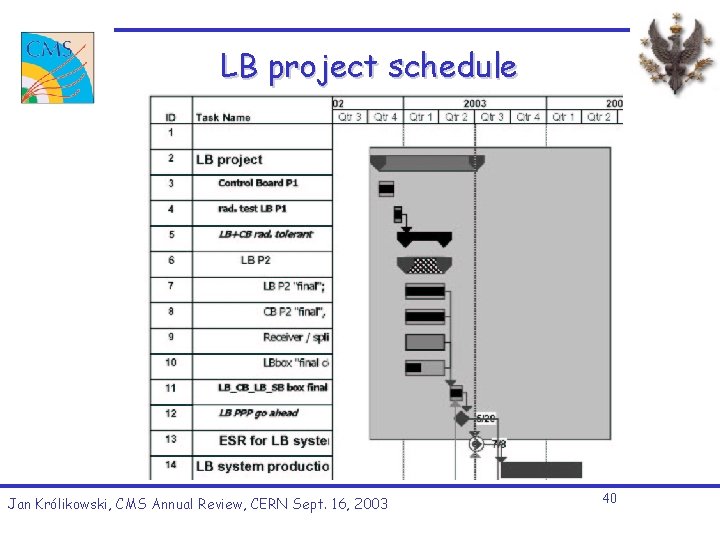

LB project schedule Jan Królikowski, CMS Annual Review, CERN Sept. 16, 2003 40

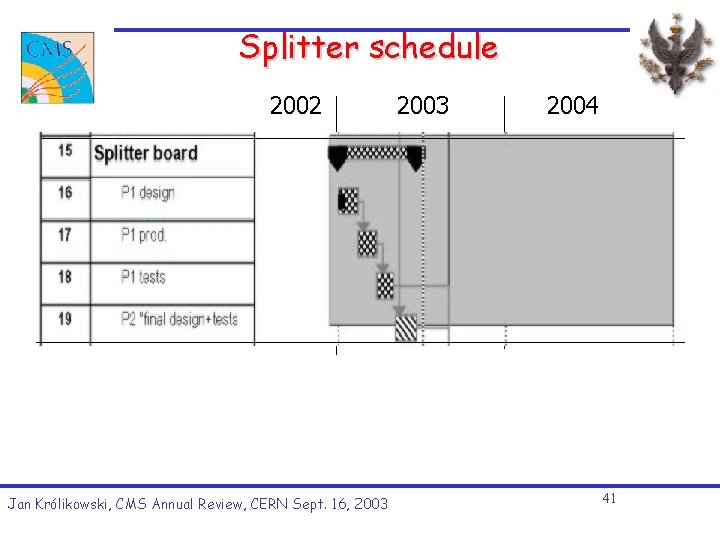

Splitter schedule 2002 Jan Królikowski, CMS Annual Review, CERN Sept. 16, 2003 2004 41

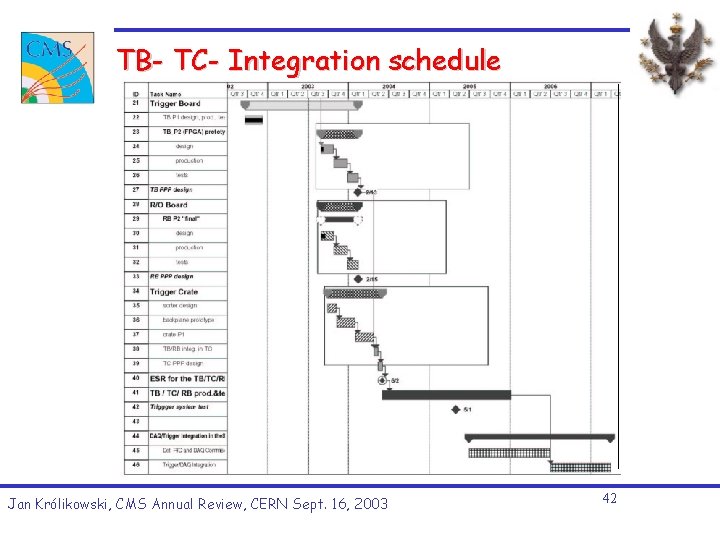

TB- TC- Integration schedule Jan Królikowski, CMS Annual Review, CERN Sept. 16, 2003 42

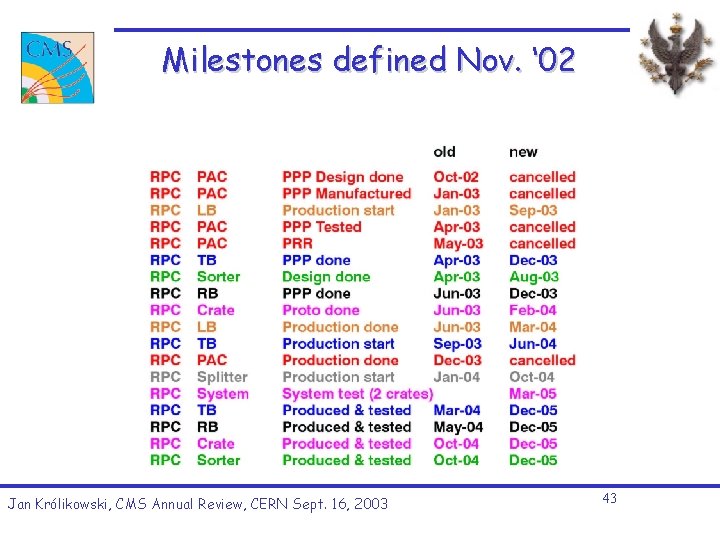

Milestones defined Nov. ‘ 02 Jan Królikowski, CMS Annual Review, CERN Sept. 16, 2003 43

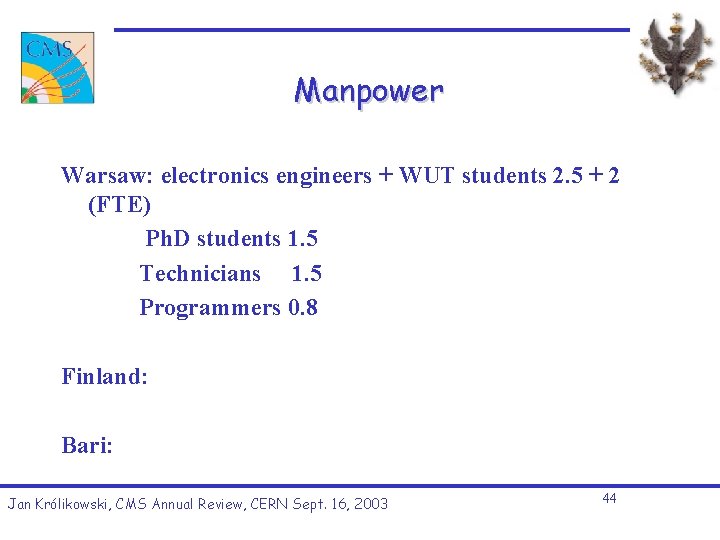

Manpower Warsaw: electronics engineers + WUT students 2. 5 + 2 (FTE) Ph. D students 1. 5 Technicians 1. 5 Programmers 0. 8 Finland: Bari: Jan Królikowski, CMS Annual Review, CERN Sept. 16, 2003 44

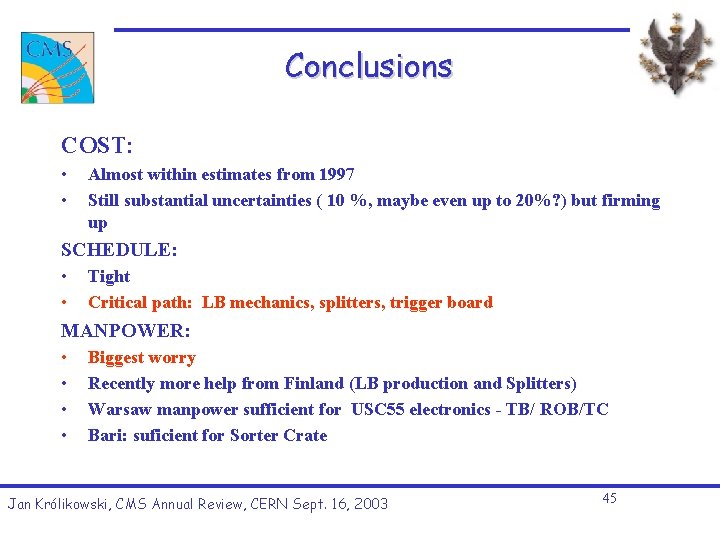

Conclusions COST: • • Almost within estimates from 1997 Still substantial uncertainties ( 10 %, maybe even up to 20%? ) but firming up SCHEDULE: • • Tight Critical path: LB mechanics, splitters, trigger board MANPOWER: • • Biggest worry Recently more help from Finland (LB production and Splitters) Warsaw manpower sufficient for USC 55 electronics - TB/ ROB/TC Bari: suficient for Sorter Crate Jan Królikowski, CMS Annual Review, CERN Sept. 16, 2003 45
