Chapter 19 File Transfer FTP and TFTP Objectives

Chapter 19 File Transfer: FTP and TFTP Objectives Upon completion you will be able to: • Understand the connections needed for FTP file transfer • Be familiar with FTP commands and responses • Know the differences between FTP and TFTP • Be familiar with TFTP message types • Understand TFTP flow and error control TCP/IP Protocol Suite 1

19. 1 FILE TRANSFER PROTOCOL (FTP) File Transfer Protocol (FTP) is the standard mechanism provided by TCP/IP for copying a file from one host to another. The topics discussed in this section include: Connections Communication Command Processing File Transfer Anonymous FTP TCP/IP Protocol Suite 2

Note: FTP uses the services of TCP. It needs two TCP connections. The well-known port 21 is used for the control connection and the well-known port 20 for the data connection. TCP/IP Protocol Suite 3

Figure 19. 1 TCP/IP Protocol Suite FTP 4

Figure 19. 2 TCP/IP Protocol Suite Opening the control connection 5

Figure 19. 3 TCP/IP Protocol Suite Creating the data connection 6

Figure 19. 4 TCP/IP Protocol Suite Using the control connection 7

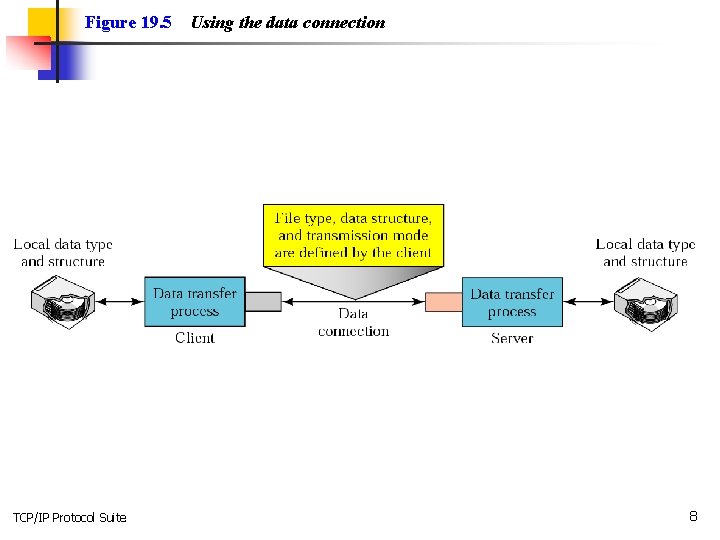

Figure 19. 5 TCP/IP Protocol Suite Using the data connection 8

Figure 19. 6 TCP/IP Protocol Suite Command processing 9

Table 19. 1 Access commands TCP/IP Protocol Suite 10

Table 19. 2 File management commands TCP/IP Protocol Suite 11

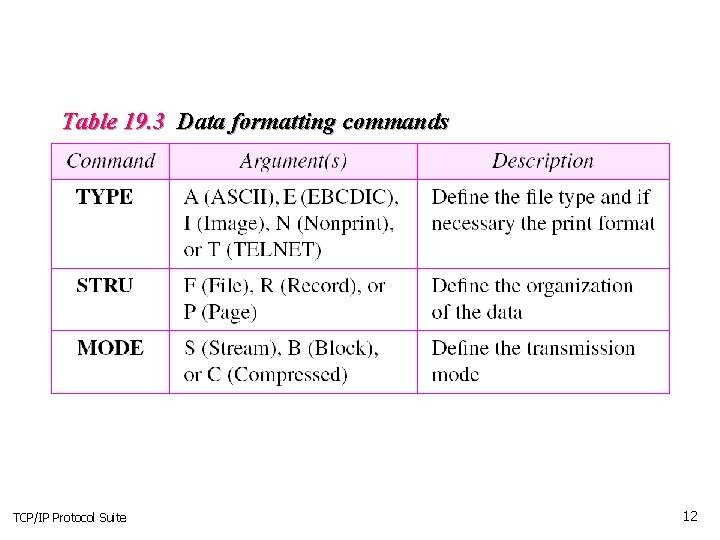

Table 19. 3 Data formatting commands TCP/IP Protocol Suite 12

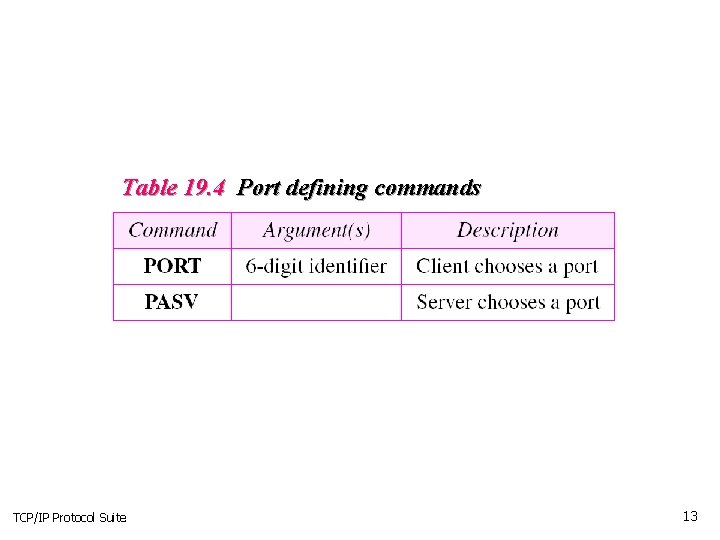

Table 19. 4 Port defining commands TCP/IP Protocol Suite 13

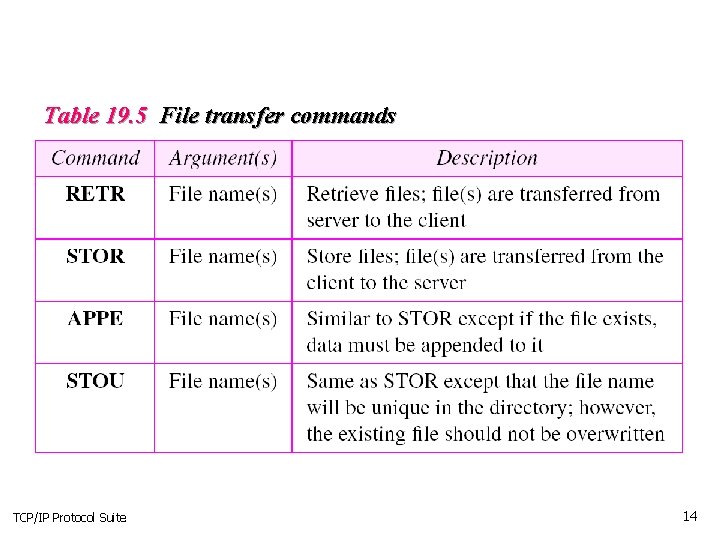

Table 19. 5 File transfer commands TCP/IP Protocol Suite 14

Table 19. 5 File transfer commands (continued) TCP/IP Protocol Suite 15

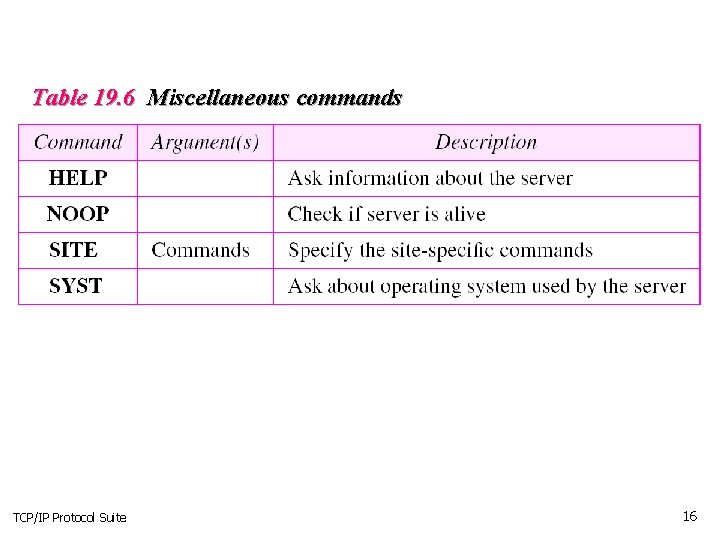

Table 19. 6 Miscellaneous commands TCP/IP Protocol Suite 16

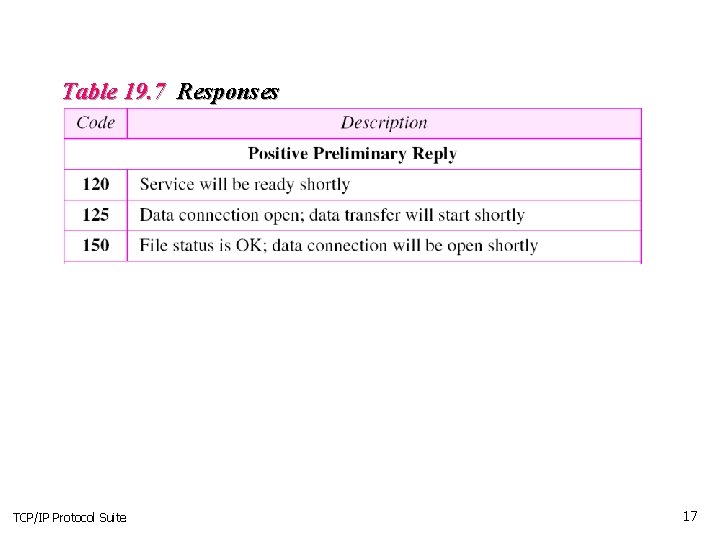

Table 19. 7 Responses TCP/IP Protocol Suite 17

Table 19. 7 Responses (continued) TCP/IP Protocol Suite 18

Table 19. 7 Responses (continued) TCP/IP Protocol Suite 19

Table 19. 7 Responses (continued) TCP/IP Protocol Suite 20

Table 19. 7 Responses (continued) TCP/IP Protocol Suite 21

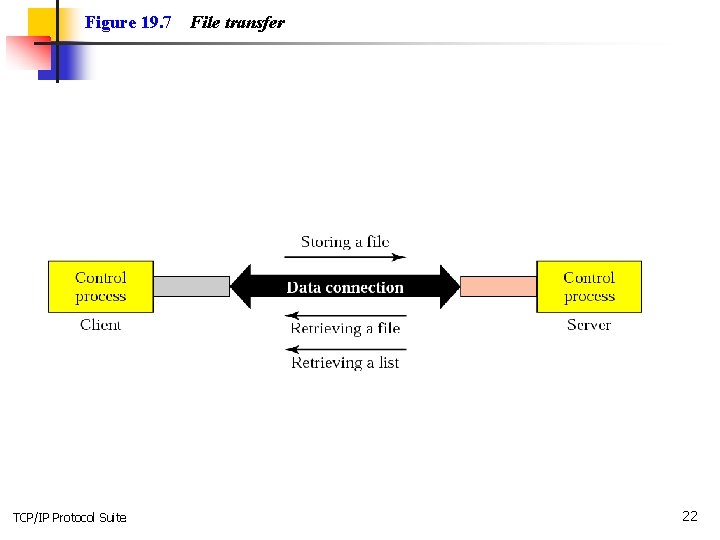

Figure 19. 7 TCP/IP Protocol Suite File transfer 22

Figure 19. 8 TCP/IP Protocol Suite Example 1 23

19. 2 TRIVIAL FILE TRANSFER PROTOCOL (TFTP) Trivial File Transfer Protocol (TFTP) is a simple file transfer protocol without the sophisticated features of FTP. The topics discussed in this section include: Messages Connection Data Transfer UDP Ports TFTP Example TFTP Options Security Applications TCP/IP Protocol Suite 24

Note: TFTP uses the services of UDP on the well-known port 69. TCP/IP Protocol Suite 25

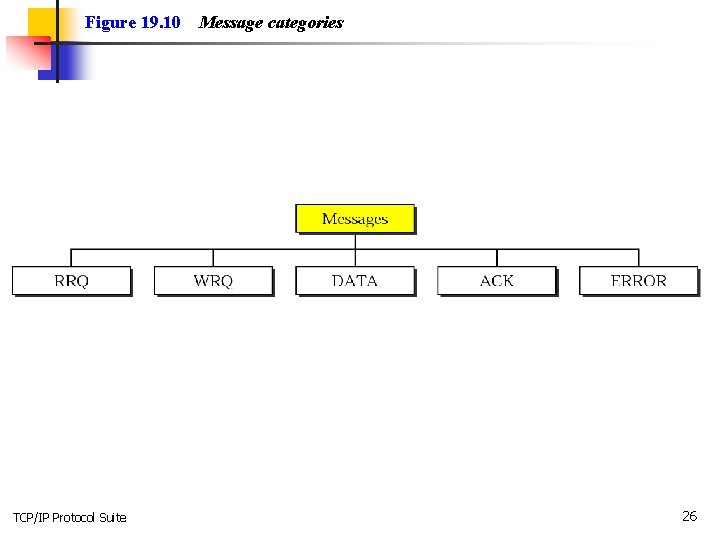

Figure 19. 10 TCP/IP Protocol Suite Message categories 26

Figure 19. 11 TCP/IP Protocol Suite RRQ format 27

Figure 19. 12 TCP/IP Protocol Suite WRQ format 28

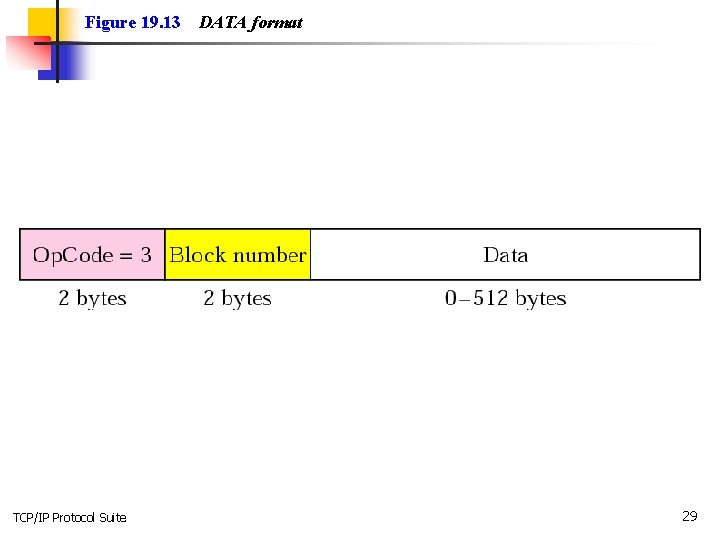

Figure 19. 13 TCP/IP Protocol Suite DATA format 29

Figure 19. 14 TCP/IP Protocol Suite ACK format 30

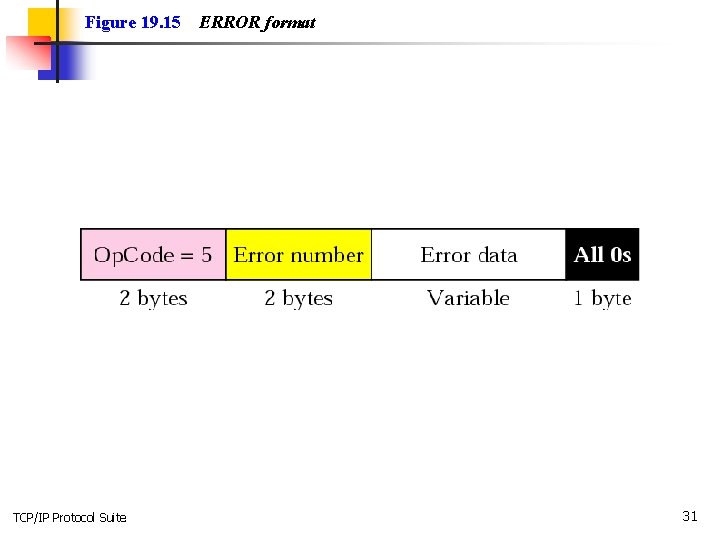

Figure 19. 15 TCP/IP Protocol Suite ERROR format 31

Table 19. 8 Error numbers and their meanings TCP/IP Protocol Suite 32

Figure 19. 16 TCP/IP Protocol Suite Connection establishment 33

Figure 19. 17 TCP/IP Protocol Suite Sorcerer’s apprentice bug 34

Figure 19. 18 TCP/IP Protocol Suite UDP port numbers used by TFTP 35

Figure 19. 19 TCP/IP Protocol Suite TFTP example 36
