App Modernize and build Digital Apps with IBM Mobile Foundation Krishnakumar Bala Lead Offering Manager Sachin Nayak Architect Mobile Foundation Chethan Settipalli Architect Digital App Builder

Agenda • Quick recap of Application Modernization • What is the role of Mobile Foundation in this journey • High Level Omni Channel Reference Architecture • Now lets modernize a legacy App • Demo • Transformation Advisor • Swagger and Open Api’s • Building a front end digital app for the microservice using Digital App Builder • Questions

Modernization journey

Foundation of App Modernization Mobile

Containerized middleware and applications

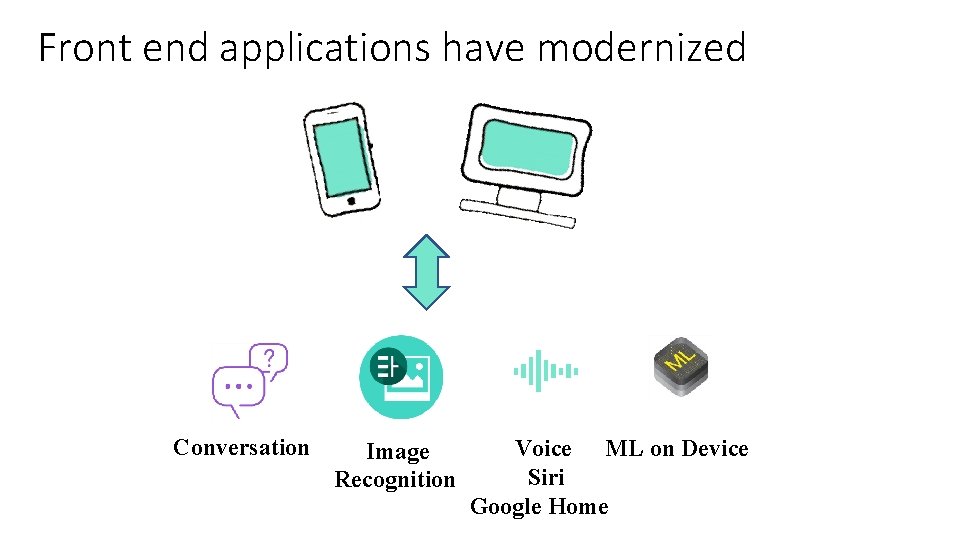

Front end applications have modernized Conversation Image Recognition Voice ML on Device Siri Google Home

Mobile Foundation on ICP Mobile Foundation Capabilities Toolkit, CLIs, Emulators § End-to-end security, App lifecycle management, Push notification, integration with API gateways for mobile API lifecycle management, Offline sync Mobile App Management {API} Comprehensive App Lifecycle Security Management Push, API Integration Segmentation, Offline Sync Feature Toggle Helm chart 1 Platform SDKs Mobile Analytics Helm chart 2 + § Helm charts for easy install, setup and upgrade MF components § Automatically deploy, restart and scale up/down apps, progressively roll out or rollback app changes, Active-active management services topology for HA § App Analytics for usage, crash reporting, health monitoring App Distribution Private App store for Test and Prod § Application Center for app distribution without publishing to public app stores Helm chart 3 Additional Capabilities on IBM Cloud Private § One-click provisioning for Dev, Test and Prod deployments IBM Cloud Private Infrastructure Data & Analytics Services App Mgmt & Security Kubernetes Databases Analytics Core Services Mobile Push App Analytics App Distribution IAM Logging Audit Encryption & Key Management Monitoring Usage Metering Event API & Data Connect Tenant Svcs Selfservice catalog

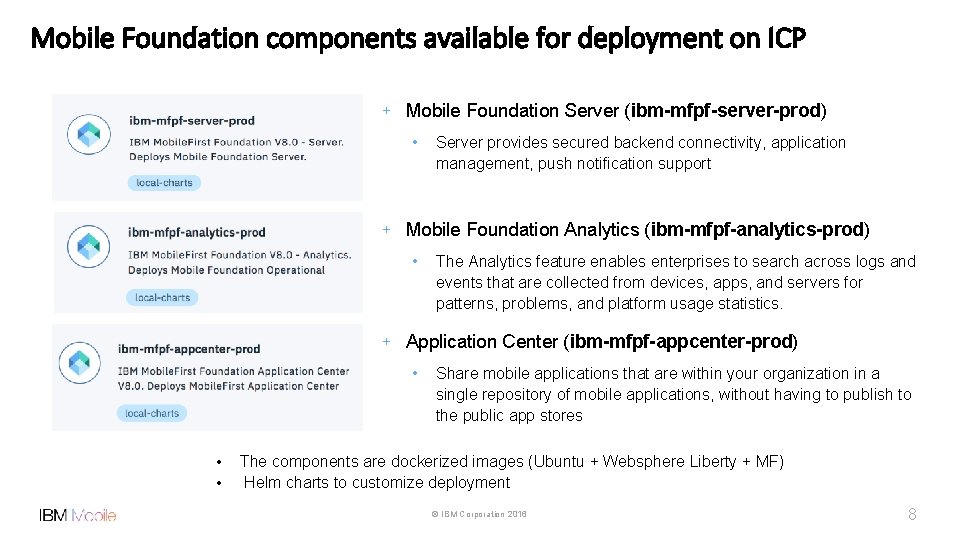

Mobile Foundation components available for deployment on ICP + Mobile Foundation Server (ibm-mfpf-server-prod) • Server provides secured backend connectivity, application management, push notification support + Mobile Foundation Analytics (ibm-mfpf-analytics-prod) • The Analytics feature enables enterprises to search across logs and events that are collected from devices, apps, and servers for patterns, problems, and platform usage statistics. + Application Center (ibm-mfpf-appcenter-prod) • • • Share mobile applications that are within your organization in a single repository of mobile applications, without having to publish to the public app stores The components are dockerized images (Ubuntu + Websphere Liberty + MF) Helm charts to customize deployment © IBM Corporation 2016 8

IBM Digital App Builder Build Mobile [ Andoid, IOS ] Web PWA Workbench to build apps Jump to Code View Data Sets to define Data for apps Preview and Deploy Watson AI Components Core. ML Configure Push © IBM Corporation 2016 9

Kubernetes Architecture Container Runtime container App App runtime-libs App accessed by end users pod Container image registry pod - 2 pod - n Worker-1 kubeproxy pod - 2 … … manages containerized applications across multiple hosts, provides basic mechanisms for deployment, maintenance, and scaling of applications pod - 1 kubeproxy kubelet pod - 1 … kubeproxy pod - 2 … pod - 1 Kubernetes Helm chart repository kubelet pod - n charts Worker-N Worker-2 helm cli Install chart / delete release API Server kubectl tiller etcd Admin UI Controller. Manager scheduler Master Node cluster

High Level Omnichannel Digital Solution Architecture Systems of Records IBM Cloud Private Core Banking Enterprise Services Layer Cards MFP Gateway Loans Other ID Management Insights Channel Layer Microservices Layer Enterprise Data Dev. Ops, Kubernetes, Network, Infra-security, Devops

Cloud Private Lets modernize a Sample App : Mod. Resorts
