A Smart Metering Scenario Jorge Cuellar Jan Stijohann
- Slides: 18
A Smart Metering Scenario Jorge Cuellar, Jan Stijohann, Santiago Suppan Siemens AG 14. 05. 2013
Agenda General Context: Smart Grid Security § Common Terminology Description of the Scenario Environment § Case Overview Tomorrow: Possible worst case scenarios § Threat and Attack Analysis 2
General Context: Smart Grid Security I Motivation § 70% of urban population will live in cities by 2050 § Current energy supply affected by: • Blackouts • Power overloads • High costs § Upcoming challenges: • Distributed power supply …Regenerative sources in many places • Scarcity of resources …Intermittent power supply 3
Properties of the Smart Grid Self-monitoring Auto-balancing Self-Regulating Efficient Cost reducing Those properties are necessary to cope with the requirements of future power supply § Energy is flowing in both directions § Amount of energy must be carefully controlled § Incentives must be provided • to consume / store energy • only when production is high • in real-time 4
Entities (Roles) Energy Generators Energy Suppliers § Data Communication Network § Network Gateway § Energy Supply Server Prosumer & Home Domain § Smart Appliances § Smart Meter § (Wireless) Home Area Network § Home Gateway § Home Energy Management System Meter Point Operator 5
Data Flow REMS: Remote device for Control & Usage Display ESS: Energy Supplier Server Energy Generation („SA“) S&C EMS: Control & Usage Display BDF ABD Third Parties: PDD Energy Generator etc DCN NG: NW Gateway Intern et HG: Home Gateway Data Energy 20°C SA: Smart Appliances SA: Thermostat S&C SA: TV Vehicle Charging („SA“) SA BD HAN: Home Area Network ABD Solar TN: Transmission Node SM: Smart Meter Raw BD 6
Data Flow Raw BD (Raw Billing Data) § All data related to energy consumption, storage and production § Gathered by the SM BD (Billing Data) § Processed and stored by the SM and the (local) EMS. REMS S&C ESS BDF S&C EMS ABD HG 3 P PDD S&C TV BD DCN NG HAN ABD Solar TN SM Raw BD ABD (Aggregated Billing Data) § Sent to the NG over the public Data Communication Network and forwarded to the Energy Supplier PDD (data for power generation and distribution purposes) § Aggregated by ES from ABD of several households § Purpose: usage forecasts for certain sectors 7
Data Flow BDF (Billing Data Feedback Information) § Every ± 5 minutes § Users are informed § Energy usage, generation volume, costs, revenues, and current rates REMS S&C ESS BDF RS&C ABD § View the smart appliances’ status § Control of the Smart Appliances or modification of the energy management policies S&C HG 3 P PDD TV BD DCN NG HAN ABD S&C (Status and Control) § Local logon to the EMS Solar TN SM Raw BD RS&C (Remote S&C) § Remotely logon to the EMS § Using e. g. , a cellular phone or a remote PC § From external hot spots (e. g. , internet café) 8
Suggestions for Worst Cases Threat and Attack Analysis Jorge Cuellar, Jan Stijohann, Santiago Suppan Siemens AG 14. 05. 2013

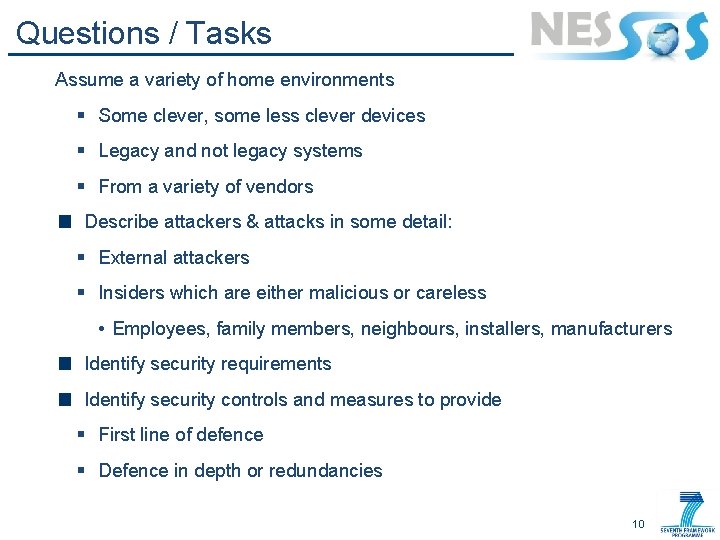

Questions / Tasks Assume a variety of home environments § Some clever, some less clever devices § Legacy and not legacy systems § From a variety of vendors Describe attackers & attacks in some detail: § External attackers § Insiders which are either malicious or careless • Employees, family members, neighbours, installers, manufacturers Identify security requirements Identify security controls and measures to provide § First line of defence § Defence in depth or redundancies 10

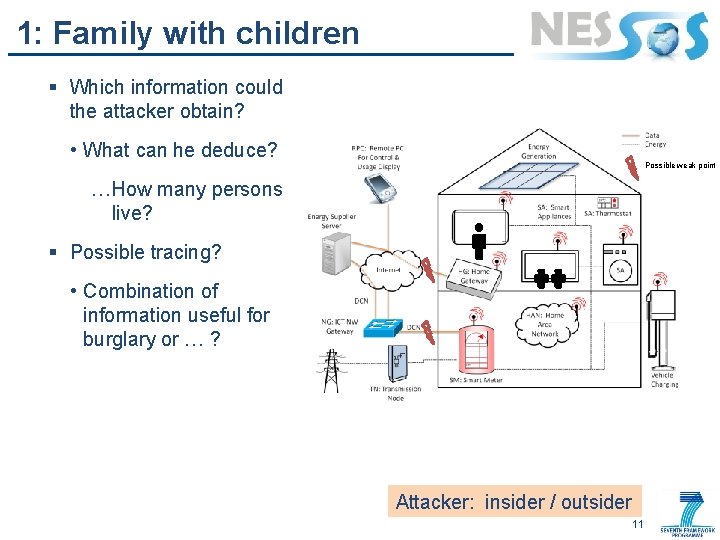

1: Family with children § Which information could the attacker obtain? • What can he deduce? Possible weak point …How many persons live? § Possible tracing? • Combination of information useful for burglary or … ? Attacker: insider / outsider 11
2: Smart Appliances Which appliances are “smart”? What kind of information (R/S&C) do they process? What are the appliances’ functionalities? Can a successful attack to an appliance lead to a compromise of the AMI? Attacker: insider / outsider 12
3: Privacy Initial assumption: all communication is encrypted § Possible to read / disclose / etc. information regardless of encryption? § Time / Communication Parties / Message length etc. , help disclose the payload data? § Possible to misuse insider status (Prosumer / Energy Supplier)? Attacker: insider / outsider 13
4: Impersonation § How to impersonate another customer for accounting fraud? § Possible to impersonate a server? § With which results? X Possible impersonation or interference Attacker: insider / outsider 14
5: Encryption & Key mgmt Assume: Communication is encrypted § Possible to bypass the communication encryption? Possible weak point § Possible to extract keys or to intercept key exchanges or key updates? § Possible to exploit implementation weaknesses at the network / transport / application layer? § Possible to exploit insider status? Attacker: insider / outsider 15
6: Electric Mobility Assumption: Electric vehicles share an unique vehicle ID § Possible impersonation? § Possible fraud? uv. ID § Possible tracing? § Possible theft? § … Attacker: insider / outsider 16
Thank You! Any questions? e. Rise Challenge 2013 14. 05. 2013
REMS S&C ESS S&C BDF EMS S&C ABD 3 P HG PDD TV BD DCN HAN NG ABD Solar TN Raw BD SM 18
