1 Systems Requirement Review Presentation Joe Appel Todd

1

Systems Requirement Review Presentation Joe Appel Todd Beeby Julie Douglas Konrad Habina Katie Irgens Jon Linsenmann David Lynch Dustin Truesdell 2

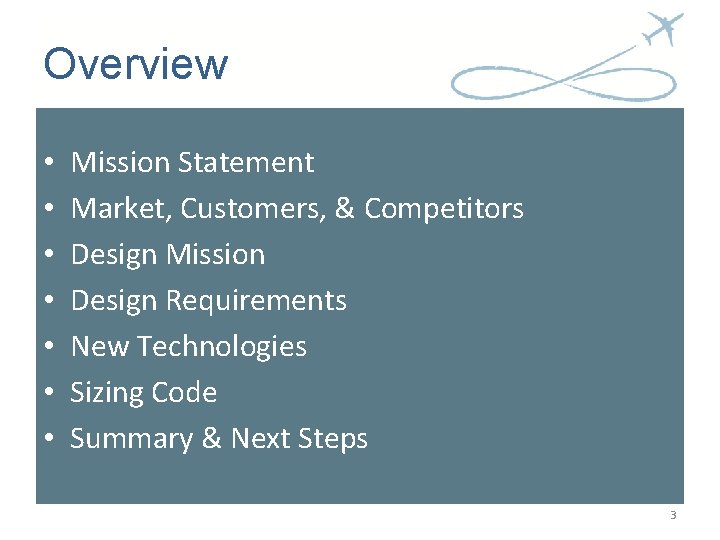

Overview • • Mission Statement Market, Customers, & Competitors Design Mission Design Requirements New Technologies Sizing Code Summary & Next Steps 3

Mission Statement • Design an Environmentally Responsible Aircraft (ERA) that lowers noise, minimizes emissions, and reduces fuel burn • Utilize new technology to develop a competitive medium-size aircraft that meets the demands of transportation for continental market • Deliver a business plan focusing on capitalizing on growing markets • Submit final design to NASA ERA College Student Challenge 4

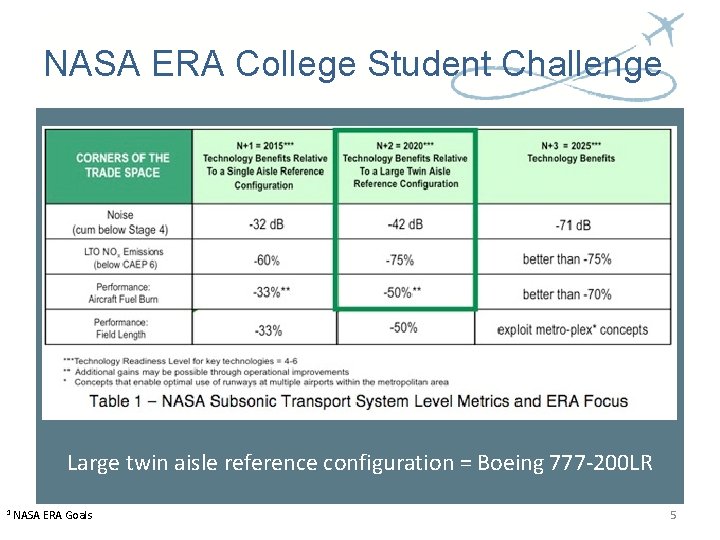

NASA ERA College Student Challenge Large twin aisle reference configuration = Boeing 777 -200 LR 1 NASA ERA Goals 5

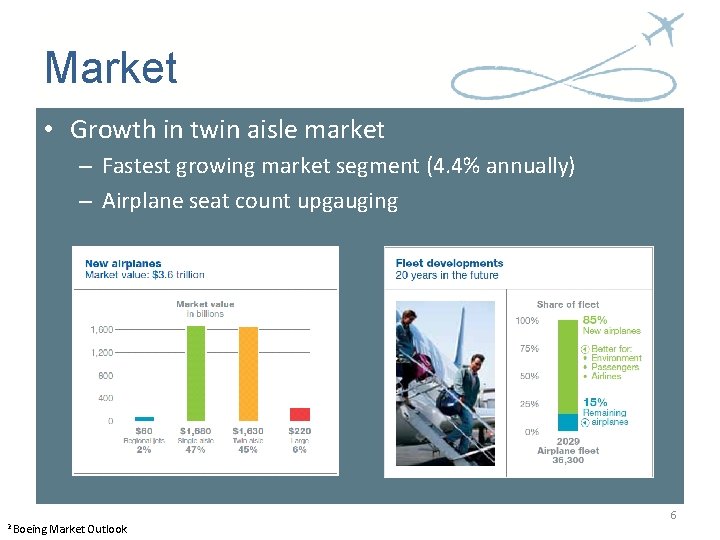

Market • Growth in twin aisle market – Fastest growing market segment (4. 4% annually) – Airplane seat count upgauging 2 Boeing Market Outlook 6

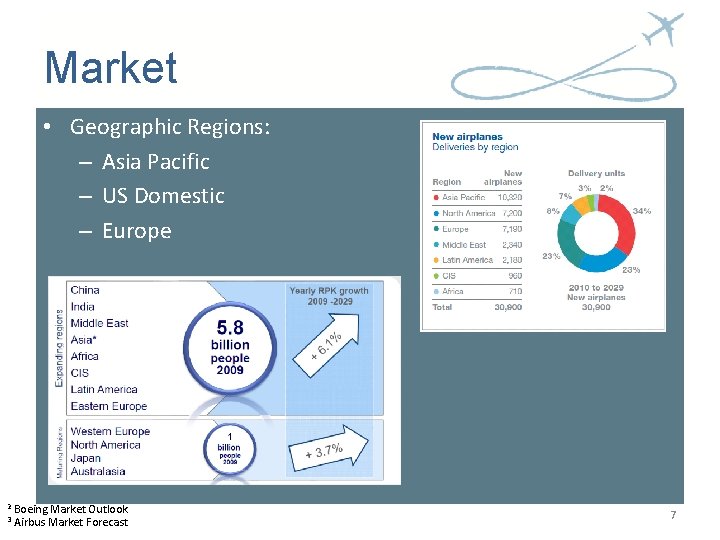

Market • Geographic Regions: – Asia Pacific – US Domestic – Europe 2 Boeing Market Outlook 3 Airbus Market Forecast 7

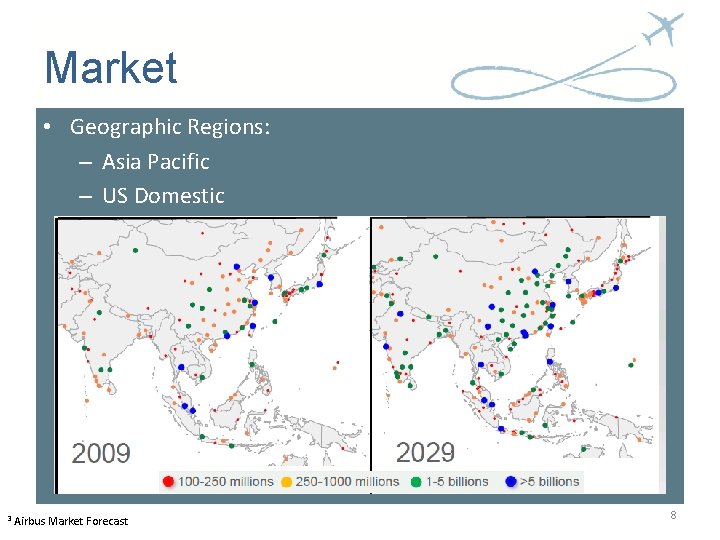

Market • Geographic Regions: – Asia Pacific – US Domestic 3 Airbus Market Forecast 8

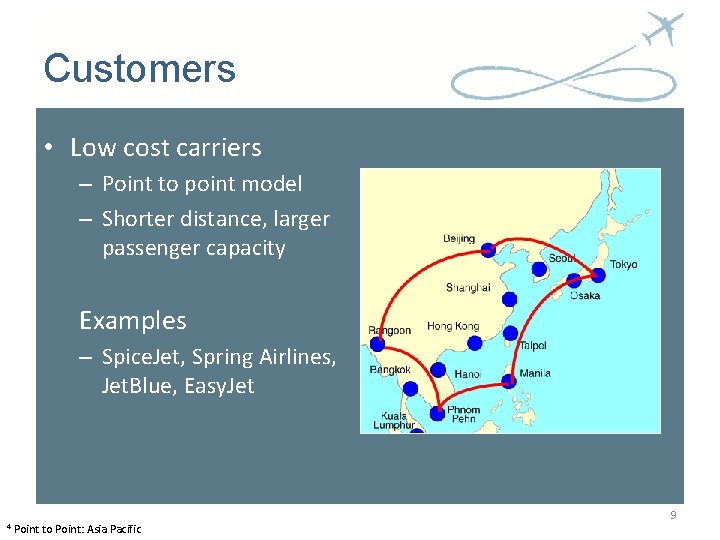

Customers • Low cost carriers – Point to point model – Shorter distance, larger passenger capacity Examples – Spice. Jet, Spring Airlines, Jet. Blue, Easy. Jet 4 Point to Point: Asia Pacific 9

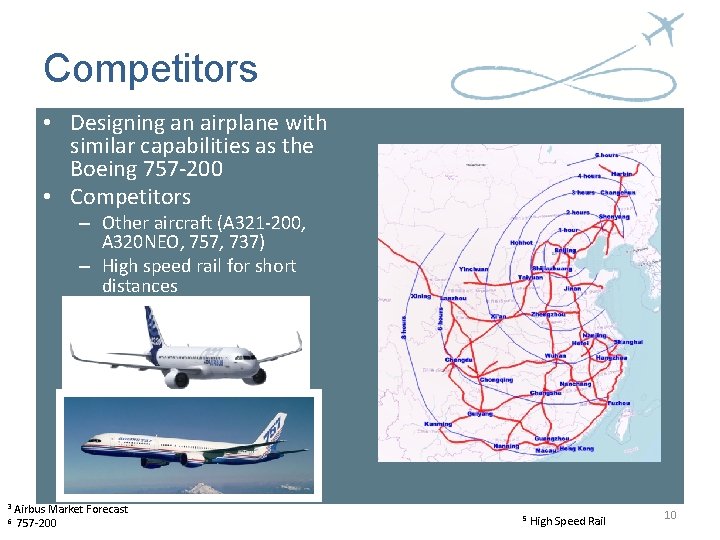

Competitors • Designing an airplane with similar capabilities as the Boeing 757 -200 • Competitors – Other aircraft (A 321 -200, A 320 NEO, 757, 737) – High speed rail for short distances 3 Airbus Market Forecast 6 757 -200 5 High Speed Rail 10

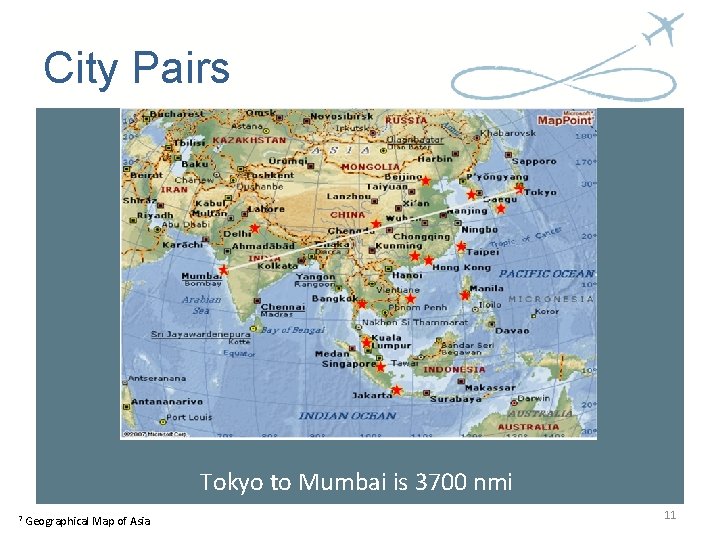

City Pairs Tokyo to Mumbai is 3700 nmi 7 Geographical Map of Asia 11

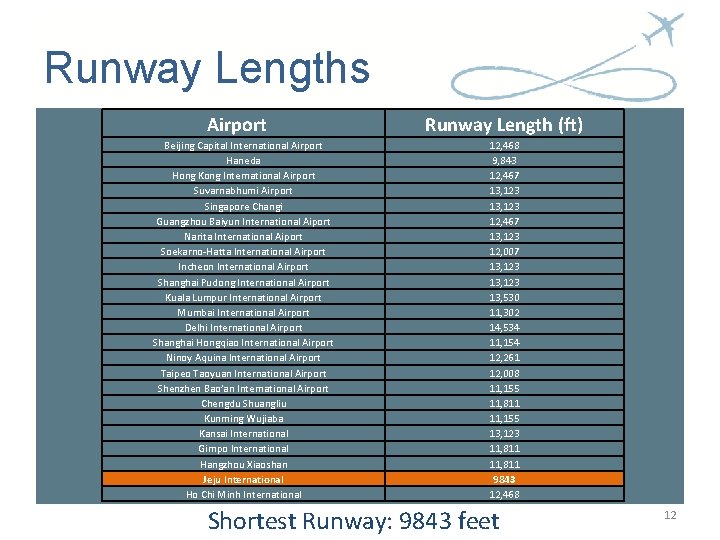

Runway Lengths Airport Beijing Capital International Airport Haneda Hong Kong International Airport Suvarnabhumi Airport Singapore Changi Guangzhou Baiyun International Aiport Narita International Aiport Soekarno-Hatta International Airport Incheon International Airport Shanghai Pudong International Airport Kuala Lumpur International Airport Mumbai International Airport Delhi International Airport Shanghai Hongqiao International Airport Ninoy Aquina International Airport Taipeo Taoyuan International Airport Shenzhen Bao’an International Airport Chengdu Shuangliu Kunming Wujiaba Kansai International Gimpo International Hangzhou Xiaoshan Jeju International Ho Chi Minh International Runway Length (ft) 12, 468 9, 843 12, 467 13, 123 12, 007 13, 123 13, 530 11, 302 14, 534 11, 154 12, 261 12, 008 11, 155 11, 811 11, 155 13, 123 11, 811 9843 12, 468 Shortest Runway: 9843 feet 12

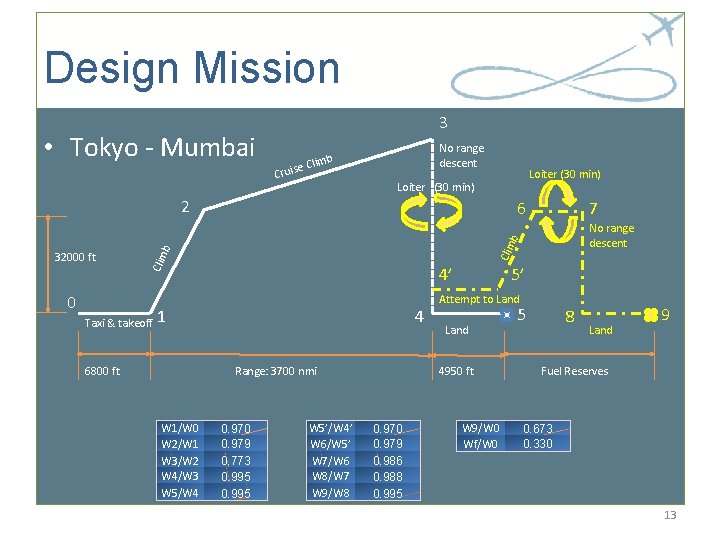

Design Mission • Tokyo - Mumbai 3 No range descent imb se Cl Crui Loiter (30 min) Loiter (30 min) 2 6 7 b Clim 32000 ft Clim b No range descent 0 Taxi & takeoff 4’ 1 6800 ft 4 Range: 3700 nmi W 1/W 0 W 2/W 1 W 3/W 2 W 4/W 3 W 5/W 4 0. 970 0. 979 0. 773 0. 995 W 5’/W 4’ W 6/W 5’ W 7/W 6 W 8/W 7 W 9/W 8 5’ Attempt to Land 4950 ft 0. 970 0. 979 0. 986 0. 988 0. 995 W 9/W 0 Wf/W 0 5 8 Land 9 Fuel Reserves 0. 673 0. 330 13

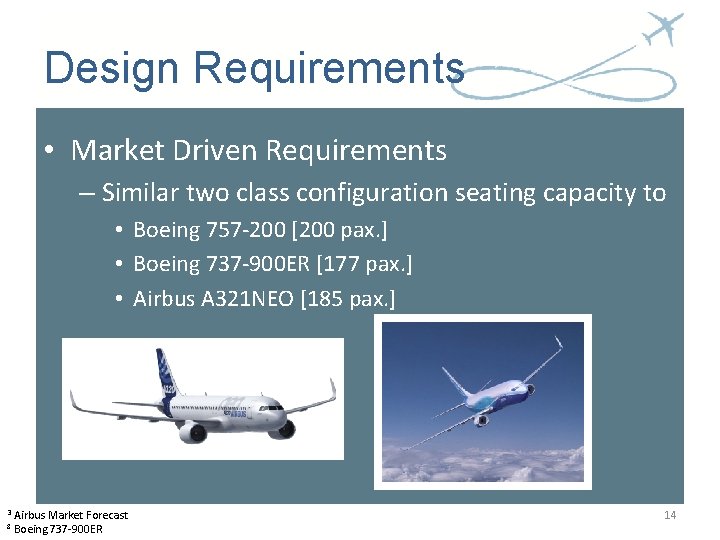

Design Requirements • Market Driven Requirements – Similar two class configuration seating capacity to • Boeing 757 -200 [200 pax. ] • Boeing 737 -900 ER [177 pax. ] • Airbus A 321 NEO [185 pax. ] 3 Airbus Market Forecast 8 Boeing 737 -900 ER 14

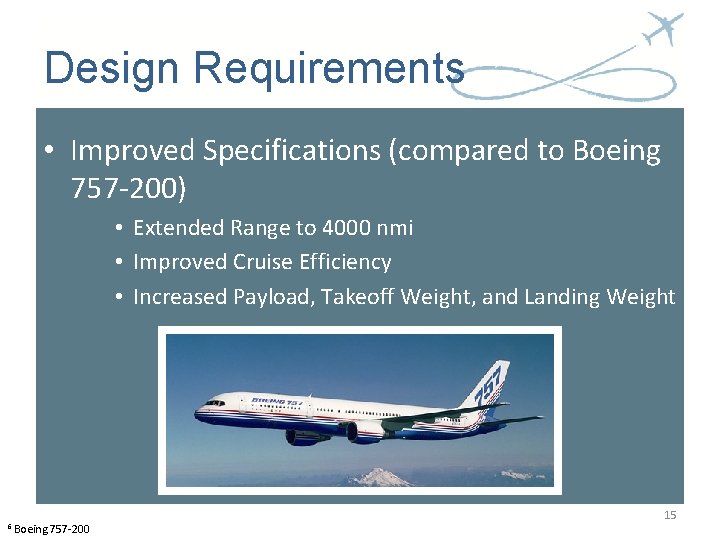

Design Requirements • Improved Specifications (compared to Boeing 757 -200) • Extended Range to 4000 nmi • Improved Cruise Efficiency • Increased Payload, Takeoff Weight, and Landing Weight 6 Boeing 757 -200 15

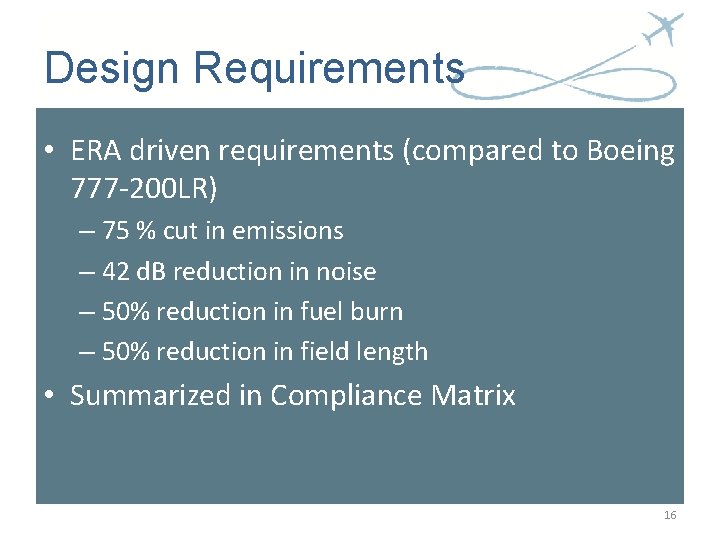

Design Requirements • ERA driven requirements (compared to Boeing 777 -200 LR) – 75 % cut in emissions – 42 d. B reduction in noise – 50% reduction in fuel burn – 50% reduction in field length • Summarized in Compliance Matrix 16

Design Requirements Compliance Matrix 17

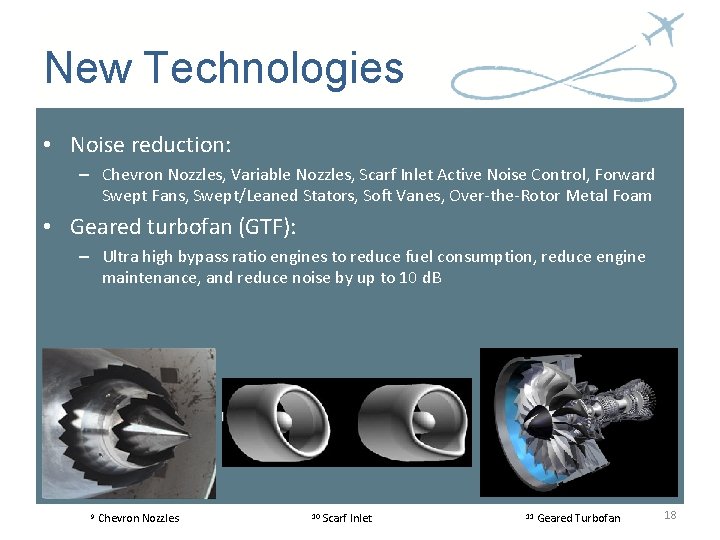

New Technologies • Noise reduction: – Chevron Nozzles, Variable Nozzles, Scarf Inlet Active Noise Control, Forward Swept Fans, Swept/Leaned Stators, Soft Vanes, Over-the-Rotor Metal Foam • Geared turbofan (GTF): – Ultra high bypass ratio engines to reduce fuel consumption, reduce engine maintenance, and reduce noise by up to 10 d. B 9 Chevron Nozzles 10 Scarf Inlet 11 Geared Turbofan 18

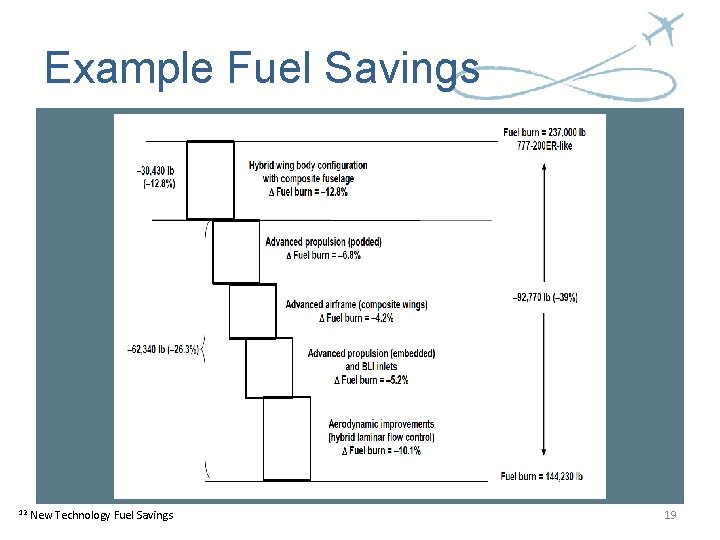

Example Fuel Savings 12 New Technology Fuel Savings 19

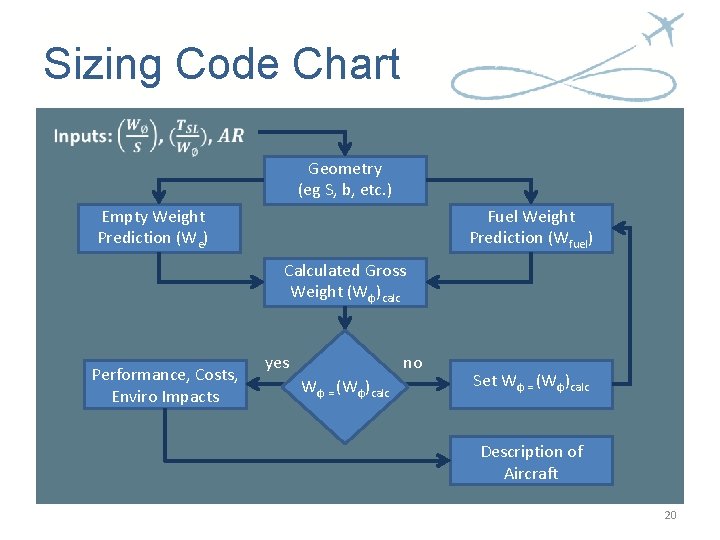

Sizing Code Chart Geometry (eg S, b, etc. ) Empty Weight Prediction (We) Fuel Weight Prediction (Wfuel) Calculated Gross Weight (Wφ)calc Performance, Costs, Enviro Impacts yes no Wφ = (Wφ)calc Set Wφ = (Wφ)calc Description of Aircraft 20

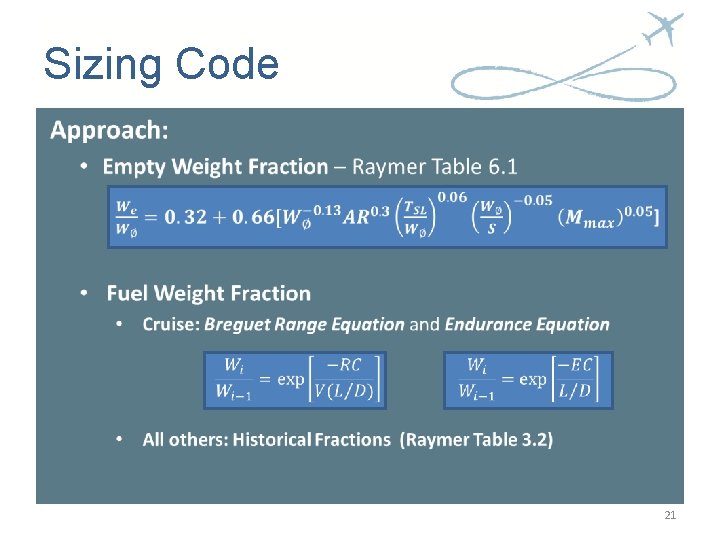

Sizing Code 21

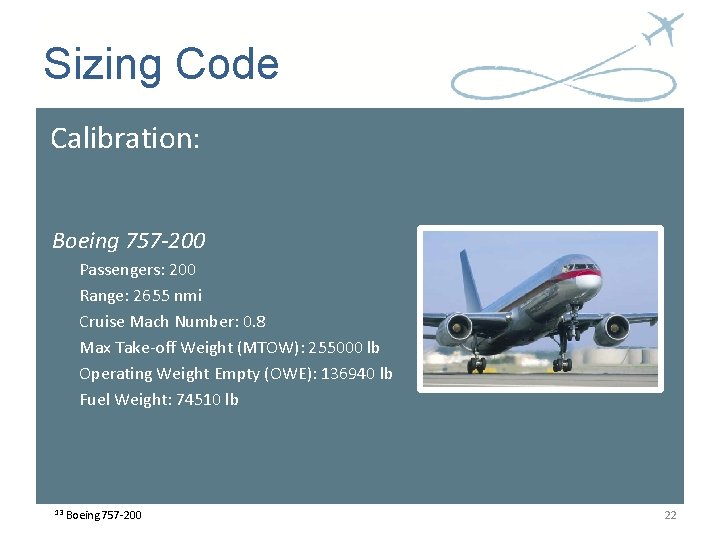

Sizing Code Calibration: Boeing 757 -200 Passengers: 200 Range: 2655 nmi Cruise Mach Number: 0. 8 Max Take-off Weight (MTOW): 255000 lb Operating Weight Empty (OWE): 136940 lb Fuel Weight: 74510 lb 13 Boeing 757 -200 22

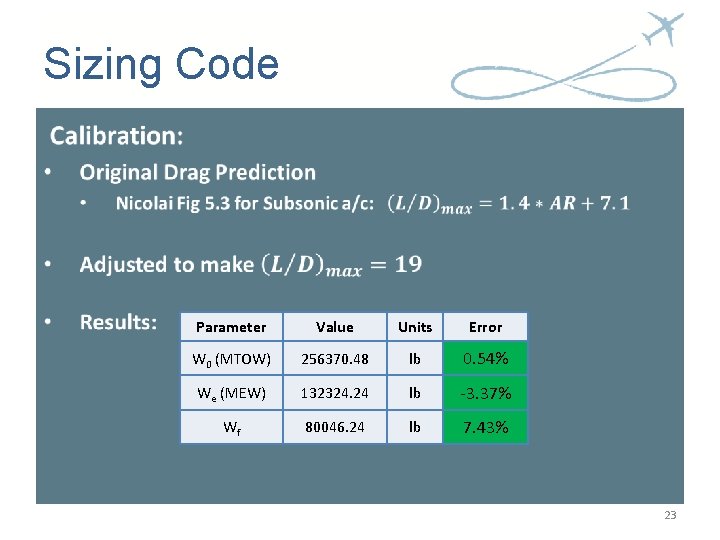

Sizing Code Parameter Value Units Error W 0 (MTOW) 256370. 48 lb 0. 54% We (MEW) 132324. 24 lb -3. 37% Wf 80046. 24 lb 7. 43% 23

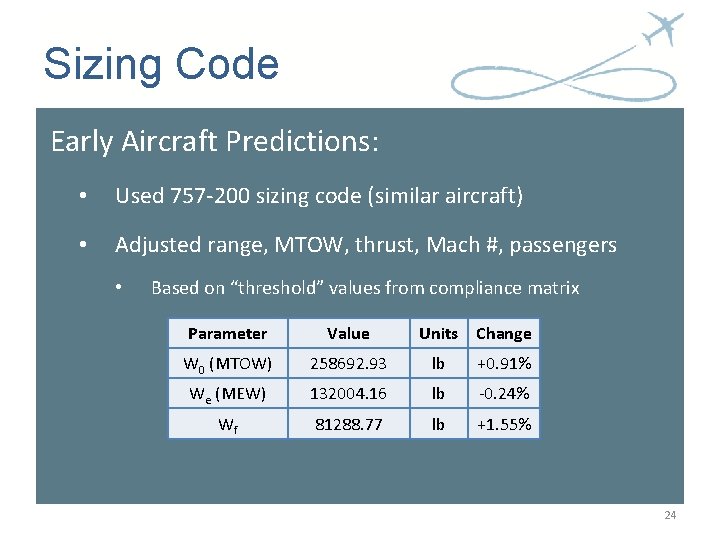

Sizing Code Early Aircraft Predictions: • Used 757 -200 sizing code (similar aircraft) • Adjusted range, MTOW, thrust, Mach #, passengers • Based on “threshold” values from compliance matrix Parameter Value Units Change W 0 (MTOW) 258692. 93 lb +0. 91% We (MEW) 132004. 16 lb -0. 24% Wf 81288. 77 lb +1. 55% 24

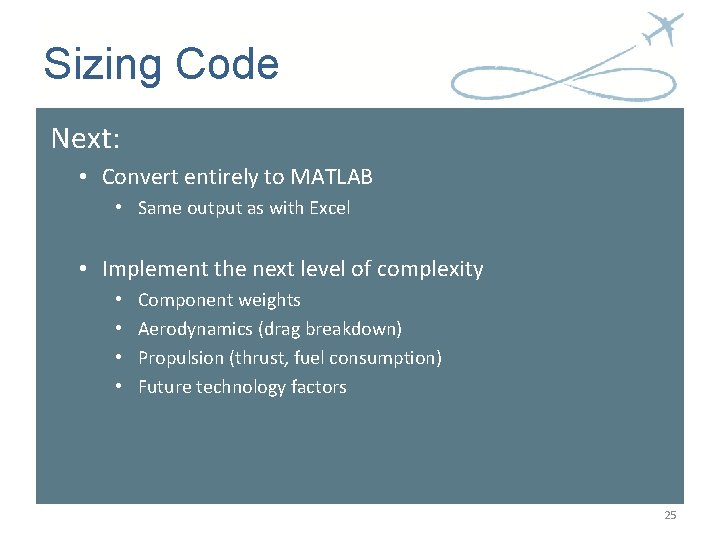

Sizing Code Next: • Convert entirely to MATLAB • Same output as with Excel • Implement the next level of complexity • • Component weights Aerodynamics (drag breakdown) Propulsion (thrust, fuel consumption) Future technology factors 25

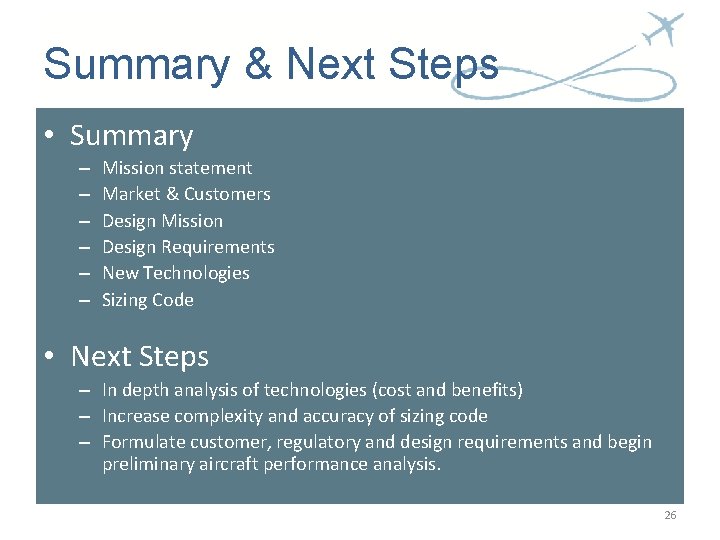

Summary & Next Steps • Summary – – – Mission statement Market & Customers Design Mission Design Requirements New Technologies Sizing Code • Next Steps – In depth analysis of technologies (cost and benefits) – Increase complexity and accuracy of sizing code – Formulate customer, regulatory and design requirements and begin preliminary aircraft performance analysis. 26

27

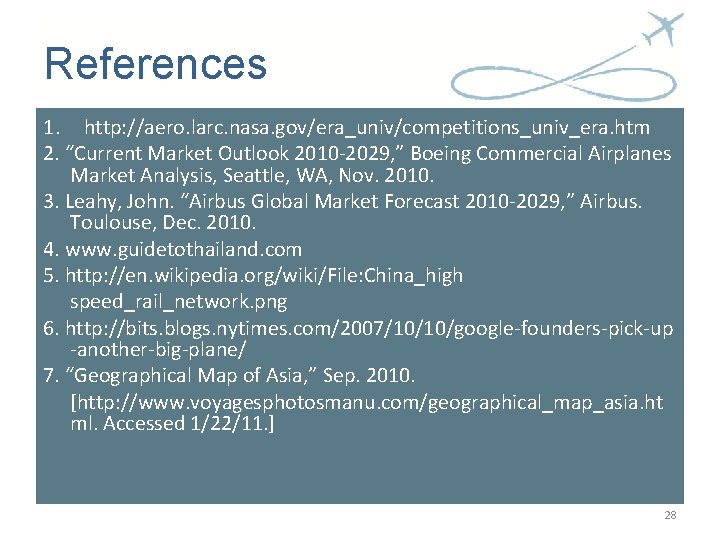

References 1. http: //aero. larc. nasa. gov/era_univ/competitions_univ_era. htm 2. “Current Market Outlook 2010 -2029, ” Boeing Commercial Airplanes Market Analysis, Seattle, WA, Nov. 2010. 3. Leahy, John. “Airbus Global Market Forecast 2010 -2029, ” Airbus. Toulouse, Dec. 2010. 4. www. guidetothailand. com 5. http: //en. wikipedia. org/wiki/File: China_high speed_rail_network. png 6. http: //bits. blogs. nytimes. com/2007/10/10/google-founders-pick-up -another-big-plane/ 7. “Geographical Map of Asia, ” Sep. 2010. [http: //www. voyagesphotosmanu. com/geographical_map_asia. ht ml. Accessed 1/22/11. ] 28

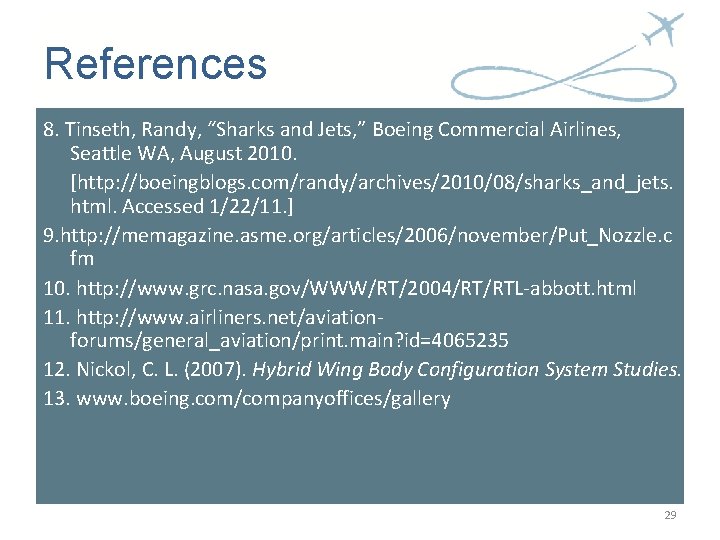

References 8. Tinseth, Randy, “Sharks and Jets, ” Boeing Commercial Airlines, Seattle WA, August 2010. [http: //boeingblogs. com/randy/archives/2010/08/sharks_and_jets. html. Accessed 1/22/11. ] 9. http: //memagazine. asme. org/articles/2006/november/Put_Nozzle. c fm 10. http: //www. grc. nasa. gov/WWW/RT/2004/RT/RTL-abbott. html 11. http: //www. airliners. net/aviationforums/general_aviation/print. main? id=4065235 12. Nickol, C. L. (2007). Hybrid Wing Body Configuration System Studies. 13. www. boeing. com/companyoffices/gallery 29
