Windows Media Center On Intel Viiv Technology Cliff

Windows Media Center On Intel® Viiv™ Technology Cliff Laney Architecture Manager Consumer PC Architecture Intel Digital Home Group Home networking requires additional devices, software or services. Ability to share some content is limited; Subject to authorization from the content owner or service provider and network device capability. Verified devices and services will vary; Check for desired features/functionality. May require TV tuner card and/or remote which may be sold separately. Instant on/off feature works after initial boot, when activated. System performance will vary depending on your hardware and software configurations. Intel’s network setup software currently only supports DHCP (“Always On”) and PPPo. E broadband connectivity protocols. PPPo. A, PPt. P, and other protocols require use of router manufacturer’s network setup software. Check verified router specifications against Internet provider requirements before purchasing. See www. intel. com/go/viiv_info for more information

Agenda What is Intel® Viiv™ technology? What powers Intel® Viiv™ technology? Demo of things to come

Intel® Viiv™ technology provides consumers a great digital entertainment experience… …allowing them to better access, share and control their digital media

Intel® Viiv™ technology is a “platform” or a combination of Intel’s hardware and software ingredients making it easier for consumers to choose the PC that has been designed for digital entertainment

® Intel Viiv™ Technology Platform Capabilities CE-like Features for Simplified Entertainment Instant on/off (after initial boot when activated) Simple navigation to online services Enables smaller/quieter systems Performance for High Definition Entertainment Intel’s latest dual core, 65 nm processors: Including Intel ® Core™ 2 Duo processor Up to 7. 1 surround sound Enjoyment of high definition video Connectivity for the Latest Online Entertainment New digital media services worldwide Up to 1 Gigabit Ethernet networking Enabling and verification program to identify great, new online services PCs designed to deliver new high definition, digital entertainment experiences

What Are The Features Of An Intel® Viiv™ Technology PC? Intel dual core processor, including Intel® Core™ 2 Duo processor that powers new digital experiences in the home Microsoft Media Center Edition* enables great experiences with digital media, locally or on the internet and extends the experiences to other devices in the home Intel digital home chipset that provides for up to 1080 i high definition video support and a home theater quality audio experience (up to 7. 1) Intel Wired Lan for fast broadband connectivity Intel Quick Resume Technology drivers for a more CE like instant on/off experience (after initial boot, when activated) Intel Matrix Storage Technology driver to enable consumers to backup their favorite digital memories Access to Intel Viiv-verified services and applications that provide a great entertainment experience * Other names and brands may be claimed as the property of others

® Intel Viiv™ Technology Great Media Intel® Viiv™ Technology Branded PCs Connected Electronics Services and Applications

Intel® Viiv™ Technology The Engine Under The Hood

Next Generation Dual Core Processors Intel® Core™ 2 Duo Processor (Formerly known by the codename Conroe) Next generation of technology Intel® Core™ microarchitecture Revolutionary performance High energy efficiency Performance for an Enhanced Digital Entertainment Experience See http: //www. intel. com/performance for more information

Five Key Innovations Intel® Wide Dynamic Execution Intel® Intelligent Power Capability Intel® Advanced Digital Media Boost Intel® Smart Memory Access Intel® Advanced Smart Cache

Five Key Innovations Intel® Wide Dynamic Execution 4 -wide Intel® Intelligent Power Capability 14 -stage pipeline Intel® Advanced Digital Media Boost Micro-fusion Macro-fusion Intel® Advanced Smart Cache Intel® Smart Memory Access

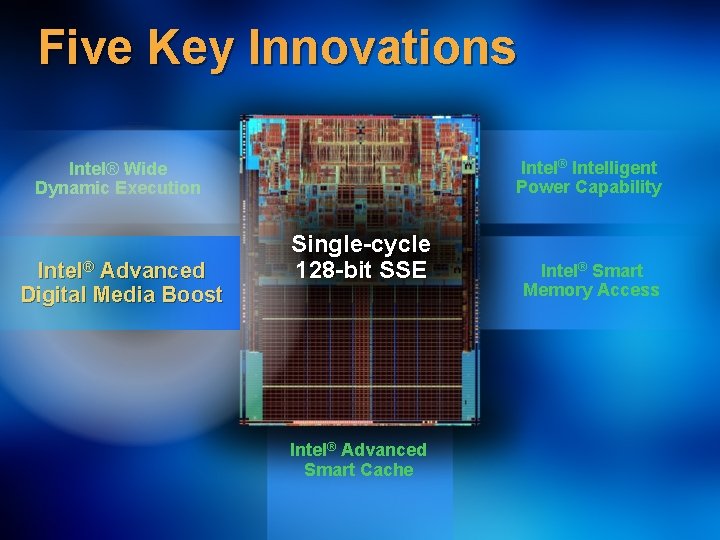

Five Key Innovations Intel® Intelligent Power Capability Intel® Wide Dynamic Execution Intel® Advanced Digital Media Boost Single-cycle 128 -bit SSE Intel® Advanced Smart Cache Intel® Smart Memory Access

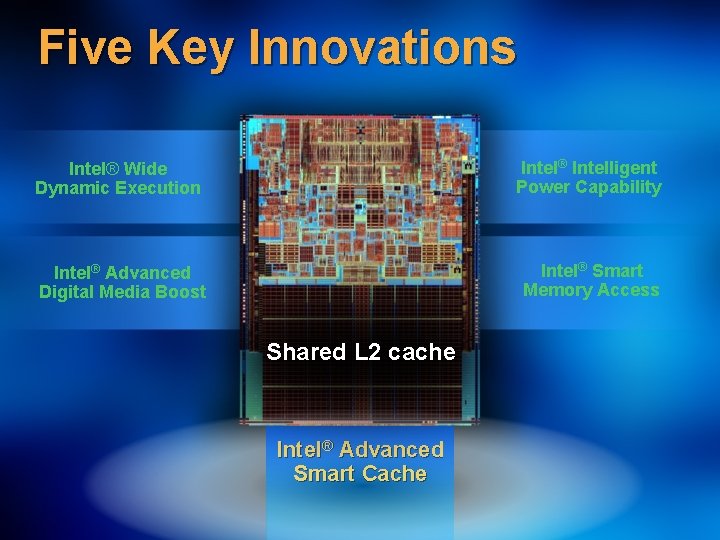

Five Key Innovations Intel® Wide Dynamic Execution Intel® Intelligent Power Capability Intel® Advanced Digital Media Boost Intel® Smart Memory Access Shared L 2 cache Intel® Advanced Smart Cache

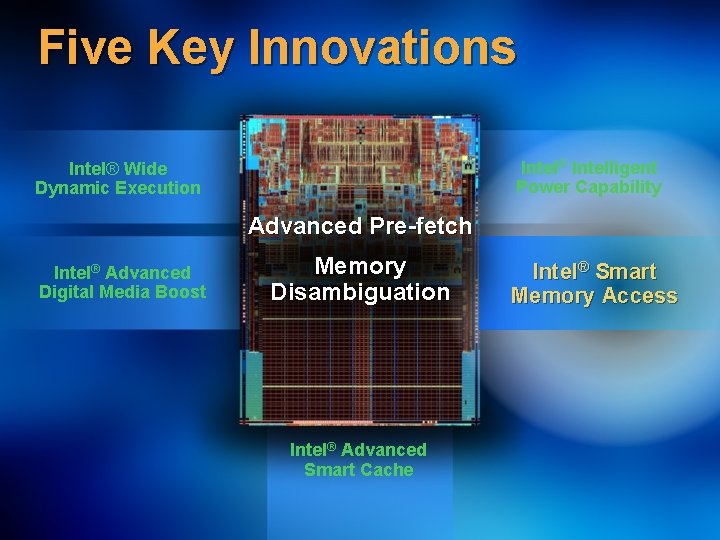

Five Key Innovations Intel® Intelligent Power Capability Intel® Wide Dynamic Execution Advanced Pre-fetch Intel® Advanced Digital Media Boost Memory Disambiguation Intel® Advanced Smart Cache Intel® Smart Memory Access

Five Key Innovations Intel® Intelligent Power Capability Intel® Wide Dynamic Execution Intel® Advanced Digital Media Boost Advanced Power Gating Intel® Advanced Smart Cache Intel® Smart Memory Access

® Intel Core™ Microarchitecture Feature Intel® Advanced Smart Cache Intel® Advanced Digital Media Boost Intel® Wide Dynamic Execution Description l Up to 4 MB shared and multi -core optimized L 2 cache l Higher L 2 cache to processor core bandwidth l Single cycle SSE/2/3 instruction execution Function l Improves execution core access to data in high perf. L 2 cache l Dynamically allocates cache based on core workload- entire L 2 cache can be allocated to one core (dedicated L 2 for each core in PDP and K 8 DC) l Allows 128 bit SSE/2/3 instructions to execute in a single clock cycle (versus 2 cycles for PDP, Yonah-DC, and K 8 DC) Benefit l Better performance on single and multithreaded applications l Better performance on video, gaming and multimedia applications (Applications that rely on SSE instructions) l Efficient 4 -wide, 14 stage pipeline l Executes 4 instructions per clock (versus 3 per clock with PDP, Yonah-DC, and K 8 DC) l Better performance on multiple application types and user environments Intel® Intelligent Power Capability l Powers on processor elements only when needed l More precise control of power to buses and arrays l Conroe 65 W desktop mainstream TDP l Merom continues low power mobile processor direction l Can help enable quieter, lower power system designs Intel® Smart Memory Access l Improved pre-fetchers l Out of order memory access l Feeds the Intel Wide Dynamic Execution engine (ie, “fuel- l Better performance on all injection” for the Core engine) types of applications and user environments l Benefits for memory operations reduce latency New levels of performance and power efficiency based on Intel® Core. TM Microarchitecture

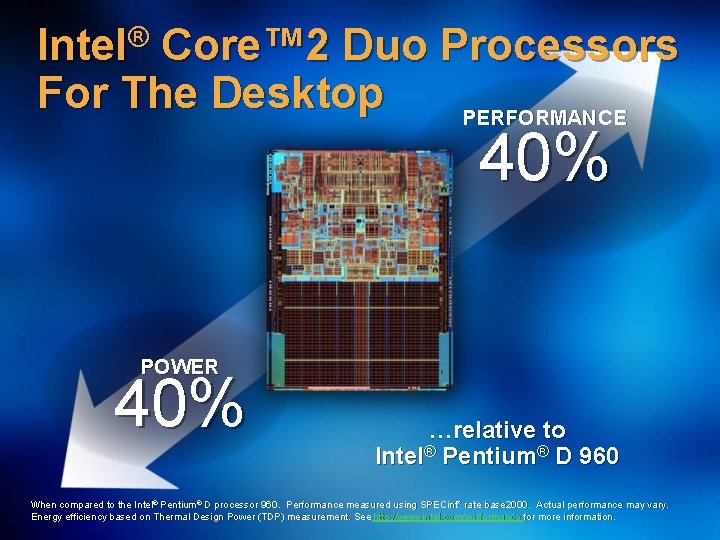

® Intel Core™ 2 Duo Processors For The Desktop PERFORMANCE 40% POWER 40% …relative to Intel® Pentium® D 960 When compared to the Intel® Pentium® D processor 960. Performance measured using SPECint* rate base 2000. Actual performance may vary. Energy efficiency based on Thermal Design Power (TDP) measurement. See http: // www. intel. com/performance for more information. Energy efficiency based on Thermal Design Power (TDP) measurement. See http: //www. intel. com

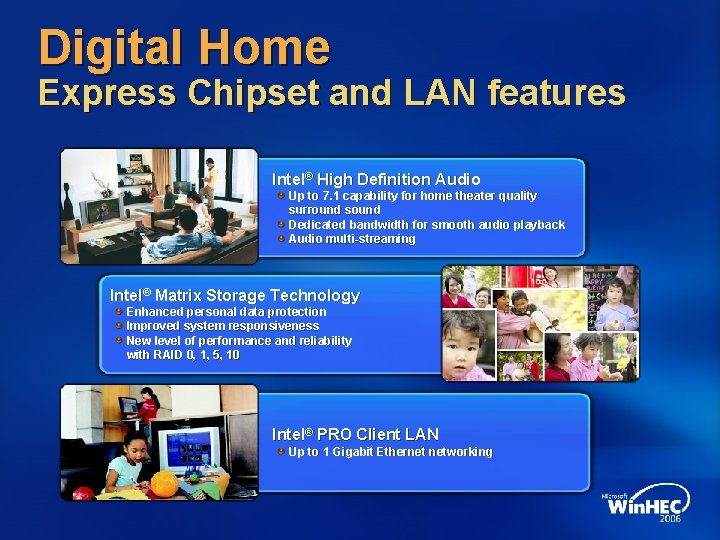

Digital Home Express Chipset and LAN features Intel® High Definition Audio Up to 7. 1 capability for home theater quality surround sound Dedicated bandwidth for smooth audio playback Audio multi-streaming Intel® Matrix Storage Technology Enhanced personal data protection Improved system responsiveness New level of performance and reliability with RAID 0, 1, 5, 10 Intel® PRO Client LAN Up to 1 Gigabit Ethernet networking

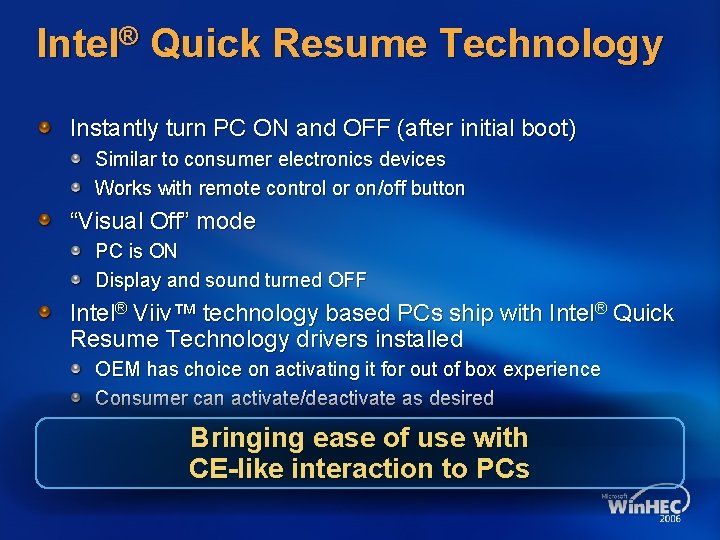

Intel® Quick Resume Technology Instantly turn PC ON and OFF (after initial boot) Similar to consumer electronics devices Works with remote control or on/off button “Visual Off” mode PC is ON Display and sound turned OFF Intel® Viiv™ technology based PCs ship with Intel® Quick Resume Technology drivers installed OEM has choice on activating it for out of box experience Consumer can activate/deactivate as desired Bringing ease of use with CE-like interaction to PCs

Intel® Core™ 2 Duo Processor + Intel® 965 Express Chipset Family Intel’s highest-performance desktop dual-core engine 1 Multi-core optimized shared cache Revolutionary dual-core performance Based on Intel ® Core™ Microarchitecture Helps to enable quieter and lower power PCs Intel® Intelligent Power Capability 65 W mainstream processor TDP Advanced fan speed control Intel® Advanced Smart Cache Industry-leading gaming 2 Significant video enhancements Intel® Wide Dynamic Execution Intel® Smart Memory Access Intel® Advanced Digital Media Boost Intel® Clear Video Technology Advanced manageability and increased security New Intel Graphics with advanced 3 D Intel® AMT with Circuit Breaker Intel® Virtualization Technology Supports Microsoft* Vista Premium Experience Better storage and data protection Intel® Matrix Storage Technology Advanced Digital Display Support Best when used in Intel® Viiv™ technology platforms High-definition Multimedia Interface Next generation platform delivering new levels of performance and capabilities 1 Performance measured using SPECint*_rate_base 2000, comparing Conroe XE processor to Intel® Pentium® processor Extreme Edition 965. Actual performance may vary. See http: // www. intel. com/performance for more information. 2 Performance measured using 3 DMark*06 – CPU test and SPECint*_rate_base 2000. Actual may vary. See http: //www. intel. com performance may vary. Note: Certain features may be available only on particular SKUs

2007 Concept PC “Hi Def Companion” An innovative PC design for the digital living room of the future A true step forward in the evolution of PCs, opens up the possibilities of the Hi Def TV Intel technology for an amazing digital entertainment experience Dual-core processor to support multiple applications and multiple streams Intel® Viiv™ technology to access and enjoy expanding list of premium content Intel® High Definition Audio™ supporting up to 7. 1 surround sound Including high def playback capabilities to enjoy downloaded high def movies Cutting-edge technologies HDMI Satellite TV conditional access tuner or two cable TV tuners Innovative search and navigation… multiple modes of convenient access to digital content, allowing consumers to personalize their entertainment experience Intel® Encourage innovative designs for Viiv™ technology-based PCs in the living room

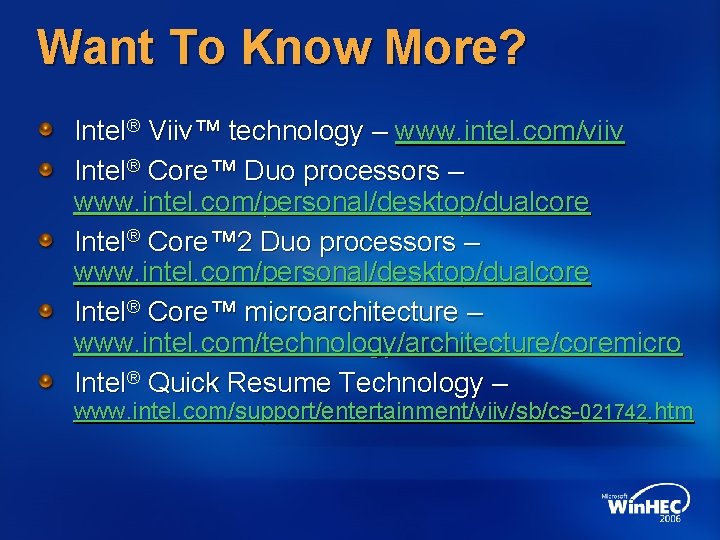

Want To Know More? Intel® Viiv™ technology – www. intel. com/viiv Intel® Core™ Duo processors – www. intel. com/personal/desktop/dualcore Intel® Core™ 2 Duo processors – www. intel. com/personal/desktop/dualcore Intel® Core™ microarchitecture – www. intel. com/technology/architecture/coremicro Intel® Quick Resume Technology – www. intel. com/support/entertainment/viiv/sb/cs-021742. htm
