Why we use banked Instruction Cache To enable
Why we use banked Instruction Cache • To enable multiple threads to fetch instructions concurrently, the instruction cache must be able to supply multiple cache lines in the same cycle • Multiporting the cache, but this would substantially increase the size of the cache, slow it down, and increase the power consumption • That’s why we go with banked cache, adding a bank access controller that schedule the access to the bank [1]
Interleaved Organization I • Low-order interleaving, low-order bits of the address are used to identify the modules, the high-order bits are word addresses • High-order interleaving, high-order bits are module addresses, while low-order bits are word addresses
Interleaved Organization II • High- and low-order interleaving can be combined to yield different interleaved organizations, the high-order bits are used to address banks and the low-order bits are used to address modules, why middle bits used to address words • If fault tolerance is an issue which can not be ignored, then tradeoffs do exist between the degree of interleaving and the number of banks used. [2]

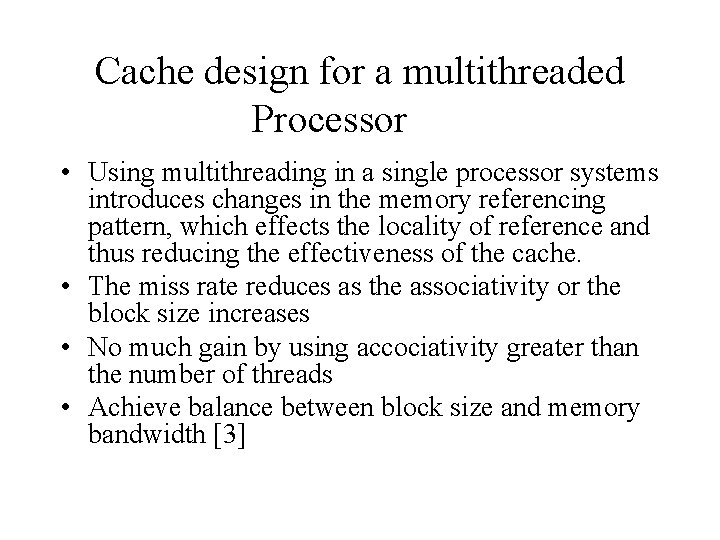

Cache design for a multithreaded Processor • Using multithreading in a single processor systems introduces changes in the memory referencing pattern, which effects the locality of reference and thus reducing the effectiveness of the cache. • The miss rate reduces as the associativity or the block size increases • No much gain by using accociativity greater than the number of threads • Achieve balance between block size and memory bandwidth [3]

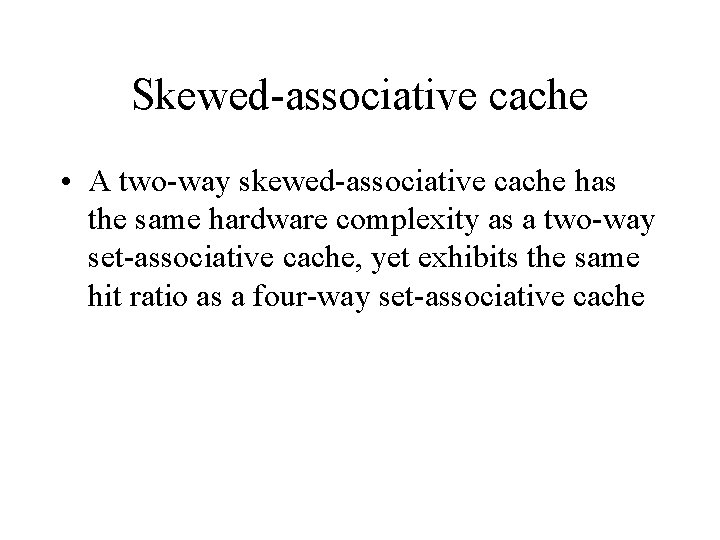

Skewed-associative cache • A two-way skewed-associative cache has the same hardware complexity as a two-way set-associative cache, yet exhibits the same hit ratio as a four-way set-associative cache
References • Paramjit Oberoi and Gurindar Sohi, “Out-of-Order Instruction Fetch using Multiple Sequencers”, The 2002 International Conference on Parallel Processing, Aug 18– 21, 2002 • Kai Huang, “Advanced Computer Architecture – Parallelism, Scalability, Programmability”, Mc. Graw-Hill 1993 • Dimitris Liopis and Sotris Milios, “Exploring the Cache Design Space in a Multithreaded Processor”, University of Patras, Greece • Andre Seznec, “A case for two-way skewed-associative caches”, ISCA 1993
