Water Heat Exchanger 5 series PAW250 WP5 G











- Slides: 11

Water Heat Exchanger 5 series PAW-250 W(P)5 G, PAW-500 W(P)5 G, PAW-710 W(P)5 G Update May. 2018

Water Heat Exchanger New 5 series Available in Jun. 2018

New : PAW-250/500/710 W(P)5 G Current Capacity With pump 4 series 250 500 710 PAW-***WX 4 E 5 N Without pump PAW-***WX 4 E 5 N 2 New Capacity 5 series (Jun. 2018) 250 500 710 With pump PAW-***WP 5 G Without pump PAW-***W 5 G P A W - *** W P 5 Generation G ※Image of new 5 series 230 V Pump Water Capacity code (250, 500, 710) External supplier

Highlighted features 1. Superior external static pressure • • New efficient pump built in Max. 9. 5 m, 217% increased vs conventional model (PAW-250 WP 5 G model) 2. Space saving solution • • Vertical stacking up to 3 units available Accessory kit : PAW-3 WSK for vertical stacking installation 3. Quality improvement • • • Water filter built in as standard Pressure switch positioned to protect plate heat exchanger from freezing efficiently Antifreeze temperature sensor Water temperature thermistor in thermowell Flow switch is pre-calibrated

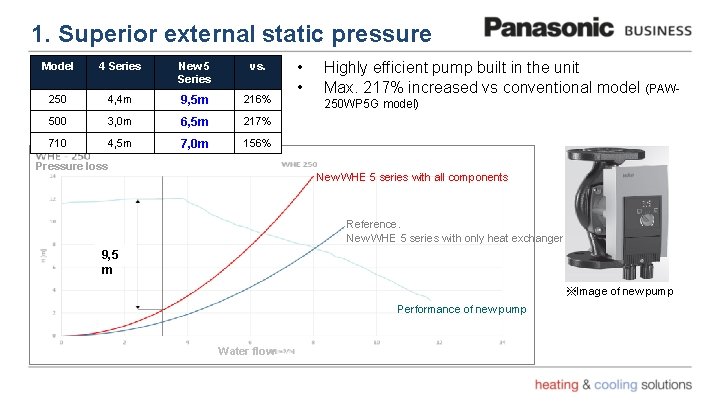

1. Superior external static pressure Model 4 Series New 5 Series vs. 250 4, 4 m 9, 5 m 216% 500 3, 0 m 6, 5 m 217% 710 4, 5 m 7, 0 m 156% Pressure loss • • Highly efficient pump built in the unit Max. 217% increased vs conventional model (PAW 250 WP 5 G model) New WHE 5 series with all components Reference. New WHE 5 series with only heat exchanger 9, 5 m ※Image of new pump Performance of new pump Water flow

2. Space saving solution Vertical stacking up to 3 units available ③ • Stacking kit : PAW-3 WSK Good solution for limited installation space • Units can be stacked without metal arm structures. Saving installation time and cost. ② Skip metal structure! ① × 4 sets included in PAW-3 WSK ※Stacking kit ( PAW-3 WSK ) is necessary

3. Quality improvement Long life time can be expected thanks to protection components newly included 1 Water filter built in as standard 2 Pressure switch positioned to protect plate heat exchanger from freezing efficiently 3 Antifreeze temperature sensor to detect more accurate water temperature in critical part of the plate heat exchanger 2 4 5 4 Water temperature thermistor in thermowell 5 Flow switch is pre-calibrated at assembly line 1

System example 2 pipe (GE 2) 2 pipe (ME 2) ECOi 2 pipe • • • Flexible modularity from 25 k. W Better partial load vs standard chiller system Compatible with all centralized controllers • • • Max. hot water outlet temperature : 55℃ Free DHW from waste heat of engine Compatible with all centralized controllers ※Buffer tank is mandatory

Basic Specification Hydrokit with A class water pump PAW-250 WX 4 E 5 N Hydrokit without pump Cooling capacity at 35°C, water outlet 7°C Heating capacity at +7°C, heating water temperature at 45°C COP at +7°C with heating water temperature at 45°C Heating Energy Efficiency class at 35°C ηsh (LOT 21) Dimension H x W x D Net weight Water pipe connector Heating water flow (ΔT=5 K. 35°C) Capacity of integrated electric heater Flow switch Water filter PAW-250 WX 4 E 5 N 2 NEW PAWPAWPAW-500 WX 4 E 5 N NEW 500 WP 5 G NEW 250 WP 5 G PAW-250 W 5 G PAW-500 WX 4 E 5 N 2 PAW-500 W 5 G k. W 25, 0 28, 0 50, 0 56, 0 k. W 28, 0 56, 0 W/W 2, 97 3, 10 A+ 164, 00 A++ 158, 00 % mm kg 1 010 x 570 x 960 1 000 x 575 x 1110 120 135 (140 with pump) 145 155 (165 with pump) Rp 2 Female Thread (50 A) m³/h 5, 16 10, 32 k. W Not equipped Equipped Not equipped Equipped 0, 329 (with A class water pump) /0, 024 (without 0, 574 (with A class water pump) /0, 024 (without Input power k. W pump) 1, 43 (with A class water pump) /0, 10 (without 2, 50 (with A class water pump) /0, 10 (without Maximum current A pump) Outdoor Unit U-10 ME 2 E 8 U-20 ME 2 E 8 Sound pressure d. B(A) 56 60 Refrigerant (R 410 A) kg 5, 6 *Need Additional gas amount at site 9, 5 *Need Additional gas amount at site Pipe length range / Elevation difference (in/out) m 170 / 50 (OD above) 35 (OD below) Keeping the same capacity and seasonal efficiency following COMMISSION REGULATION (EU) Pipe length for nominal capacity m 7, 5 Operation range Heat Min ~ Max °C -11 ~ +15 813/2013 as WX 4. Water outlet temp. range (Cooling min ~ max / Heating °C 5 ~ 15 / 35 ~ 45 Flow switch & water filter built in as standard min ~ max) • •

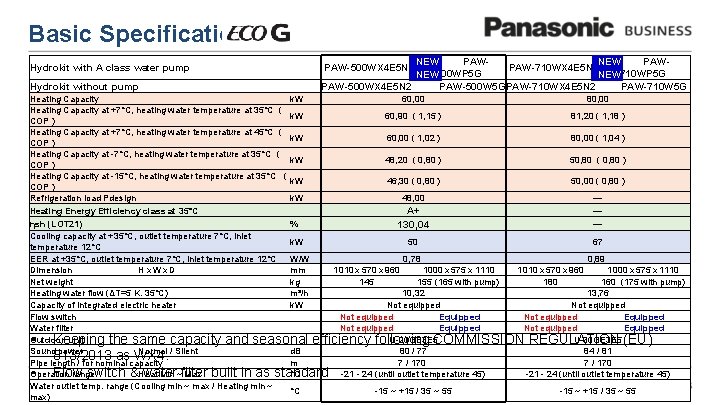

Basic Specification Hydrokit with A class water pump Hydrokit without pump NEW PAWPAWNEW PAW-710 WX 4 E 5 N NEW 710 WP 5 G NEW 500 WP 5 G PAW-500 WX 4 E 5 N 2 PAW-500 W 5 GPAW-710 WX 4 E 5 N 2 PAW-710 W 5 G PAW-500 WX 4 E 5 N Heating Capacity k. W 60, 00 80, 00 Heating Capacity at +7°C, heating water temperature at 35°C ( k. W 60, 90 ( 1, 15 ) 81, 20 ( 1, 18 ) COP ) Heating Capacity at +7°C, heating water temperature at 45°C ( k. W 60, 00 ( 1, 02 ) 80, 00 ( 1, 04 ) COP ) Heating Capacity at -7°C, heating water temperature at 35°C ( k. W 48, 20 ( 0, 80 ) 50, 80 ( 0, 80 ) COP ) Heating Capacity at -15°C, heating water temperature at 35°C ( k. W 46, 30 ( 0, 80 ) 50, 00 ( 0, 80 ) COP ) Refrigeration load Pdesign k. W 48, 00 — Heating Energy Efficiency class at 35°C — A+ ηsh (LOT 21) % — 130, 04 Cooling capacity at +35°C, outlet temperature 7°C, inlet k. W 50 67 temperature 12°C EER at +35°C, outlet temperature 7°C, inlet temperature 12°C W/W 0, 78 0, 89 Dimension H x W x D mm 1 010 x 570 x 960 1 000 x 575 x 1110 Net weight kg 145 155 (165 with pump) 180 160 (175 with pump) Heating water flow (ΔT=5 K. 35°C) m³/h 10, 32 13, 76 Capacity of integrated electric heater k. W Not equipped Flow switch Not equipped Equipped Water filter Not equipped Equipped Outdoor Unit U-20 GE 3 E 5 U-30 GE 3 E 5 Keeping the same capacity and seasonal efficiency following COMMISSION REGULATION (EU) Sound power Normal / Silent d. B 80 / 77 84 / 81 813/2013 as WX 4. Pipe length / for nominal capacity m 7 / 170 Flow switch & water filter built in as standard Operation range Heat Min ~ Max °C -21 - 24 (until outlet temperature 45) Water outlet temp. range (Cooling min ~ max / Heating min ~ °C -15 ~ +15 / 35 ~ 55 max) • •
