Heat pump wastewater Technical presentation Test Equipment Cagnes

Heat pump wastewater -Technical presentation -Test Equipment Cagnes sur mer -Equipment Cercle des Nageurs de Marseille

Pompe à chaleur sur eaux usées -Présentation technique -Equipement test de Cagnes sur mer -Equipement de la maison du développement durable de Bandol -Equipement du Cercle des Nageurs de Marseille

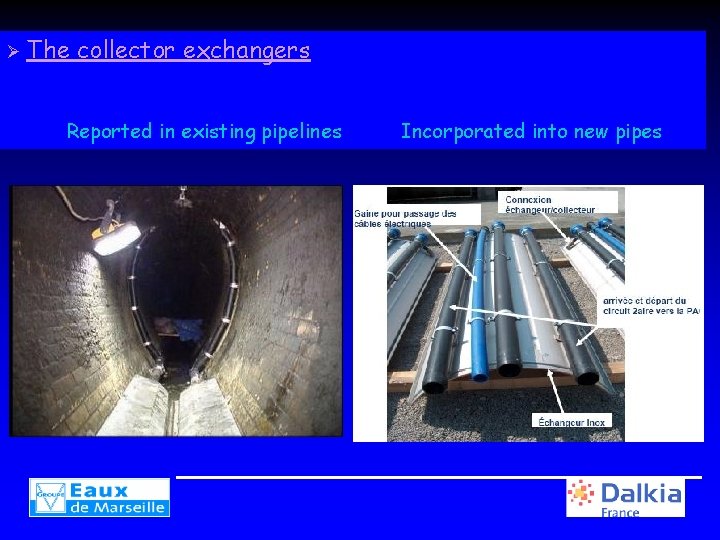

Ø The collector exchangers Reported in existing pipelines Incorporated into new pipes -

Ø The collector exchangers Reported in existing pipelines Incorporated into new pipes

Ø Exchangers immersed in the lift pits v Exchanger dedicated to building lift pits (hotel, retirement home, etc. ) v Limited recoverable power of 50 to 300 [k. W] max v 200 installations in Swiww

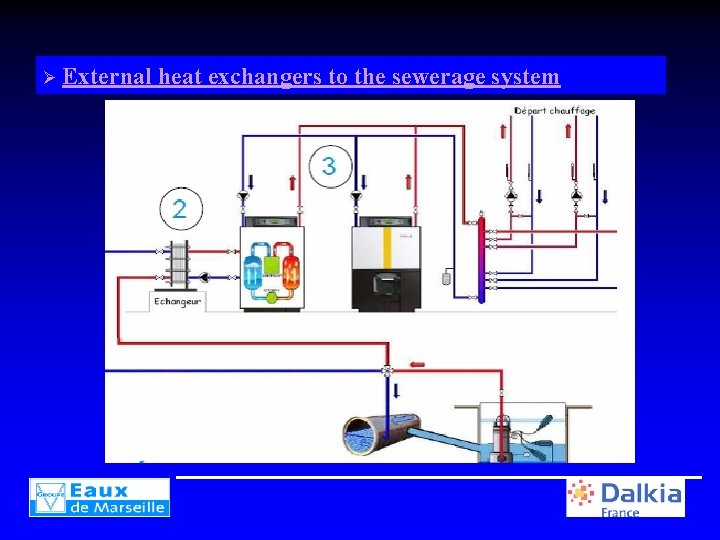

Ø External heat exchangers to the sewerage system

Demonstrateur of Cagnes sur Mer Ø Objective: To compare the different technologies exchangers on urban wastewater (performance, clogging, maintenance, cleaning frequency, . . . ) COAXIAL SPIRAL PLATE TUBE

Demonstrateur of Cagnes sur Mer

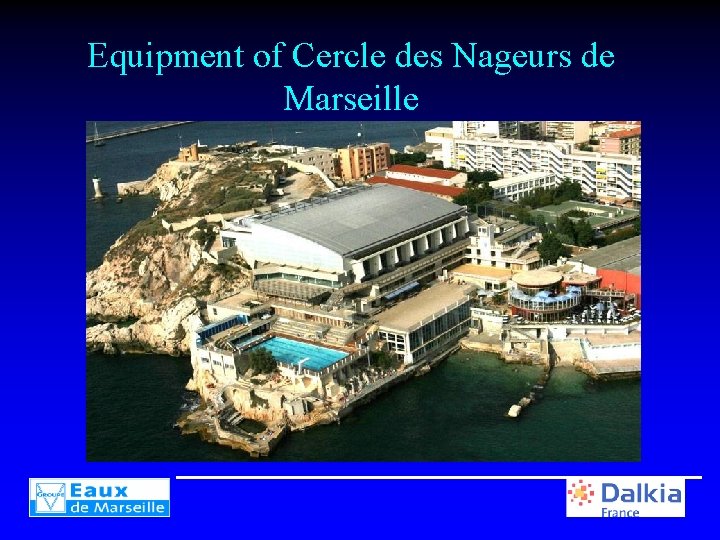

Equipment of Cercle des Nageurs de Marseille

Equipment du Cercle des Nageurs de Marseille Energido - Wastewater temperature between 15 and 22 ° C. -Pumped flow 30 m 3 / h -Olympic pool heating and sanitary warm water. -Power of 240 k. W -COP : 4, 5

Equipment du CNM Primairy loop : Sanitation collector Lift pit Crusher Spiral exchanger

Equipment CNM primary loop : Lift pit

Equipment CNM Primary loop: Crusher Spiral exchanger

Equipment CNM Spiral exchanger (Alpha Laval) - resistance to fouling - flow and heat transfers optimized - size limited

Equipment CNM

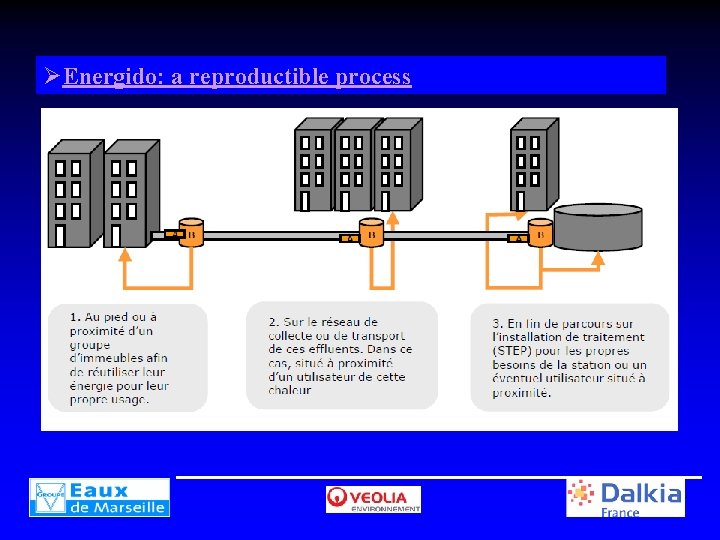

ØEnergido: a reproductible process
