UNDERSTANDING AND OPERATING DIGITAL AUDIO MIXER (Yamaha TF-3) 7 th AUGUST, 2019 By : Engr. Sadeeq Omeiza Musa (GM Integrated Television Services ITS)

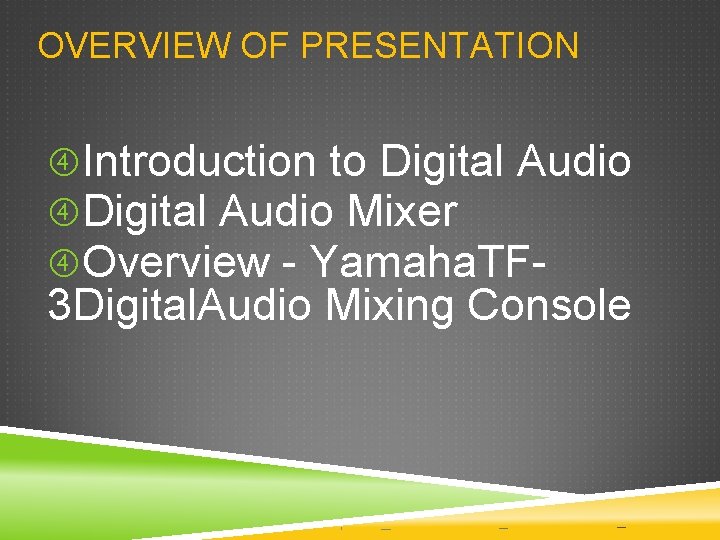

OVERVIEW OF PRESENTATION Introduction to Digital Audio Mixer Overview - Yamaha. TF- 3 Digital. Audio Mixing Console

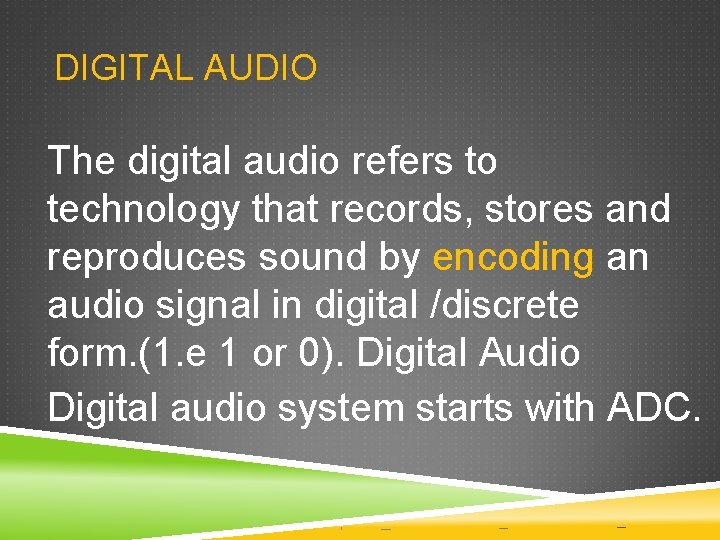

DIGITAL AUDIO The digital audio refers to technology that records, stores and reproduces sound by encoding an audio signal in digital /discrete form. (1. e 1 or 0). Digital Audio Digital audio system starts with ADC.

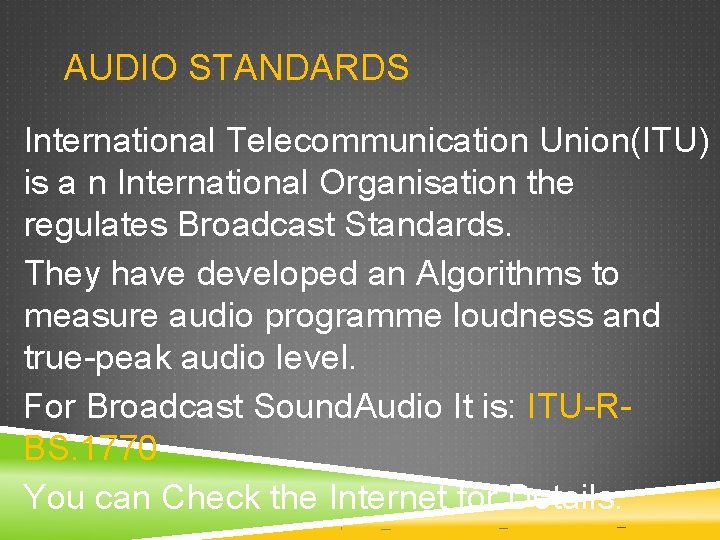

AUDIO STANDARDS International Telecommunication Union(ITU) is a n International Organisation the regulates Broadcast Standards. They have developed an Algorithms to measure audio programme loudness and true-peak audio level. For Broadcast Sound. Audio It is: ITU-RBS. 1770 You can Check the Internet for Details.

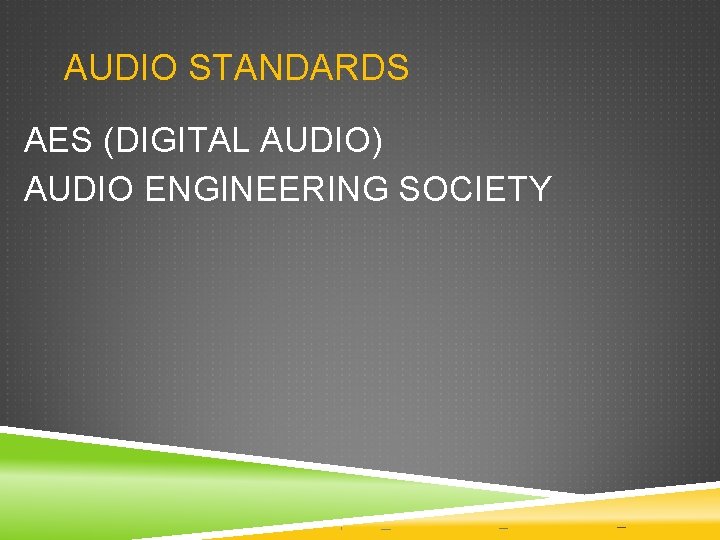

AUDIO STANDARDS AES (DIGITAL AUDIO) AUDIO ENGINEERING SOCIETY

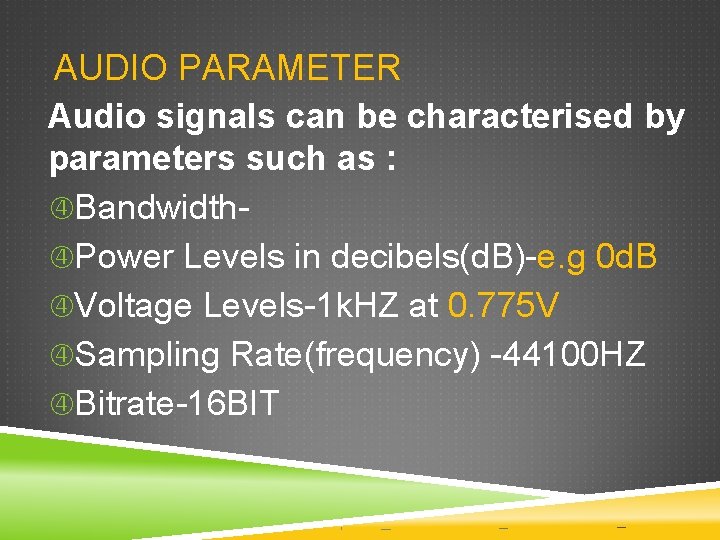

AUDIO PARAMETER Audio signals can be characterised by parameters such as : Bandwidth Power Levels in decibels(d. B)-e. g 0 d. B Voltage Levels-1 k. HZ at 0. 775 V Sampling Rate(frequency) -44100 HZ Bitrate-16 BIT

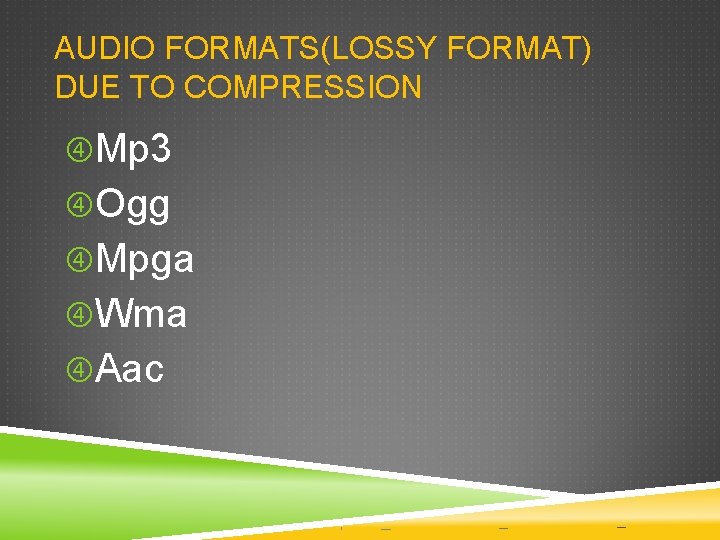

AUDIO FORMATS(LOSSY FORMAT) DUE TO COMPRESSION Mp 3 Ogg Mpga Wma Aac

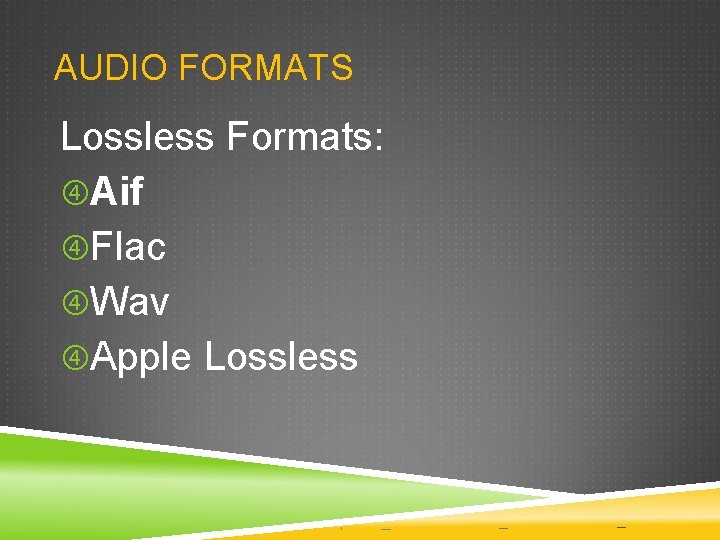

AUDIO FORMATS Lossless Formats: Aif Flac Wav Apple Lossless

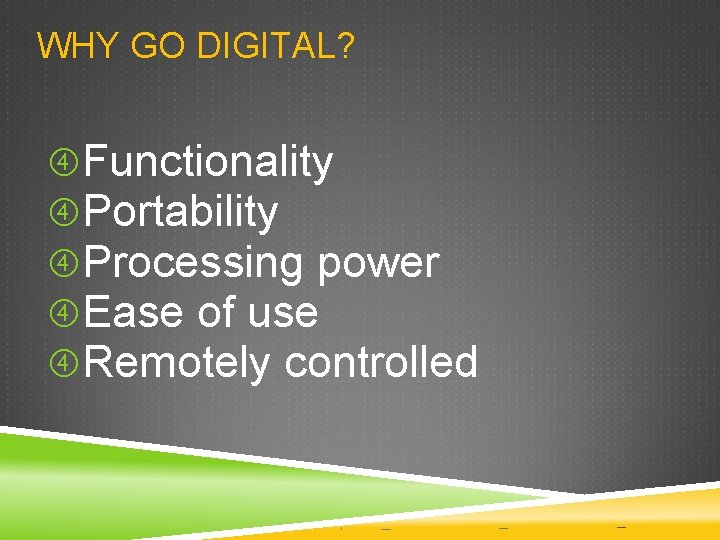

WHY GO DIGITAL? Functionality Portability Processing power Ease of use Remotely controlled

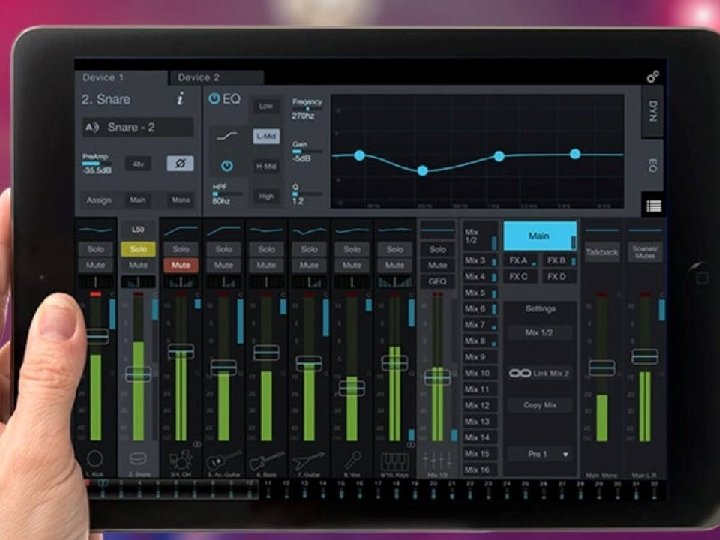

WHY GO DIGITAL?
ADVANTAGES OF DIGITAL AUDIO Benefits of Digital Audio include : Reduces noise Reduced Distortions Convenience of Storage & Retrival Transmission

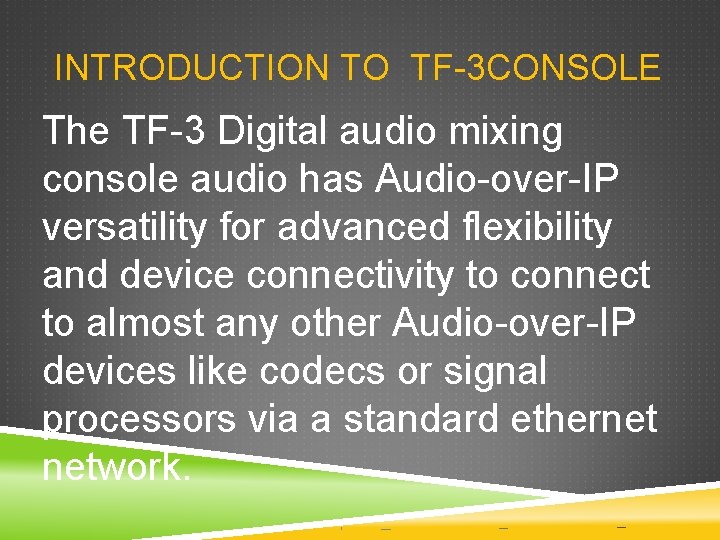

INTRODUCTION TO TF-3 CONSOLE The TF-3 Digital audio mixing console audio has Audio-over-IP versatility for advanced flexibility and device connectivity to connect to almost any other Audio-over-IP devices like codecs or signal processors via a standard ethernet network.

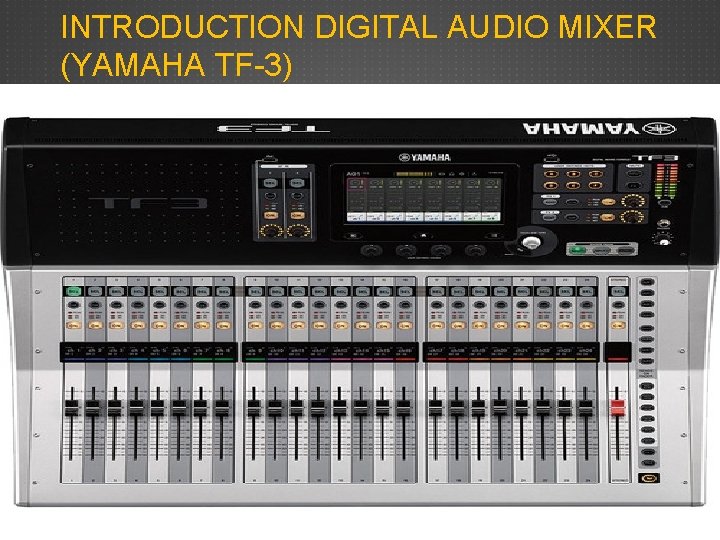

INTRODUCTION DIGITAL AUDIO MIXER (YAMAHA TF-3)

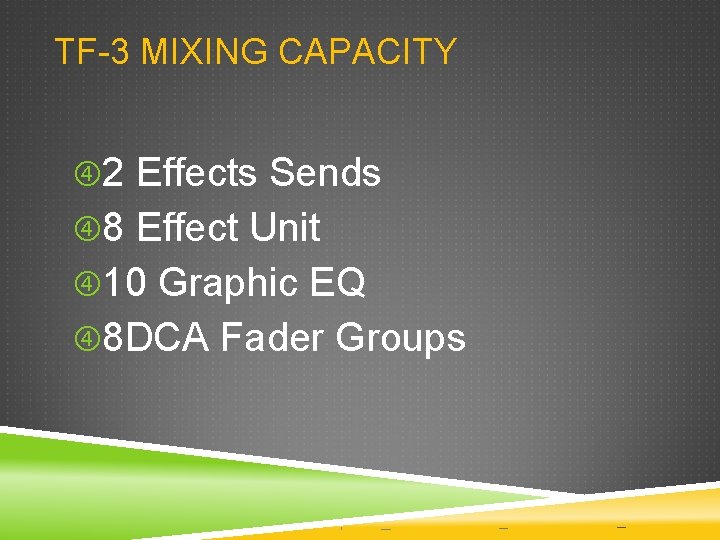

TF-3 MIXING CAPACITY 2 Effects Sends 8 Effect Unit 10 Graphic EQ 8 DCA Fader Groups

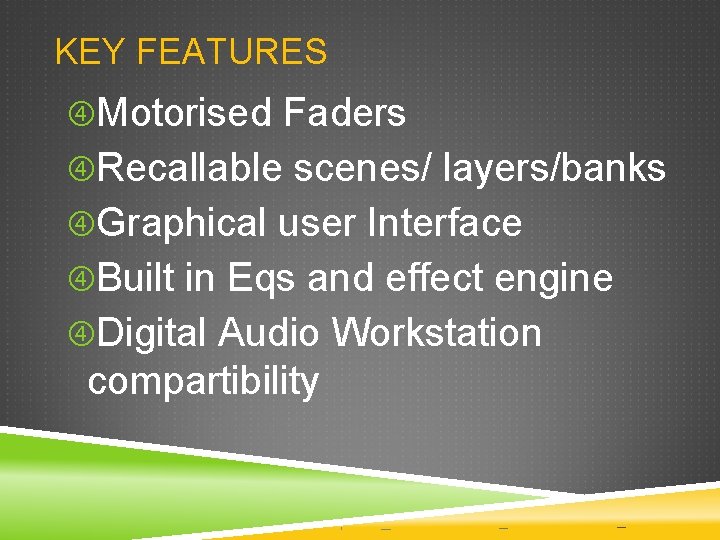

KEY FEATURES Motorised Faders Recallable scenes/ layers/banks Graphical user Interface Built in Eqs and effect engine Digital Audio Workstation compartibility

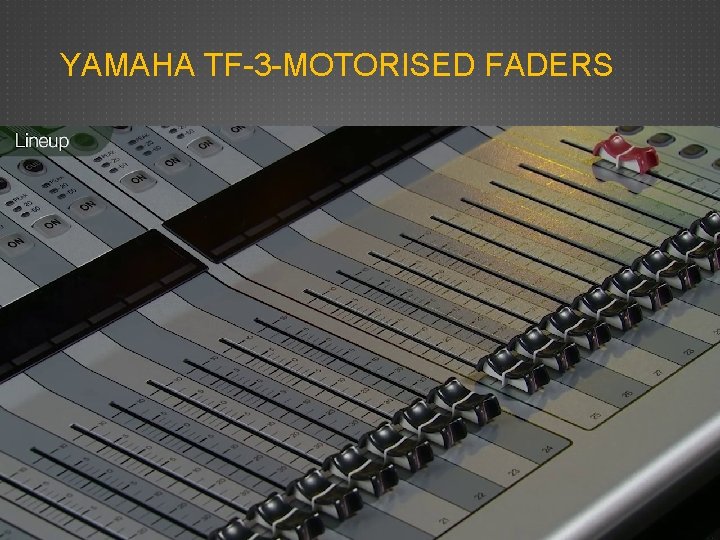

YAMAHA TF-3 -MOTORISED FADERS

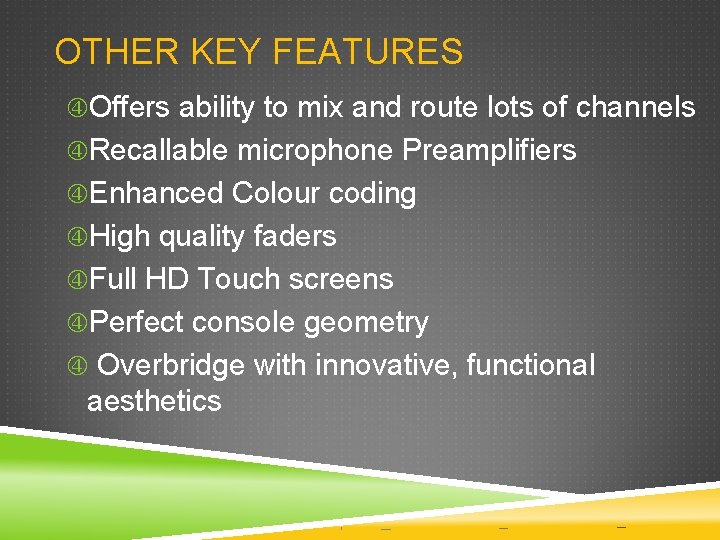

OTHER KEY FEATURES Offers ability to mix and route lots of channels Recallable microphone Preamplifiers Enhanced Colour coding High quality faders Full HD Touch screens Perfect console geometry Overbridge with innovative, functional aesthetics

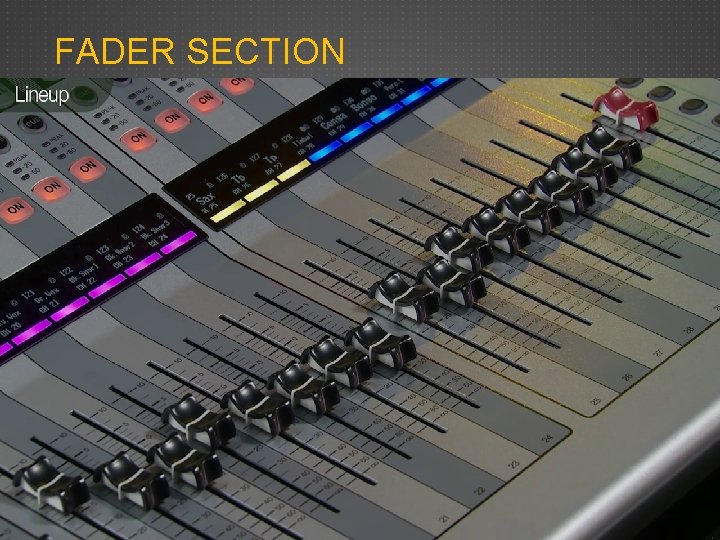

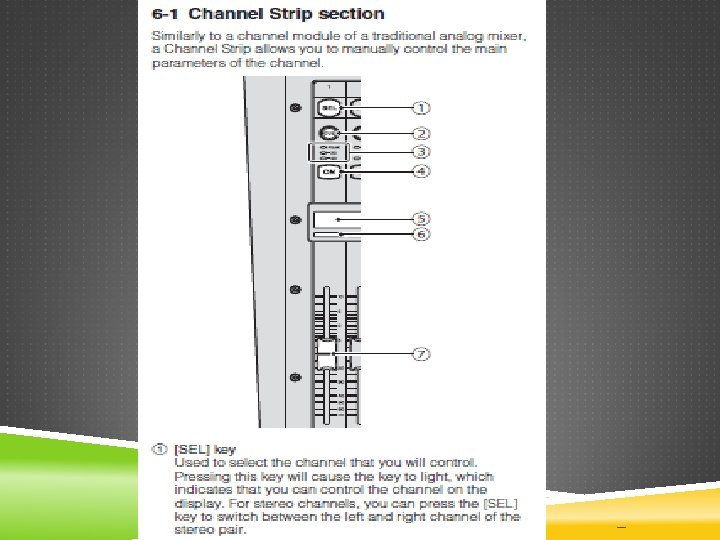

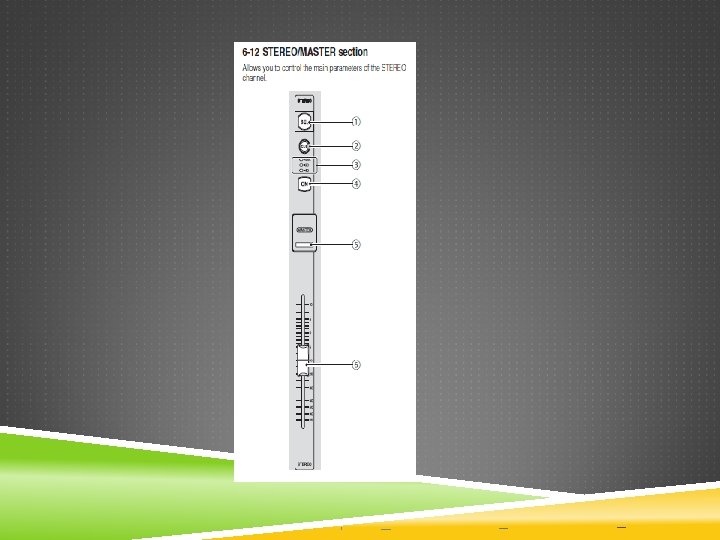

FADER SECTION

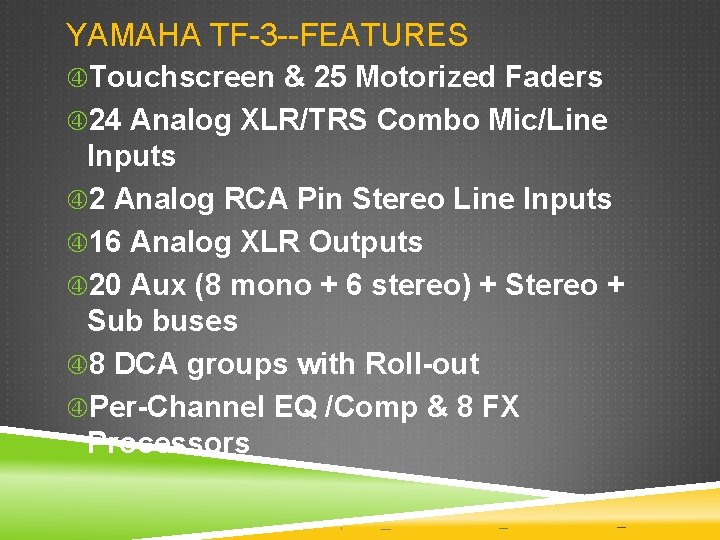

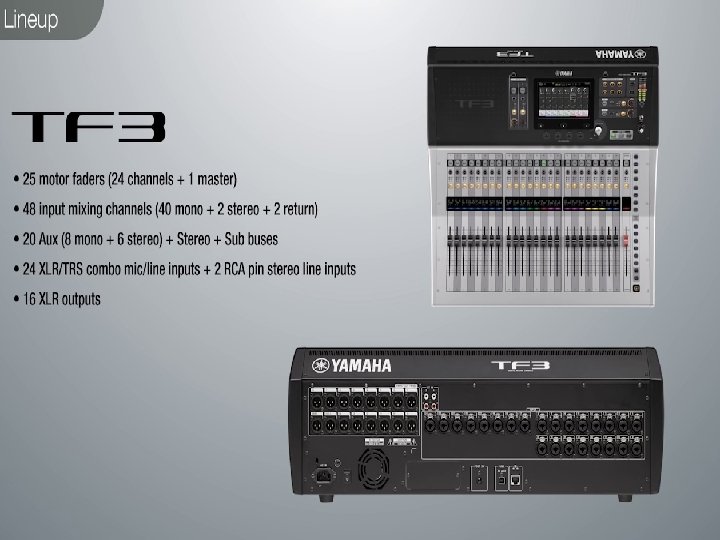

YAMAHA TF-3 --FEATURES Touchscreen & 25 Motorized Faders 24 Analog XLR/TRS Combo Mic/Line Inputs 2 Analog RCA Pin Stereo Line Inputs 16 Analog XLR Outputs 20 Aux (8 mono + 6 stereo) + Stereo + Sub buses 8 DCA groups with Roll-out Per-Channel EQ /Comp & 8 FX Processors

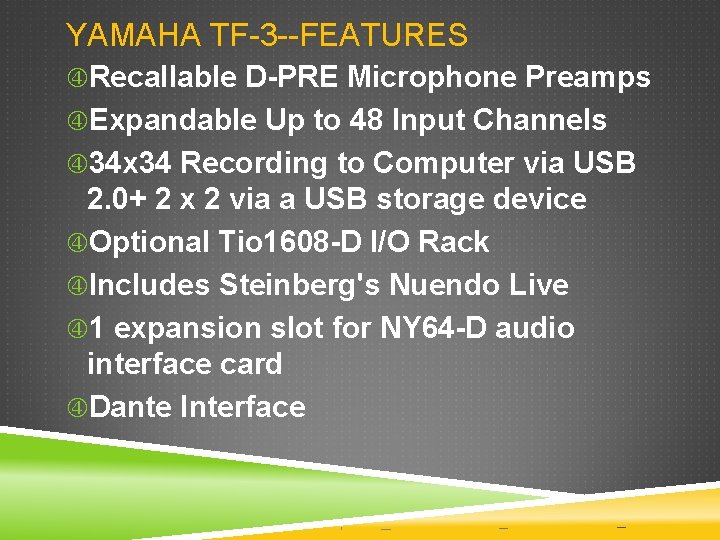

YAMAHA TF-3 --FEATURES Recallable D-PRE Microphone Preamps Expandable Up to 48 Input Channels 34 x 34 Recording to Computer via USB 2. 0+ 2 x 2 via a USB storage device Optional Tio 1608 -D I/O Rack Includes Steinberg's Nuendo Live 1 expansion slot for NY 64 -D audio interface card Dante Interface
TF-3 CONSOLE-DANTE INTERFACE Dante stands for Digital Audio Network Through Ethernet. It is combination of software, hardware and network protocols that delivers: uncompressed, multichannel and low latency digital audio. The Ethernet cable is connected to a Digital Audio Workstation DAW.

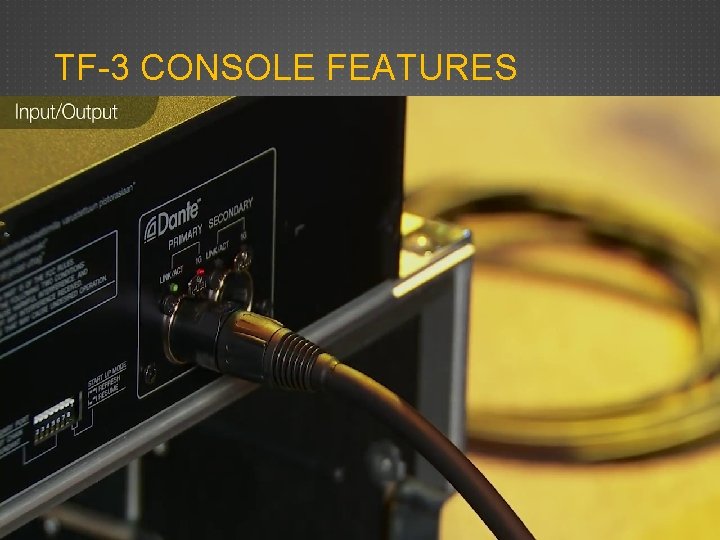

TF-3 CONSOLE FEATURES

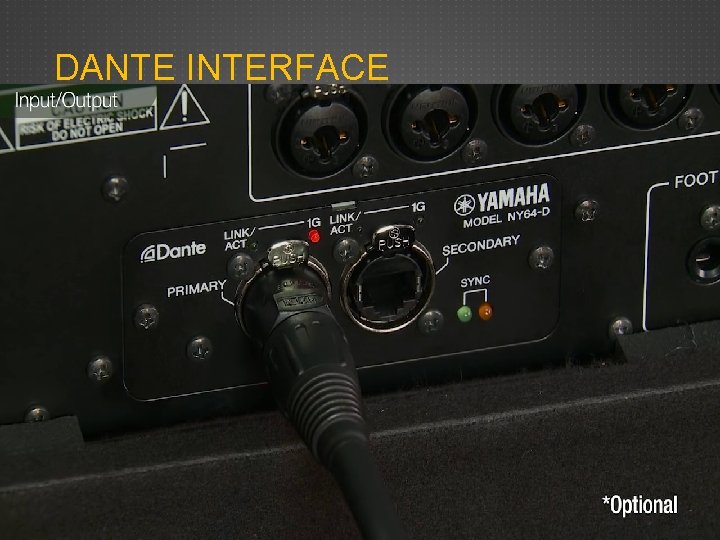

DANTE INTERFACE

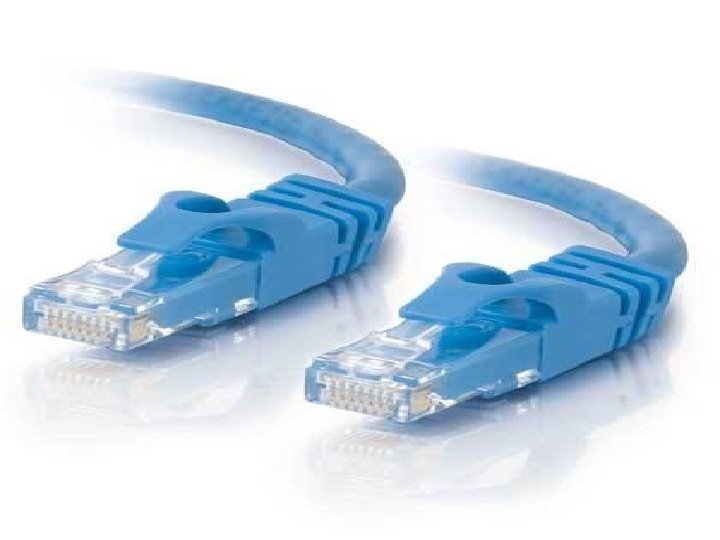

NETWORKCABLE
TOP PANEL OVERVIEW

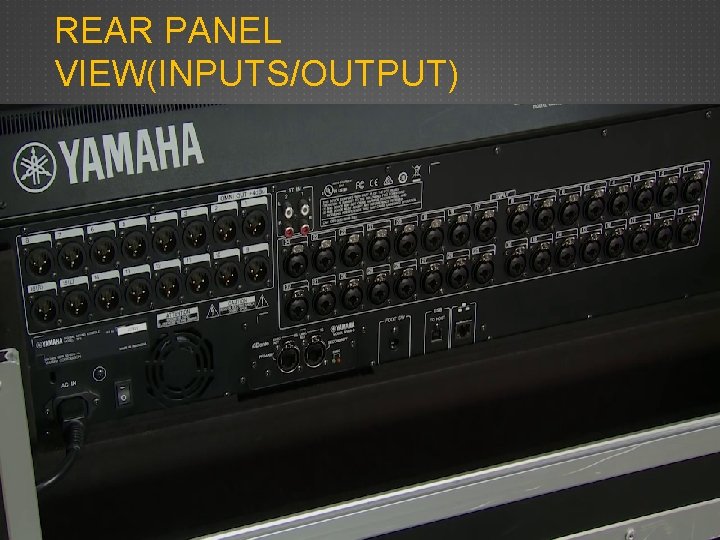

REAR PANEL VIEW(INPUTS/OUTPUT)

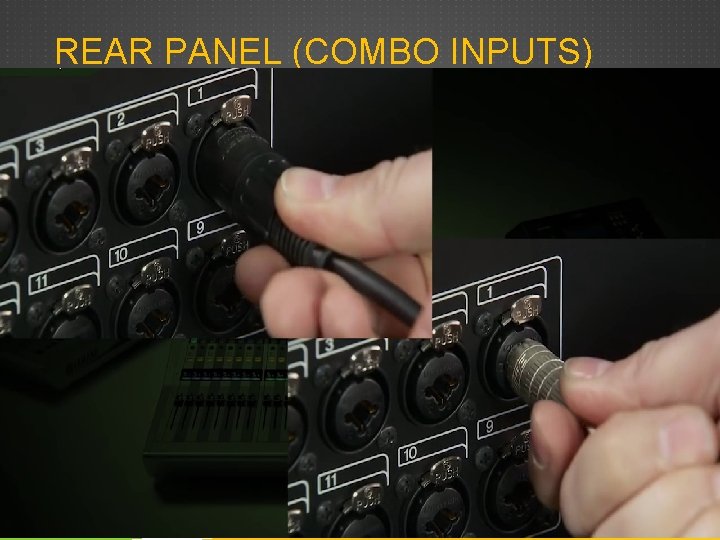

REAR PANEL (COMBO INPUTS)

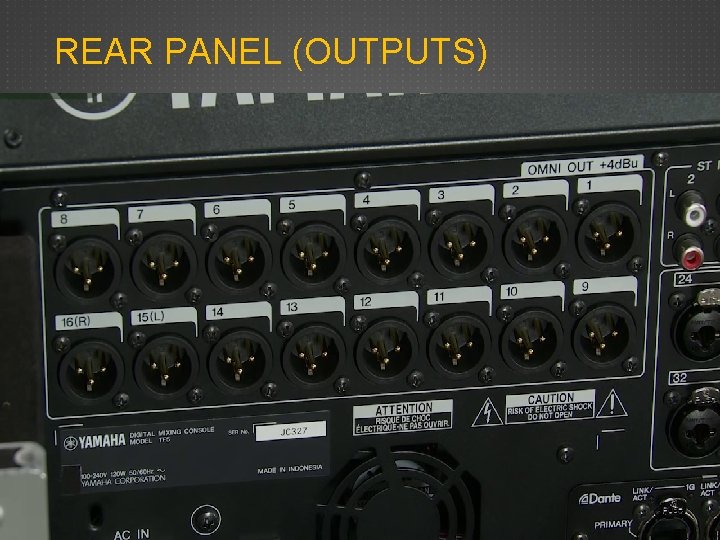

REAR PANEL (OUTPUTS)

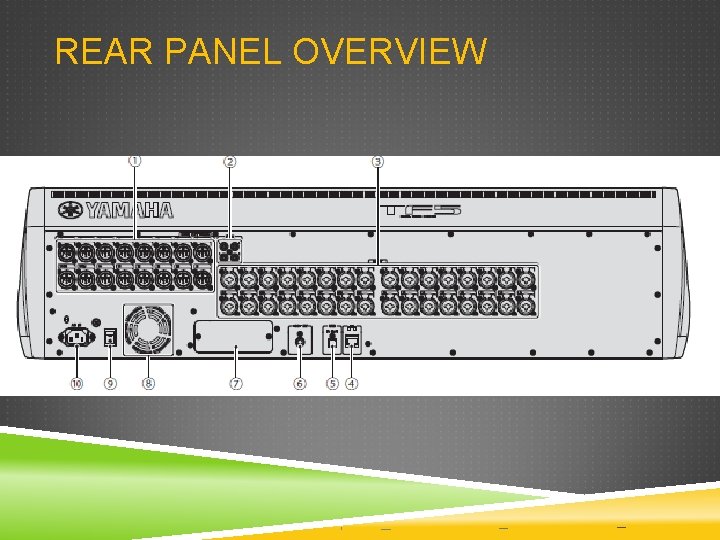

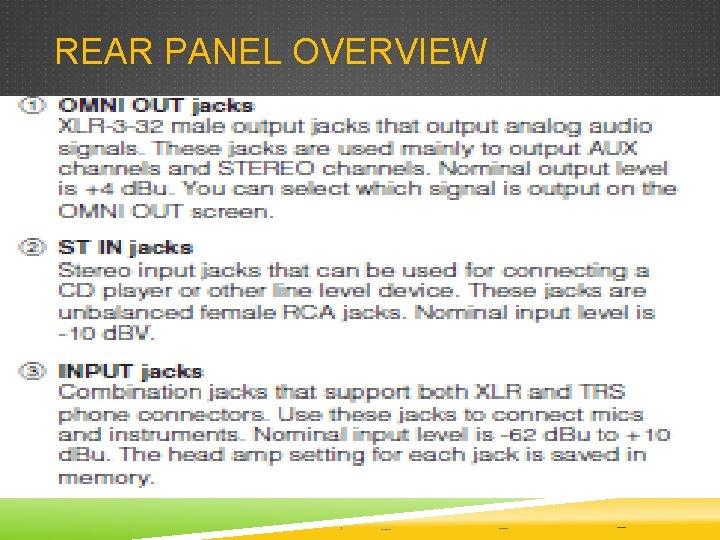

REAR PANEL OVERVIEW

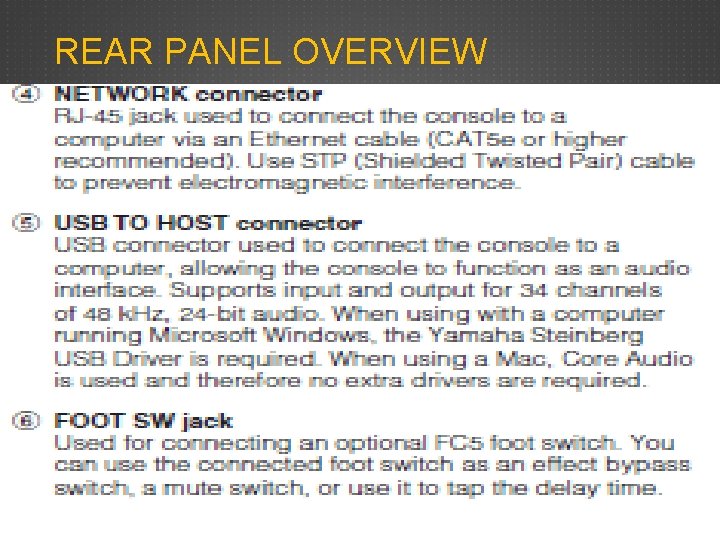

REAR PANEL OVERVIEW
REAR PANEL OVERVIEW

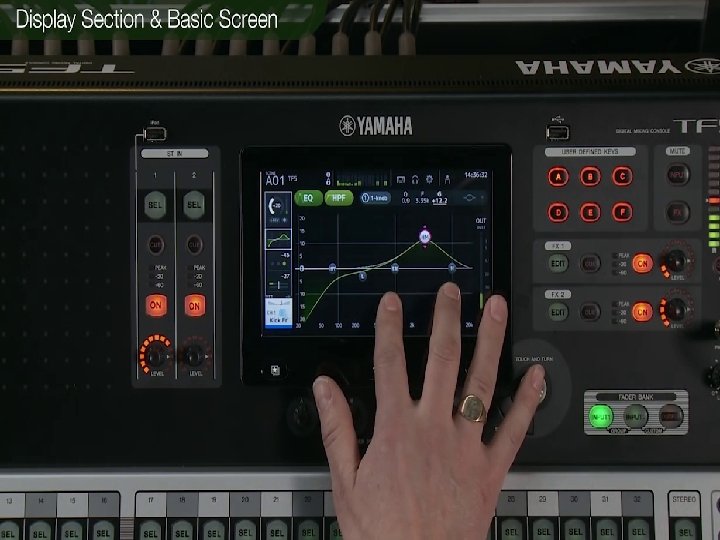

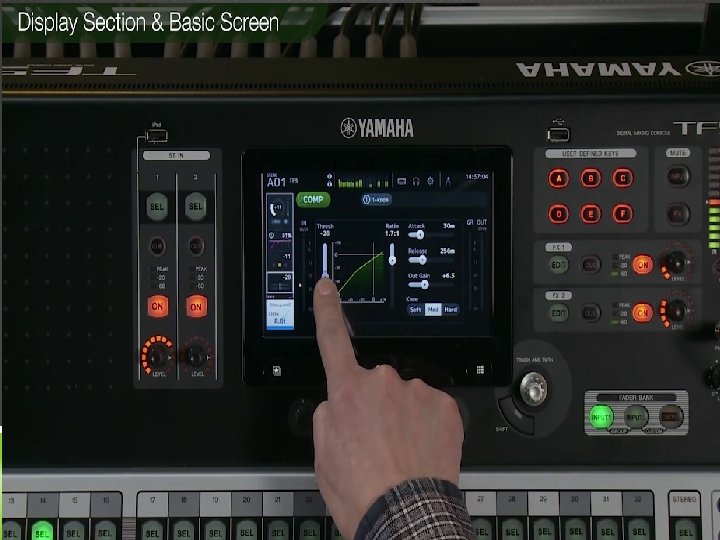

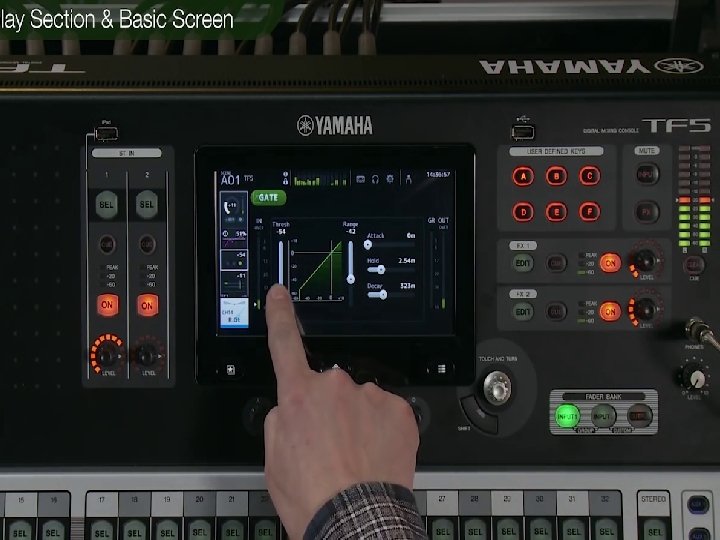

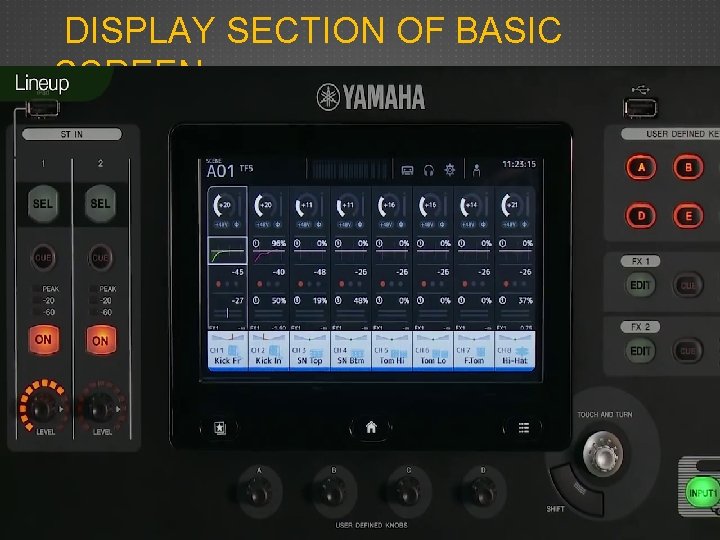

DISPLAY SECTION OF BASIC SCREEN
YAMAHA TF-3 MIXING CONSOLE INSTRUCTIONAL VIDEO
YAMAHA TF-3 MIXING CONSOLE QUESTIONS AND ANSWERS
