TSS@ETS 10 Fault Models, Fault Simulation and Test Generation Vishwani D. Agrawal Department of

TSS@ETS 10 Fault Models, Fault Simulation and Test Generation Vishwani D. Agrawal Department of ECE, Auburn University Auburn, AL 36849, USA www. ece. auburn. edu/~vagrawal@eng. auburn. edu Prague, May 22, 2010, 2: 30 -6: 30 PM © 2001 Agrawal, Bushnell May 22, 2010, Agrawal: Lecture 4 Combinational ATPG 1

Combinational ATPG n n n © 2001 Agrawal, Bushnell ATPG problem Example Algorithms Multi-valued

Combinational ATPG n n n © 2001 Agrawal, Bushnell ATPG problem Example Algorithms Multi-valued algebra D-algorithm Podem Other algorithms ATPG system Summary Problems to solve May 22, 2010, Agrawal: Lecture 4 Combinational ATPG 2

ATPG Problem n ATPG: Automatic test pattern generation Given n n A circuit (usually

ATPG Problem n ATPG: Automatic test pattern generation Given n n A circuit (usually at gate-level) A fault model (usually stuck-at type) Find n n n A set of input vectors to detect all modeled faults. Core solution: Find a test vector for a given fault. Combine the “core solution” with a fault simulator into an ATPG system. © 2001 Agrawal, Bushnell May 22, 2010, Agrawal: Lecture 4 Combinational ATPG 3

What is a Test? Fault activation Fault effect Primary inputs (PI) X 1 0

What is a Test? Fault activation Fault effect Primary inputs (PI) X 1 0 0 1 X X Combinational circuit 1/0 Stuck-at-0 fault © 2001 Agrawal, Bushnell 1/0 Primary outputs (PO) Path sensitization May 22, 2010, Agrawal: Lecture 4 Combinational ATPG 4

Multiple-Valued Algebras Symbol Fault-free Faulty Alternative Representation circuit Circuit D D 0 1 X

Multiple-Valued Algebras Symbol Fault-free Faulty Alternative Representation circuit Circuit D D 0 1 X G 0 G 1 F 0 F 1 © 2001 Agrawal, Bushnell 1/0 0/1 0/0 1/1 X/X 0/X 1/X X/0 X/1 1 0 0 1 X X X 0 1 Roth’s Algebra Muth’s Additions May 22, 2010, Agrawal: Lecture 4 Combinational ATPG 5

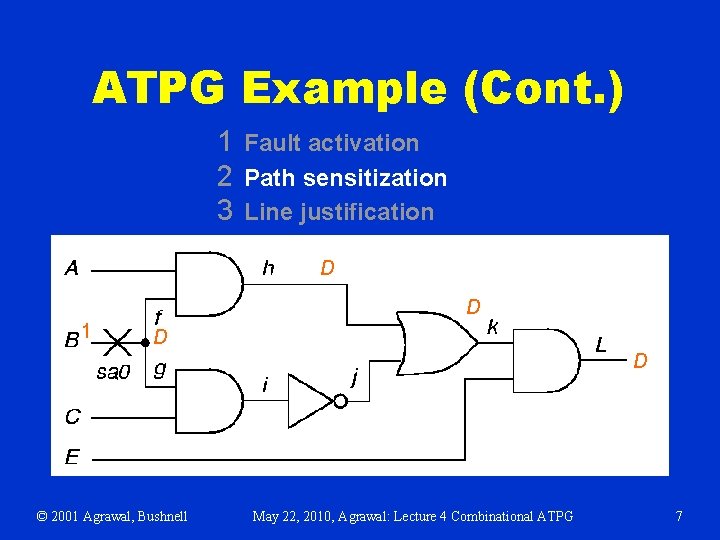

An ATPG Example 1 Fault activation 2 Path sensitization 3 Line justification 1 D

An ATPG Example 1 Fault activation 2 Path sensitization 3 Line justification 1 D © 2001 Agrawal, Bushnell May 22, 2010, Agrawal: Lecture 4 Combinational ATPG 6

ATPG Example (Cont. ) 1 Fault activation 2 Path sensitization 3 Line justification D

ATPG Example (Cont. ) 1 Fault activation 2 Path sensitization 3 Line justification D D 1 D D © 2001 Agrawal, Bushnell May 22, 2010, Agrawal: Lecture 4 Combinational ATPG 7

ATPG Example (Cont. ) 1 Fault activation 2 Path sensitization 3 Line justification 1

ATPG Example (Cont. ) 1 Fault activation 2 Path sensitization 3 Line justification 1 D D 1 1 D Conflict 0 D 1 1 1 © 2001 Agrawal, Bushnell May 22, 2010, Agrawal: Lecture 4 Combinational ATPG 8

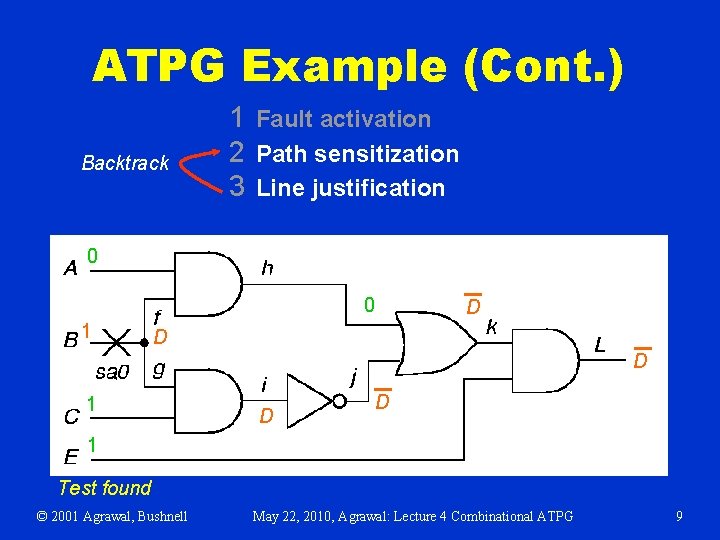

ATPG Example (Cont. ) Backtrack 1 Fault activation 2 Path sensitization 3 Line justification

ATPG Example (Cont. ) Backtrack 1 Fault activation 2 Path sensitization 3 Line justification 0 0 1 D D D 1 Test found © 2001 Agrawal, Bushnell May 22, 2010, Agrawal: Lecture 4 Combinational ATPG 9

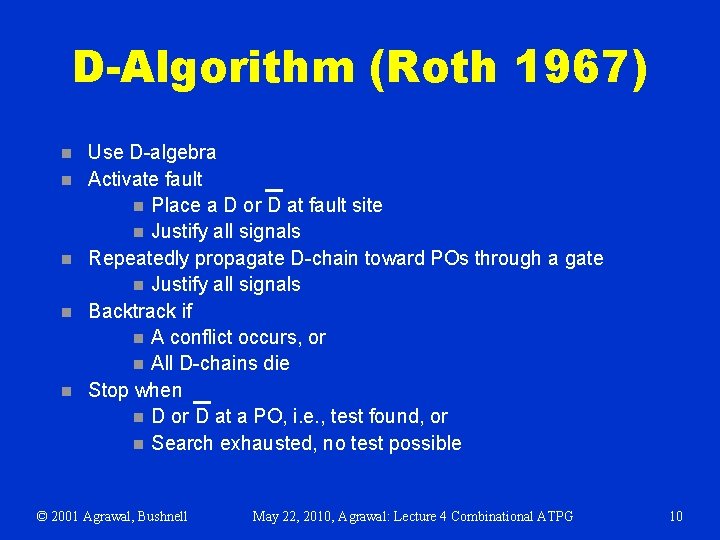

D-Algorithm (Roth 1967) n n n Use D-algebra Activate fault n Place a D

D-Algorithm (Roth 1967) n n n Use D-algebra Activate fault n Place a D or D at fault site n Justify all signals Repeatedly propagate D-chain toward POs through a gate n Justify all signals Backtrack if n A conflict occurs, or n All D-chains die Stop when n D or D at a PO, i. e. , test found, or n Search exhausted, no test possible © 2001 Agrawal, Bushnell May 22, 2010, Agrawal: Lecture 4 Combinational ATPG 10

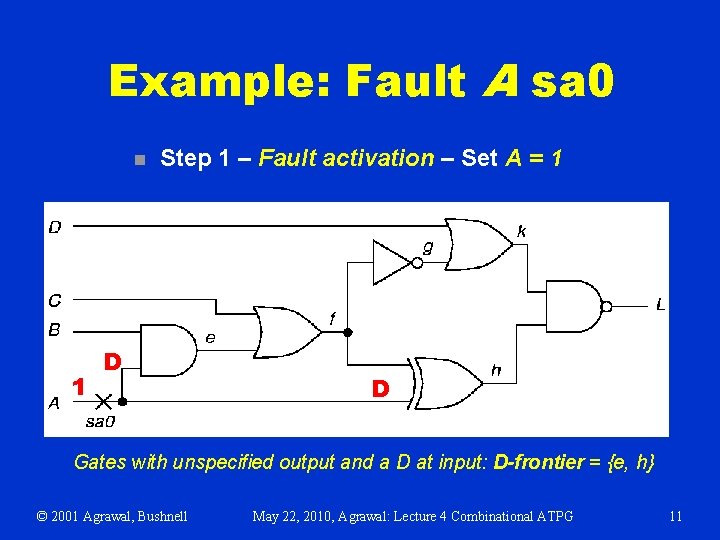

Example: Fault A sa 0 n 1 Step 1 – Fault activation – Set

Example: Fault A sa 0 n 1 Step 1 – Fault activation – Set A = 1 D D Gates with unspecified output and a D at input: D-frontier = {e, h} © 2001 Agrawal, Bushnell May 22, 2010, Agrawal: Lecture 4 Combinational ATPG 11

Example Continued n Step 2 – D-Drive – Set f = 0 0 1

Example Continued n Step 2 – D-Drive – Set f = 0 0 1 D © 2001 Agrawal, Bushnell D D May 22, 2010, Agrawal: Lecture 4 Combinational ATPG 12

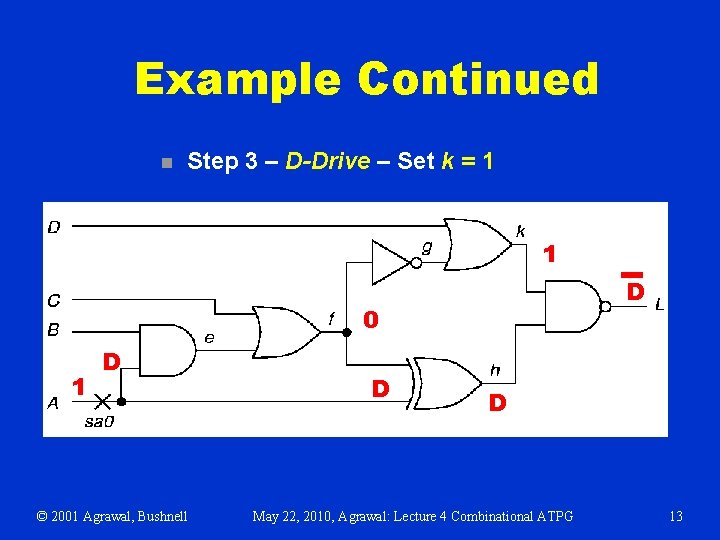

Example Continued n Step 3 – D-Drive – Set k = 1 1 D

Example Continued n Step 3 – D-Drive – Set k = 1 1 D 0 1 D © 2001 Agrawal, Bushnell D D May 22, 2010, Agrawal: Lecture 4 Combinational ATPG 13

Example Continued n Step 4 – Consistency – Set g = 1 1 1

Example Continued n Step 4 – Consistency – Set g = 1 1 1 D 0 1 D © 2001 Agrawal, Bushnell D D May 22, 2010, Agrawal: Lecture 4 Combinational ATPG 14

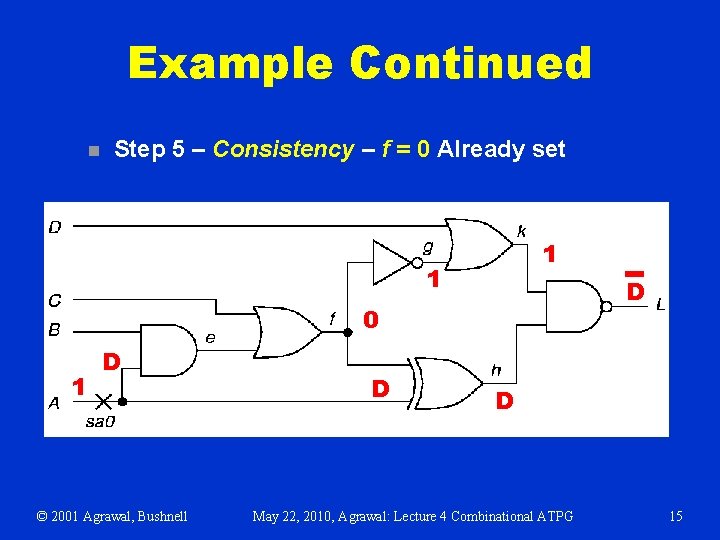

Example Continued n Step 5 – Consistency – f = 0 Already set 1

Example Continued n Step 5 – Consistency – f = 0 Already set 1 1 D 0 1 D © 2001 Agrawal, Bushnell D D May 22, 2010, Agrawal: Lecture 4 Combinational ATPG 15

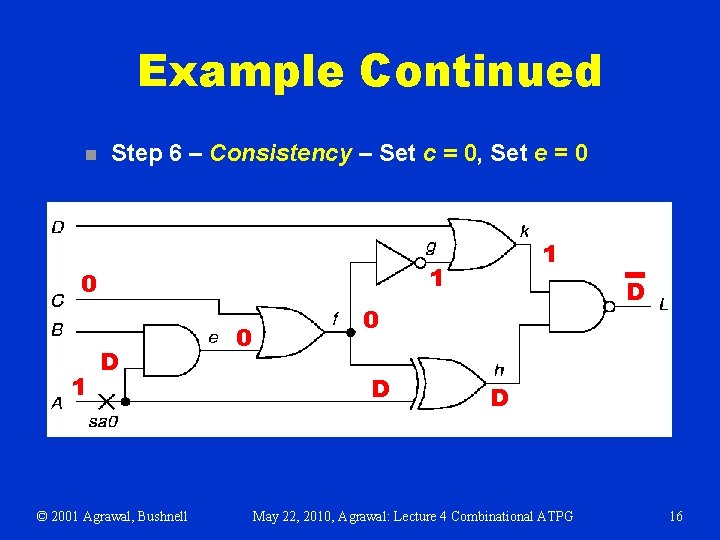

Example Continued n Step 6 – Consistency – Set c = 0, Set e

Example Continued n Step 6 – Consistency – Set c = 0, Set e = 0 1 1 D © 2001 Agrawal, Bushnell 0 D D May 22, 2010, Agrawal: Lecture 4 Combinational ATPG 16

Example: Test Found n n Step 7 – Consistency – Set B = 0

Example: Test Found n n Step 7 – Consistency – Set B = 0 Test: A = 1, B = 0, C = 0, D = X X 1 0 0 1 1 D © 2001 Agrawal, Bushnell 0 D D May 22, 2010, Agrawal: Lecture 4 Combinational ATPG 17

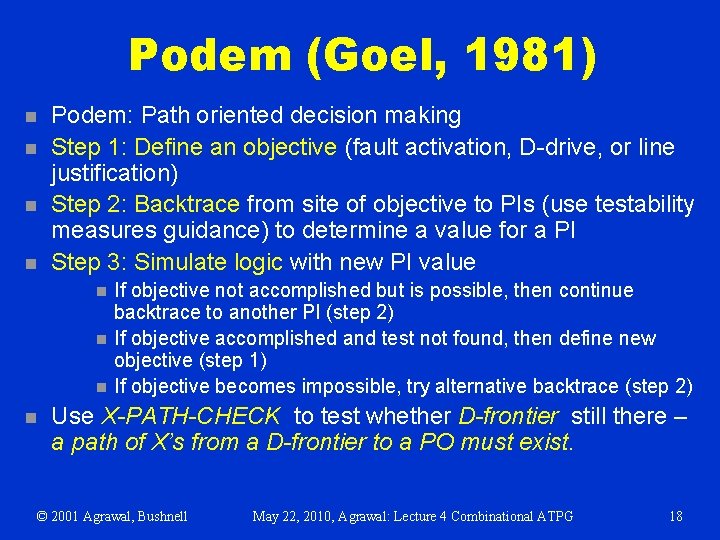

Podem (Goel, 1981) n n Podem: Path oriented decision making Step 1: Define an

Podem (Goel, 1981) n n Podem: Path oriented decision making Step 1: Define an objective (fault activation, D-drive, or line justification) Step 2: Backtrace from site of objective to PIs (use testability measures guidance) to determine a value for a PI Step 3: Simulate logic with new PI value n n If objective not accomplished but is possible, then continue backtrace to another PI (step 2) If objective accomplished and test not found, then define new objective (step 1) If objective becomes impossible, try alternative backtrace (step 2) Use X-PATH-CHECK to test whether D-frontier still there – a path of X’s from a D-frontier to a PO must exist. © 2001 Agrawal, Bushnell May 22, 2010, Agrawal: Lecture 4 Combinational ATPG 18

Podem Example 3. Logic simulation for A=0 2. Backtrace “A=0” 1. Objective “ 0”

Podem Example 3. Logic simulation for A=0 2. Backtrace “A=0” 1. Objective “ 0” 0 S-a-1 (9, 2) 4. Objective possible but not accomplished © 2001 Agrawal, Bushnell May 22, 2010, Agrawal: Lecture 4 Combinational ATPG 19

Podem Example (Cont. ) 6. Logic simulation for A=0, B=0 5. Backtrace “B=0” 1.

Podem Example (Cont. ) 6. Logic simulation for A=0, B=0 5. Backtrace “B=0” 1. Objective “ 0” 0 0 0 S-a-1 0 (9, 2) 7. Objective possible but not accomplished © 2001 Agrawal, Bushnell May 22, 2010, Agrawal: Lecture 4 Combinational ATPG 20

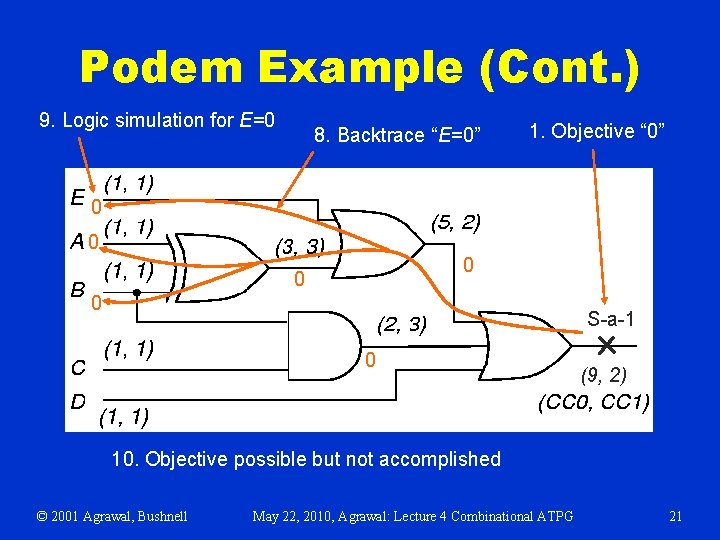

Podem Example (Cont. ) 9. Logic simulation for E=0 8. Backtrace “E=0” 1. Objective

Podem Example (Cont. ) 9. Logic simulation for E=0 8. Backtrace “E=0” 1. Objective “ 0” 0 0 0 S-a-1 0 (9, 2) 10. Objective possible but not accomplished © 2001 Agrawal, Bushnell May 22, 2010, Agrawal: Lecture 4 Combinational ATPG 21

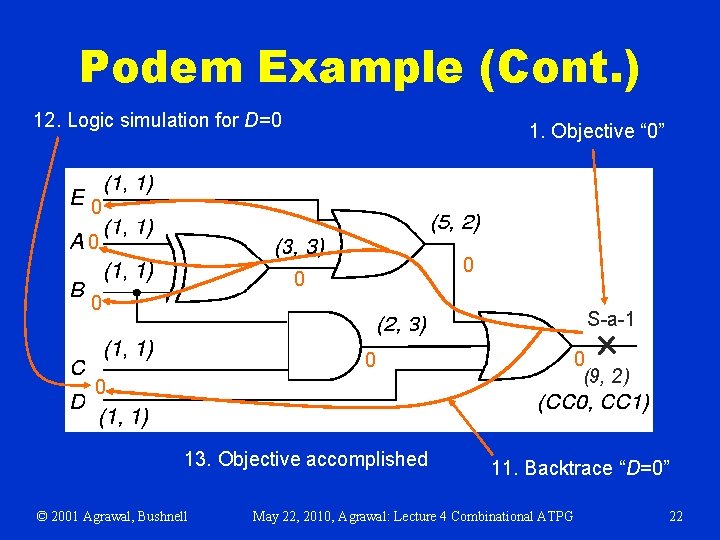

Podem Example (Cont. ) 12. Logic simulation for D=0 1. Objective “ 0” 0

Podem Example (Cont. ) 12. Logic simulation for D=0 1. Objective “ 0” 0 0 0 S-a-1 0 (9, 2) 0 0 13. Objective accomplished © 2001 Agrawal, Bushnell 11. Backtrace “D=0” May 22, 2010, Agrawal: Lecture 4 Combinational ATPG 22

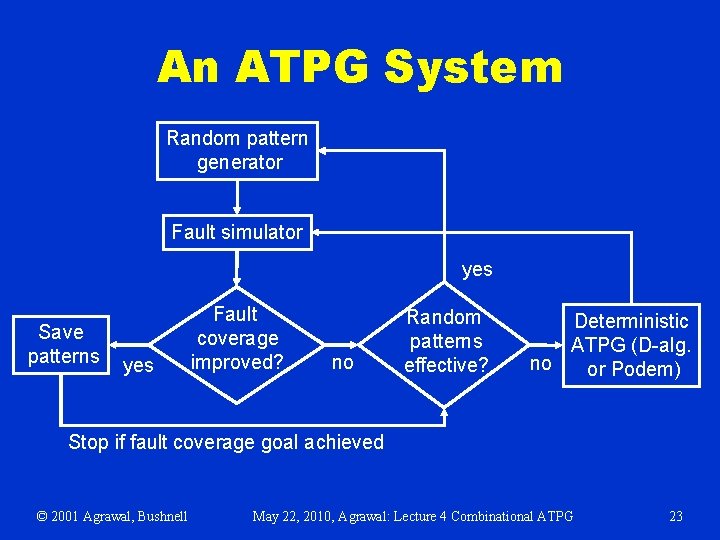

An ATPG System Random pattern generator Fault simulator yes Save patterns yes Fault coverage

An ATPG System Random pattern generator Fault simulator yes Save patterns yes Fault coverage improved? no Random patterns effective? Deterministic ATPG (D-alg. no or Podem) Stop if fault coverage goal achieved © 2001 Agrawal, Bushnell May 22, 2010, Agrawal: Lecture 4 Combinational ATPG 23

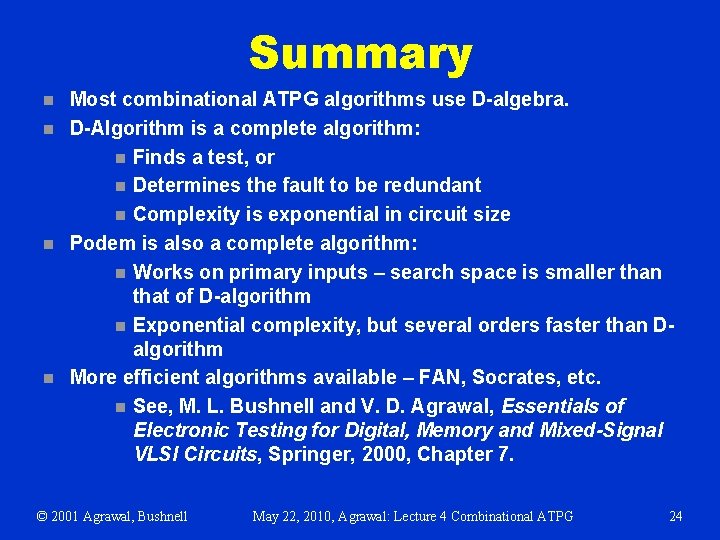

Summary n n Most combinational ATPG algorithms use D-algebra. D-Algorithm is a complete algorithm:

Summary n n Most combinational ATPG algorithms use D-algebra. D-Algorithm is a complete algorithm: n Finds a test, or n Determines the fault to be redundant n Complexity is exponential in circuit size Podem is also a complete algorithm: n Works on primary inputs – search space is smaller than that of D-algorithm n Exponential complexity, but several orders faster than Dalgorithm More efficient algorithms available – FAN, Socrates, etc. n See, M. L. Bushnell and V. D. Agrawal, Essentials of Electronic Testing for Digital, Memory and Mixed-Signal VLSI Circuits, Springer, 2000, Chapter 7. © 2001 Agrawal, Bushnell May 22, 2010, Agrawal: Lecture 4 Combinational ATPG 24

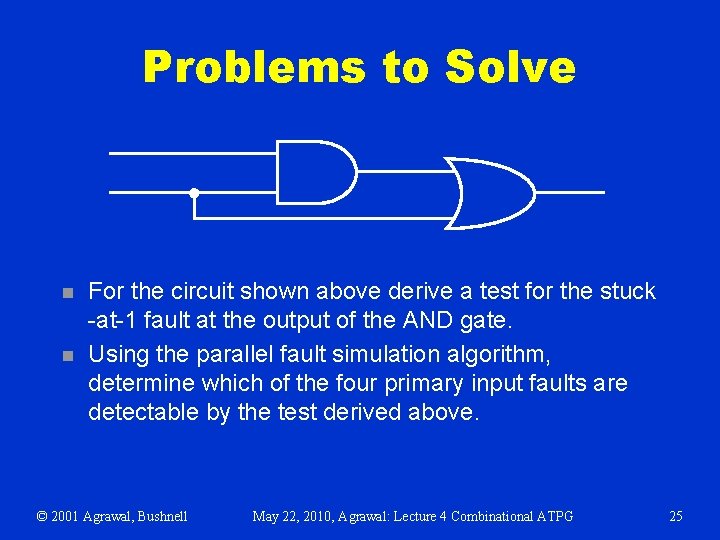

Problems to Solve n n For the circuit shown above derive a test for

Problems to Solve n n For the circuit shown above derive a test for the stuck -at-1 fault at the output of the AND gate. Using the parallel fault simulation algorithm, determine which of the four primary input faults are detectable by the test derived above. © 2001 Agrawal, Bushnell May 22, 2010, Agrawal: Lecture 4 Combinational ATPG 25

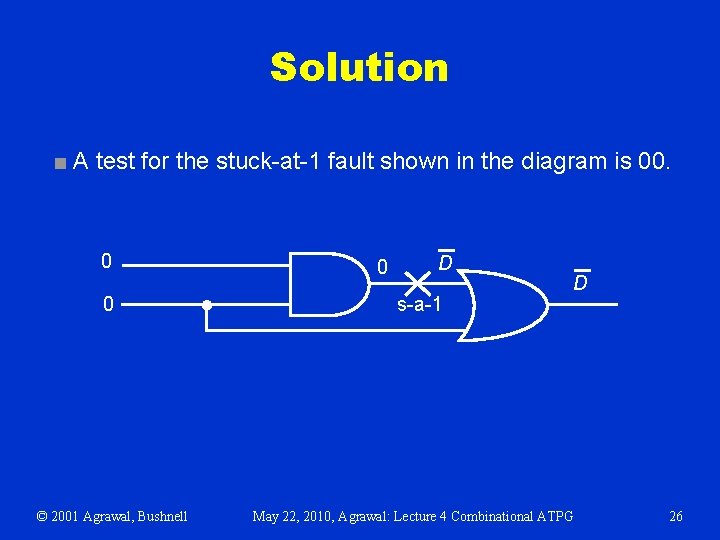

Solution ■ A test for the stuck-at-1 fault shown in the diagram is 00.

Solution ■ A test for the stuck-at-1 fault shown in the diagram is 00. 0 0 © 2001 Agrawal, Bushnell 0 D s-a-1 D May 22, 2010, Agrawal: Lecture 4 Combinational ATPG 26

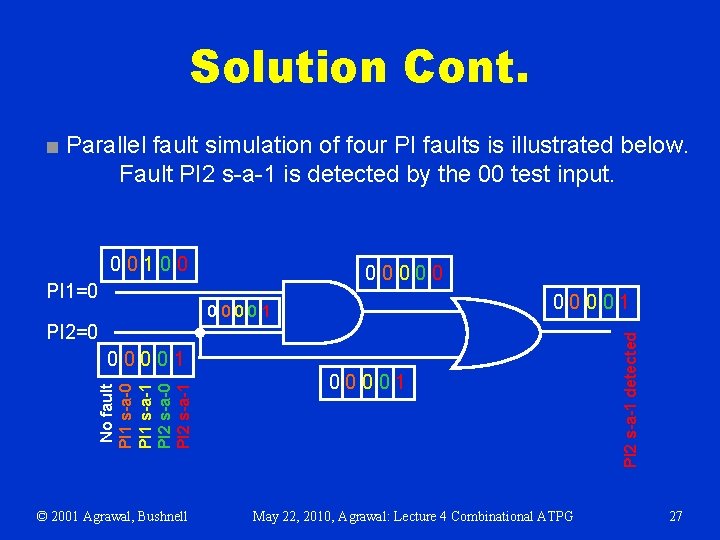

Solution Cont. ■ Parallel fault simulation of four PI faults is illustrated below. Fault

Solution Cont. ■ Parallel fault simulation of four PI faults is illustrated below. Fault PI 2 s-a-1 is detected by the 00 test input. 00100 00001 PI 2=0 No fault PI 1 s-a-0 PI 1 s-a-1 PI 2 s-a-0 PI 2 s-a-1 00001 © 2001 Agrawal, Bushnell 00001 May 22, 2010, Agrawal: Lecture 4 Combinational ATPG PI 2 s-a-1 detected PI 1=0 27
