Transformations Math 8

Transformations Math 8

Four Types Translation (Slide) Rotation (turn) Reflection (flip) Dilation (shrinking/stretching)

Four Types Translation (Slide) Rotation (turn) Reflection (flip) Dilation (shrinking/stretching)

Examples:

Examples:

When working with transformations it is helpful to remember the coordinate system Quadrant 1

When working with transformations it is helpful to remember the coordinate system Quadrant 1 (+x, +y) Quadrant 2 (-x, +y) Quadrant 3 (-x, -y) Quadrant 4 (+x, -y)

Examples:

Examples:

Reflections-(Flip) When you reflect a shape in the coordinate plane, you reflect it over

Reflections-(Flip) When you reflect a shape in the coordinate plane, you reflect it over a line. This line is called the line of reflection/symmetry. When a figure is reflected on a coordinate plane, every point of the figure must have a corresponding point on the other side.

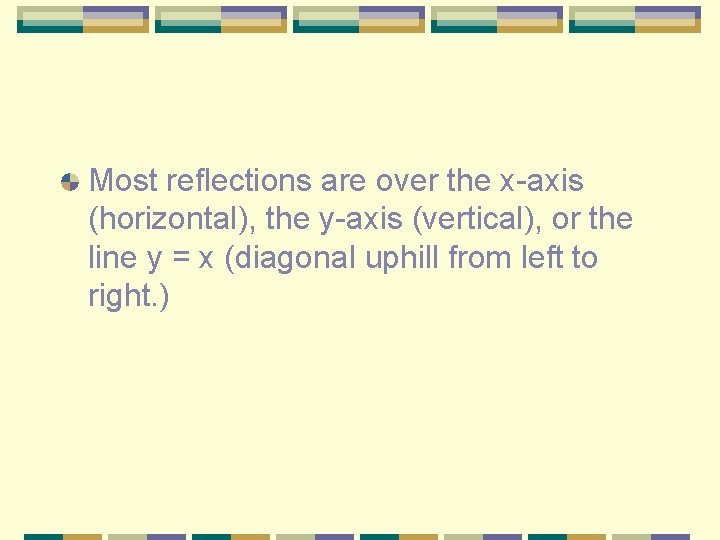

Most reflections are over the x-axis (horizontal), the y-axis (vertical), or the line y

Most reflections are over the x-axis (horizontal), the y-axis (vertical), or the line y = x (diagonal uphill from left to right. )

Reflections When you reflect a shape over the x –axis, use the same coordinates

Reflections When you reflect a shape over the x –axis, use the same coordinates and multiply the y coordinate by – 1. (x, opposite y) When you reflect a shape over the y-axis, use the same coordinates and multiply the x coordinate by – 1. (opposite x, y) When you reflect a shape over the line y=x, use the same coordinates and multiply both by – 1.

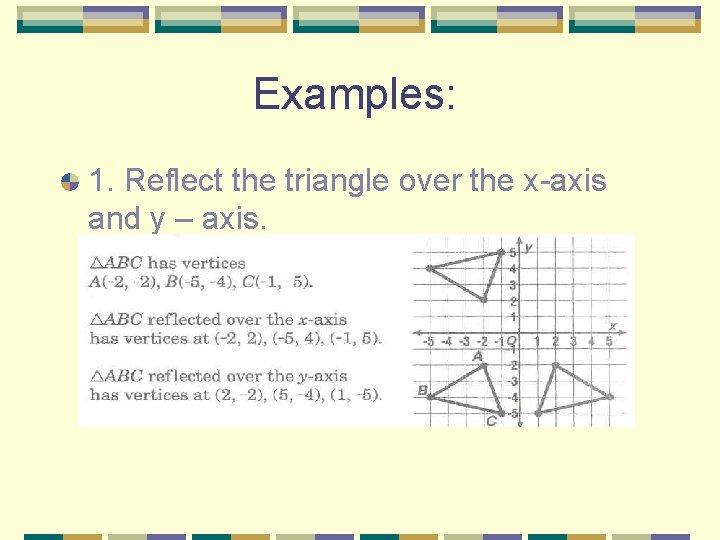

Examples: 1. Reflect the triangle over the x-axis and y – axis.

Examples: 1. Reflect the triangle over the x-axis and y – axis.

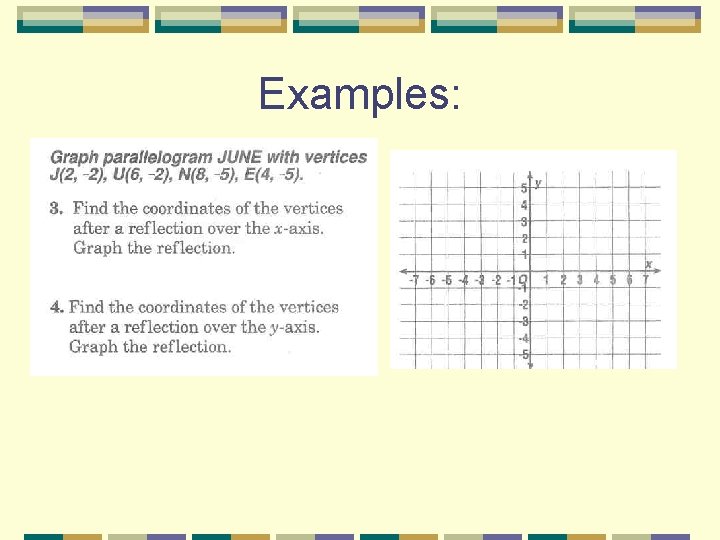

Examples:

Examples:

Examples:

Examples:

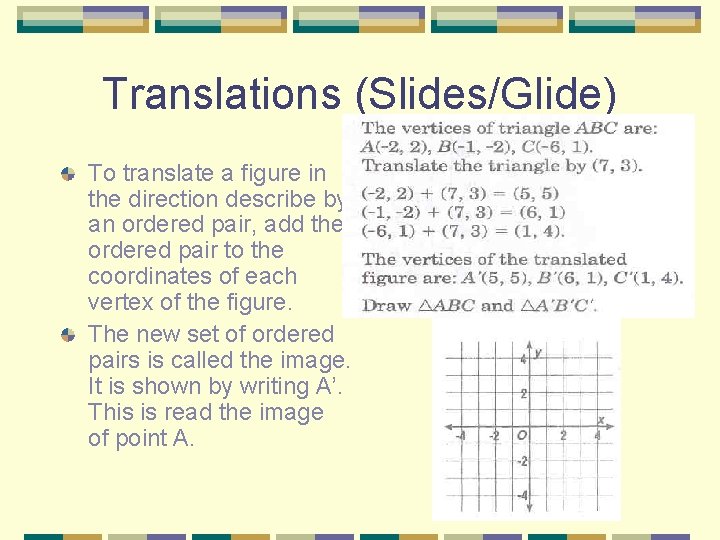

Translations (Slides/Glide) To translate a figure in the direction describe by an ordered pair,

Translations (Slides/Glide) To translate a figure in the direction describe by an ordered pair, add the ordered pair to the coordinates of each vertex of the figure. The new set of ordered pairs is called the image. It is shown by writing A’. This is read the image of point A.

Examples Find the coordinates of the vertices of each figure after the translation described.

Examples Find the coordinates of the vertices of each figure after the translation described. Use the graph to help you.

Examples: Find the coordinates of the vertices of each figure after the translation described.

Examples: Find the coordinates of the vertices of each figure after the translation described.

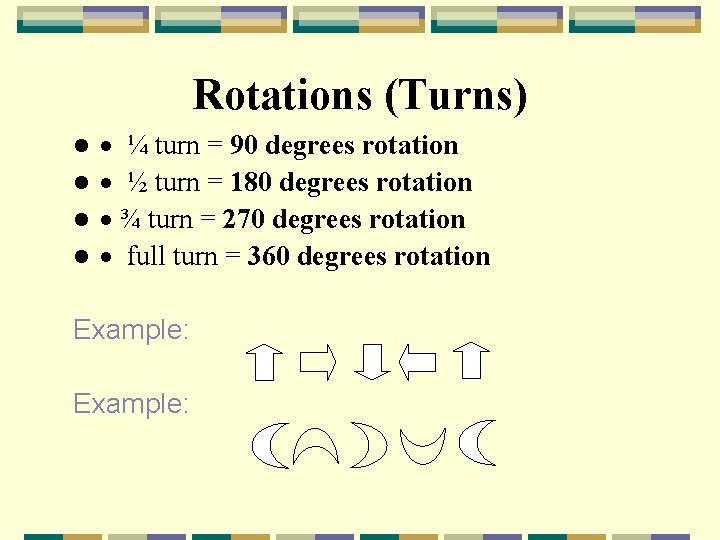

Rotations (Turns) · ¼ turn = 90 degrees rotation l · ½ turn =

Rotations (Turns) · ¼ turn = 90 degrees rotation l · ½ turn = 180 degrees rotation l · ¾ turn = 270 degrees rotation l · full turn = 360 degrees rotation l Example:

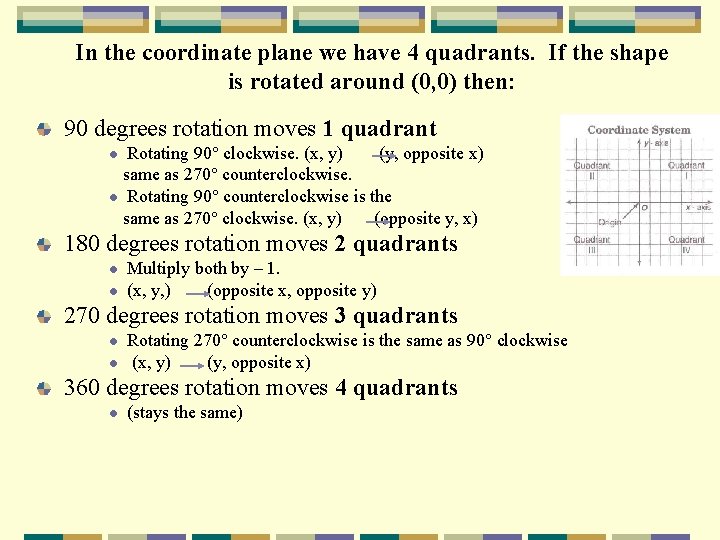

In the coordinate plane we have 4 quadrants. If the shape is rotated around

In the coordinate plane we have 4 quadrants. If the shape is rotated around (0, 0) then: 90 degrees rotation moves 1 quadrant Rotating 90 clockwise. (x, y) (y, opposite x) same as 270 counterclockwise. l Rotating 90 counterclockwise is the same as 270 clockwise. (x, y) (opposite y, x) l 180 degrees rotation moves 2 quadrants l l Multiply both by – 1. (x, y, ) (opposite x, opposite y) 270 degrees rotation moves 3 quadrants l l Rotating 270 counterclockwise is the same as 90 clockwise (x, y) (y, opposite x) 360 degrees rotation moves 4 quadrants l (stays the same)

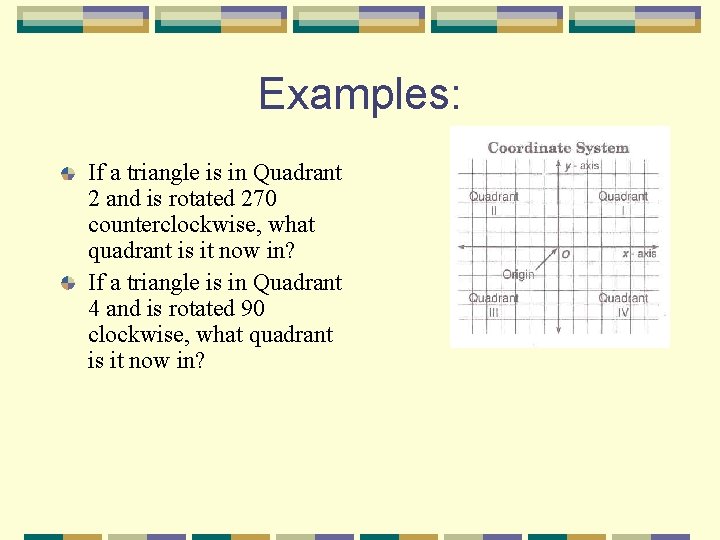

Examples: If a triangle is in Quadrant 2 and is rotated 270 counterclockwise, what

Examples: If a triangle is in Quadrant 2 and is rotated 270 counterclockwise, what quadrant is it now in? If a triangle is in Quadrant 4 and is rotated 90 clockwise, what quadrant is it now in?

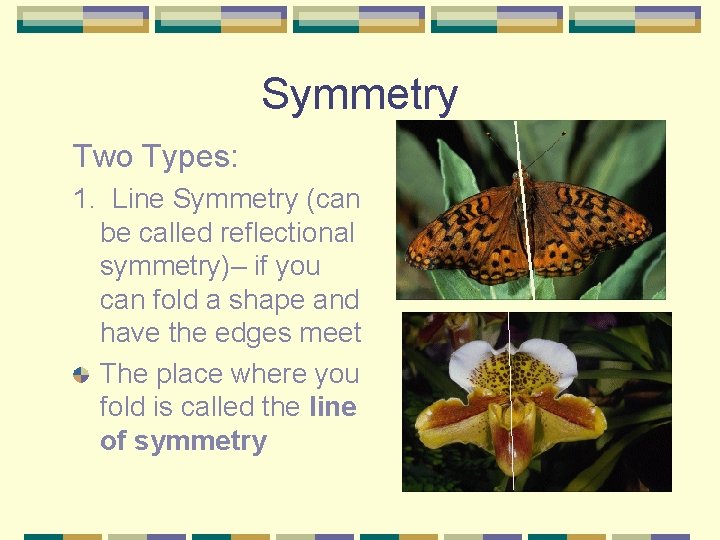

Symmetry Two Types: 1. Line Symmetry (can be called reflectional symmetry)– if you can

Symmetry Two Types: 1. Line Symmetry (can be called reflectional symmetry)– if you can fold a shape and have the edges meet The place where you fold is called the line of symmetry

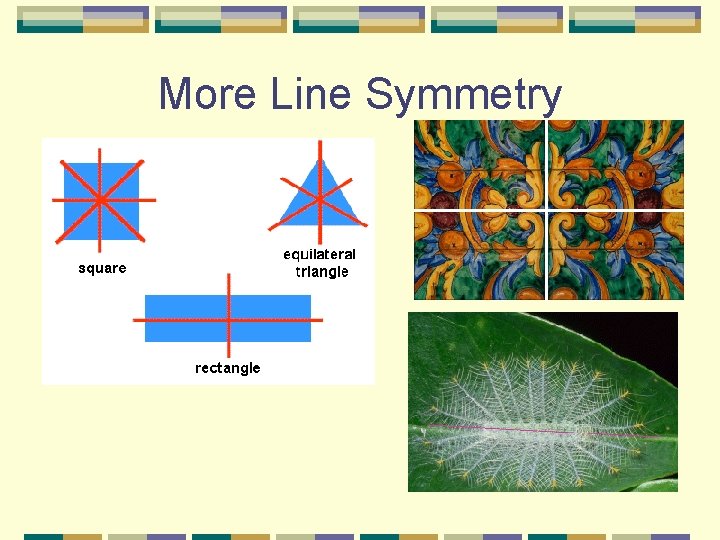

More Line Symmetry

More Line Symmetry

Ink. Blots

Ink. Blots

Does the Human Face Possess Line Symmetry?

Does the Human Face Possess Line Symmetry?

Answer: No

Answer: No

Girl

Girl

Carpets

Carpets

Examples: Do the following shapes have line symmetry? If so, how many lines of

Examples: Do the following shapes have line symmetry? If so, how many lines of symmetry do they have? a. b. c. d. e.

Rotational Symmetry 2. Rotational Symmetry: If you can turn the shape less than 360

Rotational Symmetry 2. Rotational Symmetry: If you can turn the shape less than 360 o and still have the same shape. Order of Rotational Symmetry: Is the number of rotations that must be made to return to the original orientation l Minimum Rotational Symmetry: The smallest number of degrees a shape can be rotated and fit exactly on itself l l Hint: Take 360 o divided by the number of sides/points.

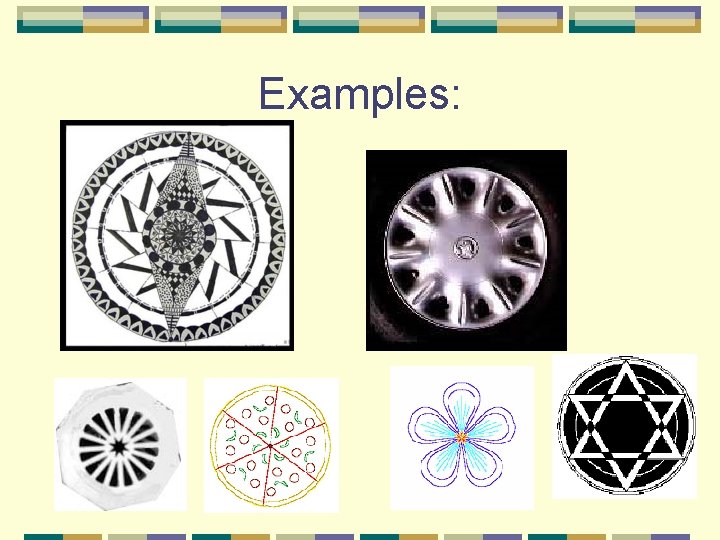

Examples:

Examples:

Examples: Does the following shape have rotational symmetry? If yes, what is the order

Examples: Does the following shape have rotational symmetry? If yes, what is the order and MRS? a. b. c. d. e.
