Spatial Concepts and Data Models Reading Shekhar Chawla
- Slides: 28
Spatial Concepts and Data Models Reading: Shekhar & Chawla Chapter 2 November 22, 2005
Outlines • This chapter introduces spatial data model from Spatial ORDBMS perspectives – Main concern is to define spatial data types and spatial operators in DBMS level – You’re encouraged to compare this with GIS perspectives where file-system is prevalent • Models of spatial information – Object vs. field view define different spatial data types – Operations on different spatial data types • Database design – Conceptual DB design tools can be extended to accommodate into spatial concepts (consensus is still lacking in this regard)
Part I. Models of spatial information
Two common views • Object view measures space – Forest stands are seen as three polygon • Field view measures attribute – Forest stands are seen as mathematical function given spatial framework
Spatial object types in OGIS Data Model http: //www. opengis. org/techno/specs. htm
Exercise Example Object City (in small scale map) River Country Hawaiian islands Bus route OGIS Spatial Object Type Dimension

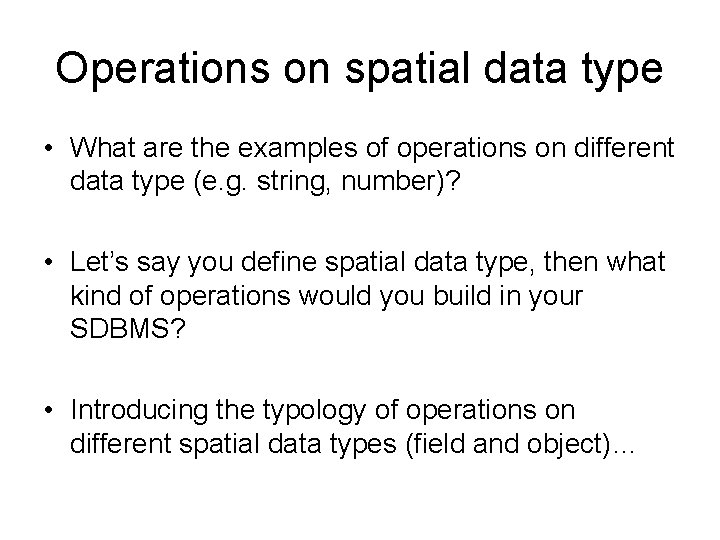

Operations on spatial data type • What are the examples of operations on different data type (e. g. string, number)? • Let’s say you define spatial data type, then what kind of operations would you build in your SDBMS? • Introducing the typology of operations on different spatial data types (field and object)…
Types of field operations • Local: value of the new field at a given location in the spatial frame-work depends only on the value of the input field at that location (e. g. Thresholding) • Focal: value of the resulting field at a given location depends on the values that the input field assumes in a small neighborhood of the location (e. g. Gradient) • Zonal: Zonal operations are naturally associated with aggregate operators or the integration function. An operation that calculates the average height of the trees for each species is a zonal operation. Worboy M, 1995, GIS: A Computing Perspectives
Exercise • Classify following operations on elevation field – Identify peaks (points higher than its neighbors) – Identify mountain ranges (elevation over 2000 feet) – Determine average elevation of a set of river basins
Natural language that describes relationships between spatial objects • The relationships between you (or your house) and UW campus can be described differently – I’m passing by U-Village in the left hand side – I live north of UW campus – My house is 4 miles from UW campus • Can be seen as operations between point (you) and polygon (UW Campus) • Q. Which of the above would you find it easier to identify? • Q. how our brain structures geographic space – We are terrible in estimating distances, maybe only slightly better in retaining direction and orientation, but fairly good when it comes to remembering topological relationships (from the text p. 11) • Q. Which of the above measures topological relationship? • Q. Which of the above reveals metric information?
Topology and metrics • Topology – properties of geometric figures that are invariant under continuous deformation (this kind of spatial relationship will remain the same after projection or transformation which is common in GIS) – E. g. adjacency, containment, and overlap – Learned by humans at a very early age • Metric – – E. g. size, shape, distance, or direction Refine, rather than define, spatial relations Can be expressed either quantitative or qualitatively E. g. 10 degree, NW, North of, Near Mark DM, 1999, Spatial Representation: A Cognitive View. In Maguire, D. J. , Goodchild, M. F. , Rhind, D. W. , and Longley, P. (editors) Geographical Information Systems: Principles and Applications, 2 nd edition, v. 1, pp. 81 -89.
Types of object operations • Topological – Inside (point, region) – Touches (region, region) – Overlap (region, region) • Metric – Euclidean-distance (point, point) – Direction (point, point) – Length (arc) – Area (region)
Egenhofer’s 9 -intersection model • Many spatial relations between objects are topological in nature • Many spatial objects take the form of polygon (or region) at some level • What is the topological relationship between polygon object A and polygon object B? • Can we formalize them?
• Interior, boundary, exterior – Let A be an object in a “Universe” U. U Green is A interior Red is boundary of A A Blue –(Green + Red) is A exterior

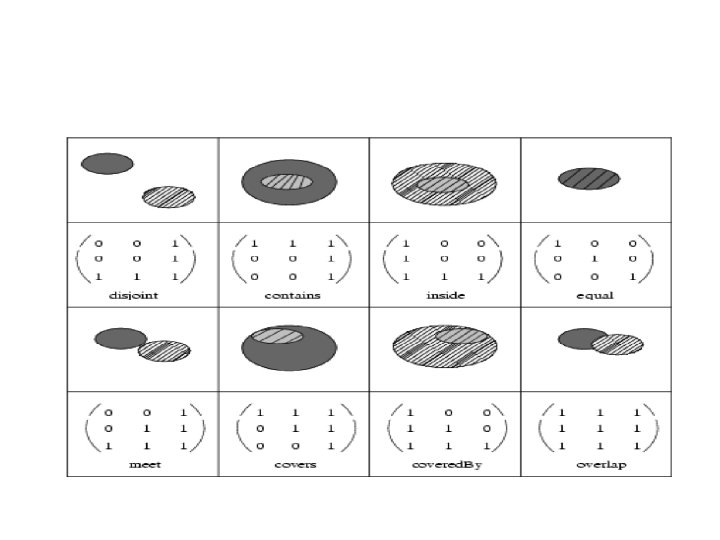

• 9 intersections – A and B are spatial objects in a two dimensional plane. – intersections between interior, boundary, exterior of A, B – Can be arranged as a 3 by 3 matrix – Matrix element take a value of 0 (false) or 1 (true).
• 9 -intersection model can be supported in SQL 3 • So you can do the following queries in SDBMS: SELECT Parcel. name FROM Parcel, Soil. Unit WHERE Within(Parcel. geo, Soil. Unit. geo) AND Soil. Unit. category = 4; • Commercial SDBMS includes topological operators in their module – Oracle Spatial – Informix Spatial Data. Blade http: //publibfp. boulder. ibm. com/epubs/pdf/9119. pdf
Part II. DB Design Extending conceptual DB design tools with Spatial Concepts
Example: ERD for State-park database Spatial entity is represented with multi-valued attributes (e. g. Lineid, Pointid) Spatial attributes are simply treated as any other nonspatial attributes
Pictogram – spatial object type • Basic shape

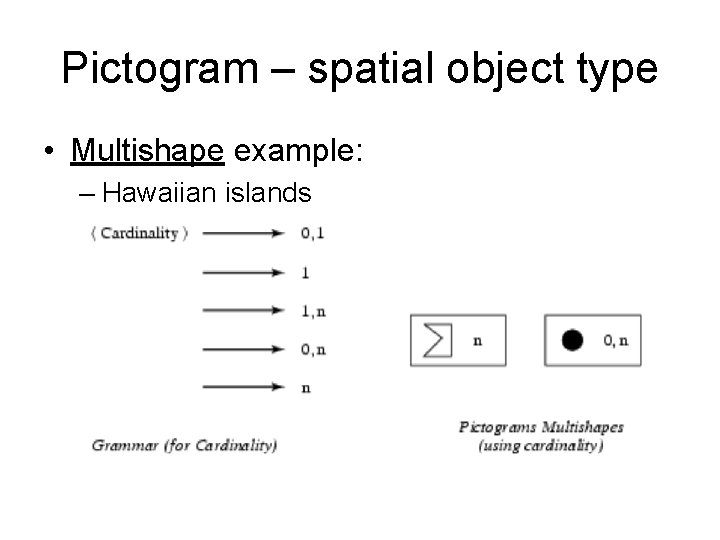

Pictogram – spatial object type • Multishape example: – Hawaiian islands
Pictogram – spatial object type • Derived shape example – City center point from boundary polygon – The shape of the US can be derived from the US from the shapes of its state boundaries
Pictogram – spatial object type • Alternate shape example: – A road is represented as a polygon for construction or as a line for navigation – A river can be represented as a polygon or a line depending on the scale (multiple representation)
ERD with pictogram As spatial data type (point, line, polygon), and spatial operations (within, crosses) are defined, spatial semantics are captured better
UML with pictogram
Exercise • Draw the ERD or UML of your project database with pictogram – Make sure to indicate specifics of spatial object type that conform to OGIS spec. • • (1) basic shape (2) multishape if any (3) derived shape if any (4) alternate shape if any
Discussions • As most of you use relational database, our ability to extend relational database to spatial concept is limited. In other words, you can’t define spatial data type or spatial functions (or operators) • How would you store field value (e. g. elevation) in relational database? • Can you link your table to raster image? • Can you write the SQL that returns the distance between two points? • Can you write the SQL that returns whether point A is within region B? Hint: can be done if spatial attribute is treated as nonspatial attribute, also use derived attribute
P 4 • Populate your database • Use Select * from tablename • Turn in the printout of results of select statement (or capture images) • Indicate spatial data type of two spatial entities using pictogram (hand-written) over your final ERD or UML • Indicate spatial reference system of your database
