Smart PTT Sound System Settings Smart PTT Integrated
- Slides: 20
Smart. PTT Sound System Settings
Smart. PTT – Integrated MOTOTRBO™ Solution Smart. PTT ENTERPRISE Smart. PTT BASIC distributed systems local systems Standard features Radio dispatch GPS tracking Event and voice logging Optional features Monitoring Telephone interconnect IP repeater connection Web client Data transmission and storage Radio network Simulcast bridging service support
Contents • Technical requirements for sound system • Supported equipment – Motorola accessories, Imtradex, Tipro • Dispatcher workspace organization • Advanced audio output settings • Real-time sound settings • Recording sound settings • Sound panel – channel sound control, group muting, smart mute, selected subscriber sound control • Main issues with sound and how to resolve them
Technical Requirements for Sound System • Sound board with microphone and speaker lines for Dispatcher application • Sound board with microphone and speaker lines for control station connection • Each control station needs a separate channel • Up to 8 control stations can be connected simultaneously to one radioserver via one 8 -channel sound board • Professional dispatch microphones with noise filtering are preferred. Studio recording music microphones are not acceptable for dispatch.
Supported Equipment • MOTOTRBO accessories • Imtradex equipment • Tipro equipment • Any Direct. Input microphones or headsets with PTT buttons
Recommended Equipment • Sound boards – Delta 10/10 LT multichannel sound board (8 channels, dicontinued) – MAYA 44 xte PCI multichannel sound board (4 channels) – ICON Digital Cube Pro USB Audio Interface (4 channels) – PCI v 2. 1 Asus Xonar DS 7. 1 (2 channels) • Microphones – Imtradex TM 3 Microphone – Buddy Desktop. Mic 7 G

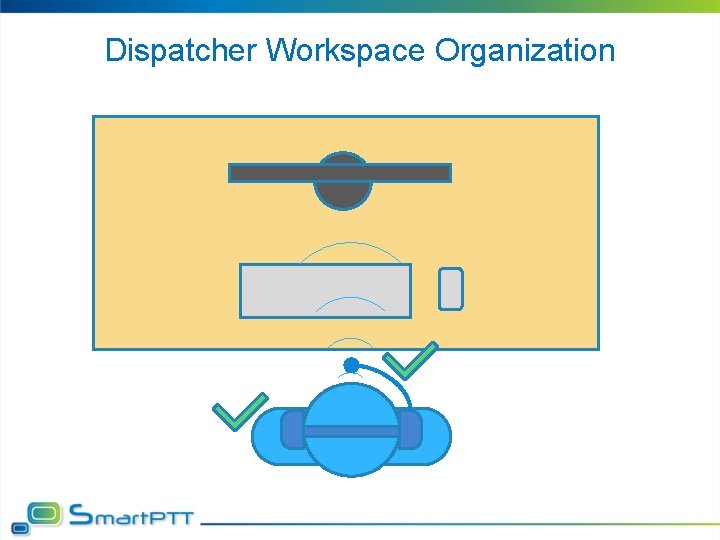

Dispatcher Workspace Organization
Dispatcher Workspace Organization
Dispatcher Workspace Organization
Dispatcher Workspace Organization
Advanced Audio Output Settings
Real-time Sound Settings
Recording Sound Settings
Sound Panel
Sound Panel

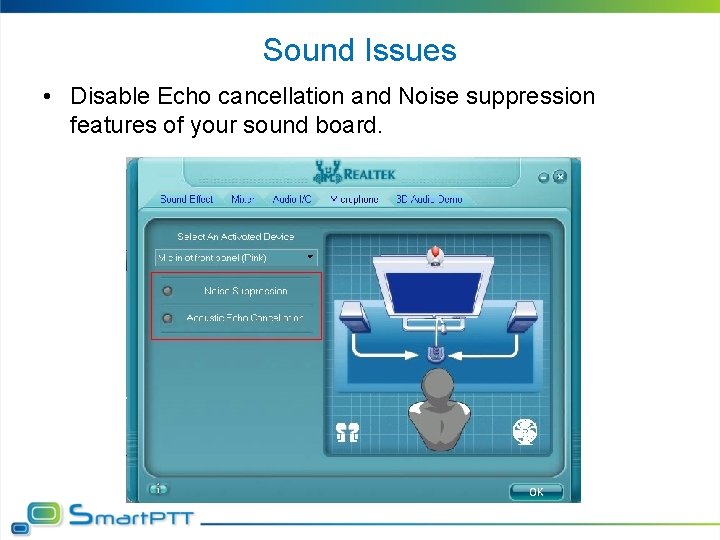

Sound Issues • Disable Echo cancellation and Noise suppression features of your sound board.
Sound Issues
Sound Issues • Make sure hardware is working properly
Sound Issues • Check if all related software is OK
www. smartptt. com www. elcomplus. com info@smartptt. com support. smartptt. com Watch this webinar and our other videos on Follow our news on Smart. PTT page Smart. PTT channel
