Secure Wireless Solutions for a Connected Planet
Ava. LAN is a leader in wireless technology for IP Video Surveillance Founded in 2004 in Palo Alto with Headquarters now in Huntsville, Alabama Experienced with over 52, 000 radios deployed Well distributed – ADI, Northern/Tried, Anixter, Graybar, Etc

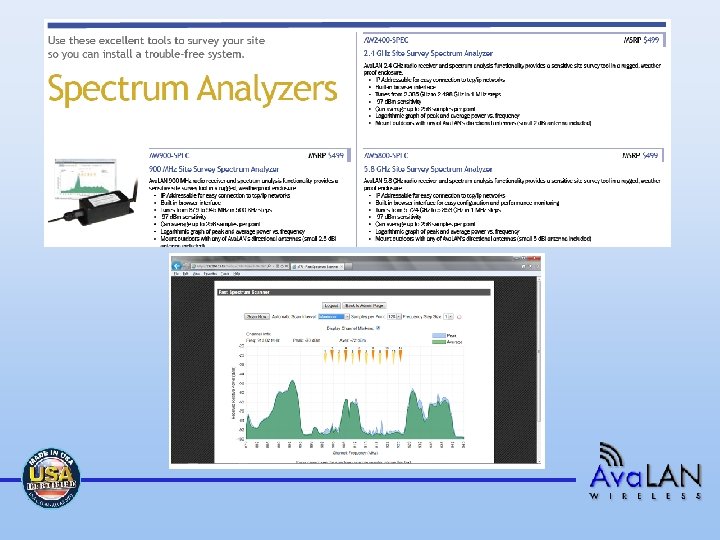

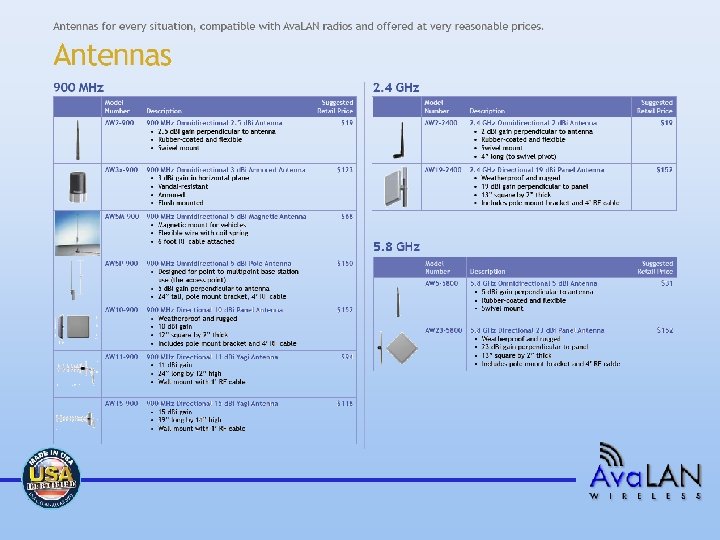

Ava. LAN Products High-Speed 5. 8 Ghz Radios Industrial Cellular Gateway Bridge, Star or Mesh 4 G Multi-Carrier Integrated Dome Housing Outdoor IP 66 Optional 3 x POE outputs Pre-Configuration Service POE Powered Solar IP Surveillance Pole Integrated IP Camera Housings 900 MHz and 2. 4 Ghz Radios Dome or Tube NEW FIPS 140 Encryption Bridge, Star Dome / Tube housings Spectrum Analyzers Indoor / Outdoor Antennas
AW 58100 - High Speed 5. 8 GHz for IP Surveillance Video • Up to 100 Mbps RF Data Rate • Bridge, Star and Mesh Topologies • Maximum power for maximum range • Built in browser interface • Rugged weatherproof cast aluminum enclosures • Power over Ethernet for single cable installation
AW 58103 IP Surveillance Video with 3 integrated POE ports • Up to 100 Mbps RF Data Rate • 3 x 802. 3 af POE outputs • Bridge, Star and Mesh Topologies • Maximum power for maximum range • Built in browser interface • Professional weatherproof cast aluminum enclosures • Power over Ethernet for single cable installation
Point to Point each pair gets a dedicated radio link for maximum throughput. Mesh and Multi-Point Data rate is shared between subscriber radios.
How far will the link go? AW 58100 HTP-PAIR 30 Miles AW 58100 HTA/AW 58100 HTS 5 Miles AW 58100 HTM ½ Mile How fast will the link go? 2 x 2 MIMO Technology RF Link Rate Data Throughput Point to Point (Bridge) Up to 130 Mbps Up to 60 Mbps Point to Multi-Point (Star) Up to 130 Mbps Up to 60 Mbps Mesh – 1 Hop Up to 130 Mbps Up to 30 Mbps Mesh – 2 Hops Up to 130 Mbps Up to 15 Mbps Mesh – 3 Hops Up to 130 Mbps Up to 7 Mbps Mesh – 4 Hops Up to 130 Mbps Up to 3 Mbps
NLOS vs. LOS Line of Sight (LOS) Preferred. Need to know the distance between cameras and head end. Lower cost and bandwidth not a problem. Non-Line of Sight (NLOS) 1) 900 Mhz – Great penetration but limited to 1. 5 Mbps 2) 4 G Cellular – Up to 14 Mbps depending on carrier and network traffic. 3) 5. 8 GHz Mesh – Go around obstruction by placing mesh node between head end and camera. 4) Get LOS
New “AW-Net. Drop” Industrial 4 G Cellular Gateway • Up to 14 Mbps RF Data Rate – • 4 G HSPA+ ATT/T-Mobile • 3 G EVDO on Verizon and Sprint / LTE coming soon • Multi-Vendor radio modem is included • Rugged weatherproof cast aluminum enclosures • Power over Ethernet for single cable installation
AW-D 2 -900 S Secure Dome Housing with Integrated FIPS 140 -2
Secure Wireless Solutions for a Connected Planet Thank you! Contact Ava. LAN Wireless www. avalanwireless. com Sales 866 533 6216 Support 650 384 0000 mderby@avalanwireless. com (650) 575 7332
