SDC enhancement - CCVPN Support Design of List Inputs in Service Template

Background • In Casablanca release, - The CCVPN service consisted of 3 abstracted nodes: Site, SOTN infra, SDWAN infra. - The current SDC is not support multiple sets of inputs in one service template. • Goal of Dublin release - The CCVPN service should be able to design in one template. - Service template should support multiple instances inputs, so we can design all resources into one service List type input will be rational solution. https: //wiki. onap. org/display/DW/CCVPN+DM+Requirement 2

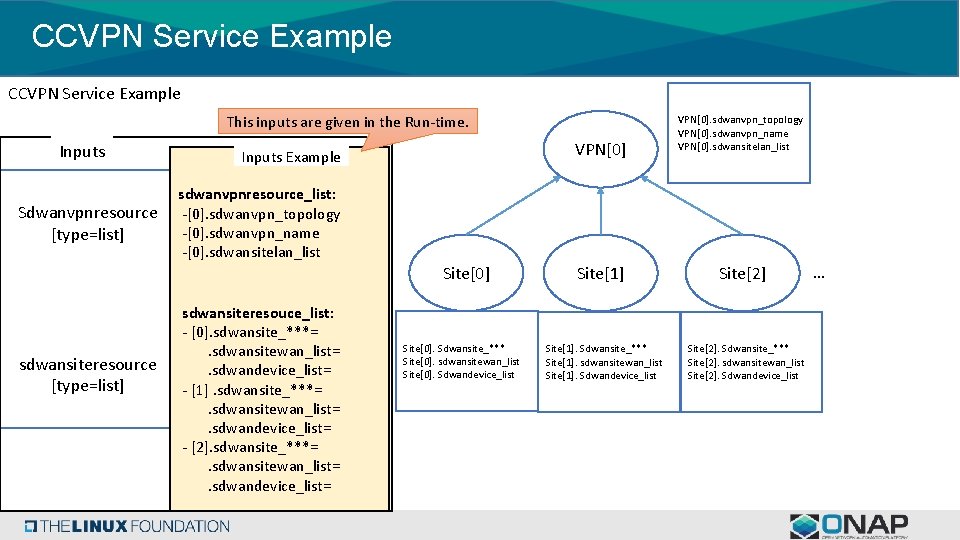

CCVPN Service Example This inputs are given in the Run-time. Inputs Sdwanvpnresource [type=list] VPN[0] Inputs Example sdwanvpnresource_list: -[0]. sdwanvpn_topology -[0]. sdwanvpn_name -[0]. sdwansitelan_list Site[0] sdwansiteresource [type=list] VPN[0]. sdwanvpn_topology VPN[0]. sdwanvpn_name VPN[0]. sdwansitelan_list sdwansiteresouce_list: - [0]. sdwansite_***=. sdwansitewan_list=. sdwandevice_list= - [1]. sdwansite_***=. sdwansitewan_list=. sdwandevice_list= - [2]. sdwansite_***=. sdwansitewan_list=. sdwandevice_list= Site[0]. Sdwansite_*** Site[0]. sdwansitewan_list Site[0]. Sdwandevice_list Site[1]. Sdwansite_*** Site[1]. sdwansitewan_list Site[1]. Sdwandevice_list Site[2]. Sdwansite_*** Site[2]. sdwansitewan_list Site[2]. Sdwandevice_list …

TOSCA Service Template Sample tosca_definitions_version: tosca_simple_yaml_1_3 description: Enhance_Service data_types: org. openecomp. datatypes. vf. sdwanvpnresource: properties: sdwanvpn_topology: type: string Define Data Ty required: true pe of each resource sdwanvpn_name: type: string required: true sdwansitelan_list: type: list entry_schema: org. openecomp. datatypes. vfc. sdwansitelan required: true org. openecomp. datatypes. vf. sdwansiteresource: properties: … sdwansitewan_list: type: list entry_schema: org. openecomp. datatypes. vfc. sdwansitewan required: true sdwandevice_list: type: list entry_schema: org. openecomp. datatypes. vfc. sdwandevice required: true topology_template: Declare new lis inputs: t input sdwanvpnresource_list: type: list entry_schema: org. openecomp. datatypes. vf. sdwanvpnresource required: true sdwansiteresource_list: type: list entry_schema: org. openecomp. datatypes. vf. sdwansiteresource required: true node_templates: sdwanvpnresource: type: org. openecomp. resource. vf. Sdwanvpnresource properties: availability_zone_max_count: 1 Get each prope min_instances: 1 rty sdwanvpn_topology: get_input: [sdwanvpnresource_list, INDEX, sdwanvpn_topology] sdwanvpn_name: get_input: [sdwanvpnresource_list, INDEX, sdwanvpn_name] sdwansitelan_list: get_input: [sdwanvpnresource_list, INDEX, sdwansitelan_list] 4

UI Enhancement for List Inputs 2. Click ‘Declare list’ 1. Check to properties to get value from list 5

UI Enhancement for List Inputs Declare List Input 1. input name □ use existing list 2. data type (entry_schema) org. openecomp. datatypes. vfc. location 3. Property names of the data type Property address, tenant location (same as checked properties) 4. Click ‘SAVE’ 6

UI Enhancement for List Inputs SDWANSITE list type input is declared 7

UI Enhancement for List Inputs {“get_input”: [“locations”, ”INDEX”, ”address”]} now the properties refer to item in the list input {“get_input”: [“locations”, ”INDEX”, ”location”]} 8

UI to TOSCA Mapping (Properties) location {“get_input”: [“locations”, ”INDEX”, ”location”]} {“get_input”: [“locations”, ”INDEX”, ”address”]} tosca_definitions_version: tosca_simple_yaml_1_2 description: Template for deploying SD-WAN with a variable number data_types: org. openecomp. datatypes. vfc. location properties: location: type: string address: type: string topology_template: inputs: number. Of. Sites: type: integer locations: type: list entry_schema: org. openecomp. datatypes. vfc. location node_templates: sdwan: type: VPN vpe: type: v. PE site: type: VPNSite properties: location: { get_input: [ locations, INDEX, location ] } address: { get_input: [ locations, INDEX, address ] } 9

UI to TOSCA Mapping (Inputs) tosca_definitions_version: tosca_simple_yaml_1_2 description: Template for deploying SD-WAN with a variable number of data_types: org. openecomp. datatypes. vfc. location properties: location: type: string address: type: string topology_template: inputs: number. Of. Sites: type: integer locations: type: list entry_schema: org. openecomp. datatypes. vfc. location node_templates: sdwan: type: VPN vpe: type: v. PE site: type: VPNSite properties: location: { get_input: [ locations, INDEX, location ] } address: { get_input: [ locations, INDEX, address ] } Data type will be defined SDWANSITE new list input be declared 10

Code Change Overview • Support designing list inputs (UI) • Support new get_input syntax from TOSCA v 1. 3 • Support “private” data_types in service template • Enhance TOSCA parser to enable to parse models above 11

s Changes in Developer View

Code Change Overview for “Declare List Input” feature • Support designing list inputs (UI) • Support new get_input syntax from TOSCA v 1. 3 • Support “private” data_types in service template • Enhance TOSCA parser to enable to parse models above 13

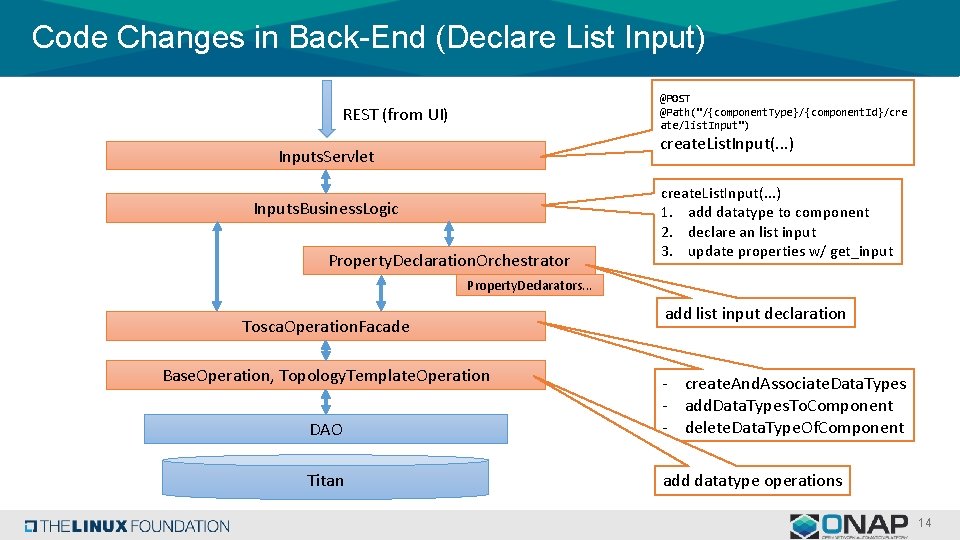

Code Changes in Back-End (Declare List Input) @POST @Path("/{component. Type}/{component. Id}/cre ate/list. Input") REST (from UI) create. List. Input(. . . ) Inputs. Servlet Inputs. Business. Logic Property. Declaration. Orchestrator create. List. Input(. . . ) 1. add datatype to component 2. declare an list input 3. update properties w/ get_input Property. Declarators. . . Tosca. Operation. Facade Base. Operation, Topology. Template. Operation add list input declaration DAO - create. And. Associate. Data. Types - add. Data. Types. To. Component - delete. Data. Type. Of. Component Titan add datatype operations 14

Data Structure in Titan titan compo nent. Ins tances inputs Comp onent propert ies Edge. Label. Enum. DATA_TYPES data Types Provide new methods to create/update/delete data. Type(s) in Tosca. Operation. Facade - create. And. Associate. Data. Types - add. Data. Types. To. Component - delete. Data. Type. Of. Component Vertex. Type. Enum. DATA_TYPES 15

Changes in catalog-model for service-specific datatype Add “data. Types” to Component class 16

Changes in catalog-model to support new get_input syntax Define new private member and methods to the Get. Input. Value. Data. Definition class to judge whether property is declared as list type inputs or not. Get. Input. Value. Data. Definition private String prop. Name; private String input. Id; private Integer index. Value; private Get. Input. Value. Data. Definition get. Input. Index; private boolean is. List = false; private Schema. Definition list. Schema; public Schema. Definition get. List. Schema() { return this. list. Schema; } public void set. List. Schema(Schema. Definition entry. Schema) { this. list. Schema = entry. Schema; } Use “prop. Name” and “input. Name” and “list. Schema” to express new ‘get_input’ syntax. e. g. ) get_input: [sdwanvpnresource_list, INDEX, sdwanvpn_topology] input. Name prop. Name if list. Schema defined 17

Generating TOSCA Model download tosca model(artifact) rest Artifact. Servlet (no change) Artifact. Business. Logic (no change) get Component from DB add ‘data_types’ convert(generation) logic Tosca. Export. Handler convert Component into TOSCA model add field for datatype TOSCA model java class Tosca. Operation. Facade Tosca. Template DAO Tosca. Data. Type (new) Titan new class represents “data_types” 18
