Revision Read chapter 5 then answer the following
- Slides: 17
Revision
Read chapter 5 then answer the following. • Redraw the following Use Case diagram for an online book shopping system. • The system allow site visitors to view comments about any avialble books. A customer also can buy rare books but they have to he/she log in first, if they don’t have an account , then they have to register using a verifiable email account. Buying through the service of Pay. Pal system.
online book shopping system View comments customer Buy books <<Include>> Log in Verify email <<extend>> <<include>> register Pay. Pal
Read chapter 7 the create System Sequence diagram for the use case buying a book based on the following scenario Use Case: Buy book Actors: Buyer Precondition: 1. The Customer has an account Trigger: Customer selects buy book button Flow of events: 1. the customer should login correctly first 2. search for the book he/she wants to buy 3. . view the description/ price of the book 4 buy the book 5. the number of available book should be updated Post condition: 1. book data is updated and soled. System customer login search for the book view the description Buy book Update number of book
Read chapter 7 the create Sequence diagram for the use case buying a book based on the following scenario : Account : Book. Description customer login search for the book view the description Buy book Update number of book
Collaboration diagram
Read chapter 7 and explain the difference between collaboration diagram and sequence diagram
Class diagram

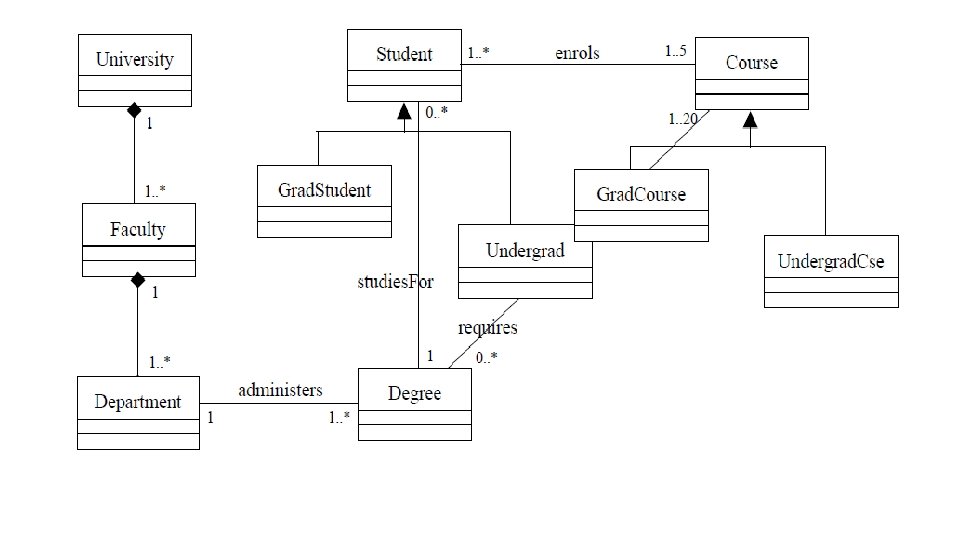

University 2 Scenario • A university offers degrees to students. • The university consists of faculties each of which consists of one or more departments. • Each degree is administered by a single department. • Each student is studying towards a single degree. • Each degree requires one to 20 courses. • A student enrolls in 1 -5 courses (per term. ) • A course can be either graduate or undergraduate, but not both. • Likewise, students are graduates or undergraduates but not both. Draw a class diagrams which represents the generic objects and relationships described above. Make sure to specify multiplicities for all associations shown in your diagrams.

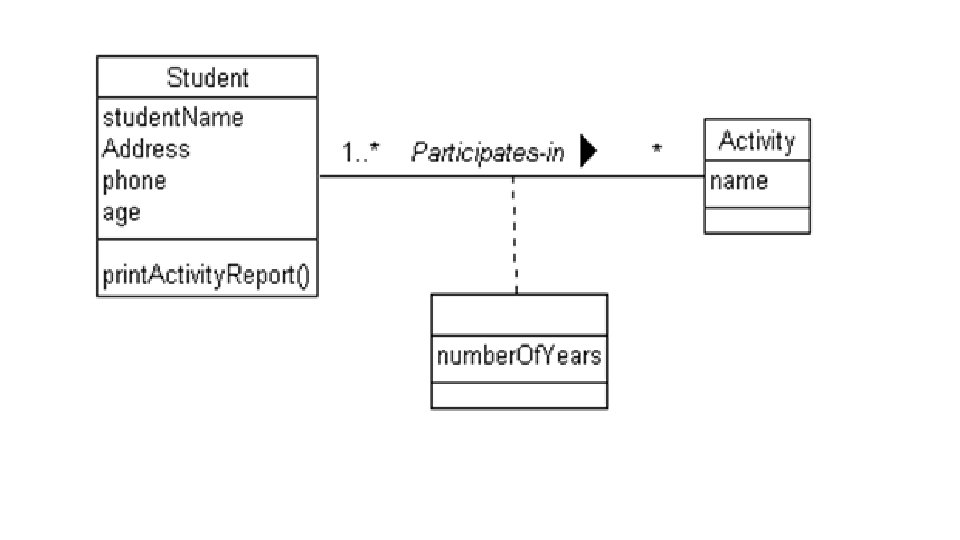

• A student, whose attributes include student. Name, Address, phone, and age, may engage in multiple campus based activities. The university keeps track of the number of years a given student has participated in a specific activity and, at the end of each academic year, mails an activity report to the student showing his or her participation in various activities. Draw a class diagram for this situation
State diagram
State Diagram Example 17 A very simple microwave oven system: The microwave has a switch to select full or half power, a numeric keypad to input time, a start/stop button, and an alphanumeric display. We assumed that the sequence of actions using the microwave is: 1. Select the power level (either half power or full power). 2. Input the cooking time using a numeric keypad. 3. Press Start and the food is cooked for the given time. For safety reasons, oven should not operate when door is open.
Solution 18
• Draw a state diagram for a light in a fridge. The light has two states either on or off. If the door is opened then the light is on. And if the door is closed the light is off Door open Door close On
