Project Scheduling Risk Management Project Scheduling Basic Concepts
Project Scheduling & Risk Management

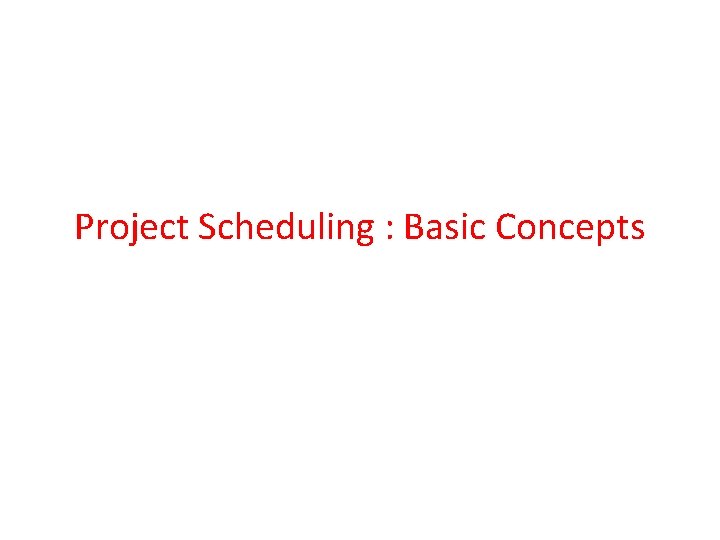

Project Scheduling : Basic Concepts

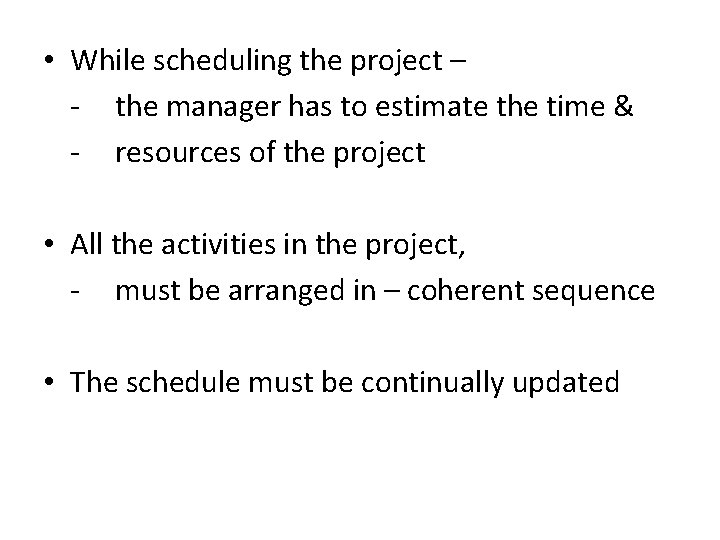

• While scheduling the project – - the manager has to estimate the time & - resources of the project • All the activities in the project, - must be arranged in – coherent sequence • The schedule must be continually updated

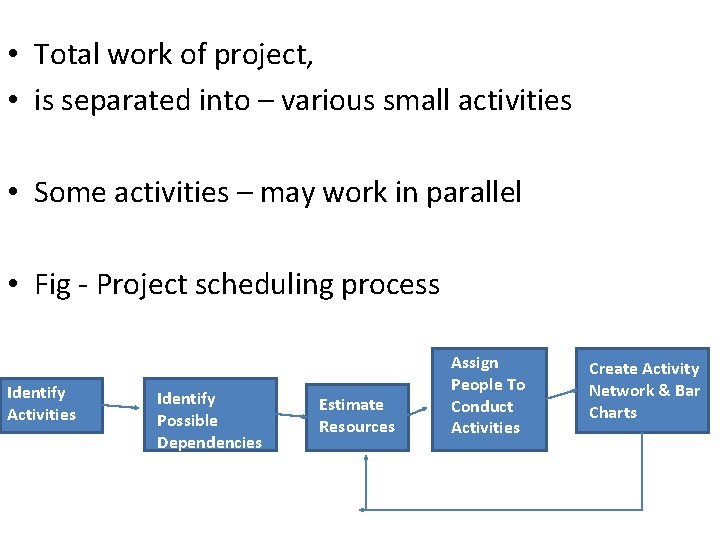

• Total work of project, • is separated into – various small activities • Some activities – may work in parallel • Fig - Project scheduling process Identify Activities Identify Possible Dependencies Estimate Resources Assign People To Conduct Activities Create Activity Network & Bar Charts

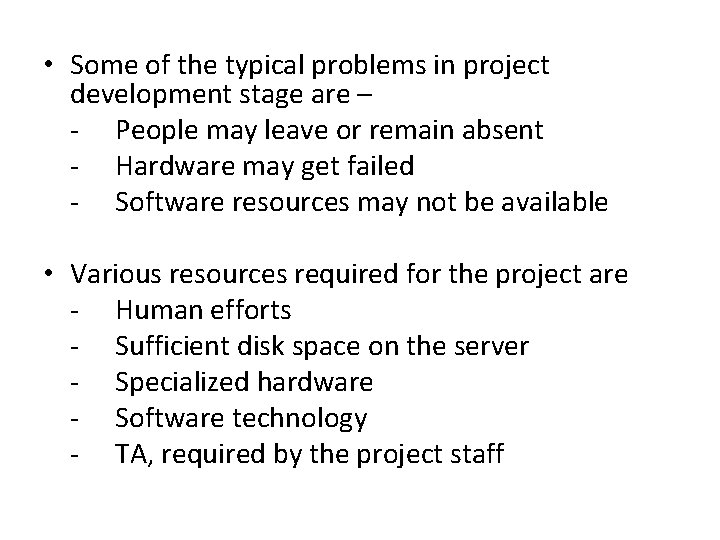

• Some of the typical problems in project development stage are – - People may leave or remain absent - Hardware may get failed - Software resources may not be available • Various resources required for the project are - Human efforts - Sufficient disk space on the server - Specialized hardware - Software technology - TA, required by the project staff

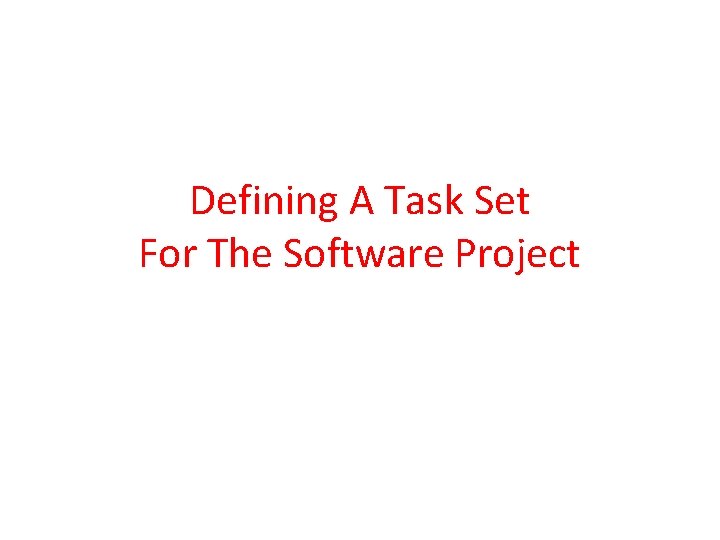

Defining A Task Set For The Software Project

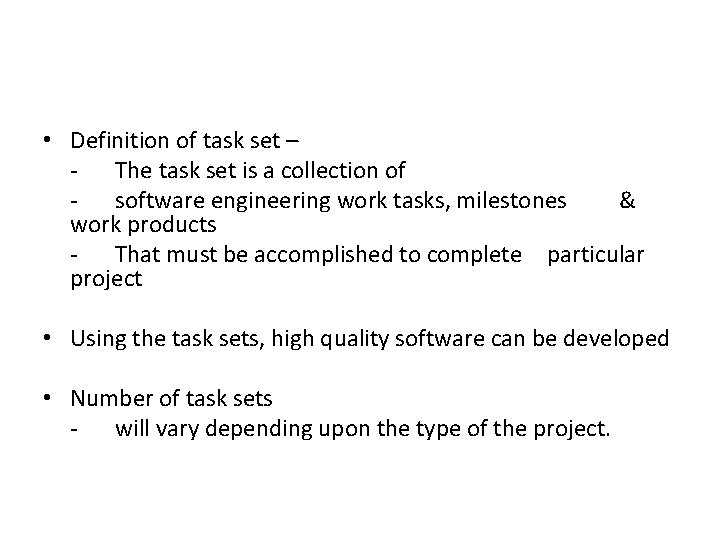

• Definition of task set – - The task set is a collection of - software engineering work tasks, milestones & work products - That must be accomplished to complete particular project • Using the task sets, high quality software can be developed • Number of task sets - will vary depending upon the type of the project.

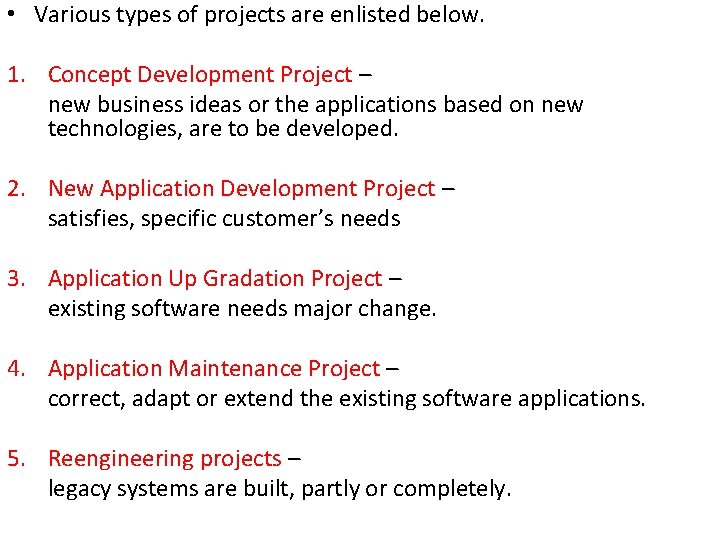

• Various types of projects are enlisted below. 1. Concept Development Project – new business ideas or the applications based on new technologies, are to be developed. 2. New Application Development Project – satisfies, specific customer’s needs 3. Application Up Gradation Project – existing software needs major change. 4. Application Maintenance Project – correct, adapt or extend the existing software applications. 5. Reengineering projects – legacy systems are built, partly or completely.

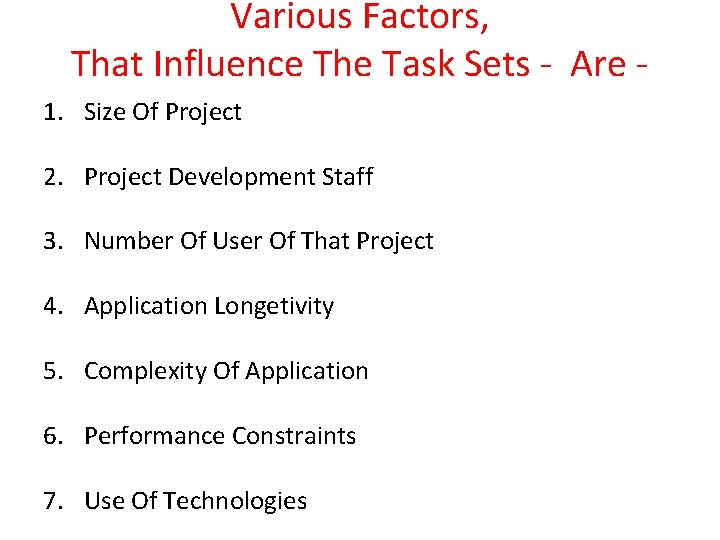

Various Factors, That Influence The Task Sets - Are 1. Size Of Project 2. Project Development Staff 3. Number Of User Of That Project 4. Application Longetivity 5. Complexity Of Application 6. Performance Constraints 7. Use Of Technologies

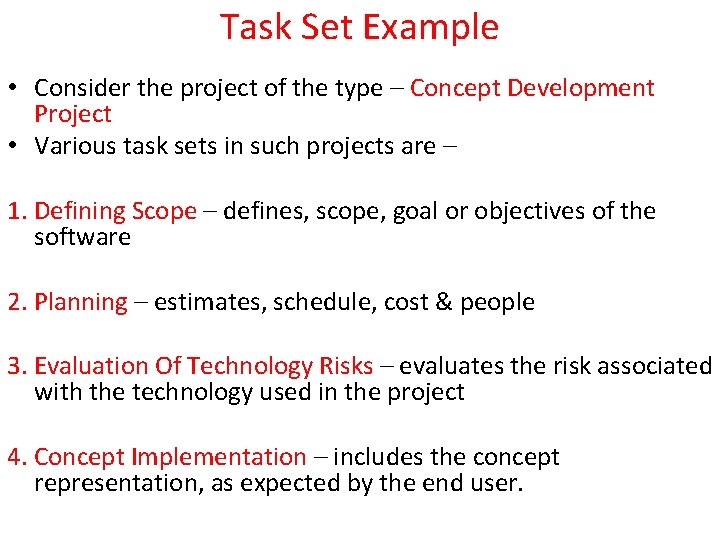

Task Set Example • Consider the project of the type – Concept Development Project • Various task sets in such projects are – 1. Defining Scope – defines, scope, goal or objectives of the software 2. Planning – estimates, schedule, cost & people 3. Evaluation Of Technology Risks – evaluates the risk associated with the technology used in the project 4. Concept Implementation – includes the concept representation, as expected by the end user.

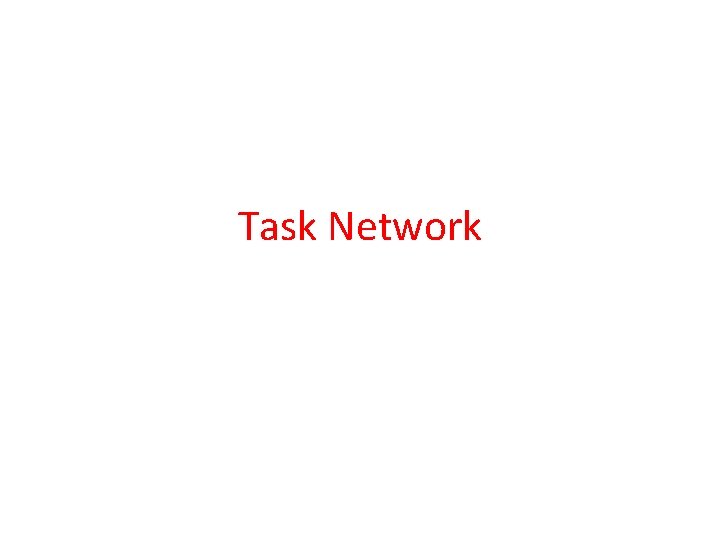

Task Network

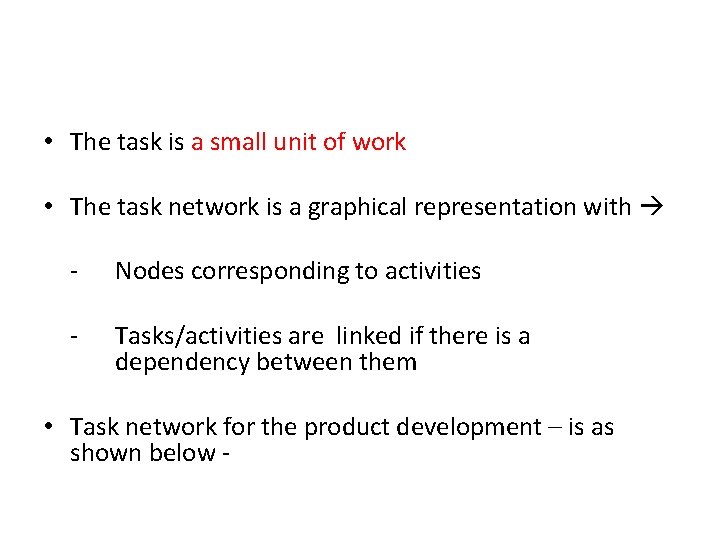

• The task is a small unit of work • The task network is a graphical representation with - Nodes corresponding to activities - Tasks/activities are linked if there is a dependency between them • Task network for the product development – is as shown below -
Fig – task network
a Task Network

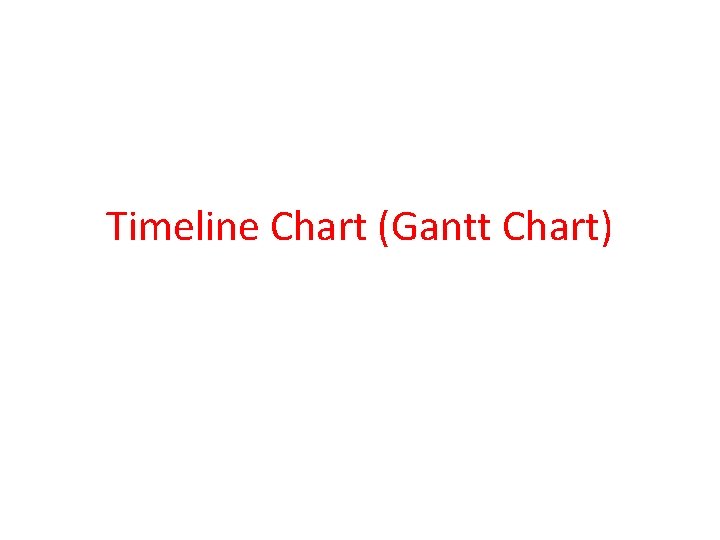

Timeline Chart (Gantt Chart)

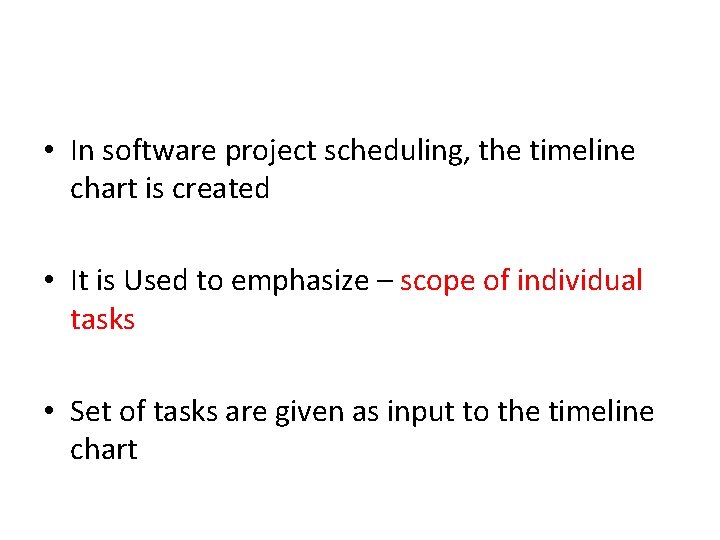

• In software project scheduling, the timeline chart is created • It is Used to emphasize – scope of individual tasks • Set of tasks are given as input to the timeline chart
• In the timeline chart – 1. All the tasks are listed at the leftmost column 2. The horizontal bars indicate the time required by the corresponding task 3. Multiple horizontal bars, at the same time – indicates – concurrent tasks 4. Diamonds indicates – milestones.

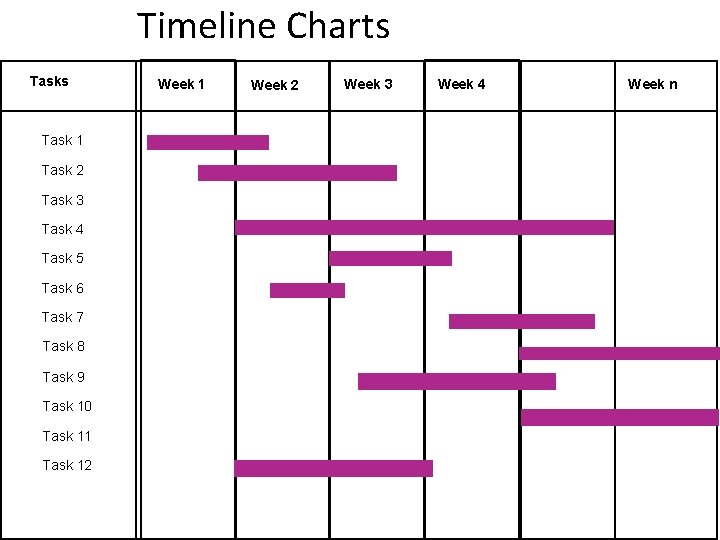

Timeline Charts Task 1 Task 2 Task 3 Task 4 Task 5 Task 6 Task 7 Task 8 Task 9 Task 10 Task 11 Task 12 Week 1 Week 2 Week 3 Week 4 Week n
Use Automated Tools - to - Derive a Timeline Chart
• After generation of time line charts, • The project tables are prepared. • In project table, - all the tasks are listed - along with actual start & end dates - & related information

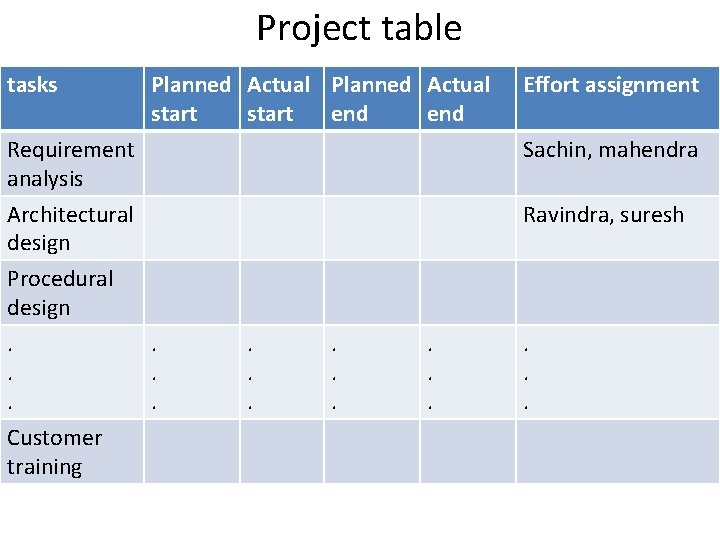

Project table tasks Planned Actual start end Effort assignment Requirement analysis Sachin, mahendra Architectural design Ravindra, suresh Procedural design. . . Customer training . . . .

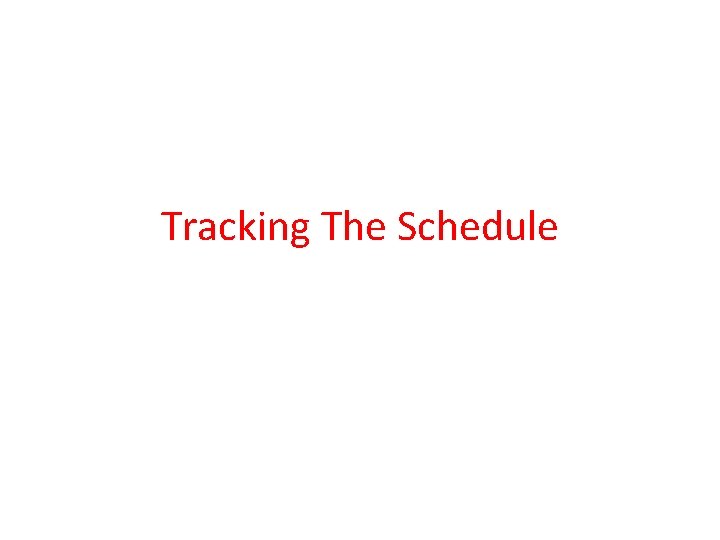

Tracking The Schedule

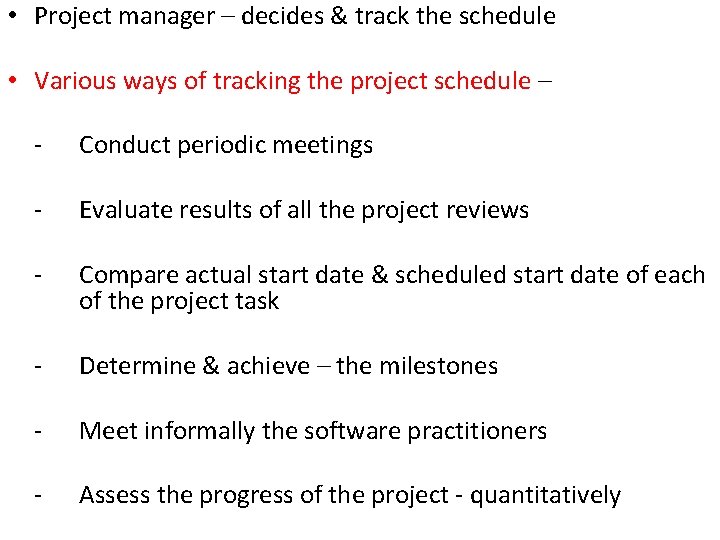

• Project manager – decides & track the schedule • Various ways of tracking the project schedule – - Conduct periodic meetings - Evaluate results of all the project reviews - Compare actual start date & scheduled start date of each of the project task - Determine & achieve – the milestones - Meet informally the software practitioners - Assess the progress of the project - quantitatively

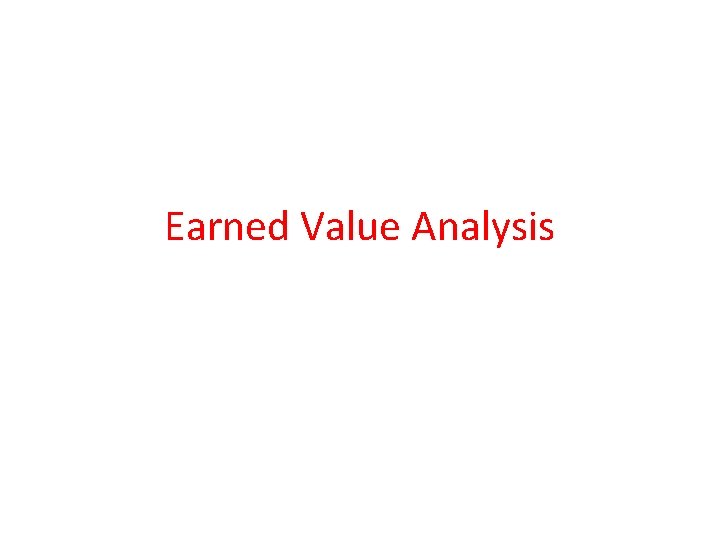

Earned Value Analysis

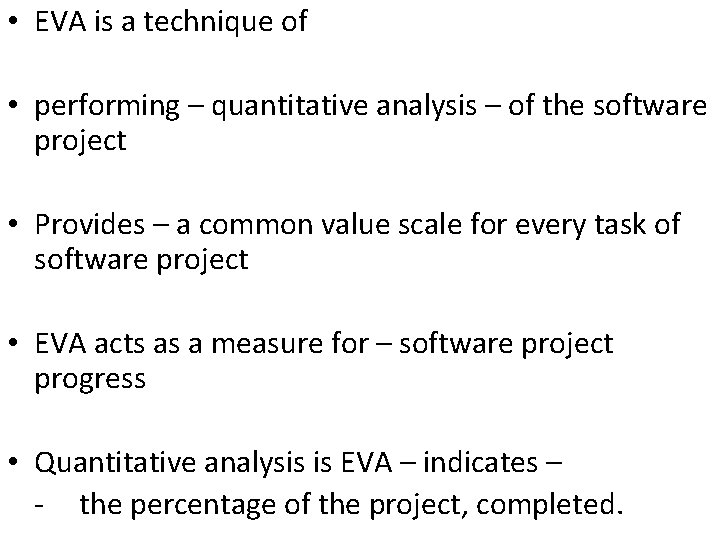

• EVA is a technique of • performing – quantitative analysis – of the software project • Provides – a common value scale for every task of software project • EVA acts as a measure for – software project progress • Quantitative analysis is EVA – indicates – - the percentage of the project, completed.
Risk Management Software risks

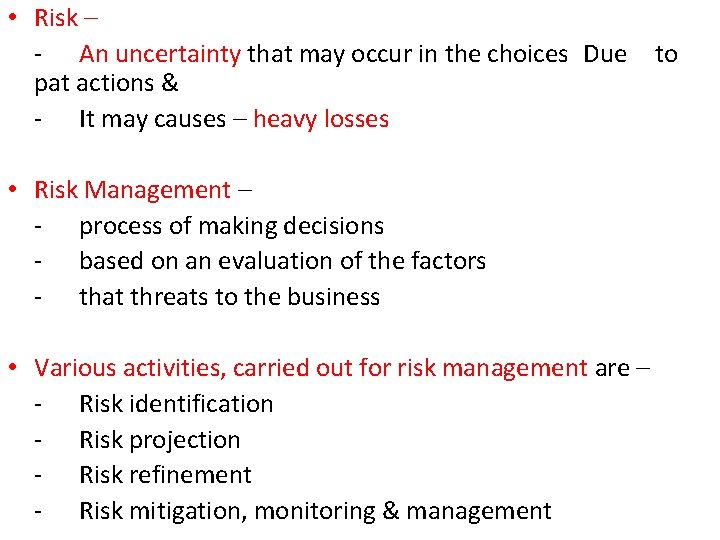

• Risk – - An uncertainty that may occur in the choices Due pat actions & - It may causes – heavy losses • Risk Management – - process of making decisions - based on an evaluation of the factors - that threats to the business • Various activities, carried out for risk management are – - Risk identification - Risk projection - Risk refinement - Risk mitigation, monitoring & management to

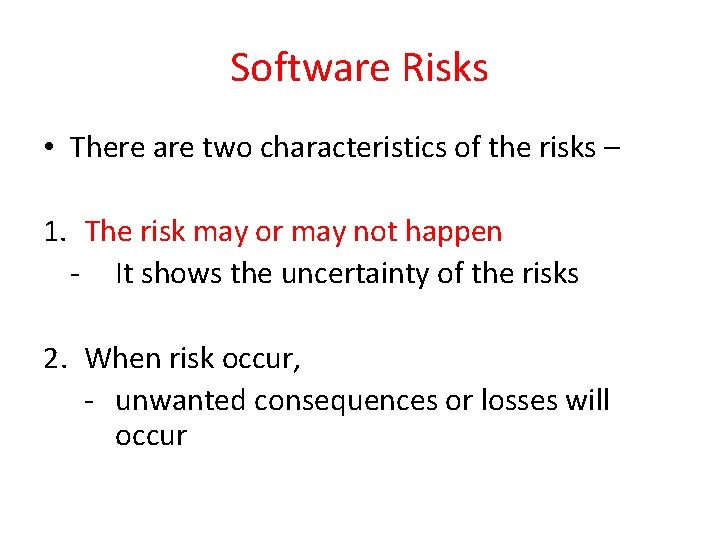

Software Risks • There are two characteristics of the risks – 1. The risk may or may not happen - It shows the uncertainty of the risks 2. When risk occur, - unwanted consequences or losses will occur

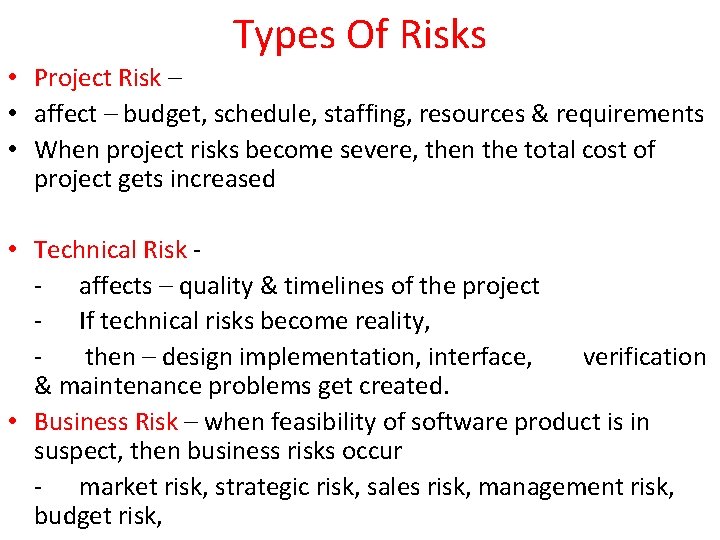

Types Of Risks • Project Risk – • affect – budget, schedule, staffing, resources & requirements • When project risks become severe, then the total cost of project gets increased • Technical Risk - affects – quality & timelines of the project - If technical risks become reality, then – design implementation, interface, verification & maintenance problems get created. • Business Risk – when feasibility of software product is in suspect, then business risks occur - market risk, strategic risk, sales risk, management risk, budget risk,
• Predictable risks • Unpredictable risks

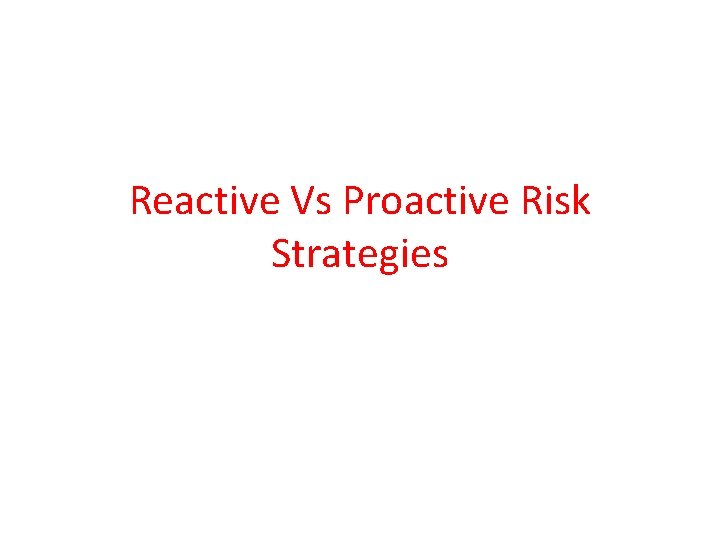

Reactive Vs Proactive Risk Strategies

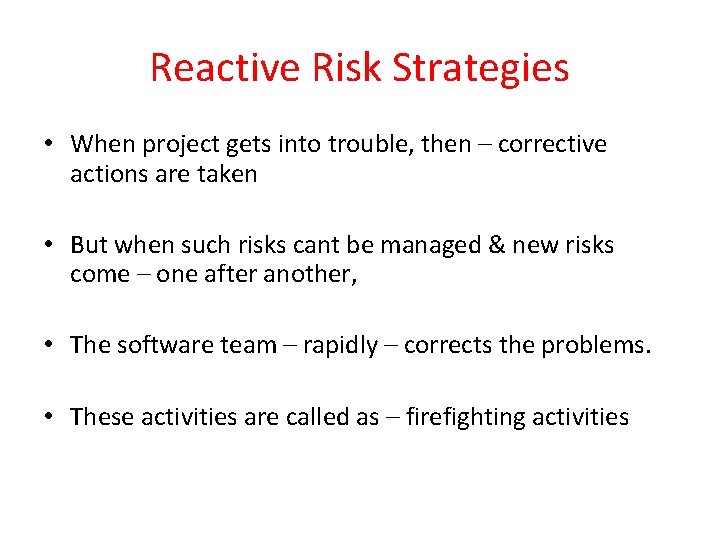

Reactive Risk Strategies • When project gets into trouble, then – corrective actions are taken • But when such risks cant be managed & new risks come – one after another, • The software team – rapidly – corrects the problems. • These activities are called as – firefighting activities

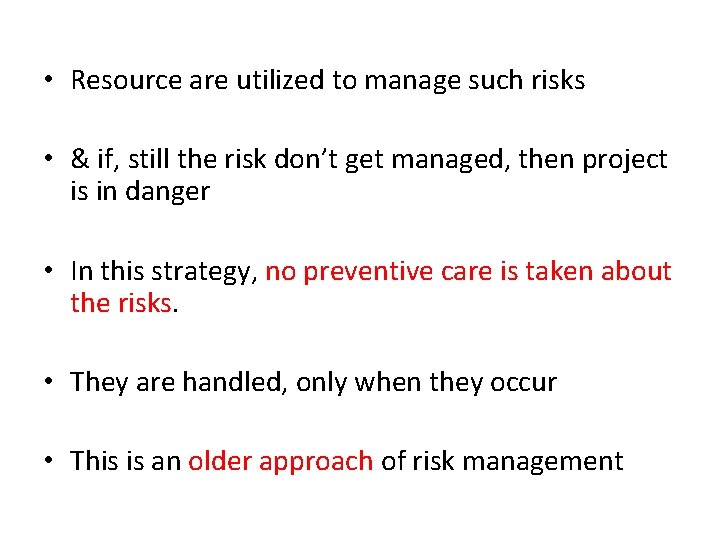

• Resource are utilized to manage such risks • & if, still the risk don’t get managed, then project is in danger • In this strategy, no preventive care is taken about the risks. • They are handled, only when they occur • This is an older approach of risk management

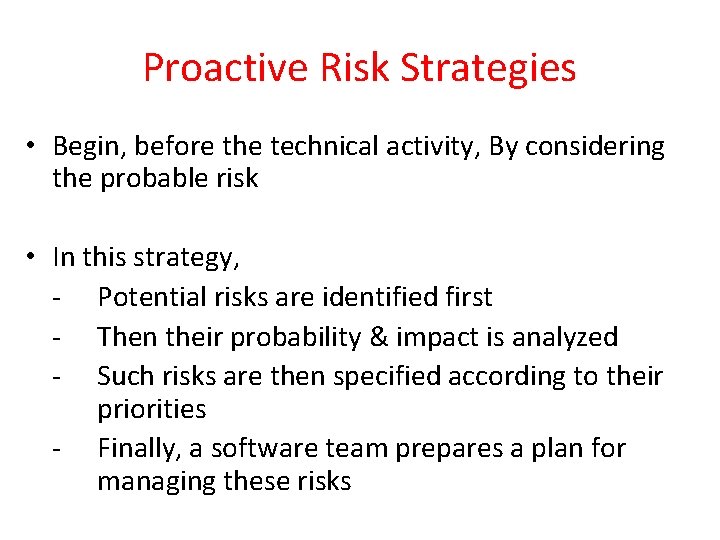

Proactive Risk Strategies • Begin, before the technical activity, By considering the probable risk • In this strategy, - Potential risks are identified first - Then their probability & impact is analyzed - Such risks are then specified according to their priorities - Finally, a software team prepares a plan for managing these risks

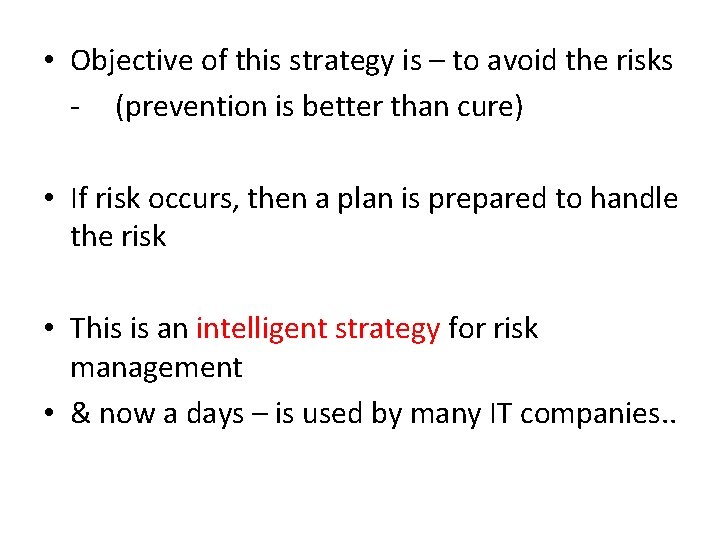

• Objective of this strategy is – to avoid the risks - (prevention is better than cure) • If risk occurs, then a plan is prepared to handle the risk • This is an intelligent strategy for risk management • & now a days – is used by many IT companies. .

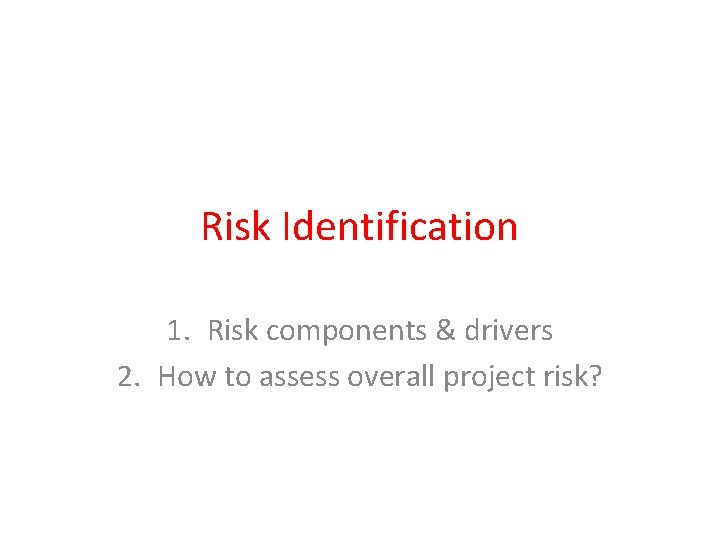

Risk Identification 1. Risk components & drivers 2. How to assess overall project risk?

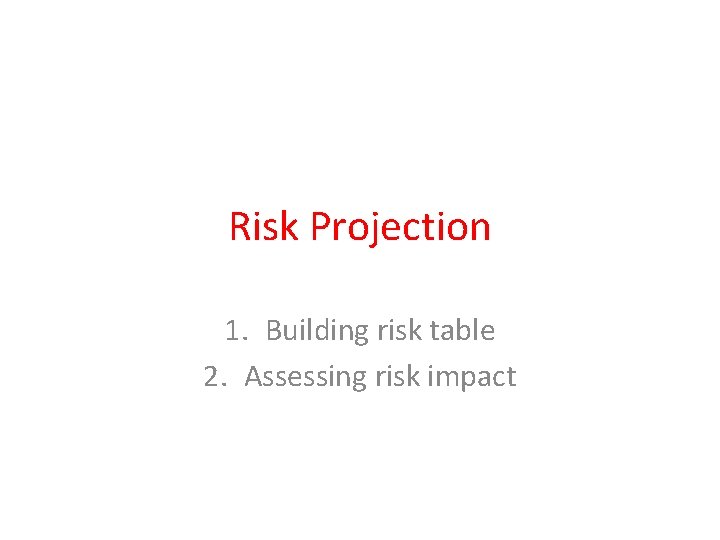

Risk Projection 1. Building risk table 2. Assessing risk impact

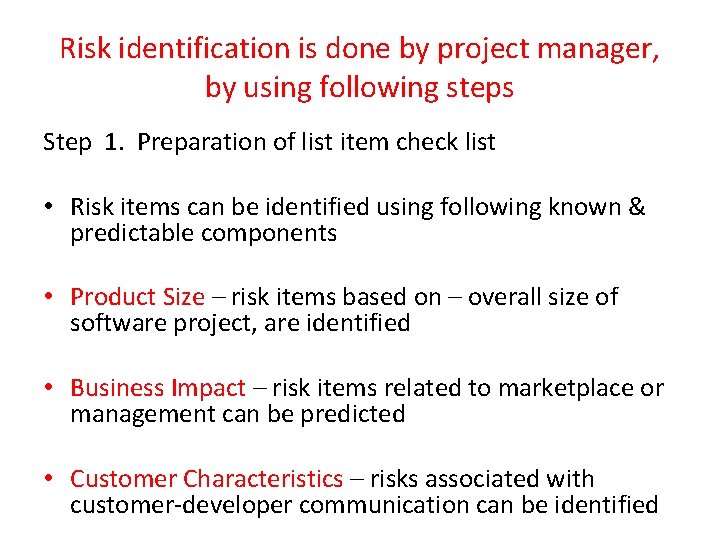

Risk identification is done by project manager, by using following steps Step 1. Preparation of list item check list • Risk items can be identified using following known & predictable components • Product Size – risk items based on – overall size of software project, are identified • Business Impact – risk items related to marketplace or management can be predicted • Customer Characteristics – risks associated with customer-developer communication can be identified

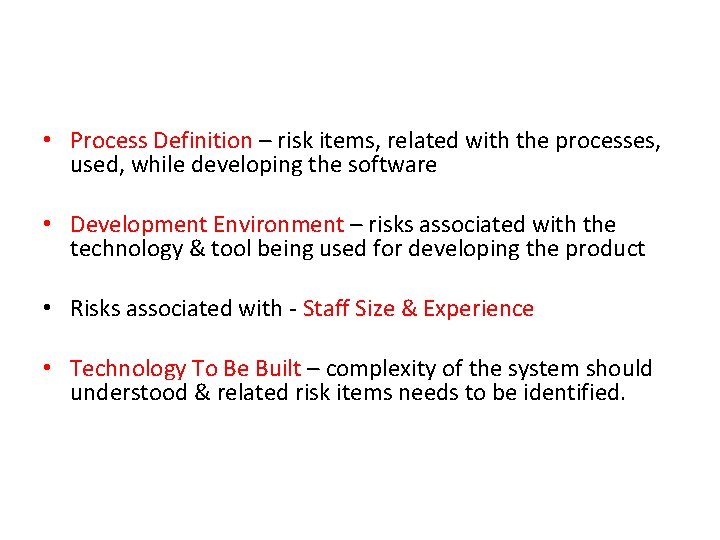

• Process Definition – risk items, related with the processes, used, while developing the software • Development Environment – risks associated with the technology & tool being used for developing the product • Risks associated with - Staff Size & Experience • Technology To Be Built – complexity of the system should understood & related risk items needs to be identified.

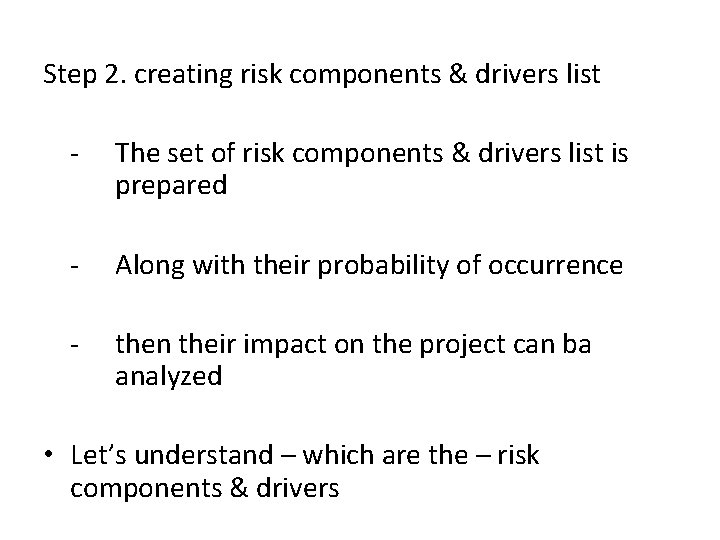

Step 2. creating risk components & drivers list - The set of risk components & drivers list is prepared - Along with their probability of occurrence - then their impact on the project can ba analyzed • Let’s understand – which are the – risk components & drivers
Risk Components & Drivers • • • Types of risk components – Performance risk Cost risk support risk Schedule risk -

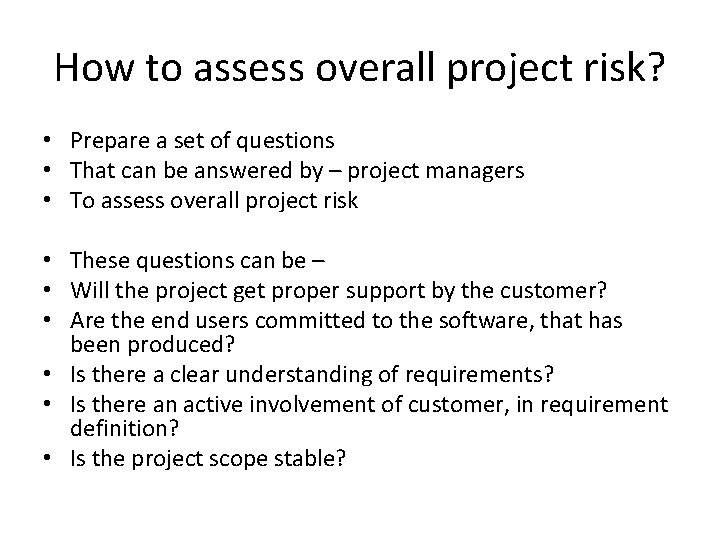

How to assess overall project risk? • Prepare a set of questions • That can be answered by – project managers • To assess overall project risk • These questions can be – • Will the project get proper support by the customer? • Are the end users committed to the software, that has been produced? • Is there a clear understanding of requirements? • Is there an active involvement of customer, in requirement definition? • Is the project scope stable?
• Are there team members the required skills? • Are project requirement stable?

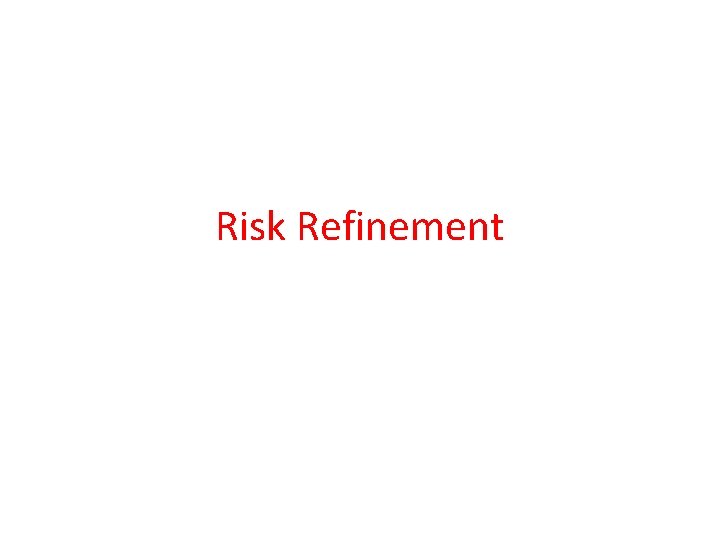

Risk Refinement
RMMM
RMMM Plan

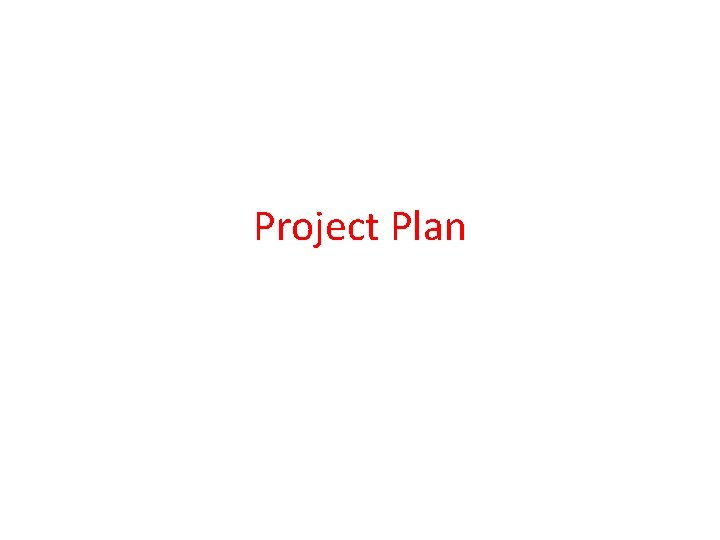

Project Plan
