Presentation CHINA TITANS ENERGY TECHNOLOGY GROUP CO LTD

简介 Presentation 中国泰坦能源技术集团有限公司 CHINA TITANS ENERGY TECHNOLOGY GROUP CO. , LTD. 港股HK-STOCK: 泰坦使命: 让电能变得更有价值 2188

1. 1 Company Profile Established in 1992, China Titans Energy Technology Group Co. , Limited（listed in Hong Kong Stock Exchange, Stock Code: 2188）is a high-tech enterprise, integrated with research, production and marketing. It is focused in power electronics, and on the basis of the demand of all kinds of customers from power generation, power transmission and power consumption, by applying the technology of power electronics and automation to provide solutions of power transformation, monitor, control, optimization as well as new energy utilization for the customers. TITANS’ customers cover the field of power, railways, telecommunications, petrochemical, metallurgy, aerospace, etc. The total asset of TITANS is reached RMB 1 billion. There are 510 employees, of which 60% are technical and professional, among them, 7 with doctor degrees, 36 with master degrees. Make the Electrical Energy more Valuable www. titans. com. cn

PRODUCTS l AC/DC Power Supply System l EV Charging Systems & Solutions l Battery Formation & Grading l Power Quality Monitor & Management l Micro-Grid Energy Storage l DISC Make the Electrical Energy more Valuable www. titans. com. cn

2. 1. 1 Application Electric Power AC/DC Power Supply System 1、 Electric Power—AC/DC Power Supply System Application: Apply to power plants and transmission substations as operation power supply for normal opening and closing, relay protection and signal sending for DC mechanism of HV circuit breakers and as the emergency DC power supply and UPS for emergency opening and closing, lighting, controlling and communication. Product groups including: GZDW high frequency switching DC power system, high frequency switching communication power system, UPS system for electric, intelligent low-voltage AC power distribution system, integrated power system, testing power system, feedback type power charging and discharging device, high frequency active inverter discharging device, etc. Make the Electrical Energy more Valuable www. titans. com. cn

2. 1. 2 Products Electric Power Intelligent Forced Air Cooling Series Module Integrated Power System Natural Cooling Series Module TUPS/TINV Module Intelligent Low-voltage Distribution AC System TEP-I Microcomputer Monitoring Device TEP-G Microcomputer-based Distributed Insulation Monitoring Device Make the Electrical Energy more Valuable GMCU-C Acquisition Unit TEP-N Series Active Invertion Discharging Device www. titans. com. cn

2. 1. 3 Key Customers Electric Power East Lanzhou 750 KV Qinghai-Tibet Railway Harbin-Dalian high speed Substation Is located in The highest altitude is above railway is one of the key construction Yuzhong city, east Lanzhou, Gansu 5500 m, totally 44 substations in province, it was the first 750 KV the whole line. substation in transmission lines in China. Make the Electrical Energy more Valuable projects of China's “ 11 th Five-Year Plan“, Titans supplied power supply products for all 10 substations in this line. www. titans. com. cn

2. 1. 3 Key Customers Electric Power ★ Three Gorges Project, South to North Water Diversion Project , etc. ★ Jiuquan Satellite Launching Center、Shenzhen Metro, etc. ★ 10 KV— 750 KV Substations and 300 MW— 1000 MW Power Plants, etc. ★ Power plants, hydropower stations and transmission line project in Indonesia, the Philippines, Uzbekistan and the U. A. E. and other countries. Titans products have been applied in more than 10, 000 substations with different voltage levels Make the Electrical Energy more Valuable www. titans. com. cn

2. 1. 4 Application HVDC 2、 HVDC—Power Supply System for Communication High Voltage DC power supply system (HVDC) applied in communication industry, is a new type UPS for IT equipment in IDC, currently two voltage levels are available, including DC 240 V and DC 336 V. Compared with AC UPS, its advantages, such as, safe, stable, efficient, reliable, energy - saving, and less investment, etc. have get the high recognition from the communication industry. It is becoming the development trend of power supply for this industry. Application: Large scale cloud computation data centers, IDC data centers, Data centers of Banks or Securities Institutions or E-Commerce enterprises or website enterprises, Engine rooms of mobile communication or Broadcasting network or Communication terminals, Communication base stations, etc. Make the Electrical Energy more Valuable www. titans. com. cn

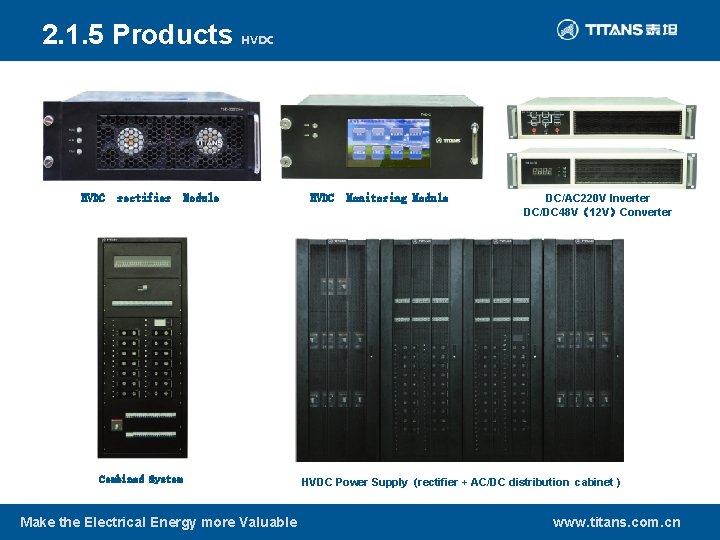

2. 1. 5 Products HVDC rectifier HVDC Module Combined System Make the Electrical Energy more Valuable HVDC Monitoring Module DC/AC 220 V Inverter DC/DC 48 V（12 V）Converter HVDC Power Supply (rectifier + AC/DC distribution cabinet ) www. titans. com. cn

2. 2. 1 Introduction EV Charging Systems & Solutions “Titans” started technical research, product development and practical application of EV power charging/swapping equipment since 2005 and has accomplished series of products with different application, such as AC/DC charging piles, independent charging system, integrated charging system, stand-alone high-power charging system, converter, energy storage system, micro-gird system, grid-connected inverter system, etc. Titans also undertook the research task of “technology development for EV chargers –station type DC boost charger” for the national 863 plan. Make the Electrical Energy more Valuable www. titans. com. cn

EV Charging Systems & Solutions 2. 2. 2 Products Integrate capsulation technology of power processing and control Hot plug mouse cage construction AC adaptive parallel connection technology Genlock technology Non master-slave current sharing technology DSP digital power supply control technology Multilevel phase error control technology Multi-resonance soft-switch technology Synchronous double regulation technology Plane matrix transformation technology dual soft-switch technology　 www. titans. com. cn Make the Electrical Energy more Valuable

2. 2. 3 Key Customers EV Charging Systems & Solutions By the end of January 2012, Titans group has been involved in hosting and building all key project or large project of EV charging stations in China, including the demonstration stations for 2008 Beijing Olympic Games, the demonstration stations for 2009 Shanghai World Expo, the demonstration stations for 2010 Guangzhou Asian Games, and other more than 50 project in Shandong, Beijing, Ningxia, Jiangsu, Sichuan, Guangxi, Hong Kong and some other provinces and cities. Titans EV charger is geographically covering from Northeast, Northwest, Central, East to south, Southwest, most part of China. Make the Electrical Energy more Valuable www. titans. com. cn

2. 2. 3 Key Customers EV Charging Systems & Solutions Beijing Gao An Tun EV charging/swapping station Shandong Qingdao Xue Jia Dao EV charging/swapping station Make the Electrical Energy more Valuable EV charging station for Beijing Olympic Game Henan Xuchang EV charging station www. titans. com. cn

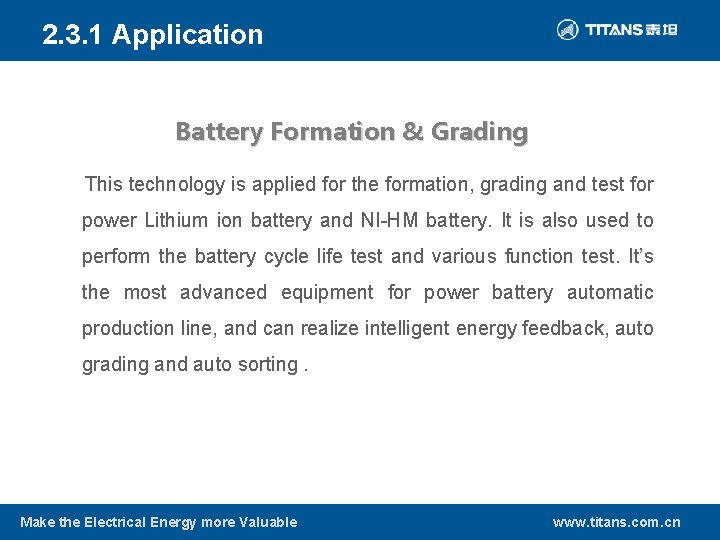

2. 3. 1 Application Battery Formation & Grading This technology is applied for the formation, grading and test for power Lithium ion battery and NI-HM battery. It is also used to perform the battery cycle life test and various function test. It’s the most advanced equipment for power battery automatic production line, and can realize intelligent energy feedback, auto grading and auto sorting. Make the Electrical Energy more Valuable www. titans. com. cn

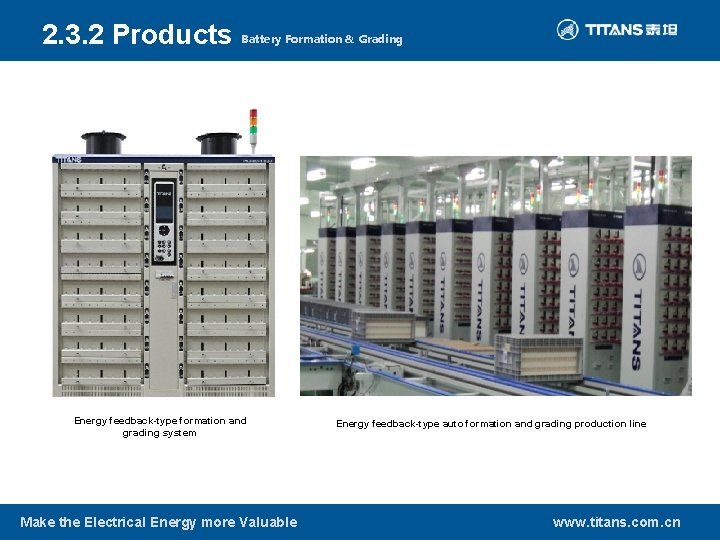

2. 3. 2 Products Battery Formation & Grading Energy feedback-type formation and grading system Make the Electrical Energy more Valuable Energy feedback-type auto formation and grading production line www. titans. com. cn

2. 3. 3 Key Customers Make the Electrical Energy more Valuable Battery Formation & Grading www. titans. com. cn

2. 4. 1 Application Power Quality Monitor & Management Power Quality Monitoring & Management System is engaged in the real-time monitoring of the pollution status of power grid and by applying relevant equipment and technology to control the polluted power grid and further more to improve the power supply quality and efficiency of the power grid. Make the Electrical Energy more Valuable www. titans. com. cn

2. 4. 2 Products Power Quality Monitor & Management TTPQ-100 Power Quality On-line Monitoring Unit TTPQ-BX Portable Power Quality Analyzer Make the Electrical Energy more Valuable Harmonic Control Equipment TTPQ-200 Power Quality On-line Monitoring Unit System Cabinet Chart www. titans. com. cn

2. 4. 3 Key Customers Power Quality Monitor & Management Henan Electric Power Company Shandong Electric Power Corporation Sichuan Electric Power Company Make the Electrical Energy more Valuable Henan Electric Railway www. titans. com. cn

2. 5. 1 Introduction Micro-Grid Energy storage Along with the development of intelligent power grid and new energy, customers’ requirement on power quality, reliability, safety and less investment is becoming higher and higher. With the introduction of the micro-power-grid energy storage and power supply system, the fluctuations caused by the connections of new energy to the power grid can be reduced. The micro power grid energy storage and power supply system can effectively improve the power in the power consumption peak time, by cutting the peak to fill the valley, the power supply quality and efficiency improved. At the same time, it will also enhance the stability and reliability of the power grid, which it can provide uninterrupted power supplies to some important sectors in case the main power grid is shut down. It is an important foundation for the “power web”. Make the Electrical Energy more Valuable www. titans. com. cn

2. 5. 2 Products Micro-Grid Energy storage Microgrid Converter Make the Electrical Energy more Valuable Solar Converter www. titans. com. cn

2. 5. 3 Application Micro-Grid Energy storage 1 Solar、Wind、Power generation and grid 2 Construction of new energy storage station 3 Construction of microgrid in specific area 4 Reform and construction of intelligent grid 5 Reform of the energy-saving for medium and large power-consumption enterprises Make the Electrical Energy more Valuable www. titans. com. cn

2. 5. 4 Integrated Design Micro-Grid Energy storage Capacity optimization Integrated design method • Capacity of multi-scene and design for multi-objective storage system design method Verification optimization • Structure of multi-objective design software Structure for Large-capacity optimization energy storage design for system storage system optimization design method Comprehensive evaluation and target system • Suitability • Economy 集成 Comprehensive evaluation and target system • Technical • Reliability • …… Make the Electrical Energy more Valuable www. titans. com. cn

2. 6. 1 Products DISC Dustribution network Insulation Technology of Short Ciruit(DISC) DISC can effectively solve the problem “short circuit insulation” and can reduce the cost and operation risk Advantage for the customers of power network. The new system has the following features, breaking capacity more than 80 k. A, breaking time less than 15 ms, etc. l The optimum energy-saving and most effective and economical short circuit Features insulation device l Less Investment for system expansion l 0 Loss l High speed action, large breaking capacity l High Quality Current Limit l Cost Reduction or networking l Protection for uninterruptible power supply lines and customers l Quick and effective protection from the l Long Service Life, High Reliability short circuit fault for generator circuit l Less disparity, no bounce while closing breaker or auxiliary HV side Make the Electrical Energy more Valuable www. titans. com. cn

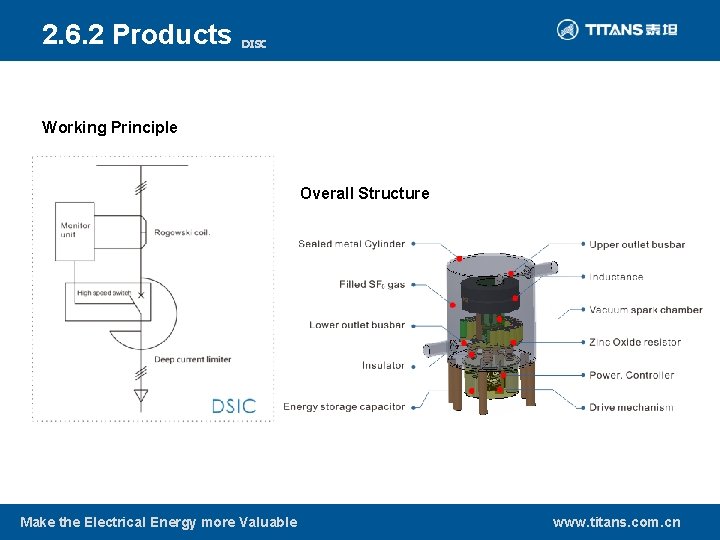

2. 6. 2 Products DISC Working Principle Overall Structure Make the Electrical Energy more Valuable www. titans. com. cn

Thank you! Add: Titans Technology Park, No. 60, Shihuaxilu, Zhuhai , P. R. C Tel: 86 -756 -3325899 Fax: 86 -756 -3325889
