Physics of Color Mixing Colored Light The frequencies
- Slides: 22
Physics of Color
Mixing Colored Light The frequencies of white light can be divided into three regions: • the lower-frequency red end • the middle-frequency green part • the higher-frequency blue end Low and middle frequencies combine to form yellow to the human eye. The middle and high frequencies appear greenish blue (cyan). The low and high frequencies appear bluish red (magenta).
Mixing Colored Light The low-frequency, middle-frequency, and high-frequency parts of white light appear red, green, and blue. To the human eye, red + green = yellow; red + blue = magenta; green + blue = cyan.

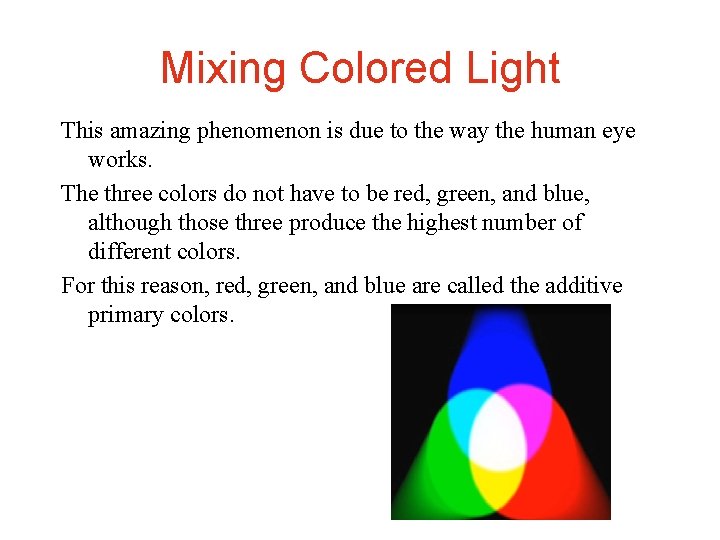

Mixing Colored Light This amazing phenomenon is due to the way the human eye works. The three colors do not have to be red, green, and blue, although those three produce the highest number of different colors. For this reason, red, green, and blue are called the additive primary colors.
Spectrum of Visible Light
Simple Trichromatic Theory Cyan & Blue photons excite me MOE Yellow, Green & Cyan photons excite me Yellow & Red photons excite me LARRY CURLY Inside your eye there are three receptors called Cones
Trichromatic: Seeing Yellow Cyan & Blue photons excite me. Yawn. Yellow, Green & Cyan photons excite me. I’M EXCITED CURLY OR Yellow & Red photons excite me. I’M EXCITED MOE LARRY Yellow seen when Curly and Larry excited, either by yellow photons or red & green photons.
Trichromatic: Seeing Magenta Cyan & Blue photons excite me. I’M EXCITED Yellow, Green & Cyan photons excite me. Yawn. CURLY Yellow & Red photons excite me. I’M EXCITED MOE LARRY Magenta is seen by eye when Moe and Larry excited, which no single type of photon can achieve.
Maxwell Color Disk painted half red, half blue looks magenta when rapidly spinning.
Trichromatic: Seeing White Cyan & Blue photons excite me. I’M EXCITED Yellow, Green & Cyan photons excite me. I’M EXCITED CURLY Yellow & Red photons excite me. I’M EXCITED MOE LARRY White seen when all three very excited Gray seen when all three less excited
Trichromatic: Color Blindness Cyan & Blue photons excite me. Yawn. OR Red , Yellow, Green & Cyan photons excite me. I’M EXCITED CURLY MOE Color blindness occurs if the eye is missing one of the three receptors. Other receptors try to compensate but cannot distinguish some colors. LARRY Do I see red or green?
Color Blindness Weakness or absence of one of the three types of cones is the cause of color blindness, leading to a reduced ability to distinguish colors. 29 oror 74? 70? 21 Thosered/green with a red/green Those deficient will deficiency see a 70 will see a 21 Incidence (%) Classification Males Females Anomalous Trichromacy 6. 3 0. 37 Protanomaly (Red-cone weak) 1. 3 0. 02 Deuteranomaly (Green-cone weak) 5. 0 0. 35 Tritanomaly (Blue-cone weak) 0. 0001 Dichromacy 2. 4 0. 03 Protanopia (Red-cone absent) 1. 3 0. 02 Deuteranopia (Green-cone absent) 1. 2 0. 01 Tritanopia (Blue-cone absent) 0. 001 0. 03 Rod Monochromacy (no cones) 0. 00001

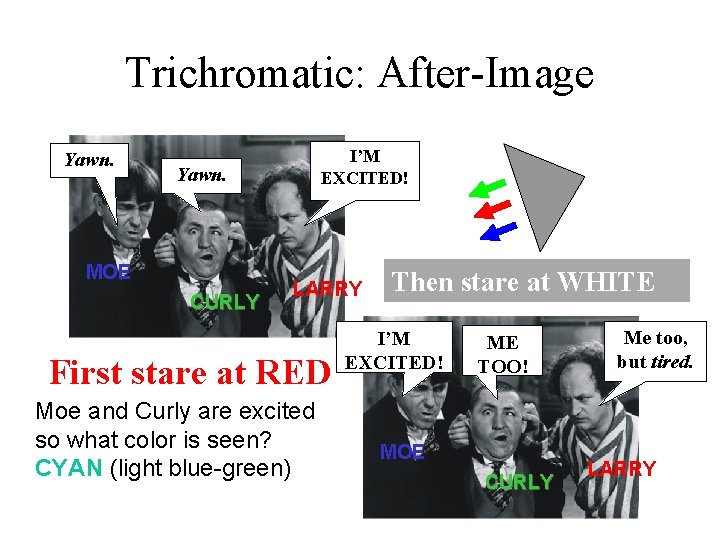

Trichromatic: After-Image Yawn. I’M EXCITED! Yawn. MOE CURLY LARRY First stare at RED Moe and Curly are excited so what color is seen? CYAN (light blue-green) Then stare at WHITE I’M EXCITED! ME TOO! MOE CURLY Me too, but tired. LARRY
Negative After-image Stare, unfocused, at the red cross for 10 seconds
Negative After-image Cyan
Negative After-image Stare, unfocused, at the flag for 10 seconds
Negative After-image Cyan Magenta Yellow
Additive Complements LARRY R CURLY MOE C After-image of red is cyan because Larry gets tired so when white light excites all three Stooges, Moe & Curly stronger than Larry. Cyan = White - Red
Trichromatic: Opponency Oh, Shut The F*@% Up! Yellow, Green & Cyan photons excite me. I’M EXCITED CURLY Yellow & Red photons excite me. I’M EXCITED MOE Shine Red & Green photons (or Yellow photons) LARRY Yellow seen when Curly and Larry excited, which can annoy Moe, who then opposes them.
Simultaneous Contrast Does the gray bar look slightly bluish? Are the two gray bars the same shade of gray? Yes, the presence of a nearby color affects perception of both hue and value, shifting both towards complement
