Opti Line Minitrunking Safe and smoothly shaped and

Opti. Line Mini-trunking Safe and smoothly shaped – and a joy to work with

Opti. Line Mini-trunking ● Wide range ● Safe and fast to install ● Robust and versatile ● PVC and halogen-free PC/ABS ● Aluminium ● IP 40 ● Tamper-proof ● Impact-resistant Schneider Electric - LSB 03225 - May 2014 2

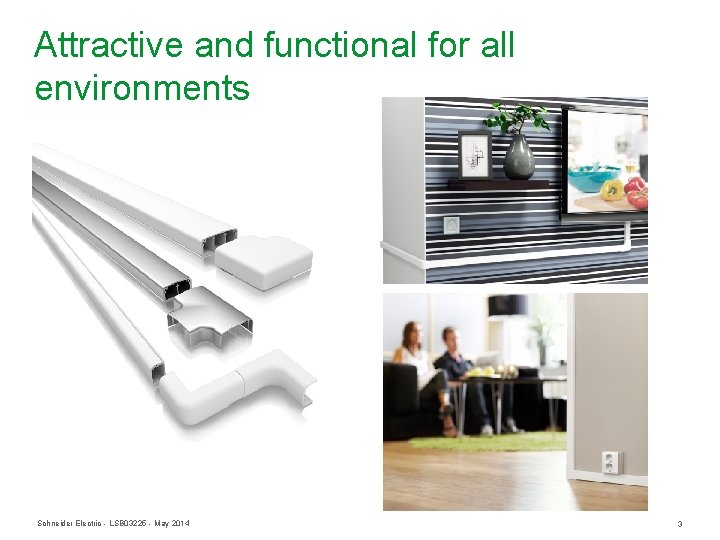

Attractive and functional for all environments Schneider Electric - LSB 03225 - May 2014 3

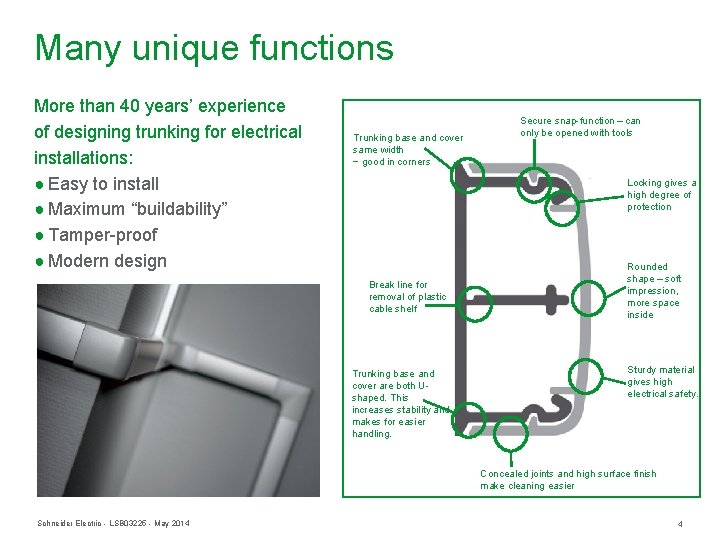

Many unique functions More than 40 years’ experience of designing trunking for electrical installations: ● Easy to install ● Maximum “buildability” ● Tamper-proof ● Modern design Trunking base and cover same width − good in corners Secure snap-function – can only be opened with tools Locking gives a high degree of protection Break line for removal of plastic cable shelf Trunking base and cover are both Ushaped. This increases stability and makes for easier handling. Rounded shape – soft impression, more space inside Sturdy material gives high electrical safety. Concealed joints and high surface finish make cleaning easier Schneider Electric - LSB 03225 - May 2014 4

Integrated cable retaining function ● The range includes three sizes equipped with an integrated cable retaining function ● The flexible “wings” prevent cables from falling out during installation Schneider Electric - LSB 03225 - May 2014 5

Single- or multiple compartment – for both power and data Opti. Line mini-trunking is available in 1 -, 2 - and 3 -compartment versions ● Mixed installations ● Power and low voltage wiring in the same multi-compartment trunking ● Easy to run long feeds Schneider Electric - LSB 03225 - May 2014 6

Both outdoors and indoors ● Thanks to its sealed, stable design, Opti. Line mini-trunking achieves degree of protection IP 40. This makes Opti. Line minitrunking suitable for installation both outdoors and indoors. ● Both the plastic and the aluminium trunking offer many years of resistance to UV radiation, heat and cold. ● The plastic trunking is also approved for single-insulated wire outdoors. Schneider Electric - LSB 03225 - May 2014 7

Environment-friendly ● Opti. Line mini-trunking is available in three materials; aluminium, lead and cadmiumfree PVC or halogen-free plastic (PC/ABS). ● Accessories, like corners and end pieces, are made of halogen-free plastic (PC/ABS). Schneider Electric - LSB 03225 - May 2014 8

Highly impact-resistant ● All mini-trunking is highly impact-resistant, thanks to its design and generous material thickness. ● The aluminium version of Opti. Line offers extra strong impact-resistance. In many cases, this is a secure substitute for unattractive sheet steel protection. Schneider Electric - LSB 03225 - May 2014 9

Cable separation ● A unique feature of Opti. Line mini-trunking is the cable separation at junctions in twoand three-compartment trunking. ● The flyover can easily be adapted to keep power and low voltage wiring separate. ● The cable holder (an accessory) keeps the cables in place during installation. Schneider Electric - LSB 03225 - May 2014 10

Easy to cut ● The trunking and the partition walls can be hand with simple tools ● Accessories like corners, bends and joint cover pieces are very forgiving and hide all bad cuts. Schneider Electric - LSB 03225 - May 2014 11

Tamper-proof ● The trunking and all its accessories use snap fitting for quick, simple installation. To remove the cover and accessories without the right tools is far more difficult. ● This is a design feature that protects the installation from tampering, especially recommended in public areas or fibre optic and broadband cables. Schneider Electric - LSB 03225 - May 2014 12

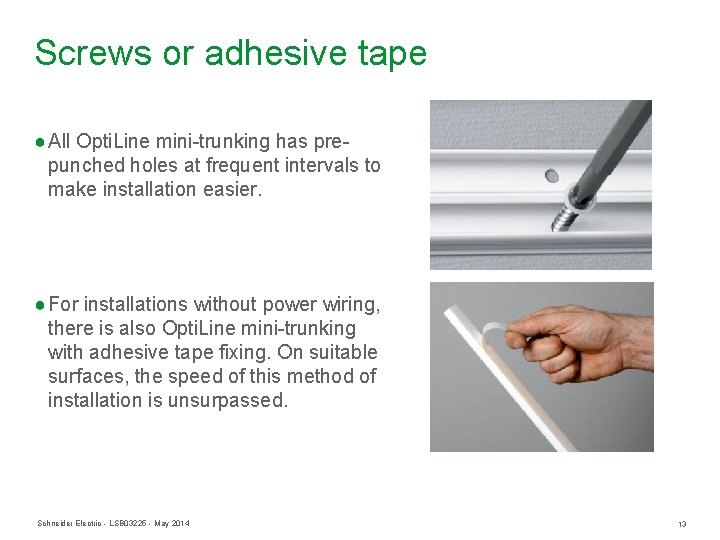

Screws or adhesive tape ● All Opti. Line mini-trunking has prepunched holes at frequent intervals to make installation easier. ● For installations without power wiring, there is also Opti. Line mini-trunking with adhesive tape fixing. On suitable surfaces, the speed of this method of installation is unsurpassed. Schneider Electric - LSB 03225 - May 2014 13

A complete mini-trunking system 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. Base profile Cover T-piece Stop end Branching piece Internal corner Joint cover piece External corner Bend 90° Flyover Schneider Electric - LSB 03225 - May 2014 1 2 5 4 10 9 6 8 7 3 14

Material, design and dimensions 12 x 20 12 x 30 Aluminium PVC* PC/ABS * PVC** PVC * Also available with bonding tape Schneider Electric - LSB 03225 - May 2014 15 x 35 PVC** 15 x 35 PVC ** With integrated cable retaining function 15

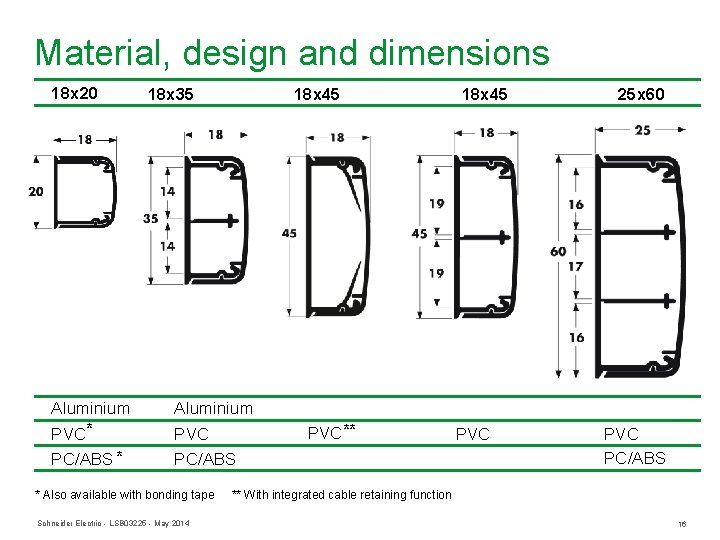

Material, design and dimensions 18 x 20 Aluminium PVC* PC/ABS * 18 x 35 18 x 45 25 x 60 Aluminium PVC PC/ABS * Also available with bonding tape Schneider Electric - LSB 03225 - May 2014 PVC** PVC PC/ABS ** With integrated cable retaining function 16

System components Mini-trunking Internal corner External corner Cable clamps T-piece Bend 90° Stop end Dedicated fixings Joint cover piece Branching piece Fly-over Cutting shears Schneider Electric - LSB 03225 - May 2014 17

Opti. Line Mini-trunking • Smoothly shaped • Safe • Flexible
