Thermal Analysis in Zemax OPTI 521 Optomechanics Tutorial

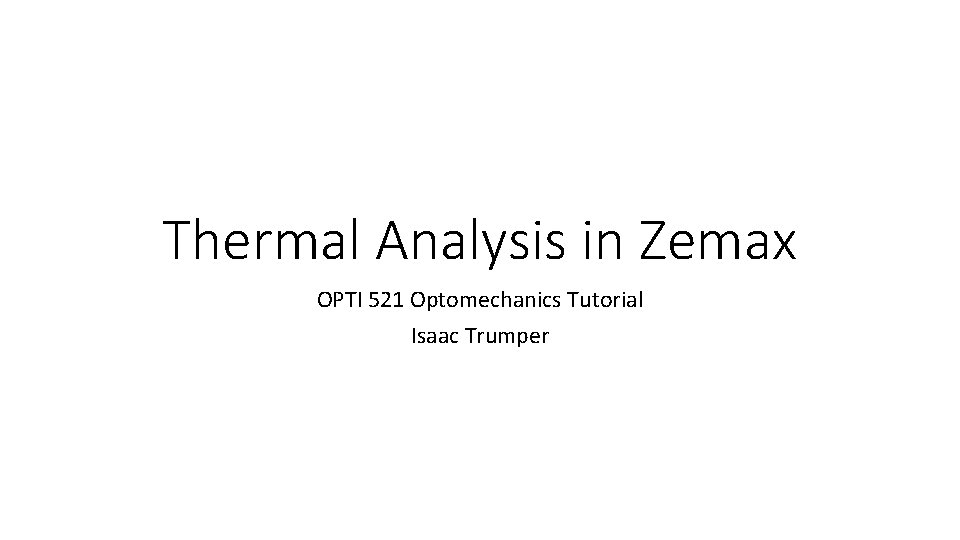

Thermal Analysis in Zemax OPTI 521 Optomechanics Tutorial Isaac Trumper

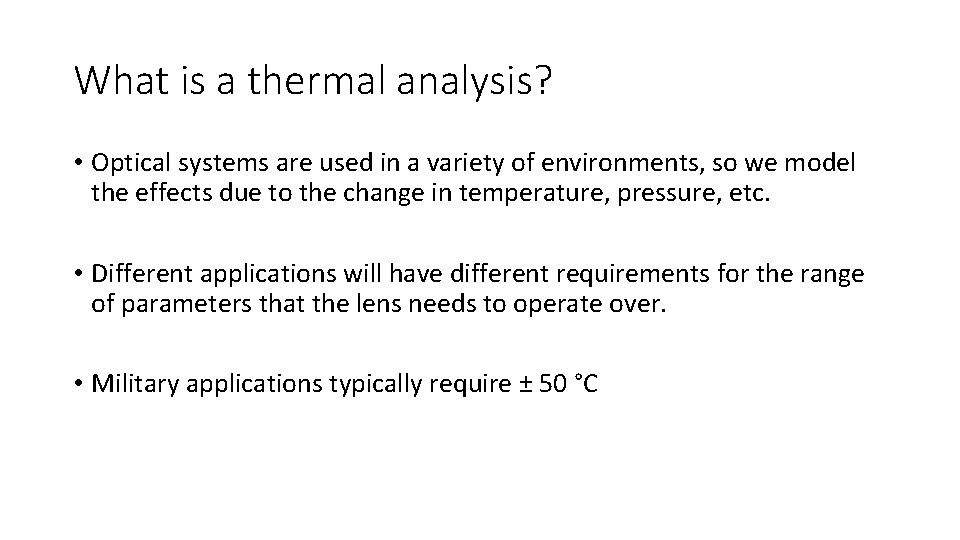

What is a thermal analysis? • Optical systems are used in a variety of environments, so we model the effects due to the change in temperature, pressure, etc. • Different applications will have different requirements for the range of parameters that the lens needs to operate over. • Military applications typically require ± 50 °C

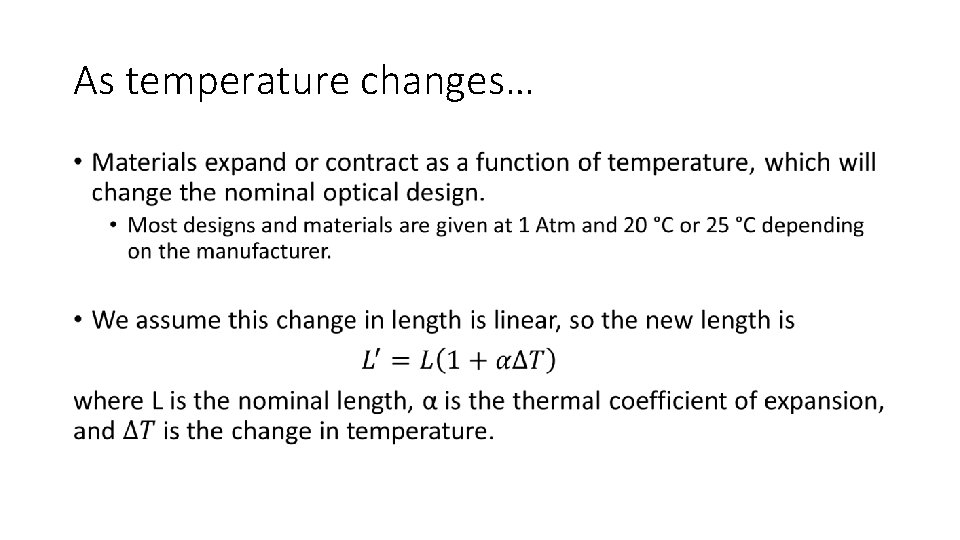

As temperature changes… •

As temperature changes… •

Zemax modelling • Fortunately for us, the optical design software will take all of these effects into account and allow us to optimize our design over a range of environments. • Zemax models the change in radii of the lenses to determine the spacing between lenses, change in length of the material between lenses, and the change in power of the lens elements. • With all this information, we can optimize the optical design to yield the best performance, usually by making the lenses as insensitive to environmental variations as possible.

Preparing an optical design • First, we need to have a nominal design form. For this tutorial we will use a Zemax default lens:

Creating multiple environments • The nominal design is specified at 20 °C, but we would like to investigate its performance from 0 °C - 30 °C (-32 °F – 86 °F).

Creating multiple environments • Because Zemax uses a linear model for its temperature effects, choosing the min, max, and nominal temperatures is okay, but more is required for systems that use aspherics or complex surfaces. Note that the temperatures are specified in the system units

Review multi-configuration data • Running the previous command automatically sets up a multiconfiguration lens with the correct operands for environmental analysis • But what is wrong?

Mechanical housing data • In the nominal design, we have not defined a physical material that connects all the lenses, so this spacing will not change over temperature. We must model our mechanics to get correct results!

Updated thermal model • Specifying the material between the first and second lens as aluminum results in variation of the thickness of surface 3

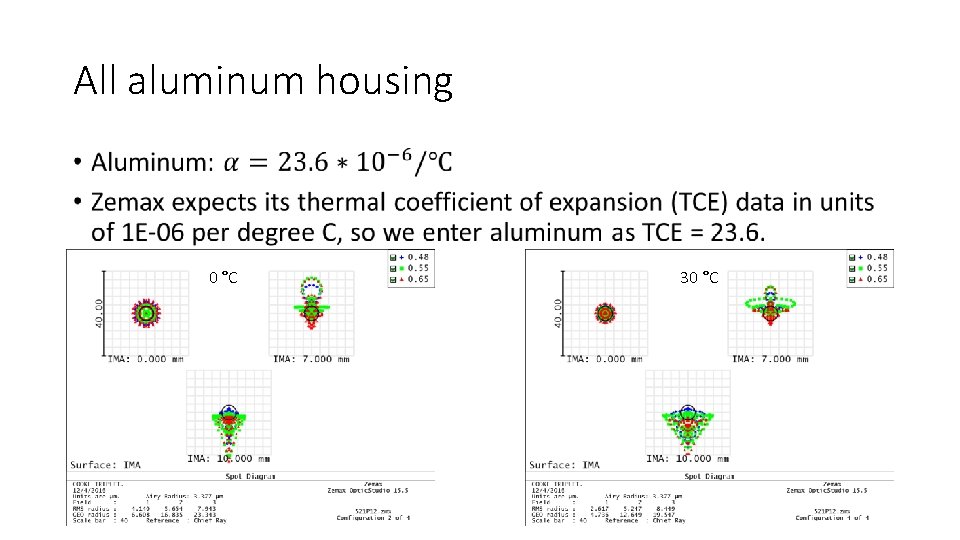

All aluminum housing • 0 °C 30 °C

Compare with Invar 36 • 0 °C 30 °C

Optimizing athermal lenses • We can now optimize the optical design to work across the different temperatures. • Define variables only in the nominal configuration found within the multi-configuration editor. • Typical variables are thicknesses (THIC) and curvature/radii (CRVT). • We can also optimize for the best housing material, or spacer material by setting the TCE data as variable. This is set back in the lens data editor. However, this may choose an unphysical material, so we need to take care.

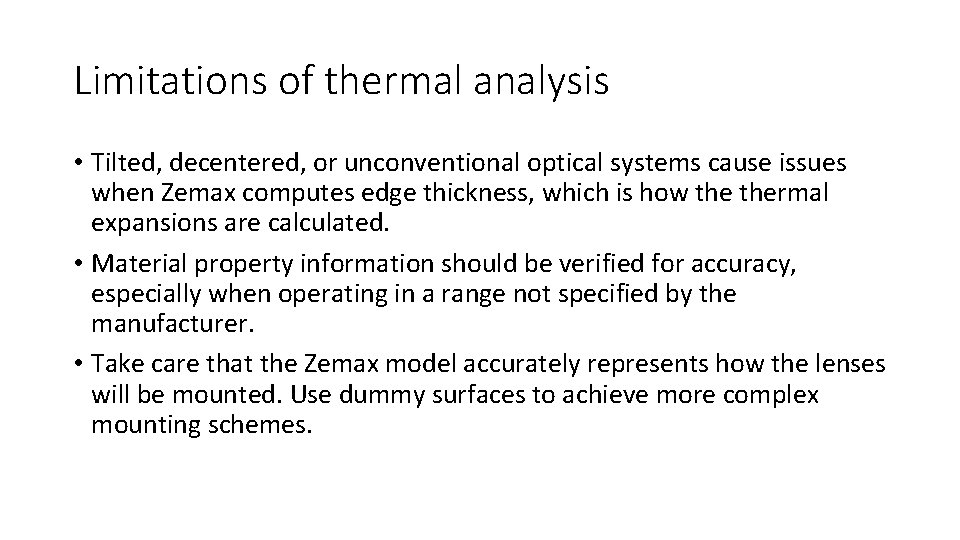

Limitations of thermal analysis • Tilted, decentered, or unconventional optical systems cause issues when Zemax computes edge thickness, which is how thermal expansions are calculated. • Material property information should be verified for accuracy, especially when operating in a range not specified by the manufacturer. • Take care that the Zemax model accurately represents how the lenses will be mounted. Use dummy surfaces to achieve more complex mounting schemes.

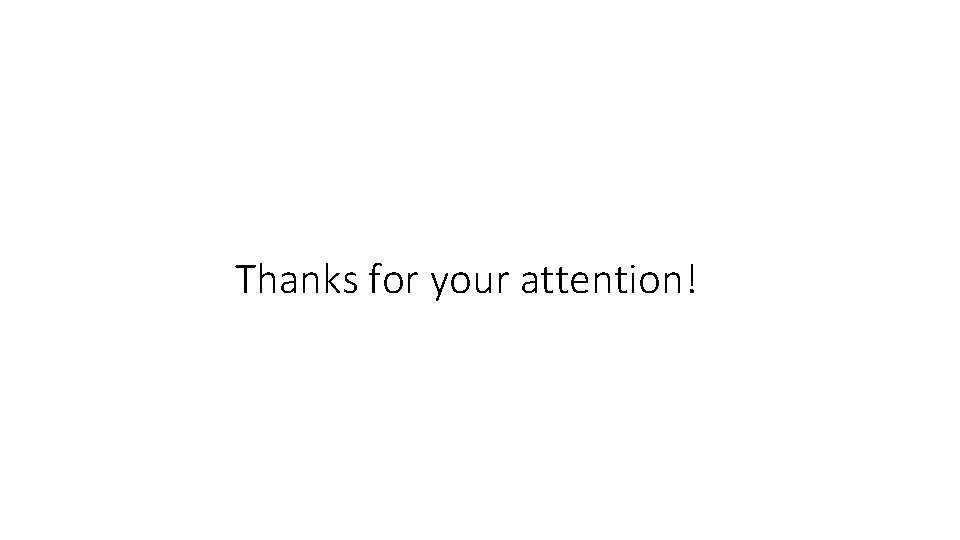

Thanks for your attention!
