Nordic Institute of Navigation Royal Norwegian Naval Academy Jeppesen (C-MAP) Contributions to e-Nav 5 -6 March Ståle Høylandskjær Eirin Lædre Jeppesen Proprietary
Content § § § Who is Jeppesen ? Jeppesen Marine business Electronic Charts in ECDIS The “IS” part in ECDIS Way ahead Jeppesen Proprietary
Who is Jeppesen? § Jeppesen is an information solutions company § Provides essential navigation, planning and operational management solutions to customers around the world Jeppesen World Headquarters, Denver, Colorado § In business since 1934 …is a Jeppesen Proprietary Company
Jeppesens business areas § Jeppesen Aviation – Have supported both commercial and military aviation industry in 75 years with standardized products as well as tailored solutions – Offer advanced flight information solutions and computerized flight planning software § Jeppesen Rail and Logistics – Offer rail and logistics solutions and scheduling tools § Jeppesen Marine – Includes former C-Map – Offer electronic charts to mariners around the world Jeppesen Proprietary
Jeppesen Worldwide Light Marine Marina de Carerra, Italy Marine Locations Other Jeppesen Offices 3, 000 employees in over 50 locations worldwide. Jeppesen Proprietary
Jeppesen Marine History § Seatrans project – 20 years ago – Realized limitations of digital nautical charts § C-Map Norway established and joined C-Map in Italy – Started focusing on Commercial Vessels – High Seas – Aimed for World coverage of VECTOR charts by digitizing and vectorizing paper charts – Cooperated with HOs around the world – Resulted in C-Map World database, on CM 93 ed 2 format § Adjusting to the IHO standards – CM 93 ed 3 format was harmonized with IHO S 57 format – Type approved conversion of ENCs to C-Map SENC format Jeppesen Proprietary
What is our business? § …to provide navigators around the world with all nautical information necessary for safe navigation, and our strategy is based on co-operation with national HO’s and the support of ECDIS and ECS manufacturers and end-users. § This includes both: – The “Electronic Chart” in ECS and ECDIS • Providing up to date Vector Charts in or own database – Professional+ • Providing up to date ENCs, both in S 57 format and our SENC format – The “Information part” in the information system, like ECDIS • Provide additional information in complying ECS/ECDIS § We are NOT a HW provider – We are dependent on systems in the marked able to use our data Jeppesen Proprietary
How do we operate? § By cooperating with ECDIS/ECS manufactures (OEM’s) in the market – Providing our SDK (Software Development Kit), containing all Jeppesen functionality – The OEMs determine which functionality they will implement – The functionality can be tailored by the OEMs, in order to fit the ”look and feel” of their own system § By constantly developing our SDK – consequently constantly developing the OEM’s § By providing our customers up to date information – Charts – Weather information Jeppesen Proprietary
The Jeppesen OEM concept Jeppesen Proprietary
Some OEM figures § Around 100 qualified system manufacturers have implemented C-Map Jeppesen technology § 34 qualified manufactures of Type Approved ECDIS systems have implemented our SDK § Around 70 qualified manufactures of ECS, AIS, Simulators, Survey, VTS, Fleet Management systems etc. Jeppesen Proprietary
Electronic Charts Contribution to e-Nav Jeppesen Proprietary
Jeppesen Charts § Are really Jeppesen, or C-Map, only an unauthorized chart provider of ”private” charts ? ? ? § NO, definitely not ! § C-MAP has always been an industry driving force – Aiming for quality ensured navigational data to the end users § Jeppesen contributes to the ENC production and distribution in several ways – By facilitating high quality production and supplying production tools – To ensure ENCs distributed to the end users in a secure and efficient way Jeppesen Proprietary

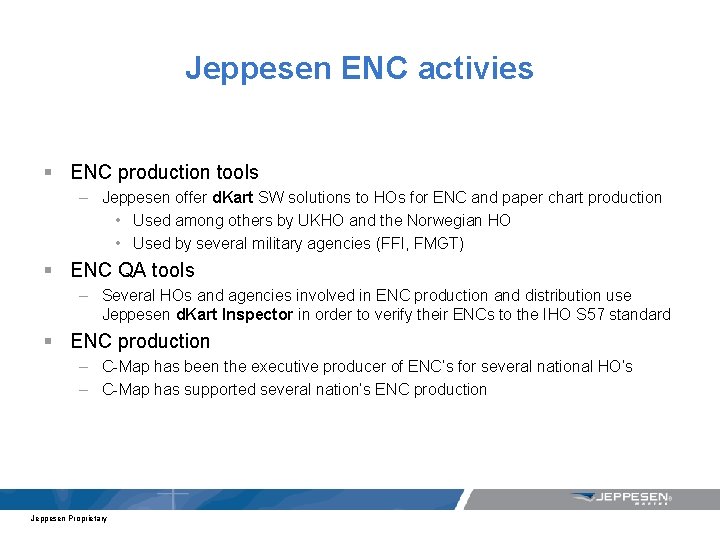

Jeppesen ENC activies § ENC production tools – Jeppesen offer d. Kart SW solutions to HOs for ENC and paper chart production • Used among others by UKHO and the Norwegian HO • Used by several military agencies (FFI, FMGT) § ENC QA tools – Several HOs and agencies involved in ENC production and distribution use Jeppesen d. Kart Inspector in order to verify their ENCs to the IHO S 57 standard § ENC production – C-Map has been the executive producer of ENC’s for several national HO’s – C-Map has supported several nation’s ENC production Jeppesen Proprietary
Jeppesen ENC § Jeppesen are authorized distributer of ENCs – both in S 57 format – as well as in our own SENC format § Jeppesen will continue to support end-user customer when transferring from various un-authorized charts to ENCs when ECDIS become mandatory § Jeppesen believes in SENC distribution of ENC Jeppesen Proprietary
ENC distribution on S 57 format ENCdistributioninin. S-57 formatfrom. Hydrographic. Offices ENC encrypted the S-63 format ENC encrypted in in the S-63 format 1. 1. 2. 3. 2. 4. 3. 5. 4. Multiple CD’s sent to the vessel Multiple DVD’s from different Only licensed charts are installed sources sent to the vessel Decryption of ENC Installation of multiple DVD’s Verification of ENC Decryption of ENC Compilation from S-57 Verification of ENC onboard SENC 5. to Compilation from S-57 to onboard SENC If error or warning messages appear, who decides how critical they are? Jeppesen Proprietary
Jeppesen ENC § The Jeppesen SENC format is Type Approved § SENC distribution is accepted by most HOs § Jeppesen SENC database contains most of the current worldwide coverage of ENCs on one DVD § All charts installed, but only licensed charts available § Easy to add new chart licenses if required § All charts are converted and validated on-shore § Errors are reported back to HOs for correction § SENC format provide: § § Increased speed of chart loading onboard Easier way of ENC handling onboard Jeppesen Proprietary
In addition. . • Jeppesen has Global Coverage of vector charts • C-MAP Professional+ • Used by the majority of professional marine navigators • Intended for use in ECDIS and ECS • Weekly updated based on Nt. Ms • ISO 19379 Certified Jeppesen Proprietary
The Dual Fuel concept § § § § ENCs and Professional+ supplied and stored in the same format. Vector-vector Seamless merging, both horizontally and vertically No switching between databases Avoid sailing into black ”holes”, where no ENCs available Equal presentation and functionality Supported by the same Online Update Service Jeppesen Proprietary

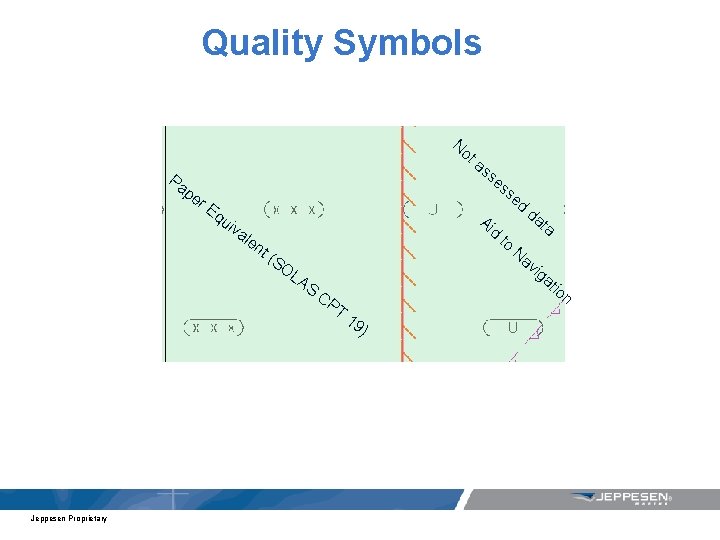

Quality Symbols Pa No ta ss es s pe r. E qu Ai iva d len t( SO LA S to da ta Na vig CP T 19 ) Jeppesen Proprietary ed at io n
The Dual Fuel concept ENC only Jeppesen Proprietary ENC and C-MAP Professional+
The Dual Fuel concept ENC Coverage Jeppesen Proprietary Professional+ Coverage
Integrated Information Contribution to e-Nav Jeppesen Proprietary
Heavy Weather Damage (Roll) - cost/benefit of a good weather forecast. . Jeppesen Proprietary
Making the ”IS” in ECDIS come alive § By utilizing the vector charts possibilities as an electronic gateway to other types of information needed for decision support and safe navigation Available today in ECS and some type approved ECDIS: § The electronic sea chart overlaid with weather data – directly in the bridge system – World Wide Coverage § Set alarm for wind, waves and see the weather impact on your route directly in the navigation chart Jeppesen Proprietary
Making the ”IS” in ECDIS come alive § World wide coverage, including official Tropical Cyclone warnings – updated every 30 minutes – directly in your navigational chart! § ICE Charts § Route planning support with the Jeppesen Automatic Route Finder § Chart updates and even new chart editions via the Jeppesen Online update services § Dynamic licensing – Pay for the charts used. . Jeppesen Proprietary
Specialized Functionality Alarms - any combinations of warnings; 1) Weather Chart Alarms Areas 2) Alarms Along Route Time series: “For a given point” or “Weather along route” - Response calculation: Heave, Pitch, Roll - Tropical Cyclone Warnings & Ice Coverage Jeppesen Proprietary
OFFICIAL Tropical Cyclone Warnings Jeppesen Proprietary

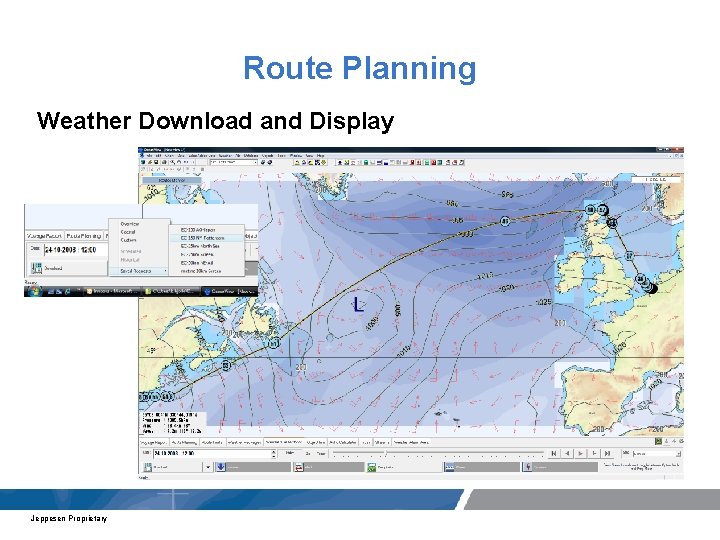

Route Planning Weather Download and Display Jeppesen Proprietary
Route Planning Weather Download and Display Jeppesen Proprietary

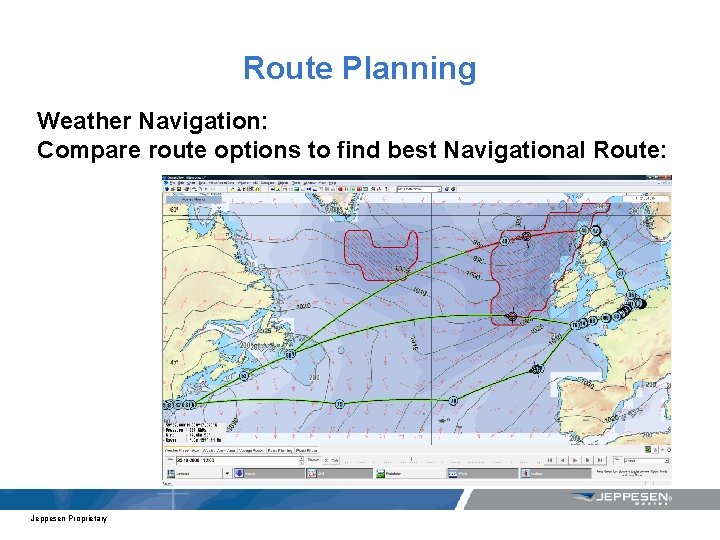

Route Planning Weather Navigation: Compare route options to find best Navigational Route: Jeppesen Proprietary
ENC’s and Dynamic Licensing § All chartsts, updates and licenses available onboard and ready for use. § ENC’s licensed as required § When you need a chart it is available immediately § Licenses for new and replaced charts transferred automatically via C-MAP Update Service § Automatic reporting of usage via the C-MAP Update Service § Controlled costs via pre-set budgets and spending limits § A user friendly and cost effective system Jeppesen Proprietary
Speaking from experience § Money talks… – Most vessels still sails with paper charts as the official chart – Due to price, they combine this with various un-authorized electronic charts even if ENCs are available § Hard to convert to ECDIS/ENCs – Both Flag- and Port State have to accept ECDIS as a main tool for navigation – Some still doesn’t, and the vessel needs up to date paper charts anyway § In general, use of ENC increase slowly § Has to be enforced by laws/regulations, or price Jeppesen Proprietary
What’s in the Jeppesen Future? § Continue to support customers with up-to-date charts § Support customers with converting to mandatory ECDIS and supplying ENCs § Continue to improve the ”IS” part of our ECDIS strategy and the ”One Stop Shop” philosophy § By delivering onboard decision tools § By simplifying administration (e. g. chart management) § By adding new functionality into the chart e. g. being able to display information such as: – – – Jeppesen Proprietary Onboard routing Growler warnings Whale migration areas (subject to heavy fines e. g. by USCG) Freak waves Other ”NO GO” areas
Thank you for your attention Questions? ? stale@jeppesen. com Jeppesen Proprietary
