MANUFACTURING APPS TIPS & TRICKS SESSION #3 – PTC SIGMA TILE IOT STARTER KIT Christine Bahmer, Serge Romano PTC Connected Operations
AGENDA • Overview – Christine Bahmer • Demo – Christine Bahmer • PTC Sigma Tile Io. T Starter Kit - Serge Romano – What is it? – How to procure it? – Demo • Q&A 2
SOURCE CONTEXTUALIZE SYNTHESIZE ORCHESTRATE ENGAGE
ENABLING TIMELY DATA DRIVEN DECISIONS Rapid time to value with 6 weeks Io. T sprints 4
PTC Manufacturing Io. T Proven Value 10 -20% 5 -8% 91% 2 -5% Reduction in unplanned Downtime Improvement in Productivity Accuracy Predicting failures 1 day in advance Increased OEE
THAT’S AWESOME BUT… Where do I start? 6
INSTALL, CONNECT, CONFIGURE IN LESS THAN AN HOUR ØFast to deploy ØFast to configure ØRole-based insight ØFlexible to evolve ØBuilt on Thing. Worx ØEasy to try and buy 60 mins 77
THINGWORX MANUFACTURING APPS Transform your performance by giving your operations teams unprecedented capabilities to see, understand act in real time. Thing. Worx manufacturing apps accelerate your time-tovalue and offer unmatched flexibility. Thing. Worx Production Advisor Plant Manager Thing. Worx Asset Advisor Maintenance Thing. Worx Controls Advisor Controls Engineer 8
PTC SIGMA TILE IOT STARTER KIT 9
10
11
WHAT IS THE PTC SIGMA TILE? A Smart Connected Product… …that can “be” ANYTHING And that you can build yourself ! 12
BUT IT’S ALSO… 1 A very low cost, easy to procure open source computer / PLC (<$150) A fully sensorized Io. T gateway device pre-configured to work with Kepware and Thing. Worx Manufacturing Apps 3 2 An ultra-portable, powerful PTC Mfg Transformation Journey demonstrator Wearable devices with AR work instructions & smart tools 13
THE SIGMA TILE: A PORTABLE MFG JOURNEY DEMONSTRATOR Sigma Tile is ultra portable and easy to take to customers and connect to their existing assets (machine, projector, laptops, …) 2) Build in front of customer a Sigma Tile demonstrating PTC AR-Guided Operations capabilities & Smart Tools 1) Use Sigma Tile (CAD and process plan definition) to demo digital processes 4) Demo how develop new Apps and AR experiences with Thing. Worx Manufacturing Apps using examples with Sigma Tile assets representations 3) Connect Sigma Tile to customer asset or use AR asset representations and demo real-time unified connectivity and issue identification Other Mfg use cases: additive manufacturing 14
BUILT IT - SIGMA TILE HARDWARE BOM – PROCURING COMPONENTS • • • M 3 hexa screw (1)$ 0. 40 Thing. Mark sticker $ 0. 50 (est. ) 3 D Printed cover $ 6. 00 (est. ) Raspberry Sense Hat $39. 95 3 D printed spacer $ 2. 00 (est. ) M 2 hexa head screws (x 4) $ 1. 00 Raspberry PI 3 Model B $39. 95 3 D Printed enclosure body $15. 00 (est. ) 16 GB Micro. SD card $ 6. 95 M 2 nuts (x 4) $ 1. 00 M 3 nuts (x 1) $ 0. 25 Magnets 0. 25” (x 3) $ 4. 50 (optional) TOTAL $ 125. 50 15
WHAT YOU WILL DO IN THIS WORKSHOP • Part I - Understanding your Sigma Tile with AR work instructions • • • – Recording Part 2 - Connecting your Sigma Tile to the network Part 3 - Install and configure Kepware to communicate with your Sigma Tile Part 4 - Install and configure the Thing. Worx Manufacturing Apps Part 5 - Getting Started with the Thing. Worx Manufacturing Apps Part 6 - Configure Users and Roles Part 7 - Create Lines and Assets (Resources) Part 8 - Configure Lines and Assets (Resources) Part 9 - Monitor Production Metrics with Production Advisor Part 10 - Configure & View Alerts Part 11 - Configure Trends 16
17
18

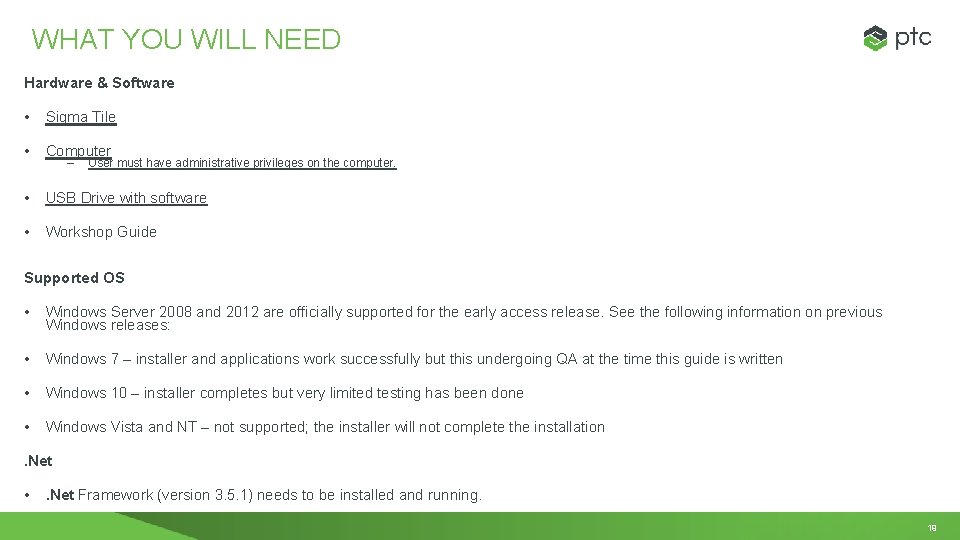

WHAT YOU WILL NEED Hardware & Software • Sigma Tile • Computer • USB Drive with software • Workshop Guide – User must have administrative privileges on the computer. Supported OS • Windows Server 2008 and 2012 are officially supported for the early access release. See the following information on previous Windows releases: • Windows 7 – installer and applications work successfully but this undergoing QA at the time this guide is written • Windows 10 – installer completes but very limited testing has been done • Windows Vista and NT – not supported; the installer will not complete the installation . Net • . Net Framework (version 3. 5. 1) needs to be installed and running. 19
QUESTION AND ANSWERS 20
OUTPERFORM Synchronized Operations Performance Benchmarking Supplier Visibility Closed-Loop Digital Thread ADVANCE AR Enabled Operations Digital Processes Predictive Analytics Agile Innovation UNDERSTAND Real-Time Issue Identification Unified Connectivity MANUFACTURING Role-Based Intelligence TODAY 21
