Lecture 4 Symmetry and group theory Natural symmetry
- Slides: 47
Lecture 4
Symmetry and group theory
Natural symmetry in plants
Symmetry in animals
Symmetry in the human body
Symmetry in modern art M. C. Escher
Symmetry in arab architecture La Alhambra, Granada (Spain)
Symmetry in baroque art Gianlorenzo Bernini Saint Peter’s Church Rome
7 th grade art project Silver Star School Vernon, Canada
Re 2(CO)10

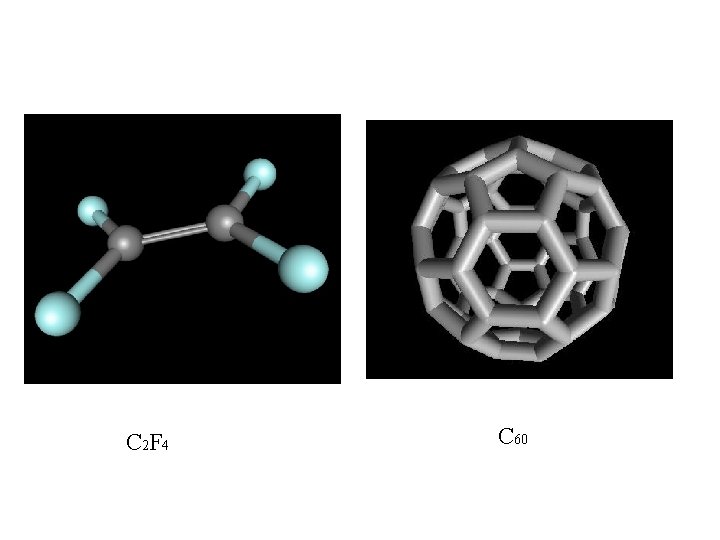

C 2 F 4 C 60

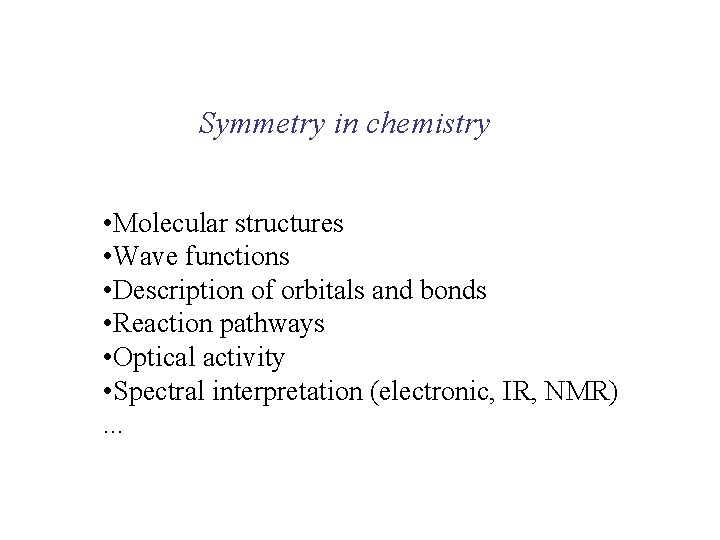

Symmetry in chemistry • Molecular structures • Wave functions • Description of orbitals and bonds • Reaction pathways • Optical activity • Spectral interpretation (electronic, IR, NMR). . .

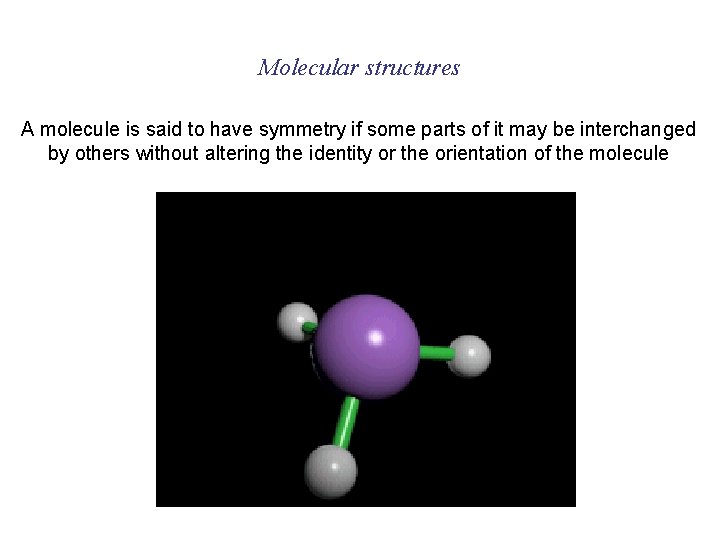

Molecular structures A molecule is said to have symmetry if some parts of it may be interchanged by others without altering the identity or the orientation of the molecule
Symmetry Operation: Transformation of an object into an equivalent or indistinguishable orientation C 3, 120º Symmetry Elements: A point, line or plane about which a symmetry operation is carried out
5 types of symmetry operations/elements Operation 1: Identity Operation, do nothing. Identity: this operation does nothing, symbol: E

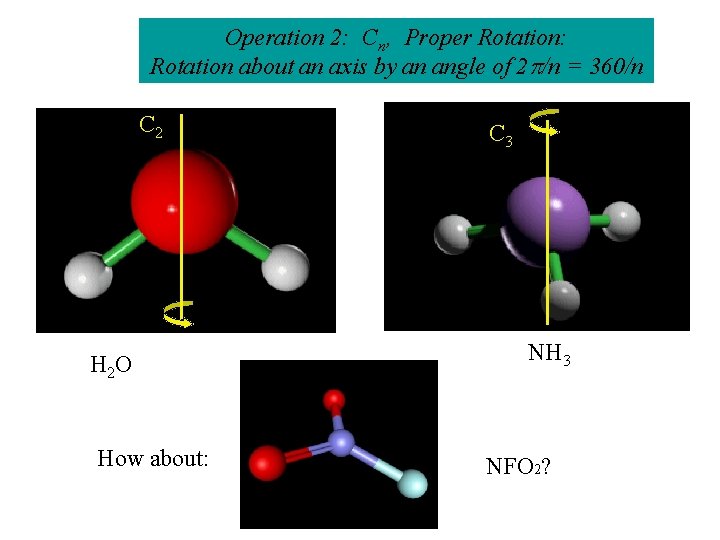

Operation 2: Cn, Proper Rotation: Rotation about an axis by an angle of 2 /n = 360/n C 2 H 2 O How about: C 3 NH 3 NFO 2?
The Operation: Proper rotation Cn is the movement (2 /n) The Element: Proper rotation axis Cn is the line 180° (2 /2) Applying C 2 twice Returns molecule to original oreintation C 2 2 = E C 2
Rotation angle Symmetry operation 60º C 6 120º C 3 (= C 62) 180º C 2 (= C 63) 240º C 32(= C 64) 300º C 65 360º E (= C 66)

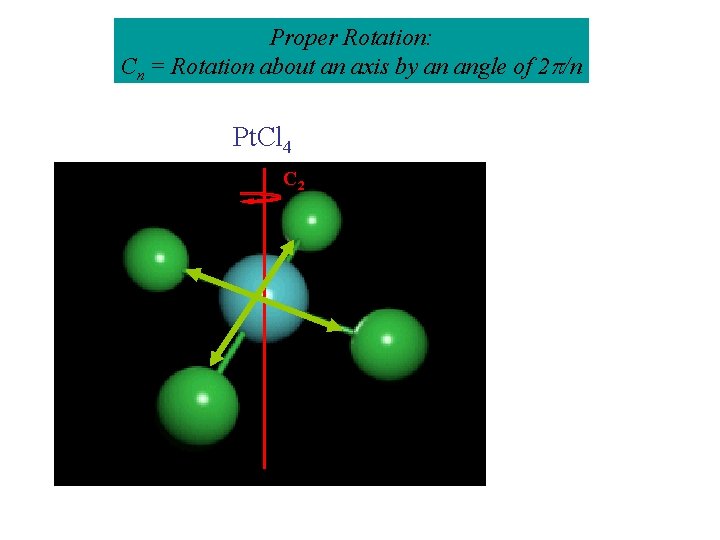

Proper Rotation: Cn = Rotation about an axis by an angle of 2 /n Pt. Cl 4 C 2
Proper Rotation: Cn = Rotation about an axis by an angle of 2 /n Pt. Cl 4 C 4
Proper Rotation: Cn = Rotation about an axis by an angle of 2 /n Pt. Cl 4 C 2
Proper Rotation: Cn = Rotation about an axis by an angle of 2 /n Pt. Cl 4 C 2
Proper Rotation: Cn = Rotation about an axis by an angle of 2 /n Pt. Cl 4 C 2
Proper Rotation: Cn = Rotation about an axis by an angle of 2 /n Pt. Cl 4 C 2
Operations can be performed sequentially Can perform operation several times. Means m successive rotations of 2 /n each time. Total rotation is 2 m /n m times Observe

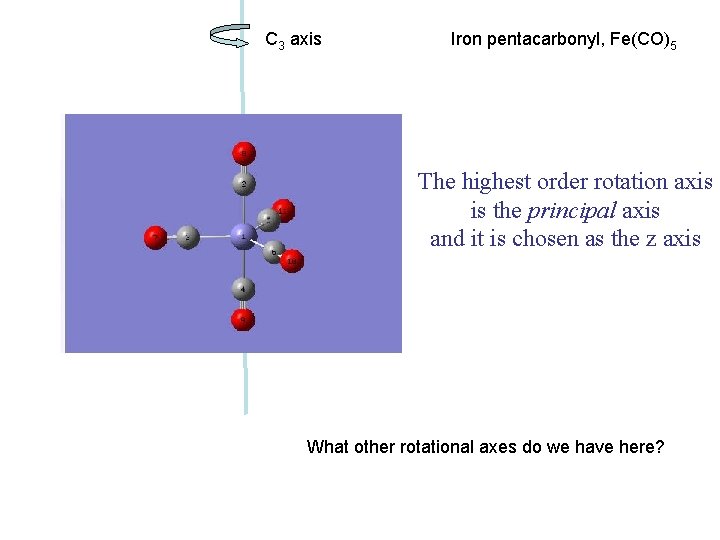

C 3 axis Iron pentacarbonyl, Fe(CO)5 The highest order rotation axis is the principal axis and it is chosen as the z axis What other rotational axes do we have here?
Let’s look at the effect of a rotation on an algebraic function Consider the pz orbital and let’s rotate it CCW by 90 degrees. px proportional to xe-ar where r = sqrt(x 2 + y 2 + z 2) using a coordinate system centered on the nucleus y y C 4 o x px o x C 4 px How do we express this mathematically? The rotation moves the function as shown. The value of the rotated function, C 4 px, at point o is the same as the value of the original function px at the point o. The value of C 4 px at the general point (x, y, z) is the value of px at the point (y, -x, z) Moving to a general function f(x, y, z) we have C 4 f(x, y, z) = f(y, -x, z) Thus C 4 can be expressed as (x, y, z) (y, -x, z). If C 4 is a symmetry element for f then f(x, y, z) = f(y, -x, z)

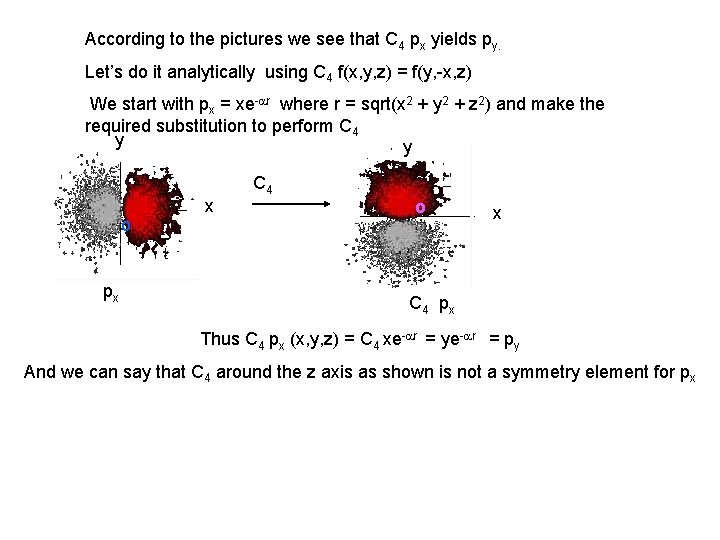

According to the pictures we see that C 4 px yields py. Let’s do it analytically using C 4 f(x, y, z) = f(y, -x, z) We start with px = xe-ar where r = sqrt(x 2 + y 2 + z 2) and make the required substitution to perform C 4 y y C 4 o px x o x C 4 px Thus C 4 px (x, y, z) = C 4 xe-ar = ye-ar = py And we can say that C 4 around the z axis as shown is not a symmetry element for px

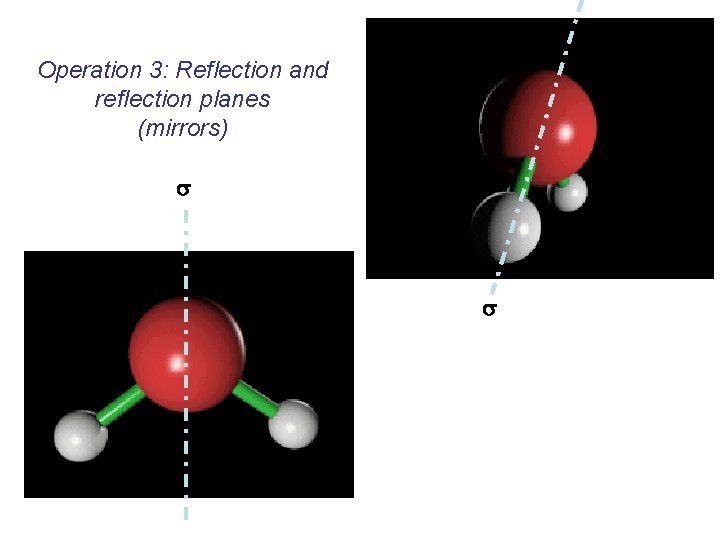

Operation 3: Reflection and reflection planes (mirrors) s s
(reflection through a mirror plane) NH 3 Only one s?
H 2 O, reflection plane, perp to board What is the exchange of atoms here?
H 2 O another, different reflection plane ’ What is the exchange of atoms here?
Classification of reflection planes F F B If the plane contains the principal axis it is called v F F If the plane is perpendicular to the principal axis it is called h Sequential Application: n = E (n = even) n = (n = odd) F B F
Operation 4: Inversion: i Center of inversion or center of symmetry (x, y, z) (-x, -y, -z) in = E (n is even) in = i (n is odd)
Inversion not the same as C 2 rotation !!

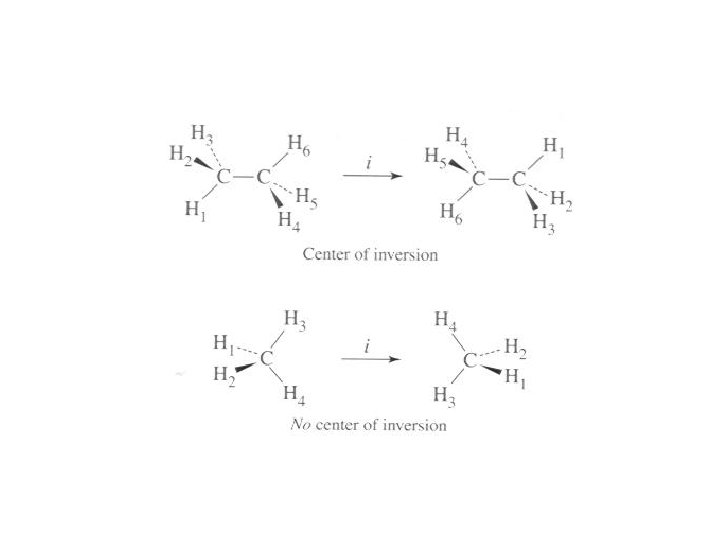

Figures with center of inversion Figures without center of inversion
Operation 5: Improper rotation (and improper rotation axis): Sn Rotation about an axis by an angle 2 /n followed by reflection through perpendicular plane S 4 in methane, tetrahedral structure.
Some things to ponder: S 42 = C 2 Also, S 44 = E; S 2 = i; S 1 = s
Summary: Symmetry operations and elements Operation Element proper rotation axis (Cn) improper rotation axis (Sn) reflection plane (s) inversion center (i) Identity (E)
Successive operations, Multiplication of Operators Already talked about multiplication of rotational Operators Means m successive rotations of 2 /n each time. Total rotation is 2 m /n But let’s examine some other multiplications of operators C 4 2 1 C 4 1 4 3 C 4 We write x C 4 operators. 2 2 3 4 1 4 3 ’ = ’, first done appears to right in this relationship between
Translational symmetry not point symmetry

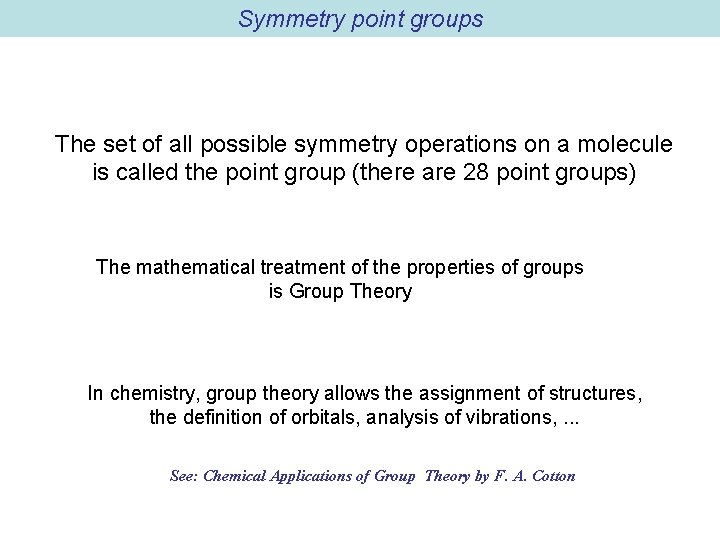

Symmetry point groups The set of all possible symmetry operations on a molecule is called the point group (there are 28 point groups) The mathematical treatment of the properties of groups is Group Theory In chemistry, group theory allows the assignment of structures, the definition of orbitals, analysis of vibrations, . . . See: Chemical Applications of Group Theory by F. A. Cotton
To determine the point group of a molecule
Groups of low symmetry
