Lecture 10 Doppler effect and Shock waves Pre-reading: § 16. 8– 16. 9 Please

Lecture 10 Doppler effect and Shock waves Pre-reading: § 16. 8– 16. 9 Please take a clicker and an evaluation form

Doppler Effect • Change in perceived frequency due to relative motion of a source

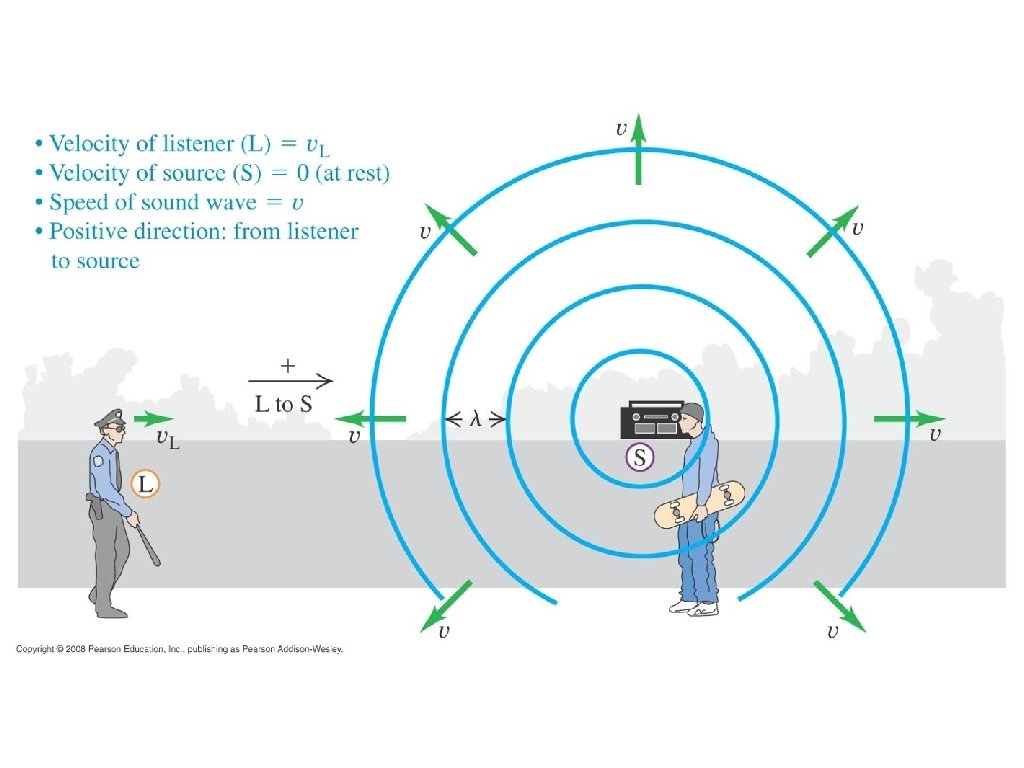

Doppler Effect • Change in perceived frequency due to relative motion of a source (S) and listener (L) Stationary Source Moving Source

Doppler Effect • Change in perceived frequency due to relative motion of a source

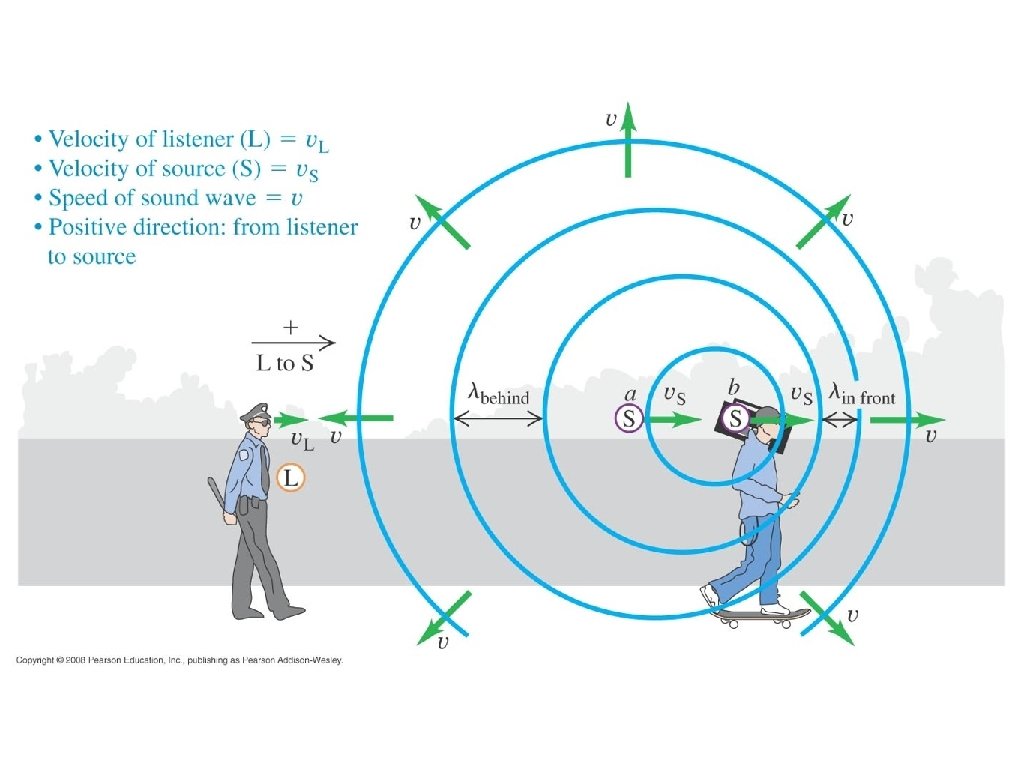

Doppler Effect • Change in perceived frequency due to relative motion of a source (S) and listener (L) • Case 1: Source at rest, Listener moving f. L = (1 + v. L/v) × f. S • Case 2: Source and Listener moving • Pay attention to sign of v. L, v. S ! (positive from L to S) • For light waves f. L = √[ (c–v) / (c+v) ] × f. S c = 3. 0 × 8 10 – 1 ms

Doppler Effect • Change in perceived frequency due to relative motion of a source

Doppler Effect • Change in perceived frequency due to relative motion of a source (S) and listener (L) • Case 1: Source at rest, Listener moving f. L = (1 + v. L/v) × f. S • Case 2: Source and Listener moving • Pay attention to sign of v. L, v. S ! (positive from L to S) • For light waves f. L = √[ (c–v) / (c+v) ] × f. S c = 3. 0 × 8 10 – 1 ms

Stationary Source Moving Source

Stationary Source Moving Source

Clicker questions A bird flies in a circle centred on a person’s head and

Clicker questions A bird flies in a circle centred on a person’s head and emits a continuous sinusoidal sound wave with frequency of f = 1000 Hz.

d A bird flies in a circle centred on a person’s head and emits

d A bird flies in a circle centred on a person’s head and emits a continuous sinusoidal sound wave with frequency of f = 1000 Hz. Now there is another person standing a large distance away.

Shock Waves What if speed of source is equal to or greater than the

Shock Waves What if speed of source is equal to or greater than the speed of sound? v. S = vsound v. S > vsound

This is exactly analogous to the bow wave produced by a swimmer moving faster

This is exactly analogous to the bow wave produced by a swimmer moving faster than the speed of the waves on water. Bow wave produced by a platypus swimming

Shock Waves F/A-18 “Hornet”

Shock Waves F/A-18 “Hornet”

Shock Waves What if speed of source is equal to or greater than the

Shock Waves What if speed of source is equal to or greater than the speed of sound? v. S = vsound v. S > vsound

Shock Waves The waves ‘pile up’ at surface When that surface hits your ears,

Shock Waves The waves ‘pile up’ at surface When that surface hits your ears, you hear very loud sound: sonic boom • If v. S > v(sound), the surface has the shape of a cone with an opening angle α where v. S/v is called the Mach number

Clicker questions The diagram shows the wavefronts generated by an airplane flying past an

Clicker questions The diagram shows the wavefronts generated by an airplane flying past an observer A at a speed greater than that of sound.

The carillon in the Quad is ringing. You are so excited to have finished

The carillon in the Quad is ringing. You are so excited to have finished your Physics lecture and get to lunch that you run towards the Quad at twice the speed of sound. As you approach the bells, they sound 1. higher pitched than normal 2. lower pitched than normal 3. like a sonic boom
