KONČAR – Switchgear Inc. Company Profile & Product Range Presentation 02/2018.

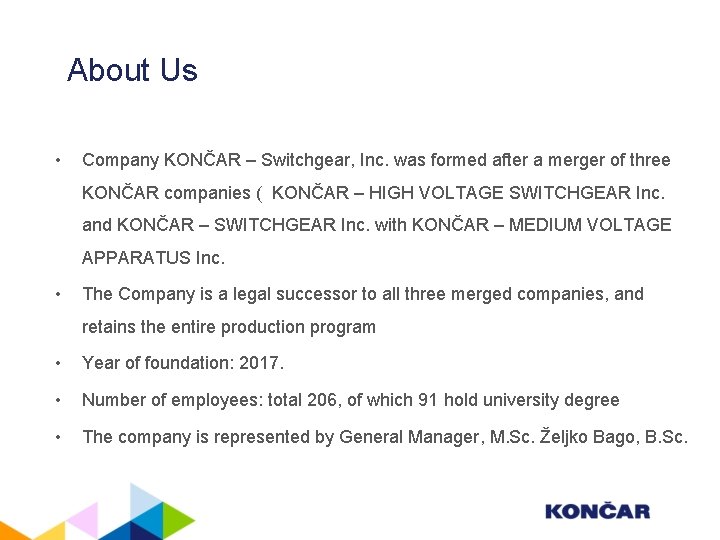

About Us • Company KONČAR – Switchgear, Inc. was formed after a merger of three KONČAR companies ( KONČAR – HIGH VOLTAGE SWITCHGEAR Inc. and KONČAR – SWITCHGEAR Inc. with KONČAR – MEDIUM VOLTAGE APPARATUS Inc. • The Company is a legal successor to all three merged companies, and retains the entire production program • Year of foundation: 2017. • Number of employees: total 206, of which 91 hold university degree • The company is represented by General Manager, M. Sc. Željko Bago, B. Sc.

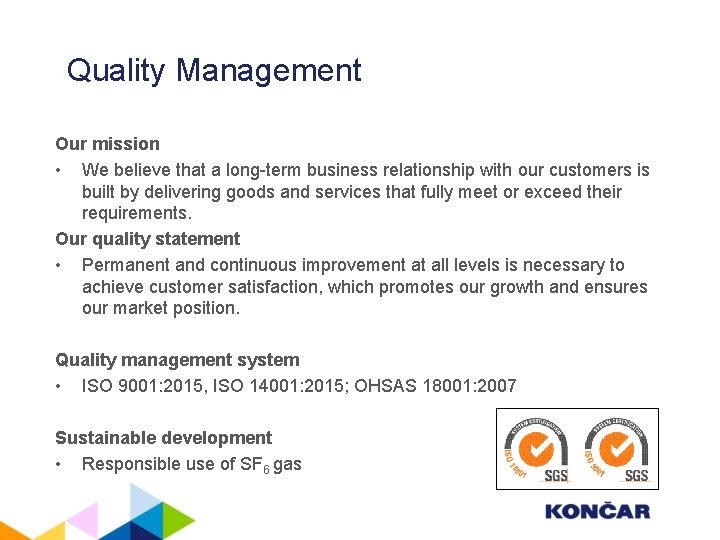

Quality Management Our mission • We believe that a long-term business relationship with our customers is built by delivering goods and services that fully meet or exceed their requirements. Our quality statement • Permanent and continuous improvement at all levels is necessary to achieve customer satisfaction, which promotes our growth and ensures our market position. Quality management system • ISO 9001: 2015, ISO 14001: 2015; OHSAS 18001: 2007 Sustainable development • Responsible use of SF 6 gas

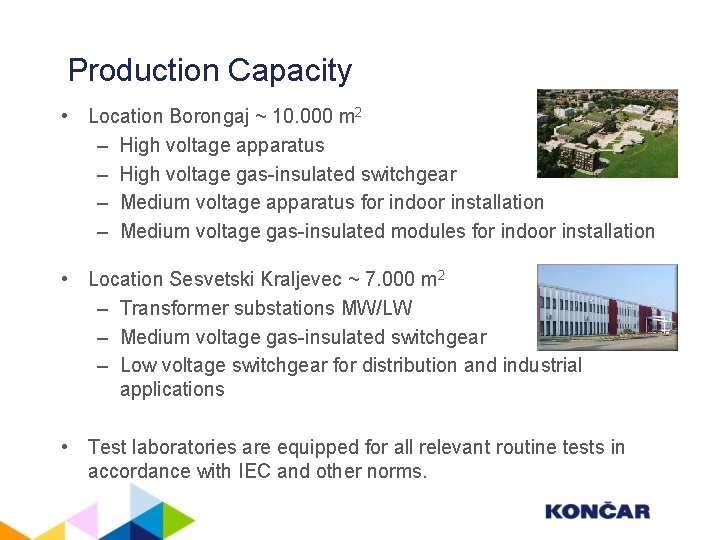

Production Capacity • Location Borongaj ~ 10. 000 m 2 – High voltage apparatus – High voltage gas-insulated switchgear – Medium voltage apparatus for indoor installation – Medium voltage gas-insulated modules for indoor installation • Location Sesvetski Kraljevec ~ 7. 000 m 2 – Transformer substations MW/LW – Medium voltage gas-insulated switchgear – Low voltage switchgear for distribution and industrial applications • Test laboratories are equipped for all relevant routine tests in accordance with IEC and other norms.

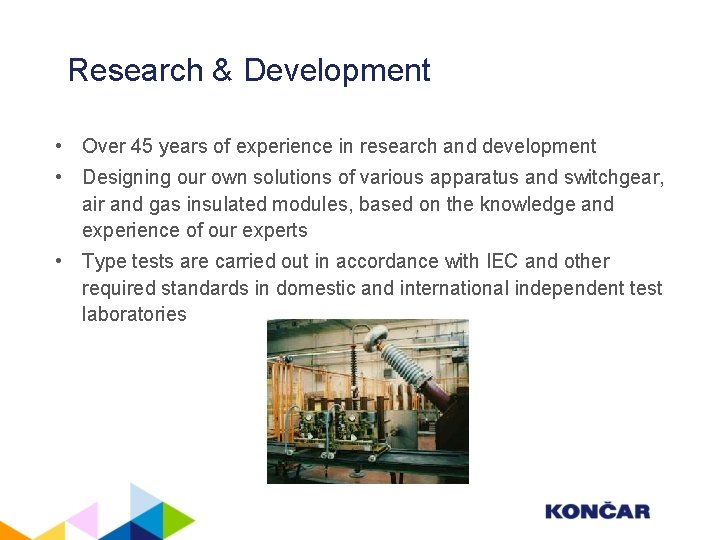

Research & Development • Over 45 years of experience in research and development • Designing our own solutions of various apparatus and switchgear, air and gas insulated modules, based on the knowledge and experience of our experts • Type tests are carried out in accordance with IEC and other required standards in domestic and international independent test laboratories

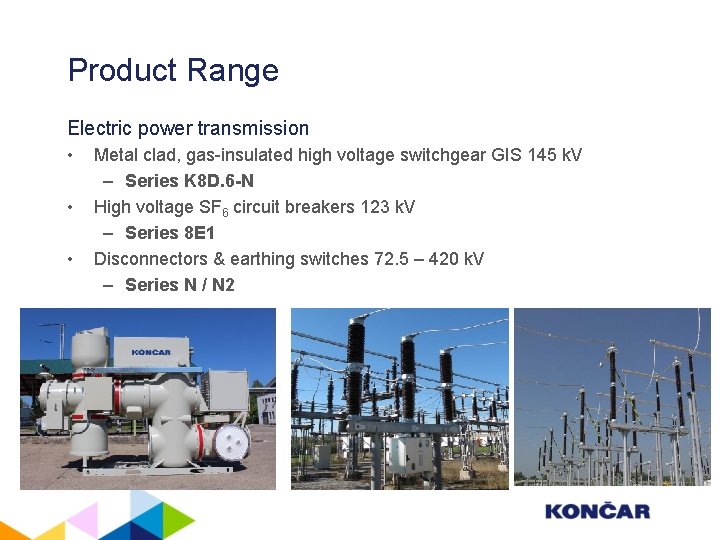

Product Range Electric power transmission • • • Metal clad, gas-insulated high voltage switchgear GIS 145 k. V – Series K 8 D. 6 -N High voltage SF 6 circuit breakers 123 k. V – Series 8 E 1 Disconnectors & earthing switches 72. 5 – 420 k. V – Series N / N 2

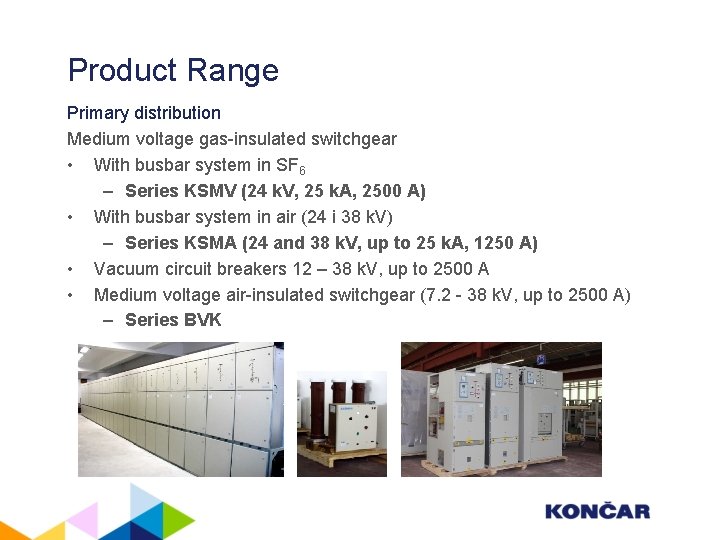

Product Range Primary distribution Medium voltage gas-insulated switchgear • With busbar system in SF 6 – Series KSMV (24 k. V, 25 k. A, 2500 A) • With busbar system in air (24 i 38 k. V) – Series KSMA (24 and 38 k. V, up to 25 k. A, 1250 A) • Vacuum circuit breakers 12 – 38 k. V, up to 2500 A • Medium voltage air-insulated switchgear (7. 2 - 38 k. V, up to 2500 A) – Series BVK

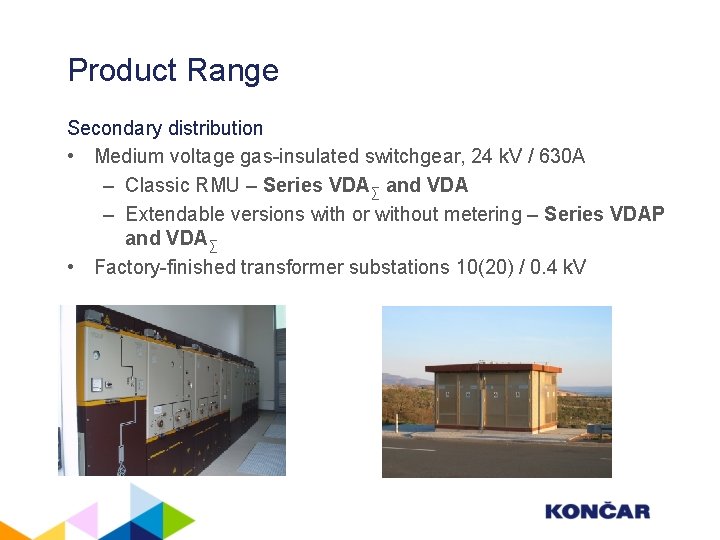

Product Range Secondary distribution • Medium voltage gas-insulated switchgear, 24 k. V / 630 A – Classic RMU – Series VDA∑ and VDA – Extendable versions with or without metering – Series VDAP and VDA∑ • Factory-finished transformer substations 10(20) / 0. 4 k. V

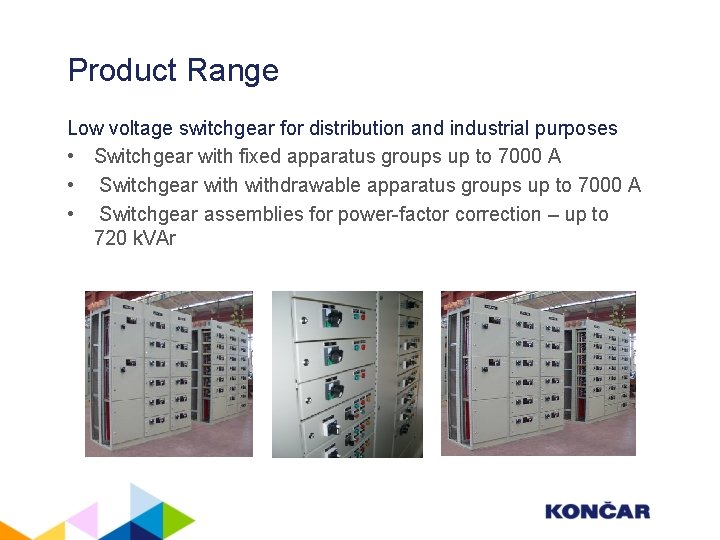

Product Range Low voltage switchgear for distribution and industrial purposes • Switchgear with fixed apparatus groups up to 7000 A • Switchgear withdrawable apparatus groups up to 7000 A • Switchgear assemblies for power-factor correction – up to 720 k. VAr

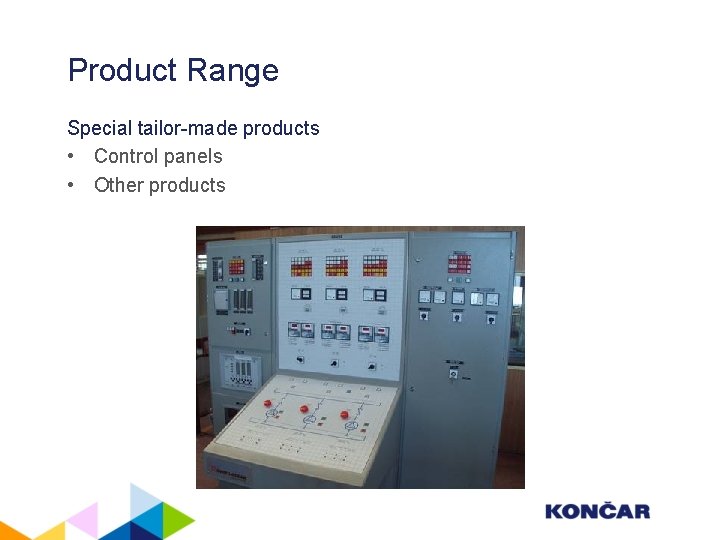

Product Range Special tailor-made products • Control panels • Other products

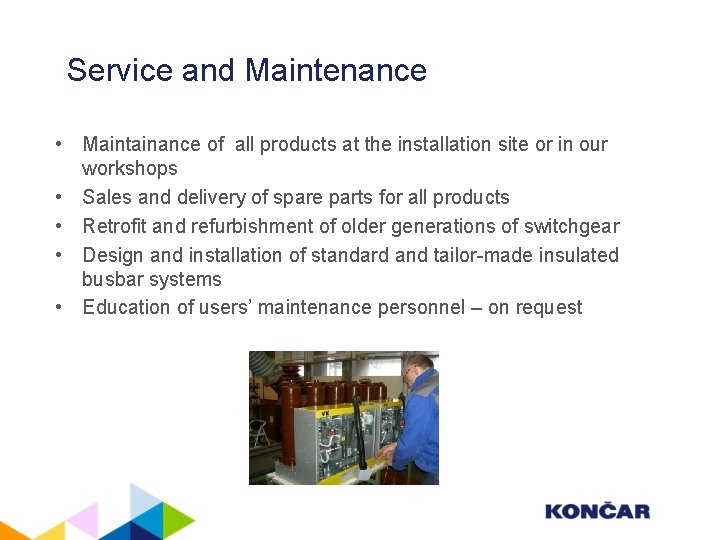

Service and Maintenance • Maintainance of all products at the installation site or in our workshops • Sales and delivery of spare parts for all products • Retrofit and refurbishment of older generations of switchgear • Design and installation of standard and tailor-made insulated busbar systems • Education of users’ maintenance personnel – on request

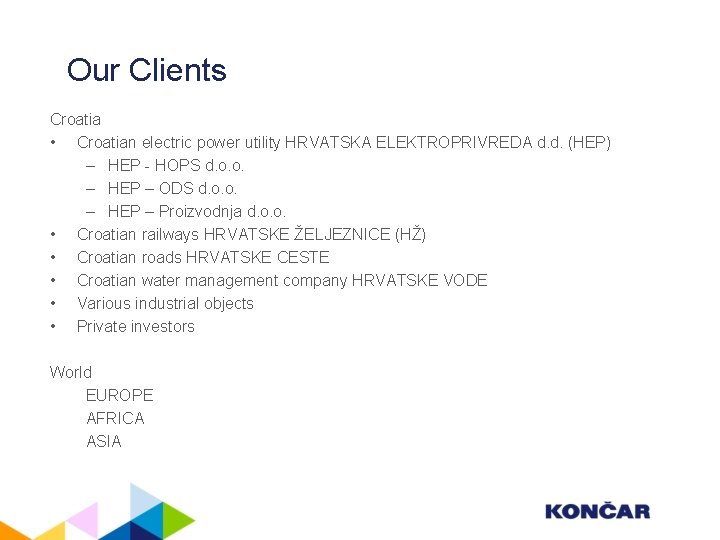

Our Clients Croatia • Croatian electric power utility HRVATSKA ELEKTROPRIVREDA d. d. (HEP) – HEP - HOPS d. o. o. – HEP – ODS d. o. o. – HEP – Proizvodnja d. o. o. • Croatian railways HRVATSKE ŽELJEZNICE (HŽ) • Croatian roads HRVATSKE CESTE • Croatian water management company HRVATSKE VODE • Various industrial objects • Private investors World EUROPE AFRICA ASIA

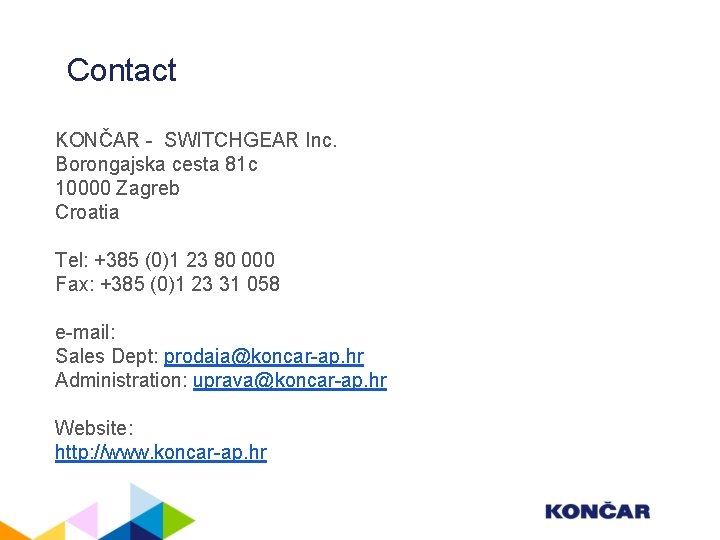

Contact KONČAR - SWITCHGEAR Inc. Borongajska cesta 81 c 10000 Zagreb Croatia Tel: +385 (0)1 23 80 000 Fax: +385 (0)1 23 31 058 e-mail: Sales Dept: prodaja@koncar-ap. hr Administration: uprava@koncar-ap. hr Website: http: //www. koncar-ap. hr

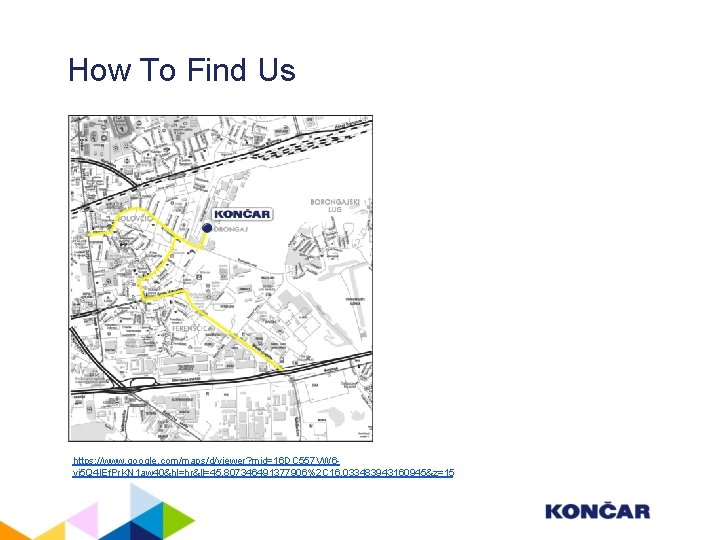

How To Find Us https: //www. google. com/maps/d/viewer? mid=16 DC 557 VW 6 yi 5 Q 4 IEf. Pr. KN 1 aw 40&hl=hr&ll=45. 807346491377906%2 C 16. 033483943160945&z=15

Thank you for your attention!
