ABB PPMV Lake Mary, Florida Advance 27® 27 k. V Metal-Clad Switchgear Customer Training © ABB Group 15 September 2020 | Slide 1

Advance 27® Metal-Clad Switchgear § 27 k. V Metal-clad Air Insulated Switchgear § Tested to IEEE C 37. 20. 2 -1999 § UL Certified § Quoted and built in Lake Mary, FL § Seismic Certified to IBC Region D § Ratings: Rated Voltage Rated Continous Current 27 k. V 1200, 2000 A Rated Symmetrical Current 25 k. A Rated Short-time 2 sec Rated Peak Current 65 k. A Close & Latch capability 65 k. A Rated Lightining Impulse (Bi. L)Voltage 125 k. V Rated Power Frequency Voltage 60 k. V

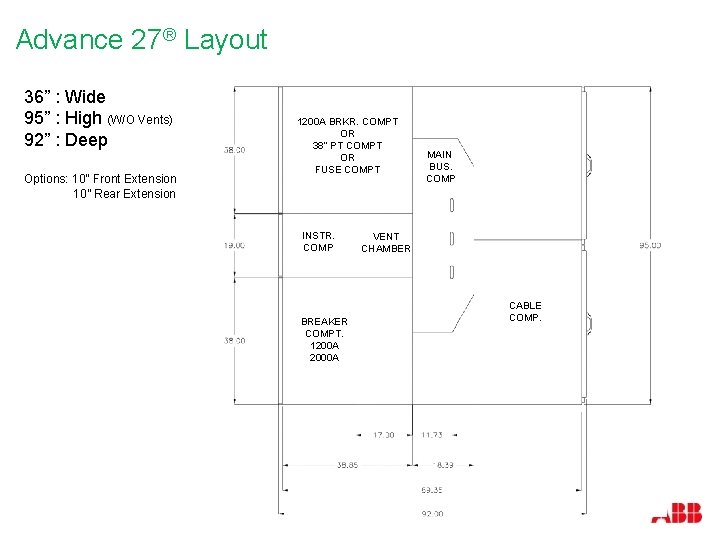

Advance 27® Layout 36” : Wide 95” : High (W/O Vents) 92” : Deep Options: 10” Front Extension 10” Rear Extension 1200 A BRKR. COMPT OR 38” PT COMPT OR FUSE COMPT INSTR. COMP BREAKER COMPT. 1200 A 2000 A MAIN BUS. COMP VENT CHAMBER CABLE COMP.

Advance 27® Features § § Standard Features § Galvanized construction § Hem bending § Modular design § Bolted frame § Instrument compartment § Breaker compartment § PT/Fuse compartment § Bus and cable compartment Additional Safety Features § Closed door racking § Snuffer contact design – PT’s/Fuse

Modular Design

Breaker Compartments § § Breaker Compartment § Porcelain primary bushings § Lexan shutters § Position indicator § Automatic secondary disconnect § Sealed Lexan CT covers with skirt boot § Isolated terminal blocks Instrument Compartment § Isolated design § Available in 19” or 57”

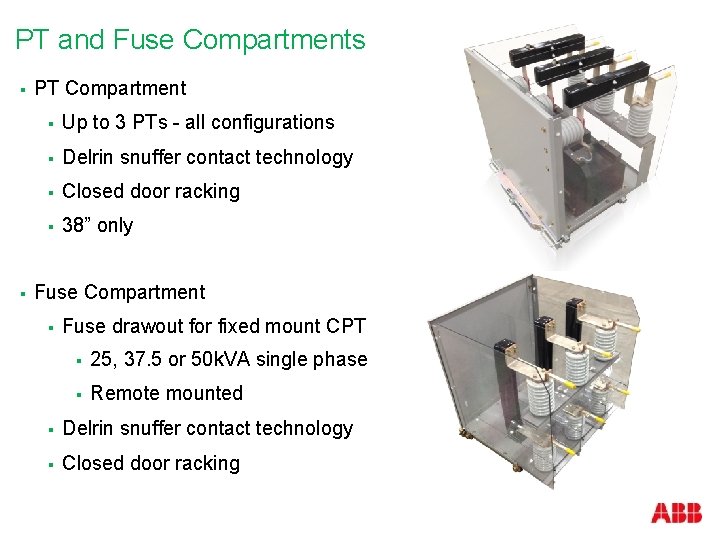

PT and Fuse Compartments § § PT Compartment § Up to 3 PTs - all configurations § Delrin snuffer contact technology § Closed door racking § 38” only Fuse Compartment § Fuse drawout for fixed mount CPT § 25, 37. 5 or 50 k. VA single phase § Remote mounted § Delrin snuffer contact technology § Closed door racking

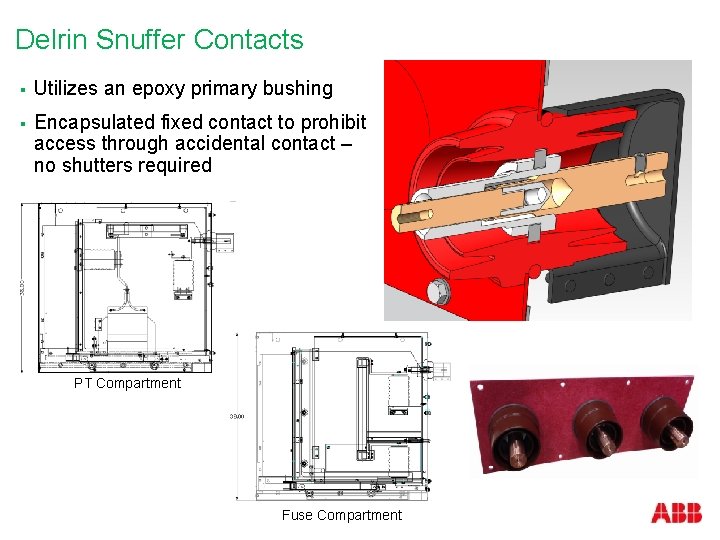

Delrin Snuffer Contacts § Utilizes an epoxy primary bushing § Encapsulated fixed contact to prohibit access through accidental contact – no shutters required PT Compartment Fuse Compartment

Bus and Cable Compartment § Copper bus with Epoxy insulation § Porcelain standoff insulators (7. 5”) § Single rear bolted door § Molded vinyl boots with re-useable nylon hardware

Bus and Cable Compartment - Options § Tin plated bus § Cable supports § Surge arrestors § Ground studs § Ground sensor CT’s § Bus duct entry § IR viewports (IRISS or Fluke) on rear door

Bus and Joint Covers Bus Sizes § 1200 A - 3/8” x 4” § 2000 A - 3/4” x 4” Joint Covers § Black Plastisol material § Requires an internal skirt on each bus § Requires the application of silicon

AMVAC Model 4 Drawout Circuit Breaker Ratings: Rated Voltage 27 k. V Rated Continuous Current 1200, 2000 A Rated Interruption 16, 25 k. A Close and Latch 42, 65 k. A Interruption Time Rating 83 ms (5 -cycle) Rated No-load Op. Endurance 15, 000 Rated Reclosing Sequence O-0. 3 s-CO-15 s-CO 5 Year Standard Warranty

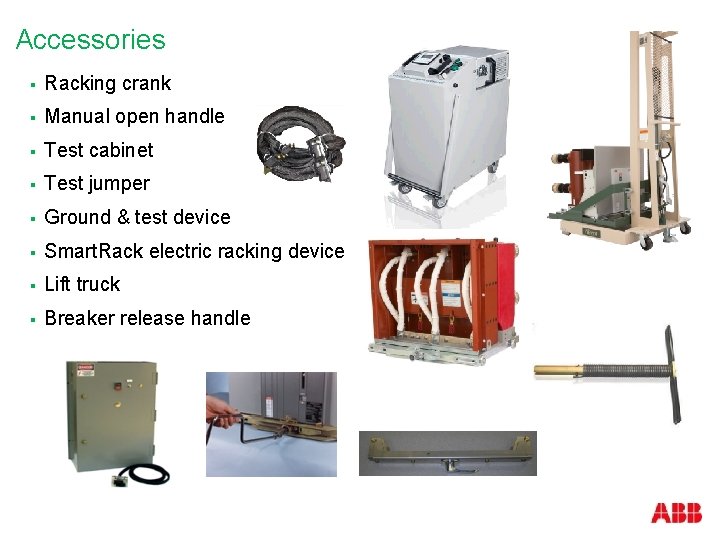

Accessories § Racking crank § Manual open handle § Test cabinet § Test jumper § Ground & test device § Smart. Rack electric racking device § Lift truck § Breaker release handle

Applications § Indoor installations § Outdoor Non-Walk In (ODNWI) enclosure § Outdoor Walk-in/Sheltered Aisle (ODWI) enclosure § Power Distribution Center (PDC)
