JICA STRADA 50 00040 0003 000 Data Processing

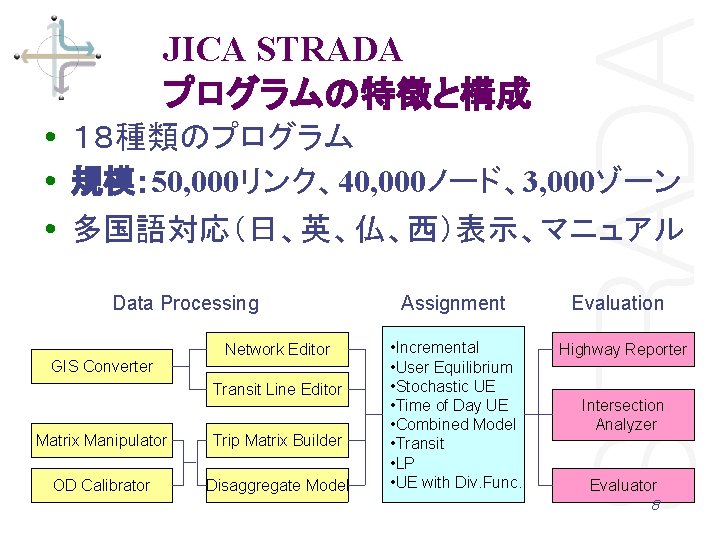

JICA STRADA プログラムの特徴と構成 • １８種類のプログラム • 規模： 50, 000リンク、40, 000ノード、3, 000ゾーン • 多国語対応（日、英、仏、西）表示、マニュアル Data Processing GIS Converter Network Editor Transit Line Editor Matrix Manipulator Trip Matrix Builder OD Calibrator Disaggregate Model Assignment • Incremental • User Equilibrium • Stochastic UE • Time of Day UE • Combined Model • Transit • LP • UE with Div. Func. Evaluation Highway Reporter Intersection Analyzer Evaluator 8

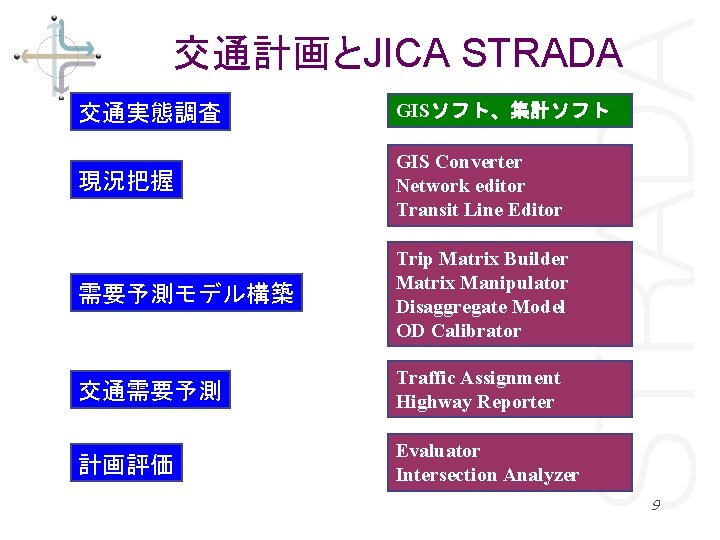

交通計画とJICA STRADA 交通実態調査 GISソフト、集計ソフト 現況把握 GIS Converter Network editor Transit Line Editor 需要予測モデル構築 Trip Matrix Builder Matrix Manipulator Disaggregate Model OD Calibrator 交通需要予測 Traffic Assignment Highway Reporter 計画評価 Evaluator Intersection Analyzer 9

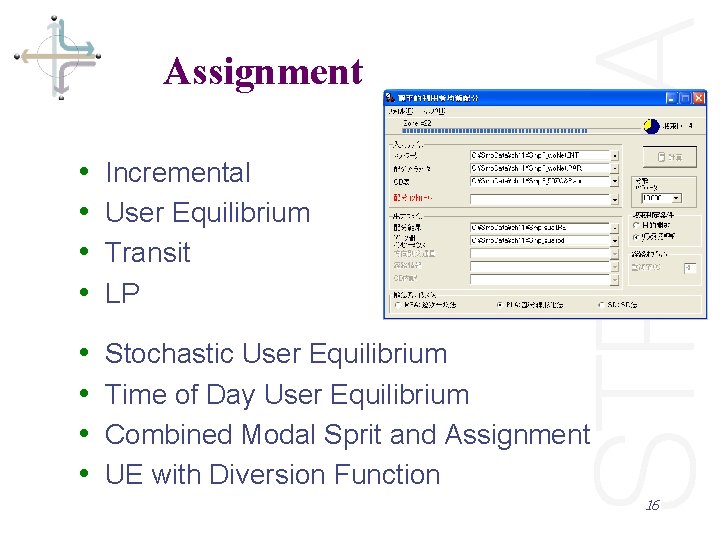

Assignment • • Incremental User Equilibrium Transit LP • • Stochastic User Equilibrium Time of Day User Equilibrium Combined Modal Sprit and Assignment UE with Diversion Function 16
