Introduction to particle accelerators Walter Scandale CERN AT
- Slides: 24
Introduction to particle accelerators Walter Scandale CERN - AT department Lecce, 17 June 2006

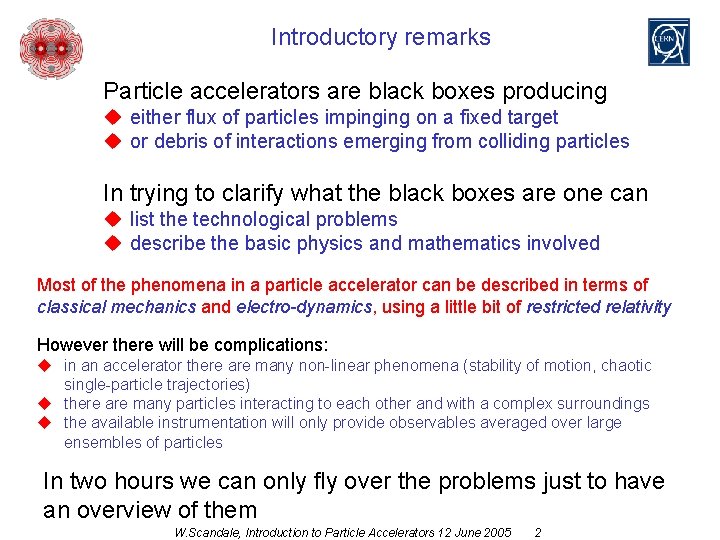

Introductory remarks Particle accelerators are black boxes producing u either flux of particles impinging on a fixed target u or debris of interactions emerging from colliding particles In trying to clarify what the black boxes are one can u list the technological problems u describe the basic physics and mathematics involved Most of the phenomena in a particle accelerator can be described in terms of classical mechanics and electro-dynamics, using a little bit of restricted relativity However there will be complications: u in an accelerator there are many non-linear phenomena (stability of motion, chaotic single-particle trajectories) u there are many particles interacting to each other and with a complex surroundings u the available instrumentation will only provide observables averaged over large ensembles of particles In two hours we can only fly over the problems just to have an overview of them W. Scandale, Introduction to Particle Accelerators 12 June 2005 2
Inventory of synchrotron components W. Scandale, Introduction to Particle Accelerators 12 June 2005

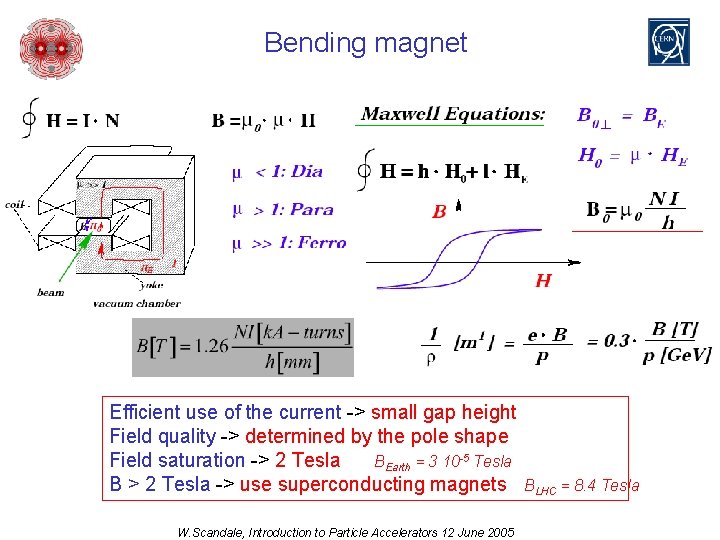

Bending magnet Efficient use of the current -> small gap height Field quality -> determined by the pole shape Field saturation -> 2 Tesla BEarth = 3 10 -5 Tesla B > 2 Tesla -> use superconducting magnets W. Scandale, Introduction to Particle Accelerators 12 June 2005 BLHC = 8. 4 Tesla
Quadrupole magnet Vertical focusing Horizontal defocusing g=gradient [T/m] W. Scandale, Introduction to Particle Accelerators 12 June 2005
Alternate gradient focusing QF QD QF W. Scandale, Introduction to Particle Accelerators 12 June 2005

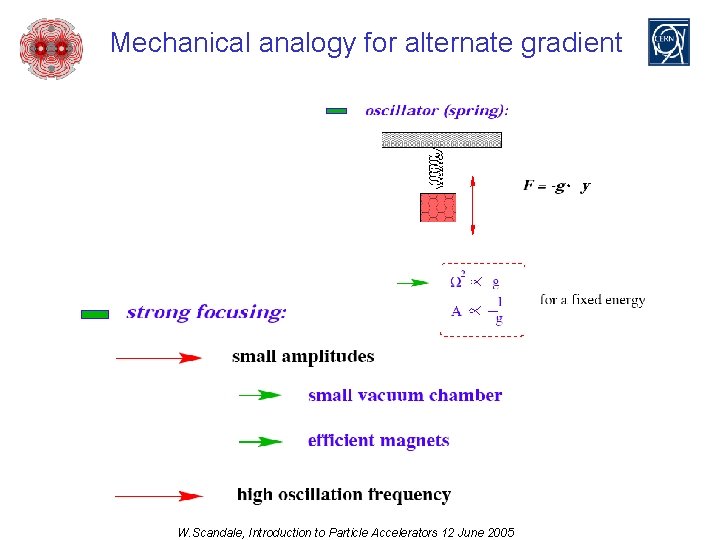

Mechanical analogy for alternate gradient W. Scandale, Introduction to Particle Accelerators 12 June 2005
Basic 2 -D equation of motion in a dipolar field W. Scandale, Introduction to Particle Accelerators 12 June 2005
Basic 2 D equation of motion W. Scandale, Introduction to Particle Accelerators 12 June 2005
Basic 2 D equation of motion FODO structure Periodic envelop Cos-like trajectory Sin-like trajectory Multi-turn trajectory W. Scandale, Introduction to Particle Accelerators 12 June 2005
Longitudinal stability Momentum compaction W. Scandale, Introduction to Particle Accelerators 12 June 2005
Chromaticity and sextupole magnet Dispersion orbit W. Scandale, Introduction to Particle Accelerators 12 June 2005
Chromaticity correction and non-linear resonance W. Scandale, Introduction to Particle Accelerators 12 June 2005
Emittance W. Scandale, Introduction to Particle Accelerators 12 June 2005

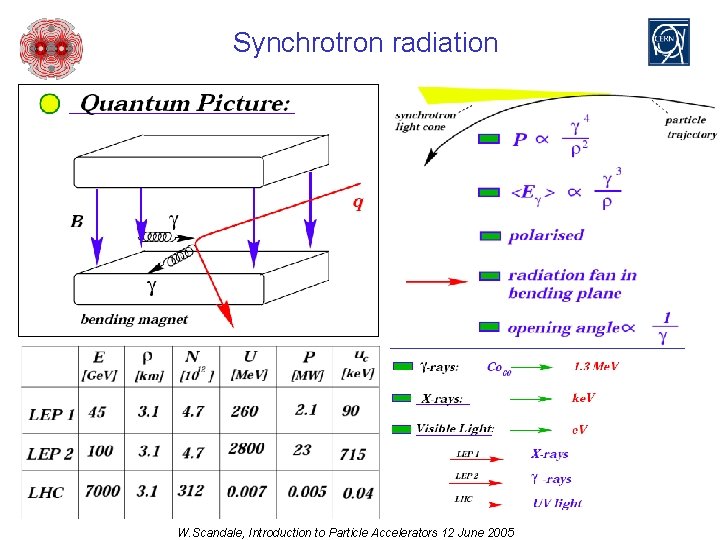

Synchrotron radiation W. Scandale, Introduction to Particle Accelerators 12 June 2005
Synchrotron radiation and beam size Adiabatic damping Synchrotron light emission W. Scandale, Introduction to Particle Accelerators 12 June 2005

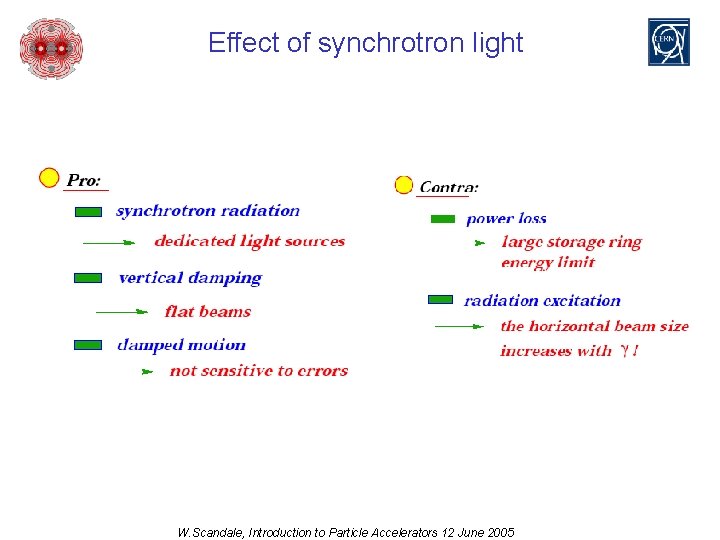

Effect of synchrotron light W. Scandale, Introduction to Particle Accelerators 12 June 2005
Collective effects W. Scandale, Introduction to Particle Accelerators 12 June 2005
Instabilities and feedback W. Scandale, Introduction to Particle Accelerators 12 June 2005
W. Scandale, Introduction to Particle Accelerators 12 June 2005 20
Space charge W. Scandale, Introduction to Particle Accelerators 12 June 2005 21
Beam size W. Scandale, Introduction to Particle Accelerators 12 June 2005 22
Fixed target versus collider rings Fixed target Collider Advantage Bruno Touschek W. Scandale, Introduction to Particle Accelerators 12 June 2005
Lepton versus hadron colliders -> (At the parton level ) -> W. Scandale, Introduction to Particle Accelerators 12 June 2005
