Influence of Cladding Layer on Optical Property of Hybrid Plasmonic Nanocavity 覆蓋層材料對混合電漿波導型奈米雷射光學性質之影響 翁辰亞 國立臺灣海洋大學光電科學研究所

Influence of Cladding Layer on Optical Property of Hybrid Plasmonic Nanocavity 覆蓋層材料對混合電漿波導型奈米雷射光學性質之影響 翁辰亞 國立臺灣海洋大學光電科學研究所 2013/1/17

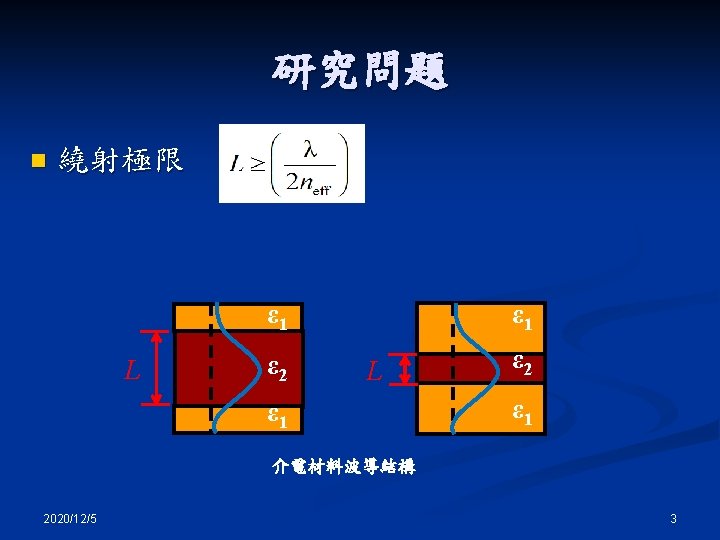

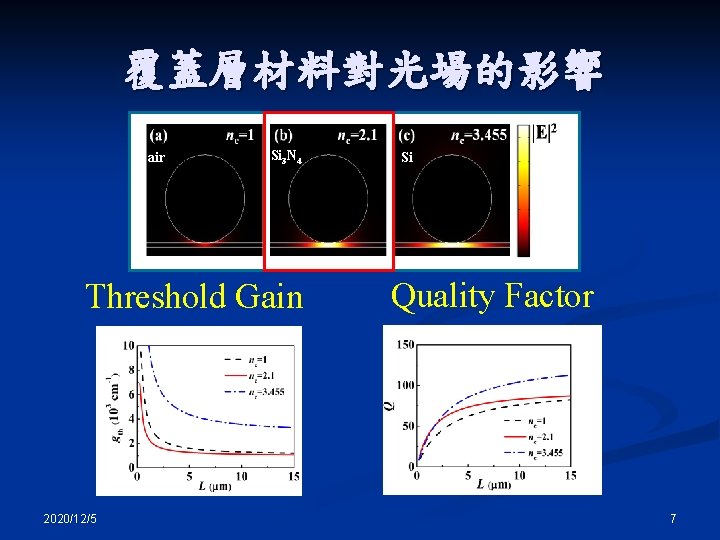

覆蓋層材料對光場的影響 air Si 3 N 4 Threshold Gain 2020/12/5 Si Quality Factor 7

覆蓋層材料對光場的影響 air Si 3 N 4 Threshold Gain 2020/12/5 Si Quality Factor 7

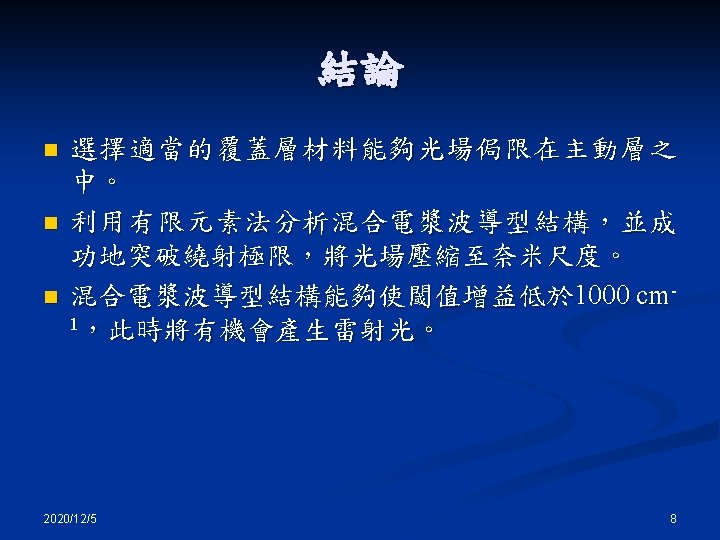

Thanks for your attention. 2020/12/5 10

Thanks for your attention. 2020/12/5 10

Back up 2020/12/5 11

Back up 2020/12/5 11

2020/12/5 13

2020/12/5 13

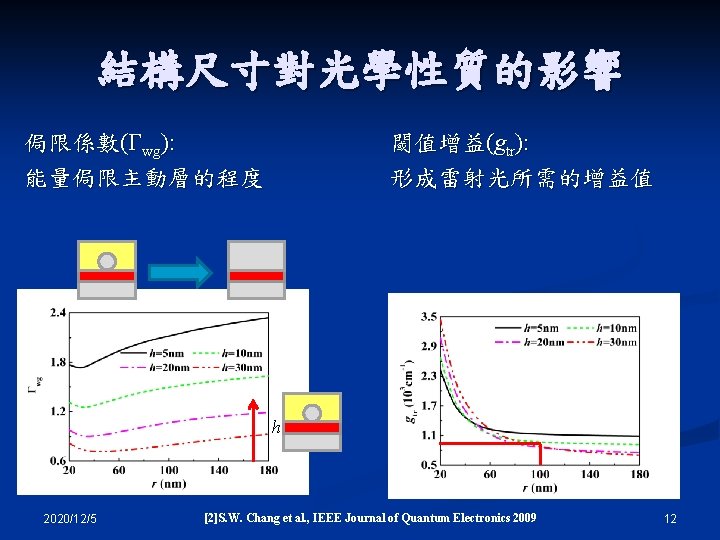

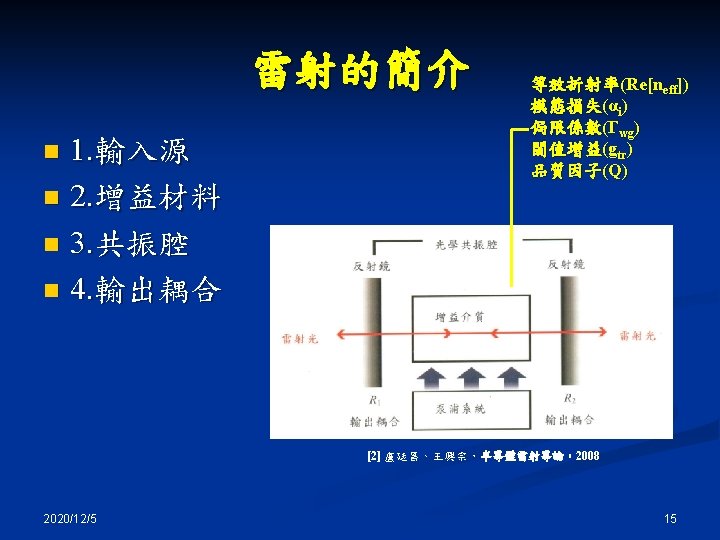

結構尺寸對光學性質的影響 等效折射率實部(Re[neff]): z方向上波傳的快慢 Re[neff]=Re[kz/k 0] 模態損失(αi): 沿著z軸傳播時的衰減程度 αi =2 Im[kz] h 2020/12/5 [3]S. W.

結構尺寸對光學性質的影響 等效折射率實部(Re[neff]): z方向上波傳的快慢 Re[neff]=Re[kz/k 0] 模態損失(αi): 沿著z軸傳播時的衰減程度 αi =2 Im[kz] h 2020/12/5 [3]S. W. Chang et al. , IEEE Journal of Quantum Electronics 2009 14
