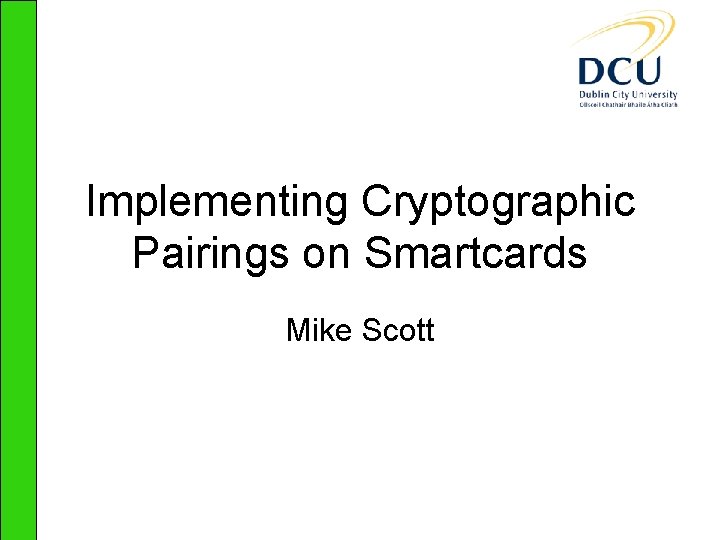

Implementing Cryptographic Pairings on Smartcards Mike Scott

Whats a Pairing? • Denoted e(P, Q), P and Q points on curve over extension field GF(qk), k is the embedding degree. • P of order r. • k smallest integer such that r|(qk-1) • Useful range of k between 2 and 36 • Pairing evaluates as element of order r in GF(qk) • Pairing algorithm does not need knowledge of r

What’s a Pairing? • MOV condition – Don’t use these curves! • Pairing-based Crypto – We need these curves! • Bilinearity: e(a. P, b. Q) = e(P, Q)ab = e(b. P, a. Q) • A Pairing is a flexible crypto primitive – with more structure than most • Famously pairings enable Identity Based Encryption (IBE)

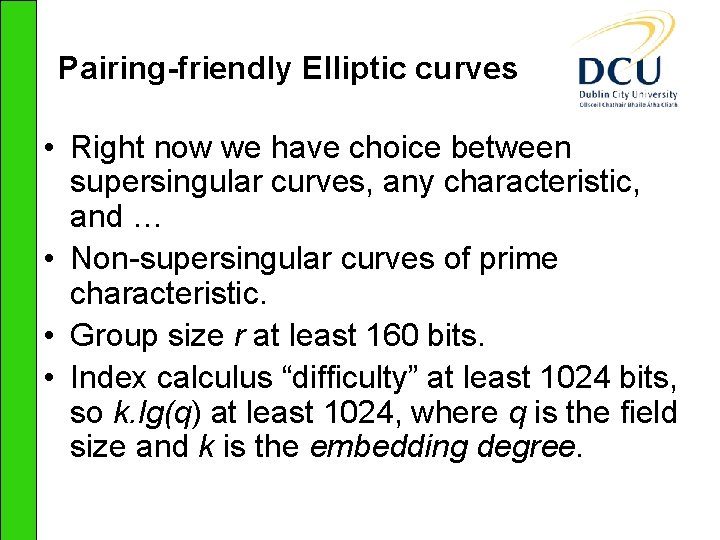

Pairing-friendly Elliptic curves • Right now we have choice between supersingular curves, any characteristic, and … • Non-supersingular curves of prime characteristic. • Group size r at least 160 bits. • Index calculus “difficulty” at least 1024 bits, so k. lg(q) at least 1024, where q is the field size and k is the embedding degree.

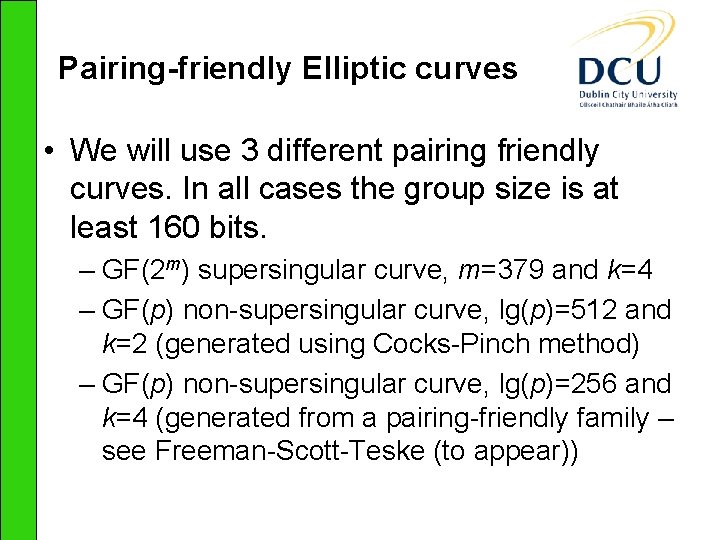

Pairing-friendly Elliptic curves • We will use 3 different pairing friendly curves. In all cases the group size is at least 160 bits. – GF(2 m) supersingular curve, m=379 and k=4 – GF(p) non-supersingular curve, lg(p)=512 and k=2 (generated using Cocks-Pinch method) – GF(p) non-supersingular curve, lg(p)=256 and k=4 (generated from a pairing-friendly family – see Freeman-Scott-Teske (to appear))

Smart. MIPS Architecture • 32 -bit RISC MIPS-based processor. • No crypto-coprocessor – but instruction set enhancements (Groβschadl & Savas). • Fast clock speed (up to 36 MHz), fast enough to do standard crypto < 0. 5 second. • Triple register ACX|HI|LO

Smart. MIPS Architecture • MADDU instruction – multiplies two 32 -bit integers and adds to triple register • MADDP instruction – multiplies two 32 -bit binary polynomials and xors to triple register • 5 stage pipeline • 2 k Instruction cache (2 -way associative) • 256 k Flash memory • 16 k RAM

Smart. MIPS Architecture • Finally a processor with GF(2 m) support! • But MIPS architecture like to loop unroll… • … but small instruction cache means that we cannot unroll to the max • CPU Time = #Instructions X CPI ------------------ Clock Speed

Smart. MIPS Architecture • Faster clock speeds implies cache misses are more costly, which implies greater CPI which implies greater CPU Time • So very important to use tight loops and avoid cache misses where possible. • Minimizing instruction count is not going to be optimal!

Pairing algorithms • Chance to show-case state of the art algorithms. • For GF(2 m) curve, the ηT pairing is optimal. • For GF(p) k=2 Cocks-Pinch curve, BKLS algorithm for the Tate pairing. • For GF(p) k=4 FST curve, Ate pairing is best. • Considered in the context of IBE, the first parameter to the pairing is fixed, so we will use precomputation.

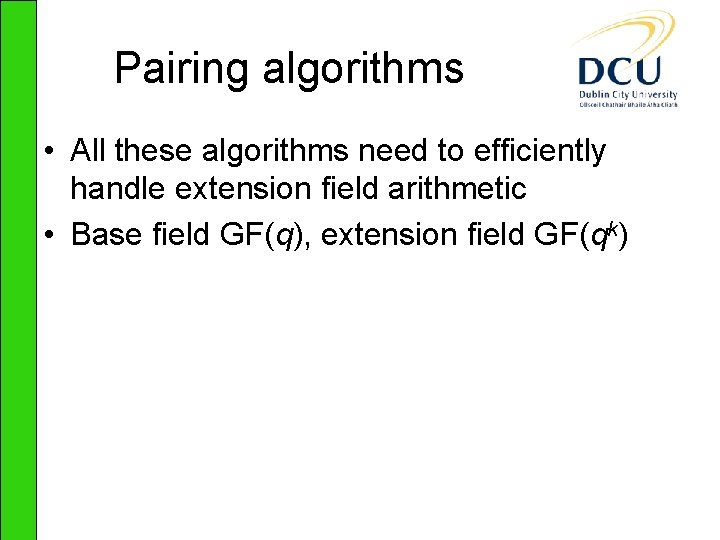

Pairing algorithms • All these algorithms need to efficiently handle extension field arithmetic • Base field GF(q), extension field GF(qk)

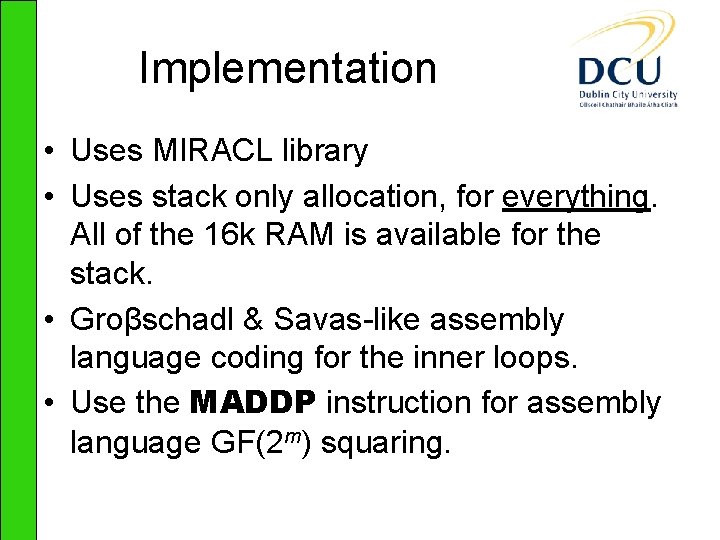

Implementation • Uses MIRACL library • Uses stack only allocation, for everything. All of the 16 k RAM is available for the stack. • Groβschadl & Savas-like assembly language coding for the inner loops. • Use the MADDP instruction for assembly language GF(2 m) squaring.

Implementation • In a pairing-based protocol we are also interested in variable-point multiplication over the base field GF(q)… • (Fixed point multiplication as required in IBE will be very fast using precomputation) • Also interested in pairing exponentiation.

Results – Instructions (%cache misses) Pairing Point Mult. Field Exp. RSA decrypt E[GF(2239)] ηT k=4 3705344 (10. 9%) 2589569 (9. 6%) 151117 (11. 4%) E[(GF(p)] Tate k=2 7753341 (7. 3%) 7418768 (6. 1%) 1364124 (7. 2%) 4372772 (3. 4%) E[(GF(p)] Ate k=4 8156645 (15. 8%) 2663217 (17. 5%) 1614016 (15. 7%)

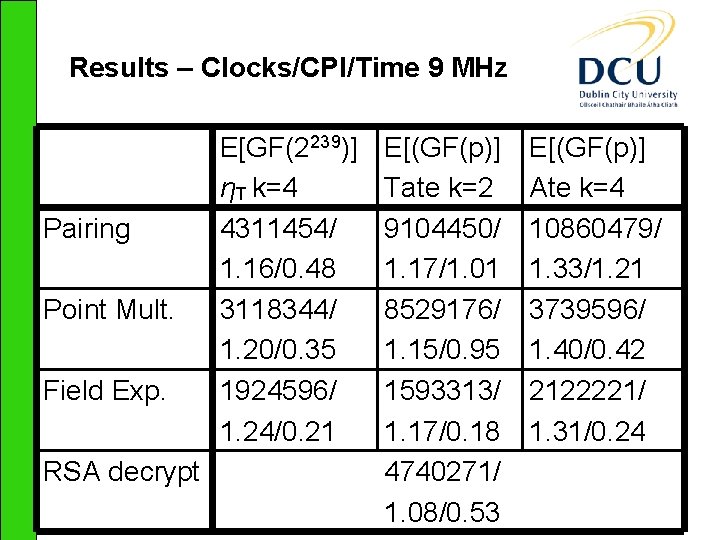

Results – Clocks/CPI/Time 9 MHz Pairing Point Mult. Field Exp. RSA decrypt E[GF(2239)] ηT k=4 4311454/ 1. 16/0. 48 3118344/ 1. 20/0. 35 1924596/ 1. 24/0. 21 E[(GF(p)] Tate k=2 9104450/ 1. 17/1. 01 8529176/ 1. 15/0. 95 1593313/ 1. 17/0. 18 4740271/ 1. 08/0. 53 E[(GF(p)] Ate k=4 10860479/ 1. 33/1. 21 3739596/ 1. 40/0. 42 2122221/ 1. 31/0. 24

Results – Clocks/CPI/Time 36 MHz Pairing Point Mult. Field Exp. RSA decrypt E[GF(2239)] ηT k=4 4891054/ 1. 32/0. 14 3677188/ 1. 42/0. 10 2326675/ 1. 50/0. 06 E[(GF(p)] Tate k=2 10467010 1. 35/0. 29 9570210/ 1. 29/0. 27 1814285/ 1. 33/0. 05 5072415/ 1. 16/0. 14 E[(GF(p)] Ate k=4 13621597/ 1. 67/0. 38 4847055/ 1. 82/0. 13 2630846/ 1. 63/0. 07

Results – Timings 3 GHz Pentium IV Pairing E[GF(2239)] E[(GF(p)] ηT k=4 Tate k=2 3. 88 2. 97 E[(GF(p)] Ate k=4 3. 16 Point Mult. 1. 82 3. 08 1. 17 Field Exp. 1. 14 0. 54 0. 62 RSA decrypt 1. 92

Pairing Delegation • Idea – delegate pairing calculation to the terminal • Exchange the cost of the pairing for 1 point multiplications and 3 extension field exponentiations. • May be beneficial….

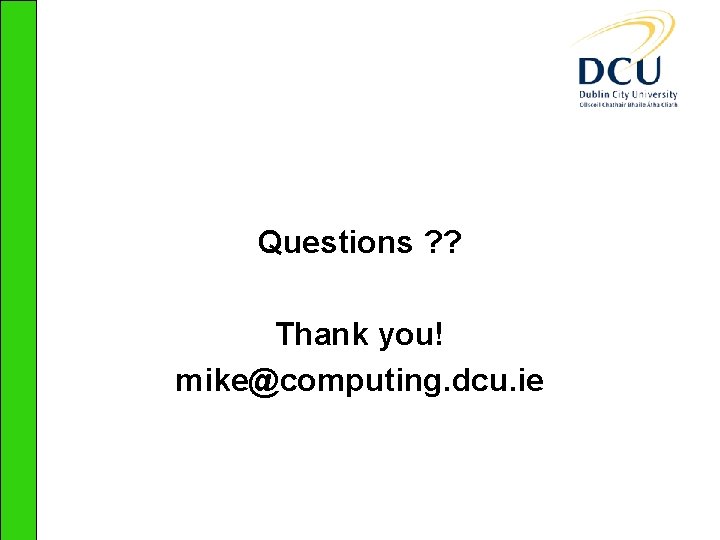

Questions ? ? Thank you! mike@computing. dcu. ie
