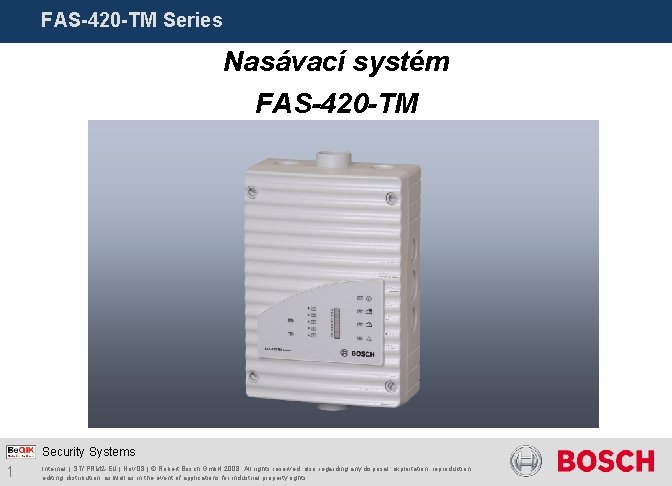

FAS-420 -TM Series Nasávací systém FAS-420 -TM Security Systems 1 Internal | ST/ PRM 2 -EU | Nov 08 | © Robert Bosch Gmb. H 2008. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

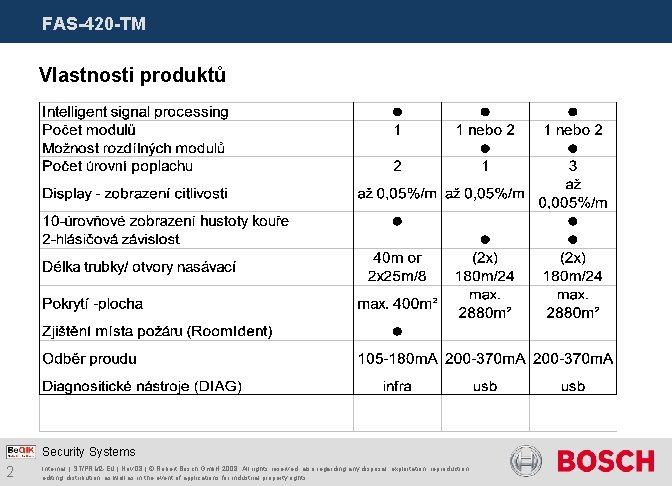

FAS-420 -TM Vlastnosti produktů Security Systems 2 Internal | ST/PRM 2 -EU | Nov 08 | © Robert Bosch Gmb. H 2008. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

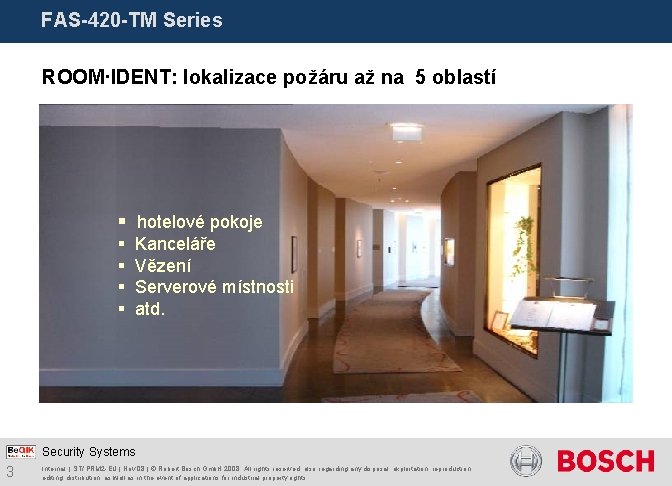

FAS-420 -TM Series ROOM·IDENT: lokalizace požáru až na 5 oblastí § hotelové pokoje § § Kanceláře Vězení Serverové místnosti atd. Security Systems 3 Internal | ST/ PRM 2 -EU | Nov 08 | © Robert Bosch Gmb. H 2008. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

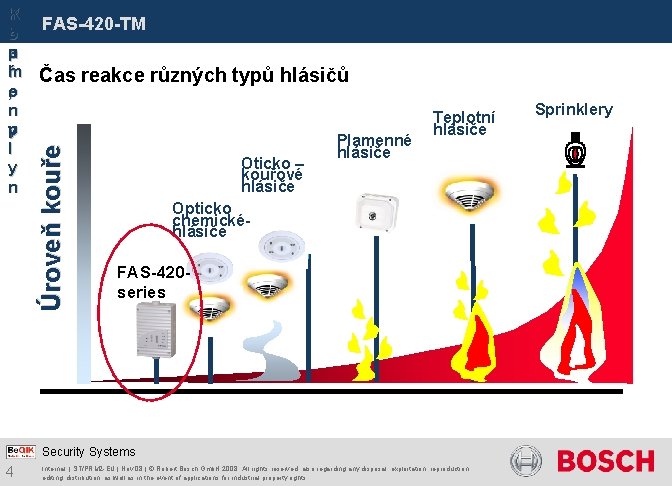

FAS-420 -TM Čas reakce různých typů hlásičů Úroveň kouře T K P o le p u a l řm o , e n p y l y n Oticko – kouřové hlásiče Plamenné hlásiče Teplotní hlásiče Opticko chemickéhlásiče FAS-420 series Security Systems 4 Internal | ST/PRM 2 -EU | Nov 08 | © Robert Bosch Gmb. H 2008. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights. Sprinklery

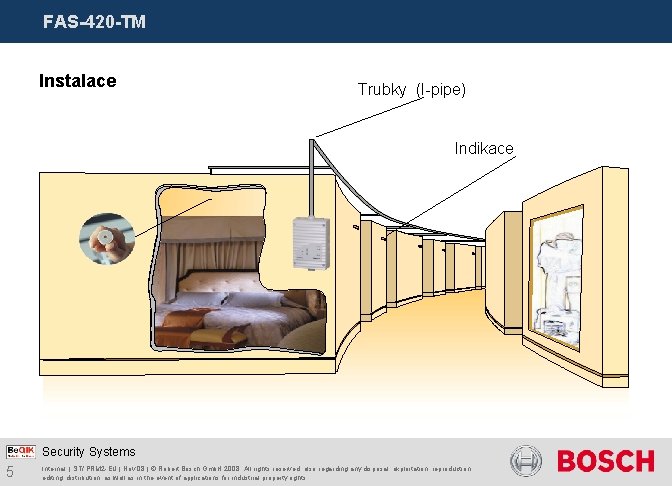

FAS-420 -TM Instalace Trubky (I-pipe) Indikace Security Systems 5 Internal | ST/ PRM 2 -EU | Nov 08 | © Robert Bosch Gmb. H 2008. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

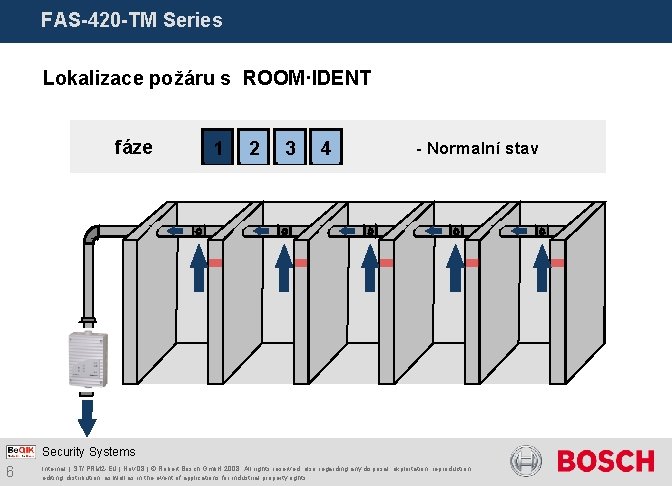

FAS-420 -TM Series Lokalizace požáru s ROOM·IDENT fáze 1 2 3 4 - Normalní stav Security Systems 6 Internal | ST/ PRM 2 -EU | Nov 08 | © Robert Bosch Gmb. H 2008. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

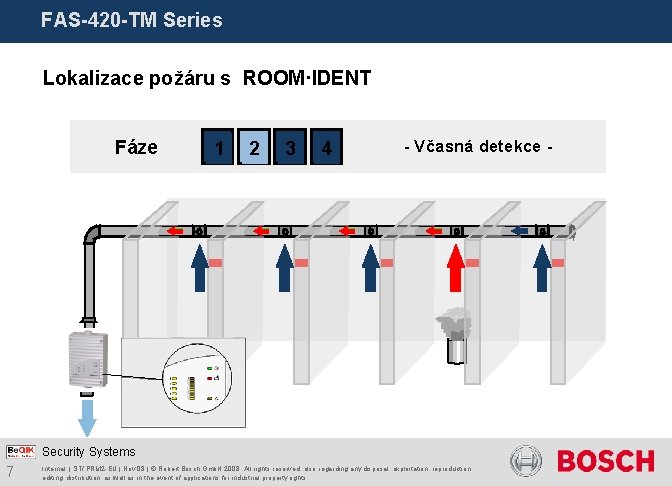

FAS-420 -TM Series Lokalizace požáru s ROOM·IDENT Fáze 1 2 3 4 - Včasná detekce - Security Systems 7 Internal | ST/ PRM 2 -EU | Nov 08 | © Robert Bosch Gmb. H 2008. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

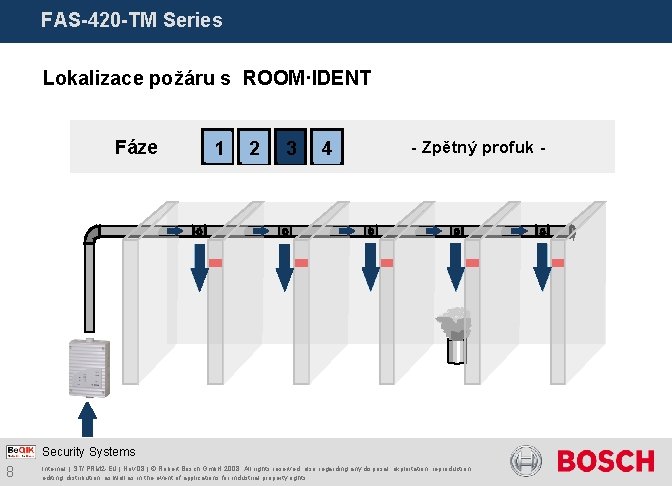

FAS-420 -TM Series Lokalizace požáru s ROOM·IDENT Fáze 1 2 3 4 - Zpětný profuk - Security Systems 8 Internal | ST/ PRM 2 -EU | Nov 08 | © Robert Bosch Gmb. H 2008. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

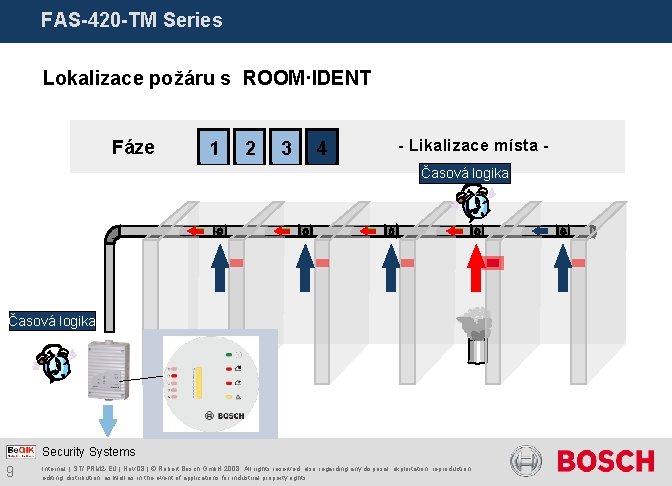

FAS-420 -TM Series Lokalizace požáru s ROOM·IDENT Fáze 1 2 3 4 - Likalizace místa Časová logika Security Systems 9 Internal | ST/ PRM 2 -EU | Nov 08 | © Robert Bosch Gmb. H 2008. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

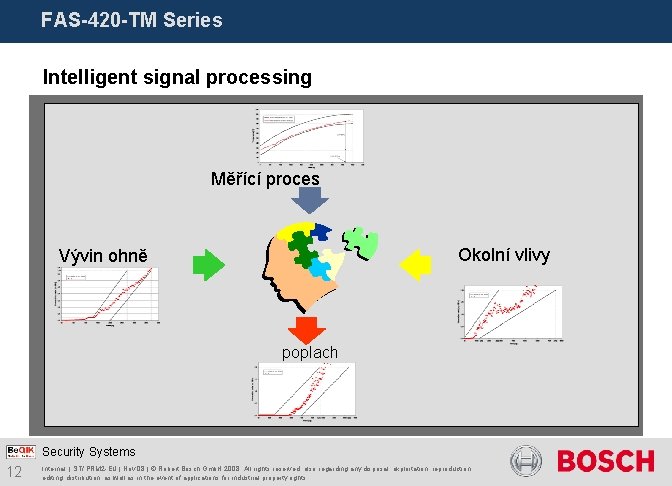

FAS-420 -TM Series Intelligent signal processing Měřící proces Okolní vlivy Vývin ohně poplach Security Systems 12 Internal | ST/ PRM 2 -EU | Nov 08 | © Robert Bosch Gmb. H 2008. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

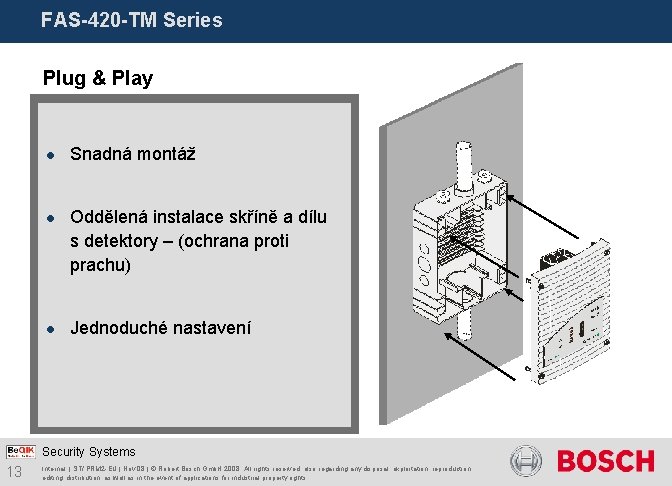

FAS-420 -TM Series Plug & Play l Snadná montáž l Oddělená instalace skříně a dílu s detektory – (ochrana proti prachu) l Jednoduché nastavení Security Systems 13 Internal | ST/ PRM 2 -EU | Nov 08 | © Robert Bosch Gmb. H 2008. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

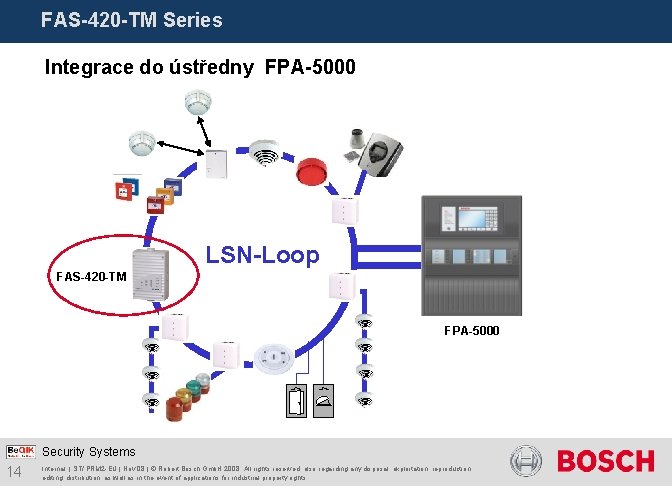

FAS-420 -TM Series Integrace do ústředny FPA-5000 LSN-Loop FAS-420 -TM FPA-5000 Security Systems 14 Internal | ST/ PRM 2 -EU | Nov 08 | © Robert Bosch Gmb. H 2008. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

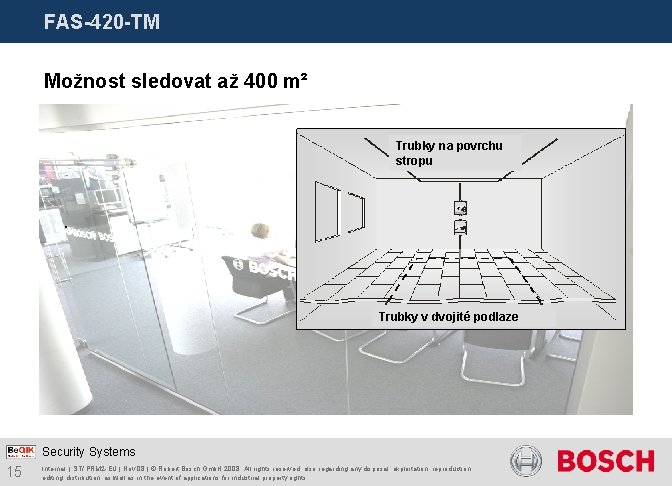

FAS-420 -TM Možnost sledovat až 400 m² Trubky na povrchu stropu . Trubky v dvojité podlaze Security Systems 15 Internal | ST/ PRM 2 -EU | Nov 08 | © Robert Bosch Gmb. H 2008. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

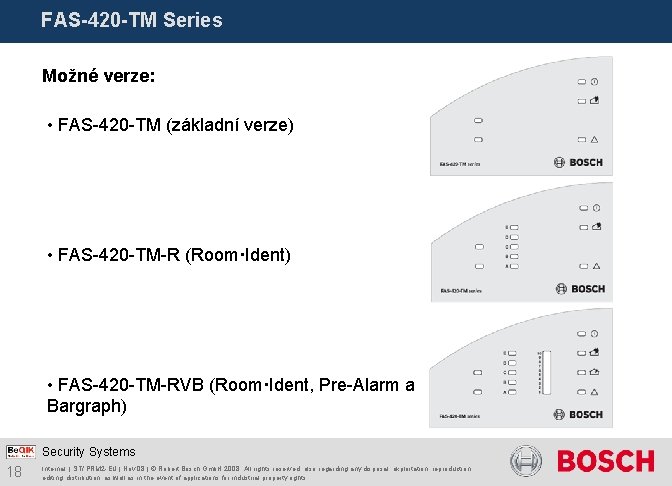

FAS-420 -TM Series Možné verze: • FAS-420 -TM (základní verze) • FAS-420 -TM-R (Room·Ident) • FAS-420 -TM-RVB (Room·Ident, Pre-Alarm a Bargraph) Security Systems 18 Internal | ST/ PRM 2 -EU | Nov 08 | © Robert Bosch Gmb. H 2008. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

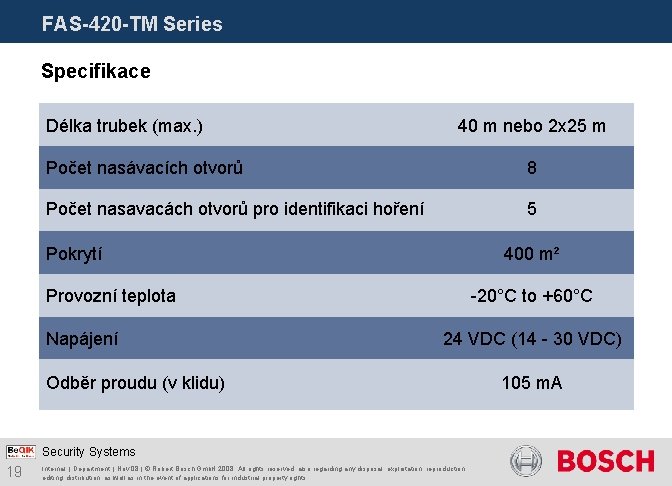

FAS-420 -TM Series Specifikace Délka trubek (max. ) 40 m nebo 2 x 25 m Počet nasávacích otvorů 8 Počet nasavacách otvorů pro identifikaci hoření 5 Pokrytí 400 m² Provozní teplota Napájení -20°C to +60°C 24 VDC (14 - 30 VDC) Odběr proudu (v klidu) Security Systems 19 Internal | Department | Nov 08 | © Robert Bosch Gmb. H 2008. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights. 105 m. A

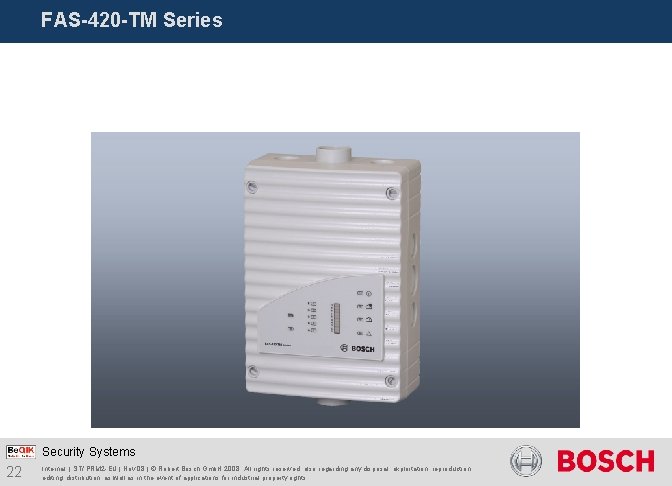

FAS-420 -TM Series Security Systems 22 Internal | ST/ PRM 2 -EU | Nov 08 | © Robert Bosch Gmb. H 2008. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.
