What is Fatigue? Fatigue is the phenomenon that a material gradually deteriorates when it is subjected to repeated loadings. Clients tous différents Routes de qualités variables Contraintes Fatigue Design in Automotive Industry Conception fiable PSA (Peugeot Citroën) Résistances Dispersion matériau Extrapolation of Fatigue Loads Dispersion de production Pär Johannesson 16 -Aug-2005 2

Fatigue Life and Damage • SN-curve (Wöhler, 1860 s; Basquin, 1910) – Can resist N cycles of amplitude S 2 S α, β material parameters. • Rainflow cycle counting (Endo, 1967) – Convert a complicated load function to equivalent load cycles. – Load X(t) gives amplitudes S 1, S 2, S 3, … • time Palmlgren-Miner damage accumulation rule (1924, 1945) – Each cycle of amplitude Si uses a fraction 1/Ni of the total life. – Damage in time [0, T]: – Failure occurs at time Tf when all life is used, i. e when DT>1. Extrapolation of Fatigue Loads Pär Johannesson 16 -Aug-2005 3

Rainflow Cycle Counting • Definition of rainflow cycles by Rychlik (1987): From each local maximum one shall try to reach above the same level with as small a downward excursion as possible. The i: th rainflow cycle is defined as (mirfc, Mi), where mirfc=max(mi+, mi-). • Equivalent to counting crossings of intervals. – Equivalence: #{upcrossings of [u, v]} = #{mirfc<u, Mi>v} – Intensity of upcrossings: μ(u, v) = μrfc(u, v) Extrapolation of Fatigue Loads Pär Johannesson 16 -Aug-2005 4

Why Extrapolation? • We measure fatigue loads for a limited period of time. – E. g. 100 km on a vehicle, or – 1 lap on the test track. Z Y X • We want to make a fatigue life assessment. – – Predict the fatigue life of component. FEM & damage calculations. Fatigue tests of components. Estimate the reliability of the construction for a full design life. • Hence there is a need to extrapolate the load history: – E. g. to a full design life representing 250 000 km, or – 1000 laps on the test track. Extrapolation of Fatigue Loads Pär Johannesson 16 -Aug-2005 5

Fatigue Tests – Turning Points and Rainflow Filter Load Measurement Turning Points TP-filter Turning Points RFC-filter Extract peaks & valleys Remove small cycles Assumptions: • Frequency content not important. • Small cycles give negligible damage. Fatigue test: • Repeat block load until failure. … Extrapolation of Fatigue Loads Pär Johannesson 16 -Aug-2005 6

Generation of Load Histories – Extrapolation in Time Domain Random Generation of block loads Method • • Block load from measurement. Turning points & rainflow filter. Generate new block loads. Repeat the new block loads. block 1 • Statistical extreme value theory: Peak Over Threshold (POT) model. • Randomly change high peaks and low valleys. block 2 block 3 … Extrapolation of Fatigue Loads Pär Johannesson 16 -Aug-2005 7

Peak Over Threshold Analysis Excesses over threshold level u: Z = Max - u Model for excesses • Statistical extreme value theory. • Peak Over Threshold model. • Study the excesses over a threshold level u. • Excesses are modelled by the exponential distribution. Comment: • The exponential excesses corresponds to the Gumbel distribution for global maxima. Extrapolation of Fatigue Loads Pär Johannesson 16 -Aug-2005 8

Peak Over Threshold Analysis – General Model Excesses over threshold level u: Z = Max - u Model for excesses • Asymptotic extreme value theory. • Possible distributions: GPD Generalized Pareto Distribution. • Special case of GPD (k=0): Exponential distribution. Comments: • GPD corresponds to GEV for global maxima. • Exp corresponds to Gumbel. Extrapolation of Fatigue Loads Pär Johannesson 16 -Aug-2005 9

Extrapolated Turning Points – 10 load blocks Example: Bombardier Train Load Extrapolation of Fatigue Loads Pär Johannesson 16 -Aug-2005 10

Example: Train Load • Measured stress signal at a location just above the bogie. • The train is running from Oslo to Kristiansand in Norway. Extrapolation of Fatigue Loads Pär Johannesson 16 -Aug-2005 11

Extrapolated Load Spectrum – Time Domain Method – Measured – Extrapolated Extrapolation of Turning Points • Generation of 10 different load blocks. • 10 -fold extrapolation. Compared to. . . • 10 repetitions of the measured load. Extrapolates. . . • load spectrum in the large amplitude area. • maximum load value. Extrapolation of Fatigue Loads Pär Johannesson 16 -Aug-2005 12

Extrapolated Load Spectrum – Time Domain Method – Measured – Extrapolated Extrapolation of Turning Points • Generation of 10 different load blocks. • 10 -fold extrapolation. Compared to. . . • 10 repetitions of the measured load. Extrapolates. . . • load spectrum in the large amplitude area. • maximum load value. Extrapolation of Fatigue Loads Pär Johannesson 16 -Aug-2005 13

Extrapolation of Rainflow Matrices • Why Extrapolation? – We measure fatigue loads on a vehicle for a limited period of time, T. – We want to analyse the reliability for a full design life, Tlife = N · T. • • Simple scaling method: Flife = N · F, Limiting shape of rainflow matrix F = “rainflow matrix” – Definition: The shape of the rainflow matrix for a very long observation. n = 100 • n = 1 000 Proposed method: Glife = N · G, n = 10 000 n= G = “limiting rainflow matrix” Extrapolation of Fatigue Loads Pär Johannesson 16 -Aug-2005 14

Extreme Value Extrapolation of Rainflow Matrices • • • Strategy: Use the limiting rainflow matrix when extrapolating. Main Method: Statistical extreme value theory. Result: Method for estimating the limiting rainflow matrix. – For large cycles: • Approximate rainflow matrix from extreme value theory. • Valid for the extreme part of the rainflow matrix. • Need to extrapolate the level crossings. – For other cycles: • Kernel smoothing. (Need to choose a smoothing parameter. ) Extrapolate level crossings Approximate Rainflow matrix Kernel Smoothing Extrapolation of Fatigue Loads Pär Johannesson 16 -Aug-2005 15

Asymptotics for Crossings of Large Intervals • • Aim: Find the asymptotic behaviour of μ(u, v) as u - and v +. Define the time-normalized point processes of upcrossings of u and v: • Let u - and v + when T , such that where (u) is the intensity of u-upcrossings. • Theorem: Let X(t) be stationary, ergodic, and smooth sample paths. If (UT, VT) converges in distribution to two independent Poisson processes (U, V) when (1) holds as T . Then Extrapolation of Fatigue Loads Pär Johannesson 16 -Aug-2005 16

Asymptotics for Large Rainflow Cycles • Approximation of intensity of rainflow cycles with large amplitudes. Intensity of rainflow cycles • • Simple formula since it only depends on the intensity of level upcrossings, (u). Example of approximation for Gaussian process. – Accurate approximation (blue lines). – Asymptotic approximation (red lines). Extrapolation of Fatigue Loads Iso-lines: 10% 30% 50% 70% 99% 99. 99% Pär Johannesson 16 -Aug-2005 17

Example: Limiting Shape for Markov Load • • • Approximation of intensity of rainflow cycles with large amplitudes. Simple formula since it only depends on the intensity of level upcrossings, (u). Intensity of rainflow cycles Example of approximation for Markov load. – Limiting rainflow matrix (blue lines). – Asymptotic approximation (red lines). Extrapolation of Fatigue Loads Iso-lines: 10% 30% 50% 70% 99% 99. 999% Pär Johannesson 16 -Aug-2005 18

Example: rainflow matrix, PSA test track measurements • The load is vertical forces on the front wheel of a prototype vehicle from PSA Peugeot Citroën. – Measured rainflow matrix, 1 lap on the test track. (blue lines) – Estimated limiting rainflow matrix (red lines), combination of • Large cycles: Approximate RFM, from estimated level crossing intensity. • Elsewhere: Kernel smoothing of RFM. Iso-lines: 10% 30% 50% 99% 99. 999% Extrapolation of Fatigue Loads Pär Johannesson 16 -Aug-2005 19

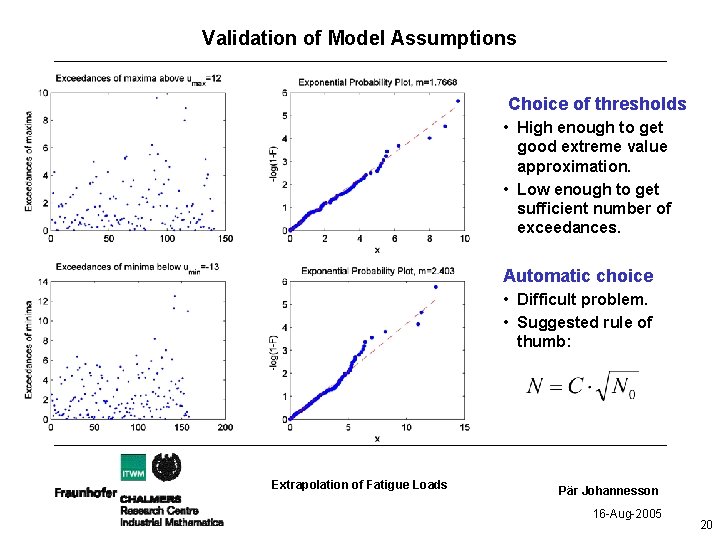

Validation of Model Assumptions Choice of thresholds • High enough to get good extreme value approximation. • Low enough to get sufficient number of exceedances. Automatic choice • Difficult problem. • Suggested rule of thumb: Extrapolation of Fatigue Loads Pär Johannesson 16 -Aug-2005 20

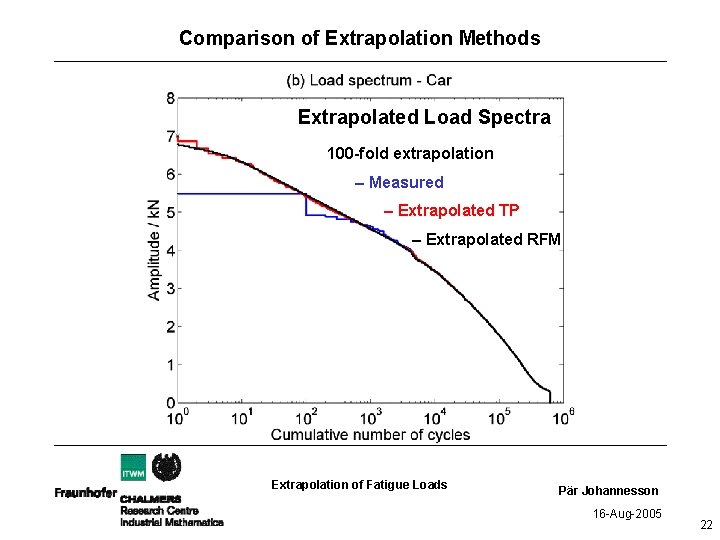

Comparison of Extrapolation Methods Extrapolated Load Spectra 100 -fold extrapolation – Measured – Extrapolated TP – Extrapolated RFM Extrapolation of Fatigue Loads Pär Johannesson 16 -Aug-2005 21

Comparison of Extrapolation Methods Extrapolated Load Spectra 100 -fold extrapolation – Measured – Extrapolated TP – Extrapolated RFM Extrapolation of Fatigue Loads Pär Johannesson 16 -Aug-2005 22

Conclusions – Comparison of Methods Time domain: Rainflow domain: • Result is a time signal. • POT method. (more robust ? !? ) • Need to calculate rainflow matrix. • Efficient for generation of a time signal for fatigue testing. • Result is a limiting rainflow matrix. • Use more extreme value theory. (POT + asymptotic distribution) • Need to simulate time signal. • Efficient for generation of a design load spectrum. Extrapolation of Fatigue Loads Pär Johannesson 16 -Aug-2005 23
