Administrasi Server Load Balancing Load Balancing Load balancing

Administrasi Server Load Balancing

Load Balancing • Load balancing means the ability to spread the load of processing for an application over a number of separate systems for an overall performance increase in processing incoming requests. • Simple? • Hanya membagi tugas kah? • Pemisahan Web Server & Database Server apakah termasuk load balancing?

Load Balancing • Load Balacing: Mendistribusikan Resource. • Resource: Processor, Memory, Network, Storage • On top of creating actions and responses, your processor also powers your operating system • RAM overutilization is not as big a problem as CPU overconsumption but it can still cause significant performance impact • Network for monitoring bandwidth with tools bwm-ng, ping, and traceroute • Disk (storage) for monitoring disk usage with tools du and df

top

Prinsip Load balancing Primary principles: • Split applications over a number of servers, balancing the load over a number of servers (such as separate web and database servers). • Add specialist components to applications in order to balance the amount of processing needed for each application function, – Caching of common web site data, saving time on the collection of this data from disk, or the creation of this data from database entries, etc. • Create additional servers that can collectively share the load, which can greatly increase the amount of processing power available to complete the tasks required by a server.

Perancangan Load Balancing Guiding Principles • Understand your system • Planning • Monitoring and Testing

Topics • Load Balancing Your Website • Load Balancing Your Database • Network Load Balancing

Load Balancing your Webiste • Contoh kasus: Apache • Apakah Apache yang terinstall sudah maksimal? • Memaksimalkan Apache: - Disable Modul yang tidak dibutuhkan - Disabling DNS lookups - Compression

Load Balancing your Website

Load Balancing your Website • Distribute all incoming connections to your web site to a number of different web servers by using one or more load balancing servers. • Reduce the overall load on the web servers, you also have good means of failover in case one of the web servers temporarily breaks down. • The simplest setup requires at least two web servers and one load-balancing server.

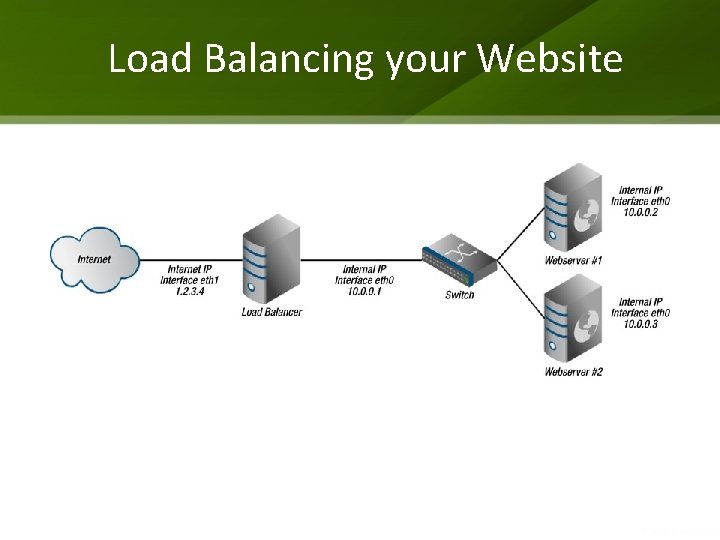

Load Balancing your Website

Load Balancing your Website • Preparing the server • Preparing the workers • Testing the Load Balancer

Load Balancing your Website

Load Balancing your Database • My. SQL Cluster will depend on several nodes working together. • One or more cluster management nodes to manage, configure, and oversee your cluster, one (though commonly several) data nodes on which to store your data, and one or more My. SQL nodes (traditional My. SQL servers) that execute SQL queries.

Load Balancing your Database

Network Load Balancing • Sharing the workload • Basic Routing • Basic network connectivity testing

Network Load Balancing

Load Balancing Scheduling Algorithm • • • Round Robin Least Connection Source URI URL parameter

HTTP LOAD BALANCING DENGAN HAPROXY

Topologi

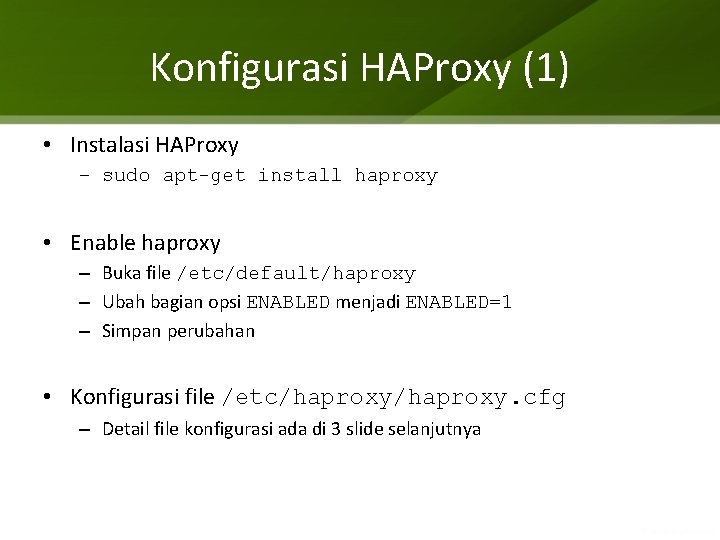

Konfigurasi HAProxy (1) • Instalasi HAProxy − sudo apt-get install haproxy • Enable haproxy – Buka file /etc/default/haproxy – Ubah bagian opsi ENABLED menjadi ENABLED=1 – Simpan perubahan • Konfigurasi file /etc/haproxy. cfg – Detail file konfigurasi ada di 3 slide selanjutnya

File Konfigurasi haproxy. cfg global log /dev/log user haproxy group haproxy daemon …… local 0 local 1 notice

File Konfigurasi haproxy. cfg (cont. ) ……. defaults log global mode http option httplog option dontlognull contimeout 5000 clitimeout 50000 srvtimeout 50000 errorfile 400 /etc/haproxy/errors/400. http errorfile 403 /etc/haproxy/errors/403. http errorfile 408 /etc/haproxy/errors/408. http errorfile 500 /etc/haproxy/errors/500. http errorfile 502 /etc/haproxy/errors/502. http errorfile 503 /etc/haproxy/errors/503. http

File Konfigurasi haproxy. cfg (cont. ) ……. nama load balancer IP/Port load balancer listen webfarm 0. 0: 80 mode http stats enable algoritma load stats uri /haproxy? stats balancing balance roundrobin option httpclose IP/Port webserver 1 option forwardfor server webserver 1 10. 34. 8. 22: 80 check server webserver 2 10. 34. 8. 23: 80 check IP/Port webserver 2

Konfigurasi HAProxy (2) • Restart service haproxy – sudo service haproxy restart • Catatan khusus : jika haproxy tidak dapat di-start/restart karena error socket binding, stop service apache 2 – sudo service apache 2 stop

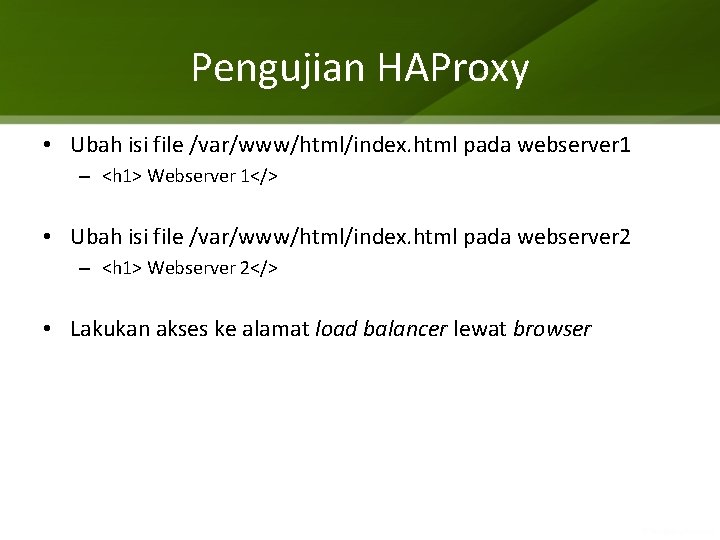

Pengujian HAProxy • Ubah isi file /var/www/html/index. html pada webserver 1 – <h 1> Webserver 1</> • Ubah isi file /var/www/html/index. html pada webserver 2 – <h 1> Webserver 2</> • Lakukan akses ke alamat load balancer lewat browser

Terima Kasih
