Equipping the Next Generation for Active Engagement in Science Vitamin D For more, visit Engaging. Science. eu

nline news 400% rise in children with rickets as more stay inside. Could you end up like this? The agonising disease causes brittle bones and severe deformities. Engage Play 2 Review Decide

You get vitamin D from food, and make it using sunlight. Rickets is caused by a shortage of vitamin D. But not everyone gets enough. Engage Play Review 3 Decide

Some scientists think that all under-18 s should take a daily vitamin D pill in winter. Do you need a daily vitamin D pill? 4 Engage Play Review Decide

Analyse patterns Digestion In these lessons you will : Describe health effects of vitamin D deficiency. Interpret a line on a graph to suggest the relationship between variables, and read values from the graph. Big Idea Working Scientifically 5

You want to know your vitamin D intake? You’ve come to the right place. They call me Data Doctor. First, let’s see if you can handle tricky tables and challenging charts. 6 Engage Play Review Decide

SS 1 Can you identify variables? 1. 2 Q 1 For this question, input data from the class. Leave the slideshow and double click the chart. From the top toolbar select ‘Edit data’. 1 0. 8 Number of people who like 0. 6 this flavour 0. 4 best 0. 2 0 vanilla chocolate strawberry ice cream flavour Engage Play 7 Review Decide

SS 1 Can you identify variables? Number of people who like this flavour best Q 1 12 The independent variable is: 10 A Number of people who like this flavour best 8 B Ice cream flavour 6 C Chocolate 4 2 0 vanilla chocolate strawberry ice cream flavour Engage Play 8 Review Decide

SS 1 Q 2 645 The dependent variable is: 640 USA ice cream sales (million litres/ month). 635 630 A Mean monthly temperature. 625 620 B USA ice cream sales. 615 610 605 0 5 10 15 20 25 Mean monthly temperature (°C) C Increasing. 9 Engage Play Review Decide

Can you identify a pattern in data? SS 1 Q 3 The best description of the pattern shown by the bar chart is: A Ice cream sales increase and then decrease. B Ice cream sales are highest in June. C Ice cream sales increase to a maximum in June, and then decrease. 645 640 635 USA ice 630 cream sales 625 (million litres/ 620 month). 615 610 605 J F M A M J J A S O N D Month Engage Play 10 Review Decide

SS 1 Q 4 Age of puppy (months) Mass of puppy (kg) 1 4 2 9 3 14 4 19 5 23 6 26 7 28 Finish describing the pattern in the data. As the age of the puppy increases… its mass increases. 11 Engage Play Review Decide

SS 1 Q 5 Can you calculate a mean? Name of puppy The mean mass of the puppies is: Mass of puppy (kg) A 4 kg Bella 4 Barney 5 Bear 7 Buddy 4 Beauty 5 Bella Engage Play Barney B 5 kg Bear Review Buddy C 7 kg Beauty Decide 12

SS 1 Can you select data and do calculations? Q 6 You have £ 12 3. 5 3 A How many of ice cream A can you buy? 2. 5 Price 2 (£) 1. 5 12 B How many of ice cream B can you buy? 1 0. 5 0 A B C D Type of ice cream 4 E 13 Engage Play Review Decide

SS 1 Q 7 7000 You have a tin of dog food. Its energy content is 2000 k. J. 6000 Amount 5000 of energy 4000 needed 3000 from food 2000 (k. J/ day). 1000 0 chihuahua pug beagle border collie Dog breed A How many cans have enough energy for a beagle for a day? 2 B What fraction of a can has enough energy for a chihuahua for a day? ¼ 14 Engage Play Review Decide

Can you read values from a graph? SS 1 Q 8 What was the speed of the 800 m male world record holder? A 9. 2 m/s B 7. 9 m/s C 7. 3 m/s 11 10 Speed 9 of male world 8 record runner 7 (m/s). 6 5 4 0 Engage 1000 2000 3000 4000 Distance (m) Play 5000 15 Review Decide

SS 1 Can you estimate values? Q 9 What is the best estimate of the speed of the 1500 m female world record holder? 10 9 Speed of female 8 world record 7 runner (m/s) 6 A B C 7. 1 m/s 6. 5 m/s 5. 9 m/s 5 4 0 1000 2000 3000 4000 5000 Distance (m) Engage Play 16 Review Decide

Can you describe a linear relationship? SS 1 Q 10 1300 Finish describing the pattern in the data. 1200 As the mean daily temperature increases… Number of crimes in Anycity 1100 (number/ day). the number of crimes increases 1000 900 800 0 20 40 Mean daily temperature (°C) Engage Play 17 Review Decide

SS 1 Q 11 8 7 Finish describing the pattern in the data. Distance 6 travelled 5 in 15 minutes 4 2 As the speed of the cyclist doubles, the distance travelled in 15 minutes… 1 doubles 3 0 0 10 20 30 40 Speed of cyclist (km/h) How did you do? Engage Play 18 Review Decide

SS 2 -3 Estimate how much vitamin D you make from sunlight. Scientists recommend 10 μg a day Look in the UV index for today: ¢ Draw a smooth curve on the graph on SS 2. Then use it to estimate how many hours you need to be outside today to make enough vitamin D. ¢ How many hours will you be outside today? ¢ Can you make enough vitamin D from sunlight today? Write your answer on SS 3. 19 Engage Play Review Decide

SS 2 -3 Estimate how much vitamin D you get from food. ¢ Choose three foods on SS 2 that you eat often. ¢ Calculate the masses you need to get enough vitamin D. ¢ Can you get 10 μg of vitamin D from food today? Write your answer on SS 3. 20 Engage Play Review Decide

SS 4 -5 Do you need a daily vitamin D pill? Play Sentence Sorter to help you decide. 1 Make 6 sentences from the cards. 2 Sort the sentences into two groups to: ¢ explain why you need vitamin D ¢ describe problems caused by vitamin D deficiency 3 Make your decision and write it on SS 5. 21 Engage Play Review Decide

Student sheets Vitamin D Sheet no. Title Notes SS 1 Data Doctor’s skill check Not reusable. One per student. SS 2 Vitamin D line graph and bar chart Reusable. One per small group. SS 3 Do you get enough vitamin D? Not reusable. One per student. SS 4 Sentence sorter cards. Reusable. Cut into cards One per small group. SS 5 Vitamin D decision Not reusable. One per student. For more, visit Engaging. Science. eu

SS 1 Data Doctor’s skill check Skill Question number Identify variables 1, 2 Identify a pattern in data 3, 4 Calculate a mean Select data and do calculations 5 6, 7 Read values from a graph 8 Estimate values of data between known values 9 Describe a linear relationship Do you have the skill? 10, 11 Student sheets

SS 2 Vitamin D line graph and bar chart 2 4 6 8 10 12 14 16 UV index This graph shows, for different values of the UV index, the length of time you need to be outside to get enough sunlight to make 10 μg of vitamin D (enough for one day) The data assumes The data point you are wearing short for a UV index sleeves. of 1 is 75 minutes. This point does not If you are wearing fit on the graph. long sleeves, you al ce re e rin as t ga in m ar Food ea kf 2 br 0 rd sa lm 0 e 0 on 5 4 sa 10 6 eg g 15 8 er 20 10 liv 25 12 na 30 14 tu Mass of vitamin D in 100 g of the food (μg) Time outside to get enough UV to make 10 μg of vitamin D (minutes) 35 This bar chart shows the mass of vitamin D in 100 g of different foods. You need 10 μg of vitamin D daily need to be outside for longer. Student sheets

SS 3 Do you get enough vitamin D? Today’s UV index is _____________ The graph shows that, for this UV index, I need to be outside for ________ hours today to make enough vitamin D. I will be outside for ________ hours today, so I do / do not think that I can get enough vitamin D from sunlight today. The bar charts show that, to get 10 μg of vitamin D, I need to eat: ¢ _________ g of _____________________________ or ¢ _____ g of _______________ I do / do not think that I will get enough vitamin D from food today. ¢ _____ g Overall, I do / do not think that I can get enough vitamin D from food and sunlight today. I think this because___________________________________ Student sheets of _______________ I do / do not think that I will get enough vitamin D from food today. Student sheets

SS 4 Sentence Sorter cards 1 You need a balanced diet, 2 3 4 including vitamins… Vitamin D keeps your bones healthy by… Vitamin D deficiency may cause… 5 6 … regulating the amounts of calcium and phosphate in your body. 9 Children who do not have enough vitamin D may get… 10 … bone and muscle pain in adolescents and adults. … and sunlight helps to make vitamin D from substances in your skin. 7 You can get vitamin D from some foods… 11 Vitamin D pills may improve muscle… 8 … for your cells’ energy, growth and maintenance. 12 … strength in adolescents and adults. … rickets. Student sheets

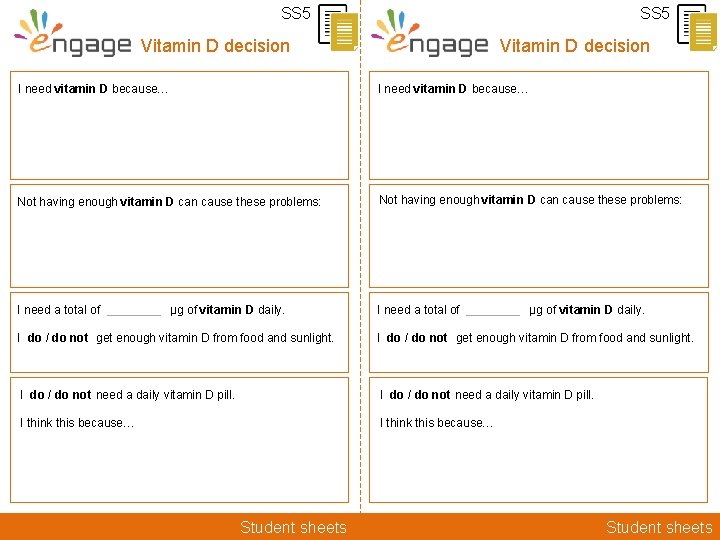

SS 5 Vitamin D decision I need vitamin D because… Not having enough vitamin D can cause these problems: I need a total of ________ μg of vitamin D daily. I do / do not get enough vitamin D from food and sunlight. I do / do not need a daily vitamin D pill. I think this because… Student sheets

Get students talking and thinking For more, visit Engaging. Science. eu

Equipping the Next Generation for Active Engagement in Science TRACES For more, visit Engaging. Science. eu
