Cse 321, Programming Languages and Compilers Lecture #10, Feb. 14, 2007 • Modified sets of item construction • Rules for building LR parse tables • The Action rules • The GOTO rules • Conflicts and ambiguity • Shift-reduce and reduce-reduce conflicts • Parser generators and ambiguity • Ambiguous expression grammar • Ambiguous if-then-else grammar • Ml-yacc 1/23/2022 1
Cse 321, Programming Languages and Compilers Assignments • Homework – Assignment 7 will be accepted til the end of the week » good review for exam! – Assignment 8 (paper and pencil) is posted & due Mon. Feb 19 » good review for exam! – Assignment 9 (programming) is posted & due Wed. Feb 21 » in case your interested • Project 1 is Due today. – Email me the code – Name files with your last name as discussed in the Project 1 description. • Midterm Exam will be Monday, Feb 19, 2007 – Exam will be closed book – Exam will take 60 minutes – We will have a short lecture after the exam. • Project 2 will be assigned next Monday Feb 19, 2006 1/23/2022 2
Cse 321, Programming Languages and Compilers To facilitate Table building • To facilitate Table building we modify the sets of items construction slightly • Each item now has three components. – A production – A location for the dot – A terminal symbol that indicates a valid terminal that could follow the production. This is similar to, but not quite like the Nonterminals that are in the Follow set. Start → E • Examples: • [ Start →. Exp, EOF] • [ F → T. * F, +] E → E + T | T T → T * F | F F → ( E ) 1/23/2022 | id 3
Cse 321, Programming Languages and Compilers Modified Closure • • • Let I be a set of it modified items Then Closure(I) = For each i I, where i = [A → . B β, x] For each p Productions where p = B → For each t Terminals where t First(βx) Add [B →. , t] to Closure(I) if its not already there 1/23/2022 4
Cse 321, Programming Languages and Compilers Modified GOTO • GOTO(I, X) = • For each item in I of the form [A → . X β, a] » i. e. the dot comes just before the X • Let J be the set of items [A → X. β, a] » i. e. move the dot after the X • Return the Closure(J) 1/23/2022 5

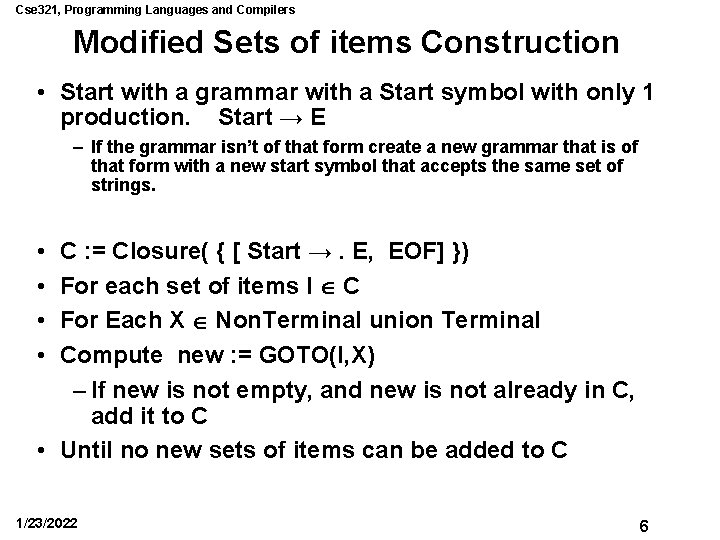

Cse 321, Programming Languages and Compilers Modified Sets of items Construction • Start with a grammar with a Start symbol with only 1 production. Start → E – If the grammar isn’t of that form create a new grammar that is of that form with a new start symbol that accepts the same set of strings. • • C : = Closure( { [ Start →. E, EOF] }) For each set of items I C For Each X Non. Terminal union Terminal Compute new : = GOTO(I, X) – If new is not empty, and new is not already in C, add it to C • Until no new sets of items can be added to C 1/23/2022 6
Cse 321, Programming Languages and Compilers Building Tables for LR parsers • Once the sets of items have been constructed, then the tables can be constructed by using – The set of items – The GOTO construction – The grammar • Each set of items corresponds to a state. • States and Terminals index the ACTION table • States and Non-Terminals index the GOTO table 1/23/2022 7
Cse 321, Programming Languages and Compilers Construction of ACTION table • Let C be the sets of items constructed for a grammar. There is one state “i” for each set ci C 1. If [A → . a β, b] ci , and GOTO(ci , a) = cj Then set ACTION[ i, a ] to shift j note “a” is a terminal symbol 2. If [A → . , a] ci Then set ACTION[ i, a ] to reduce( A → ) 3. If [Start → S. , EOF ] ci Then set ACTION[ i, EOF ] to accept Any conflict in these rules means the grammar is ambiguous. 1/23/2022 8
Cse 321, Programming Languages and Compilers Construction of GOTO table If GOTO(ci , A) = cj Then set GOTO(I, A) to j Note that “A” is a Non-Terminal symbol • • All other entries are error entries The Start state of the parser is the state derived from Closure( { [ Start →. E, EOF] }) 1/23/2022 9
Cse 321, Programming Languages and Compilers Parser generators • Programs that analyze grammars to produce efficient winning strategies • ml-yacc uses a LALR(1) table-driven parser – Look-Ahead 1 symbol – Left to right processing of input – Right-most derivation • ml-yacc reads a grammar, produces a table • ml-yacc attaches semantic actions to reduce moves 1/23/2022 10
Cse 321, Programming Languages and Compilers ml-yacc makes a virtue out of Ambiguity • Why not: expr -> expr + expr | expr * expr | Number expr Number 17 1/23/2022 + * Number expr 2 3 11
Cse 321, Programming Languages and Compilers Factoring - A hard solution • Fix the grammar E: E+T |T ; T: T*F |F ; F: (E) | Number ; E E T F Number + T T Number 3 * F Number 2 17 1/23/2022 12
Cse 321, Programming Languages and Compilers Using Ambiguity • Ambiguity means the parser can’t decide between – Shifting a terminal, or reducing a handle to a Non-Terminal – Reducing a handle to one or more Non-terminals » T → rhs and S → rhs are both in the grammar and rhs is the handle. • This choice means we can’t construct a unique parse tree for any string. • But what if we could direct the parser to always prefer one choice over the other. • Then – The parse tree would always be unique – The grammar might even be smaller 1/23/2022 13
Cse 321, Programming Languages and Compilers Ambiguous Expression Grammar • Contrast the two grammars. Start → E E → E + E • Convince yourself they both accept the same set of strings. | E * E | ( E ) | • Which one is ambiguous? • Which one is simpler? id Start → E E → E + T | T T → T * F • Which one is smaller? | F F → ( E ) | 1/23/2022 id 14
Cse 321, Programming Languages and Compilers An LR parser for the ambiguous EXP grammar • The sets of item construction has 11 states • It has 4 shift-reduce ambiguities Start → E E → E + E | E * E | ( E ) | 1/23/2022 id 15
Cse 321, Programming Languages and Compilers 4 shift reduce ambiguities State 8 { [E → E. + E , _ ] , [E → E. * E, _ ] , [E → E * E. , _ ] } Action(8, +) shift 5 Action(8, +) reduce by 2 State 8 { [E → E. + E , _ ] , [E → E. * E, _ ] , [E → E * E. , _ ] } Action(8, *) shift 4 Action(8, *) reduce by 2 State 9 { [E → E. PLUS E , _ ] , [E → E PLUS E. , _ ] , [E → E. TIMES E, _ ] } Action(9, *) shift 4 Action(9, *) reduce by 1 State 9 { [E → E. PLUS E , _ ] , [E → E PLUS E. , _ ] , [E → E. TIMES E, _ ] } Action(9, +) shift 5 Action(9, +) reduce by 1 1/23/2022 16
Cse 321, Programming Languages and Compilers State of the stack 1 Stack. . . Exp * Exp • Choices Action(8, +) input + 3 EOF shift 5 reduce by 2 { [E → E. + E , _ ] , [E → E. * E, _ ] , [E → E * E. , _ ] } • Reducing by 2 means (E * E) has higher precedence than (E + E) • Generally this is what we want. 1/23/2022 17
Cse 321, Programming Languages and Compilers State of the stack 2 Stack. . . Exp * Exp • Choices Action(8, *) input * 3 EOF shift 4 reduce by 2 { [E → E. + E , _ ] , [E → E. * E, _ ] , [E → E * E. , _ ] } • Reducing by 2 means that (E * E) is left associative • Shifting * means (E * E) is right associative • The other 2 shift reduce errors are similar but talk about the precedence and associativity of (E + E) 1/23/2022 18
Cse 321, Programming Languages and Compilers ml-yacc, a Better Solution • ml-yacc allows ambiguous grammars to be disambiguated via declarations of precedence and associativity • For example: – %left ‘+’ – %left ‘*’ • Declares that * has higher precedence than + and that both are left associative • If ambiguity remains the following rules are used – always shift on a shift/reduce conflict – do the first reduction listed in the grammar on a reduce/reduce conflict 1/23/2022 19
Cse 321, Programming Languages and Compilers Partial Ml-yacc file %left TIMES %left PLUS Much more about ml-yacc next time! %% Start: E EOF ( E ) E ( ( 1/23/2022 : | | | E PLUS E E TIMES E LP E RP id Add(E 1, E 2) ) Mult(E 1, E 2) ) E ) Id id ) 20
Cse 321, Programming Languages and Compilers If-then-else example Goal → Stmt → IF Exp THEN Stmt | IF Exp THEN Stmt ELSE Stmt | ID : = Exp State 9 {[Stmt → IF EXP THEN Stmt. , _] , [Stmt → IF EXP THEN Stmt. ELSE Stmt, _ ] } Action(9, ELSE) = Shift 10 Action(9, ELSE) = Reduce by 1 1/23/2022 21
Cse 321, Programming Languages and Compilers State of machine Stack. . . IF Exp THEN Stmt input ELSE x : = 3 … EOF State 9 {[Stmt → IF EXP THEN Stmt. , _] , [Stmt → IF EXP THEN Stmt. ELSE Stmt, _ ] } Action(9, ELSE) = Shift 10 Else associated with closest IF on stack Action(9, ELSE) = Reduce by 1 Else associated with further away IF 1/23/2022 22
Cse 321, Programming Languages and Compilers Ml-yacc file %nonassoc THEN %nonassoc ELSE %% Goal: Stmt EOF ( Stmt ) Stmt: IF EXP THEN Stmt ( If. Then(E, Stmt) ) | IF EXP THEN Stmt ELSE Stmt ( If. Then. Else(E, Stmt 1, Stmt 2) ) | ID ASSIGNOP EXP ( Assign(ID, E) ) 1/23/2022 23
Cse 321, Programming Languages and Compilers Some sample ambiguous grammars • These examples can be found in the directory • http: //www. cs. pdx. edu/~sheard/course/Cs 321/Lex. Yacc/Ambiguous. Exa mples/ 1/23/2022 24
