Course Wrap-Up Software Testing and Verification Prepared by Stephen M. Thebaut, Ph. D. University of Florida
A few loose ends… • Exam 2 + solution notes will be posted (under “Practice Exams”) when all registered students are known to have taken it. • Exam 2 scores and course grades will be posted on e-Learning as soon as possible. • A histogram of the scores will be added to the solution notes when available.
A few loose ends… (cont’d) • Students may view a scanned copy of their graded exam at the UF EDGE website on or about Monday, Aug. 8. • Grading errors should be brought to my attention ASAP (but no later than Friday, Aug. 19) for appropriate consideration. • Check the course website for details / updates / other announcements.

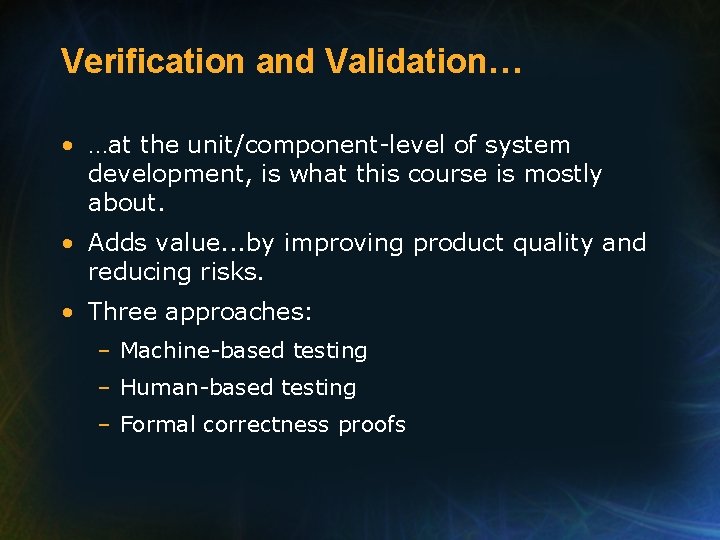

Verification and Validation… • …at the unit/component-level of system development, is what this course is mostly about. • Adds value. . . by improving product quality and reducing risks. • Three approaches: – Machine-based testing – Human-based testing – Formal correctness proofs
Machine-Based Testing • Execution of (“crafted”) test cases • Actual and expected results (i. e. , program behaviors) are compared. • Black-Box testing – Partition testing – Combinatorial Approaches – Boundary Value Analysis – Intuition & Experience

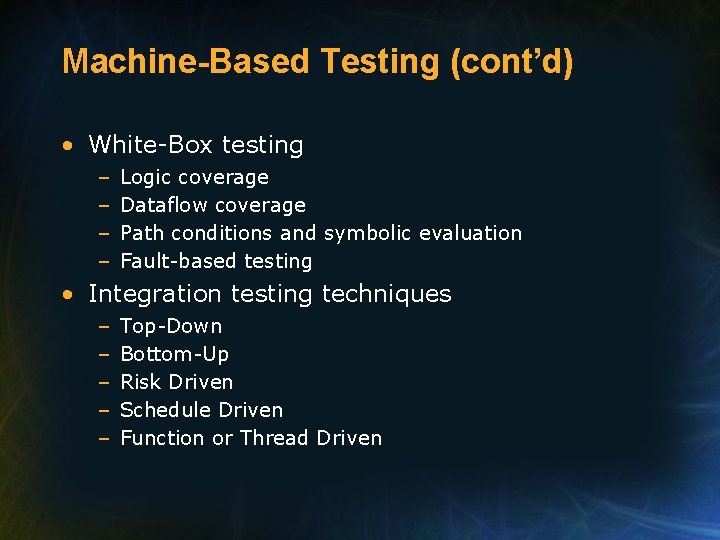

Machine-Based Testing (cont’d) • White-Box testing – – Logic coverage Dataflow coverage Path conditions and symbolic evaluation Fault-based testing • Integration testing techniques – – – Top-Down Bottom-Up Risk Driven Schedule Driven Function or Thread Driven
Machine-Based Testing (cont’d) • Higher-Level testing – – – Usability test Installability test Serviceability test Performance test Stress test Security test – Software compatibility test – Device and configuration test – Recovery test – Reliability test
Human-Based Testing • Our focus: Reviews / Inspections • Can be more effective than (machine-based) testing (as demonstrated in many studies). • Applicable to code, design, requirements, testware, publications, etc. • “A (key) ingredient…is consistent and vigorous discipline. ” • On the value of Inspections: some can achieve 100: 1 ROI; you can expect 10: 1 ROI.
Formal Correctness Proofs “pre-condition” {X≥ 2} loop “invariant” SP 2 : = 4 i while SP 2 <= X { ( i SP 2 = 2 ) Л (2(i-1) X) Л (X = X’) } SP 2 : = SP 2 * 2 end_while i { ( i SP 2 = 2 > X) Л (2(i-1) X) Л (X = X’) } “post-condition”
Formal Correctness Proofs (cont’d) • What are the benefits of studying formal verification? – Understanding its limitations. – Deeper insights into programming and program structures. – Criteria for judging both programs and programming languages. – The ability to formally verify small (or parts of large) programs.
Formal Correctness Proofs (cont’d) • Bottom line: even if you never attempt to “prove” a program correct outside this course, the study of formal verification should change the way you write and read programs.

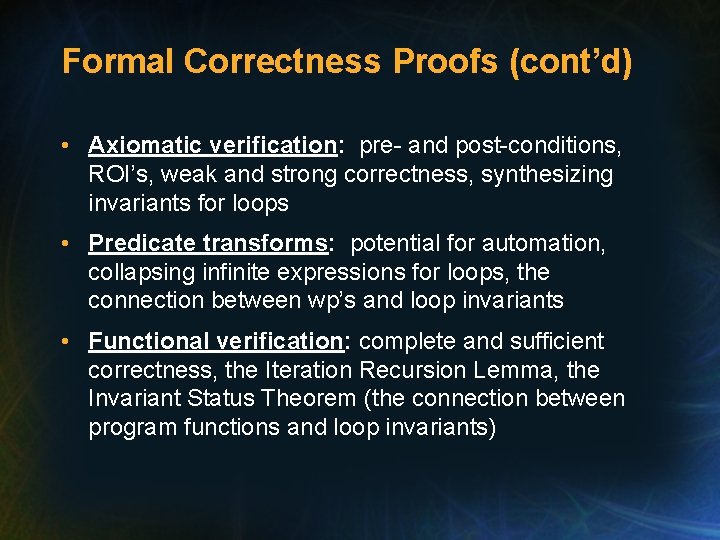

Formal Correctness Proofs (cont’d) • Axiomatic verification: pre- and post-conditions, ROI’s, weak and strong correctness, synthesizing invariants for loops • Predicate transforms: potential for automation, collapsing infinite expressions for loops, the connection between wp’s and loop invariants • Functional verification: complete and sufficient correctness, the Iteration Recursion Lemma, the Invariant Status Theorem (the connection between program functions and loop invariants)
Formal Correctness Proofs (cont’d) • Cleanroom Software Engineering – Intended to make formal verification more practical and effective. – Based on the notion that defects in software should be avoided rather than detected and repaired. – Uses functional verification – components are not executed or developer-tested!

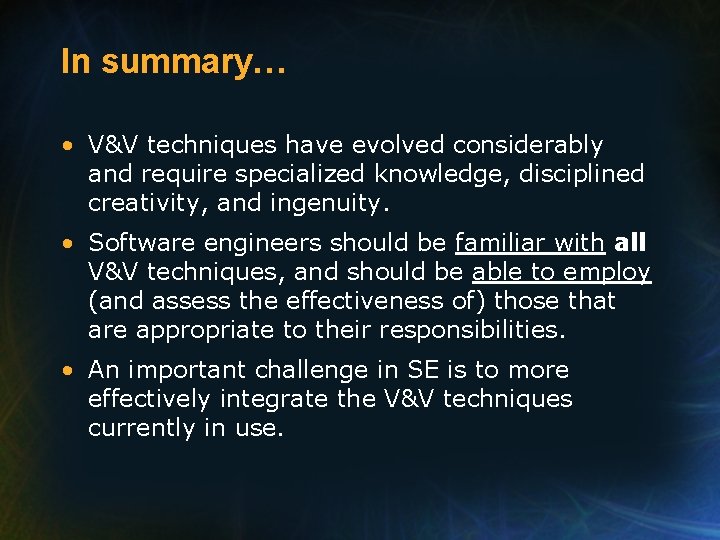

In summary… • V&V techniques have evolved considerably and require specialized knowledge, disciplined creativity, and ingenuity. • Software engineers should be familiar with all V&V techniques, and should be able to employ (and assess the effectiveness of) those that are appropriate to their responsibilities. • An important challenge in SE is to more effectively integrate the V&V techniques currently in use.
Course Wrap-Up Software Testing and Verification Prepared by Stephen M. Thebaut, Ph. D. University of Florida
