Class Outline I III IV V Deformation of
- Slides: 26
Class Outline I. III. IV. V. Deformation of the lithosphere, an overview Basic Techniques in Structural Geology and Tectonics Basic of Continuum mechanics- strain Basic of Continuum mechanics- stress Deformation Mechanism…
II. Basic Techniques in Structural Geology • • Fundamental principles Field measurements and mapping Stereographic projections … (See section H of Appendix of Davis&Raynolds, an/or P 45 -53 of Suppe)
Representations of lines and planes. . Plane as great circle. . Line as a pole. .
Stereographic equal-angle projection (Wulff’s Stereonet) Lambert’s equal area projection (Schmidt’s stereonet)
Spherical coordinate frame… Polar Net (N is the pole of the coordinate net)

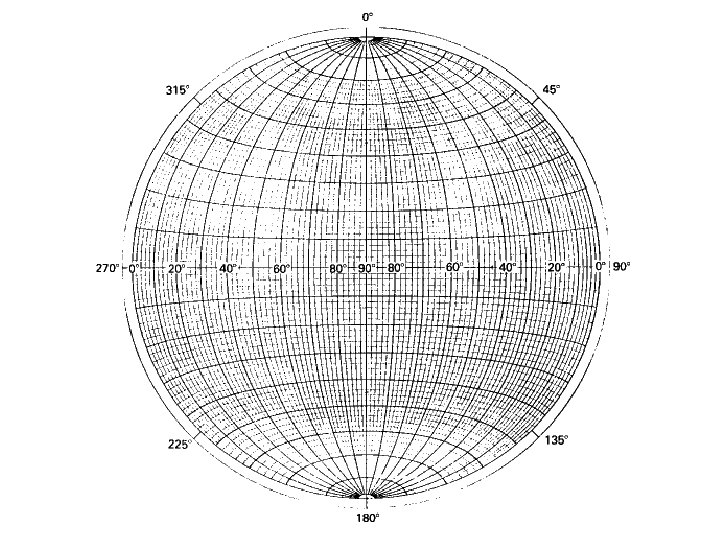

Stereographic nets (equal-angle nets or Wulff’s stereonets) NB: Only half of the sphere is generally plotted Polar Net (polar axis vertical) Meridional Net (polar axis horizontal)
Equal-area nets- Schmidt Polar Net (polar axis vertical) Meridional Net (polar axis horizontal)
Projecting data… B(B’): 72, 0 (252, 0) C: 72, 45
B (B’): 72, 0 (252, 0) C: 72, 45 Q: 227, 43 (e. g. , dip direction of a bed S: 47, 47 (pole to bedding defined by Q)
Paper & pencil. . N 65, 20 SE
Measuring angles on a sterographic projection… P: 272, 45

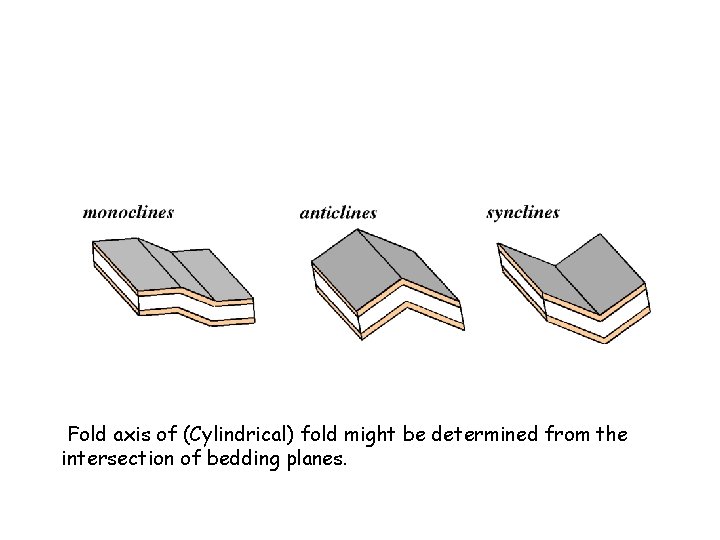

Fold axis of (Cylindrical) fold might be determined from the intersection of bedding planes.
Folded bedding as poles & as great circles. . β diagram n(n-1)/2 intersections Π diagram
Elastic Rebound Theory Posterior to Last earthquake Interseismic strain (locked fault gets stressed) Co-seismic strain (fault failure during Earthquake
First Motions
P-wave Radiation Pattern
• Earthquake focal mechanisms will always have variations in polarity. Some stations will have first motion up, others first motion down.

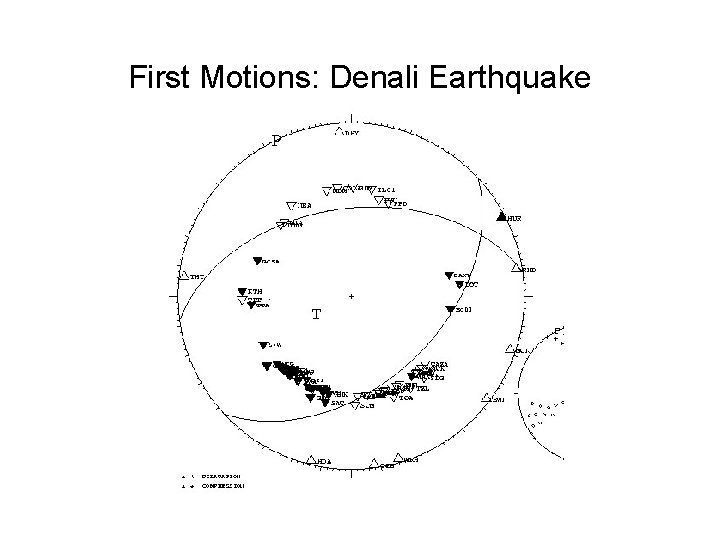

First Motions: Denali Earthquake
Earthquake Focal Mechanisms
Earthquake Focal Mechanisms
