LEVERS �DEFINATION: A mechanical lever is a rigid bar that rotates around a axis

LEVERS �DEFINATION: A mechanical lever is a rigid bar that rotates around a axis or a fulcrum. Rigid bar fulcrum Chaitali prabhudesai

Forces � The lever consist of two forces: 1) An effort force: which will

Forces � The lever consist of two forces: 1) An effort force: which will tend to rotate the bar around the fulcrum 2) An resisting force: which will resist the movement � These forces act around a supporting force which provides for a point of pivot known as the fulcrum effort Chaitali prabhudesai resistance

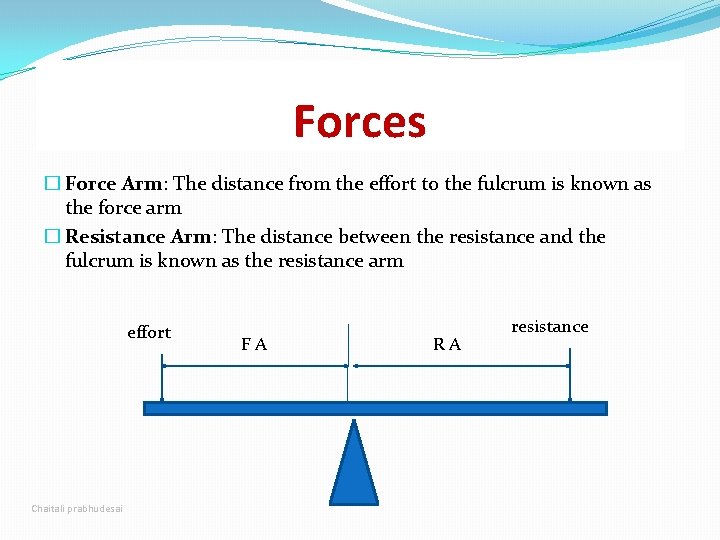

Forces � Force Arm: The distance from the effort to the fulcrum is known

Forces � Force Arm: The distance from the effort to the fulcrum is known as the force arm � Resistance Arm: The distance between the resistance and the fulcrum is known as the resistance arm effort Chaitali prabhudesai FA RA resistance

Law Of Lever �In order for the lever to be in equilibrium: �Load(resistance) *

Law Of Lever �In order for the lever to be in equilibrium: �Load(resistance) * Load Arm= Effort * Effort Arm �E. g. 1 gm of feather has to be balanced by 1 kg of rock feathers Chaitali prabhudesai FA rock RA

Mechanical Advantage �Mechanical Advantage or leverage is defined as a ratio of force arm

Mechanical Advantage �Mechanical Advantage or leverage is defined as a ratio of force arm to resistance arm �MA=FA/RA �Mechanical Advantage can either be equal to 1, less than 1 or greater than 1 depending upon the type of lever Chaitali prabhudesai

Types Of Levers � Class I Levers: In these types of levers the fulcrum

Types Of Levers � Class I Levers: In these types of levers the fulcrum lies between the resistance and the effort FA RA Resistance � The Mechanical advantage for these levers can be equal to 1, >1 or < 1 depending upon the position of the fulcrum. Chaitali prabhudesai

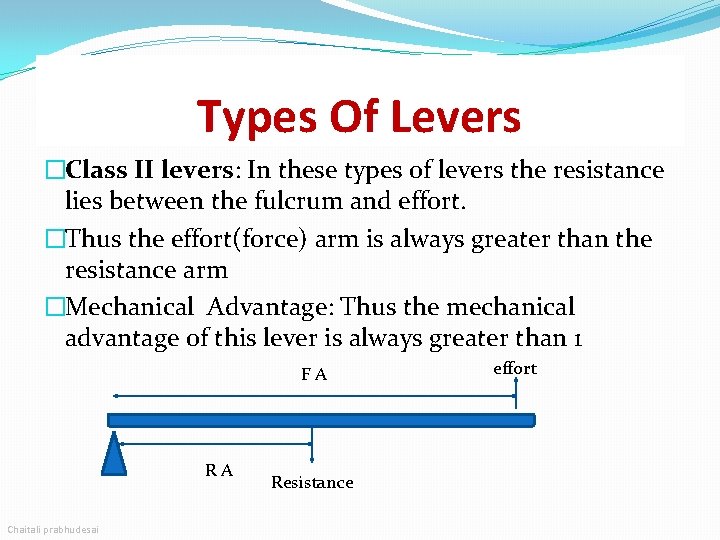

Types Of Levers �Class II levers: In these types of levers the resistance lies

Types Of Levers �Class II levers: In these types of levers the resistance lies between the fulcrum and effort. �Thus the effort(force) arm is always greater than the resistance arm �Mechanical Advantage: Thus the mechanical advantage of this lever is always greater than 1 FA RA Chaitali prabhudesai Resistance effort

Types Of Levers �Class III levers: In these types of levers the effort lies

Types Of Levers �Class III levers: In these types of levers the effort lies between the fulcrum and resistance. �Thus the resistance arm is always greater than the force arm �Mechanical Advantage: Thus the mechanical advantage of this lever is always less than 1 effort FA RA Chaitali prabhudesai Resistance

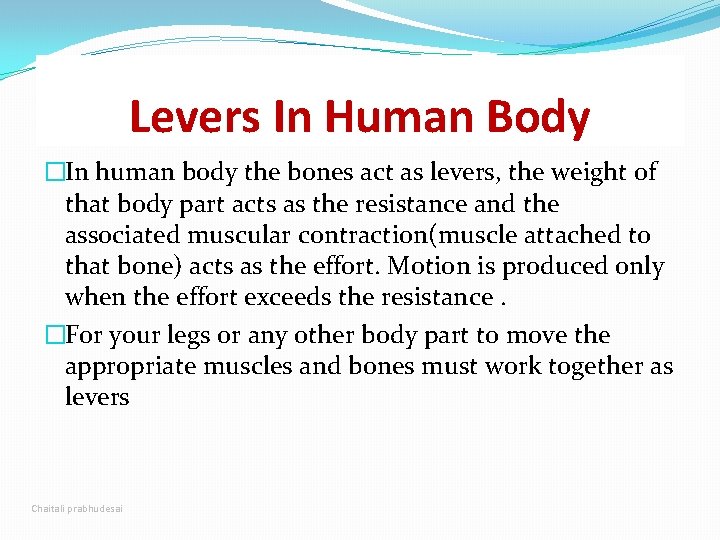

Levers In Human Body �In human body the bones act as levers, the weight

Levers In Human Body �In human body the bones act as levers, the weight of that body part acts as the resistance and the associated muscular contraction(muscle attached to that bone) acts as the effort. Motion is produced only when the effort exceeds the resistance. �For your legs or any other body part to move the appropriate muscles and bones must work together as levers Chaitali prabhudesai

Examples �Common Examples: Class I lever Scissors: The fulcrum lies at the center, we

Examples �Common Examples: Class I lever Scissors: The fulcrum lies at the center, we apply force at the handles of the scissor, the resistance is at the other end Chaitali prabhudesai

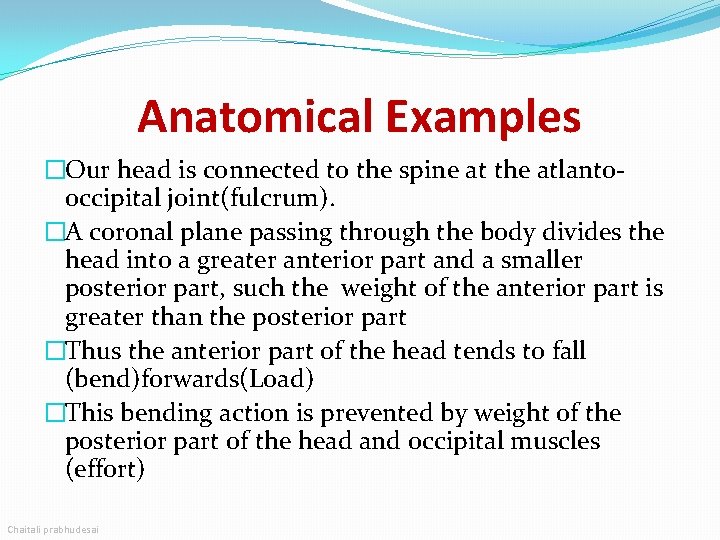

Anatomical Examples �Our head is connected to the spine at the atlantooccipital joint(fulcrum). �A

Anatomical Examples �Our head is connected to the spine at the atlantooccipital joint(fulcrum). �A coronal plane passing through the body divides the head into a greater anterior part and a smaller posterior part, such the weight of the anterior part is greater than the posterior part �Thus the anterior part of the head tends to fall (bend)forwards(Load) �This bending action is prevented by weight of the posterior part of the head and occipital muscles (effort) Chaitali prabhudesai

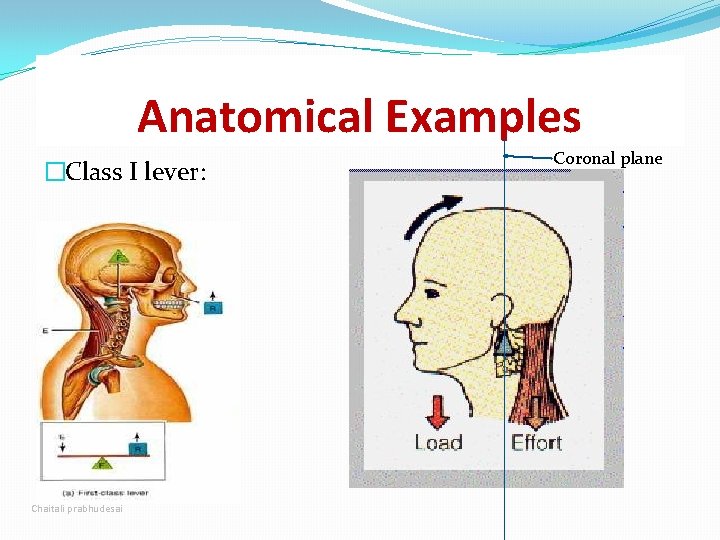

Anatomical Examples �Class I lever: Chaitali prabhudesai Coronal plane

Anatomical Examples �Class I lever: Chaitali prabhudesai Coronal plane

Examples �Common Examples: Class II lever: The fulcrum lies at one end , the

Examples �Common Examples: Class II lever: The fulcrum lies at one end , the load is present at the center, and the effort force is applied at the other end Chaitali prabhudesai

Anatomical Examples �Class II Lever: When we raise our body on the toes ,

Anatomical Examples �Class II Lever: When we raise our body on the toes , the toes act as the fulcrum, the weight of the body acts as the resistance force and the calf muscles act as the effort force Chaitali prabhudesai

Anatomical Examples �Class II lever: Chaitali prabhudesai

Anatomical Examples �Class II lever: Chaitali prabhudesai

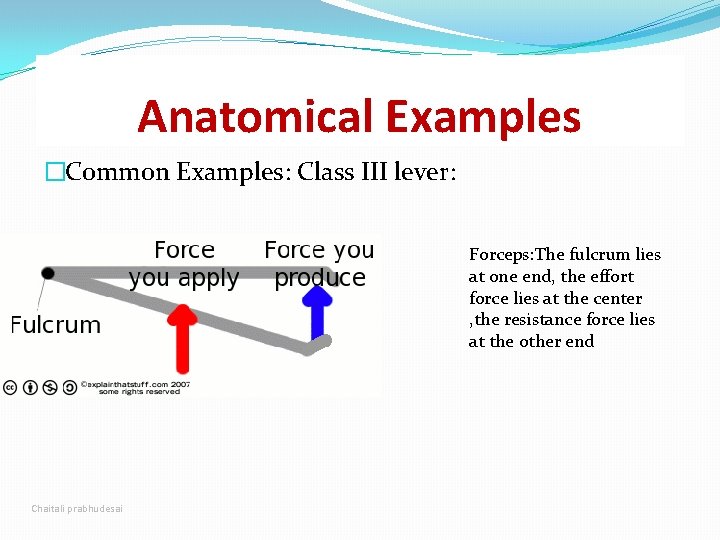

Anatomical Examples �Common Examples: Class III lever: Forceps: The fulcrum lies at one end,

Anatomical Examples �Common Examples: Class III lever: Forceps: The fulcrum lies at one end, the effort force lies at the center , the resistance force lies at the other end Chaitali prabhudesai

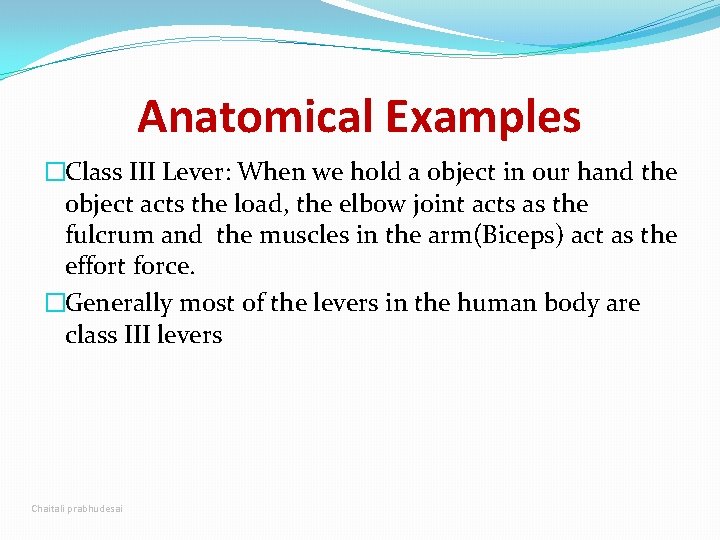

Anatomical Examples �Class III Lever: When we hold a object in our hand the

Anatomical Examples �Class III Lever: When we hold a object in our hand the object acts the load, the elbow joint acts as the fulcrum and the muscles in the arm(Biceps) act as the effort force. �Generally most of the levers in the human body are class III levers Chaitali prabhudesai

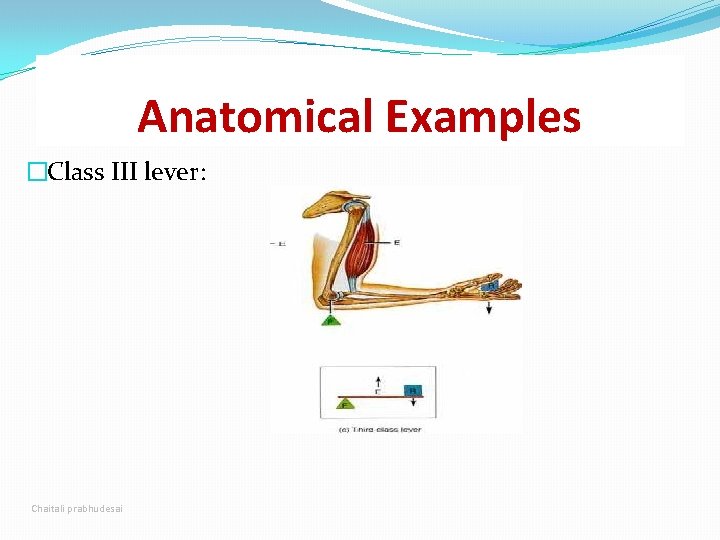

Anatomical Examples �Class III lever: Chaitali prabhudesai

Anatomical Examples �Class III lever: Chaitali prabhudesai

Anatomical Examples

Anatomical Examples
