Chapter 5: CPU Scheduling

Chapter 5: CPU Scheduling

Chapter 5: CPU Scheduling n Basic Concepts n Scheduling Criteria n Scheduling Algorithms n

Chapter 5: CPU Scheduling n Basic Concepts n Scheduling Criteria n Scheduling Algorithms n Multiple-Processor Scheduling n Real-Time Scheduling n Thread Scheduling n Operating Systems Examples n Java Thread Scheduling n Algorithm Evaluation 5. 2

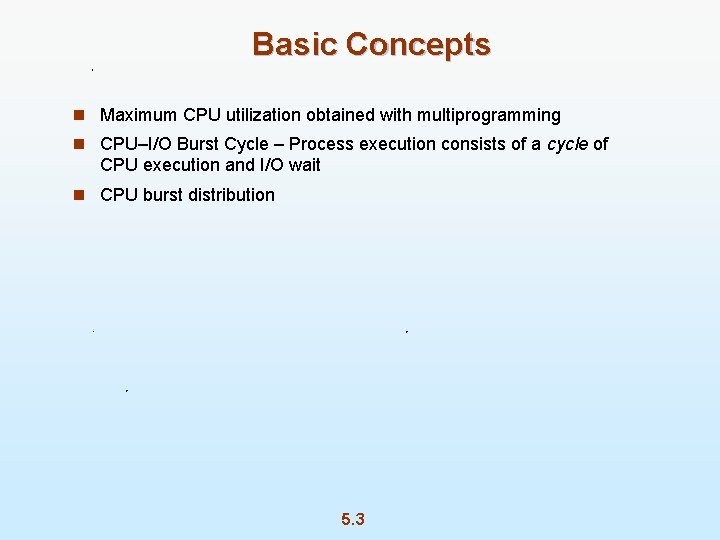

Basic Concepts n Maximum CPU utilization obtained with multiprogramming n CPU–I/O Burst Cycle –

Basic Concepts n Maximum CPU utilization obtained with multiprogramming n CPU–I/O Burst Cycle – Process execution consists of a cycle of CPU execution and I/O wait n CPU burst distribution 5. 3

Alternating Sequence of CPU And I/O Bursts 5. 4

Alternating Sequence of CPU And I/O Bursts 5. 4

Histogram of CPU-burst Times 5. 5

Histogram of CPU-burst Times 5. 5

CPU Scheduler n Selects from among the processes in memory that are ready to

CPU Scheduler n Selects from among the processes in memory that are ready to execute, and allocates the CPU to one of them n CPU scheduling decisions may take place when a process: 1. Switches from running to waiting state 2. Switches from running to ready state 3. Switches from waiting to ready 4. Terminates n Scheduling under 1 and 4 is nonpreemptive n All other scheduling is preemptive 5. 6

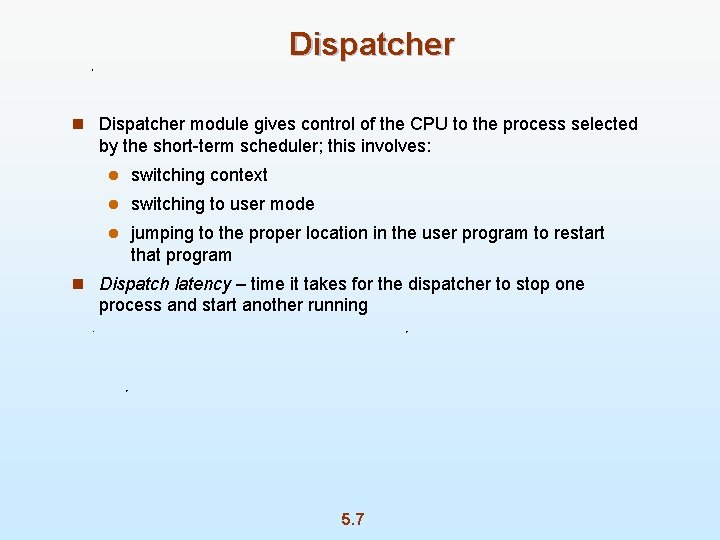

Dispatcher n Dispatcher module gives control of the CPU to the process selected by

Dispatcher n Dispatcher module gives control of the CPU to the process selected by the short-term scheduler; this involves: l switching context l switching to user mode l jumping to the proper location in the user program to restart that program n Dispatch latency – time it takes for the dispatcher to stop one process and start another running 5. 7

Scheduling Criteria n CPU utilization – keep the CPU as busy as possible n

Scheduling Criteria n CPU utilization – keep the CPU as busy as possible n Throughput – # of processes that complete their execution per time unit n Turnaround time – amount of time to execute a particular process n Waiting time – amount of time a process has been waiting in the ready queue n Response time – amount of time it takes from when a request was submitted until the first response is produced, not output (for time-sharing environment) 5. 8

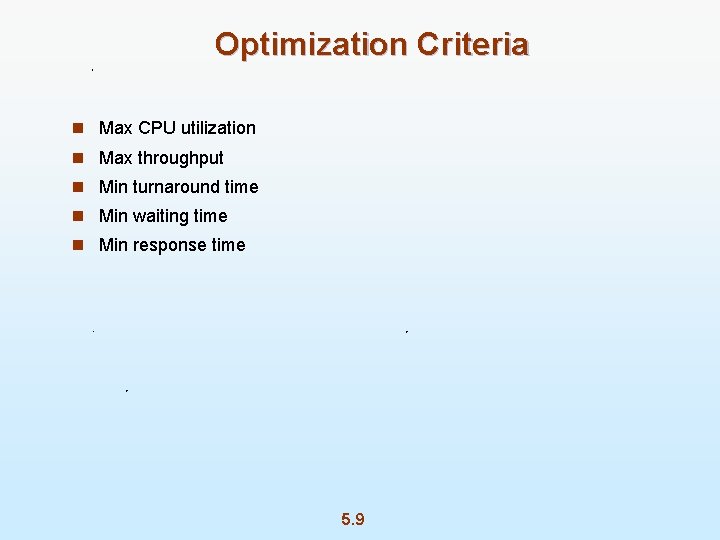

Optimization Criteria n Max CPU utilization n Max throughput n Min turnaround time n

Optimization Criteria n Max CPU utilization n Max throughput n Min turnaround time n Min waiting time n Min response time 5. 9

First-Come, First-Served (FCFS) Scheduling Process Burst Time P 1 24 P 2 3 P

First-Come, First-Served (FCFS) Scheduling Process Burst Time P 1 24 P 2 3 P 3 3 n Suppose that the processes arrive in the order: P 1 , P 2 , P 3 The Gantt Chart for the schedule is: P 1 P 2 0 24 n Waiting time for P 1 = 0; P 2 = 24; P 3 = 27 n Average waiting time: (0 + 24 + 27)/3 = 17 5. 10 P 3 27 30

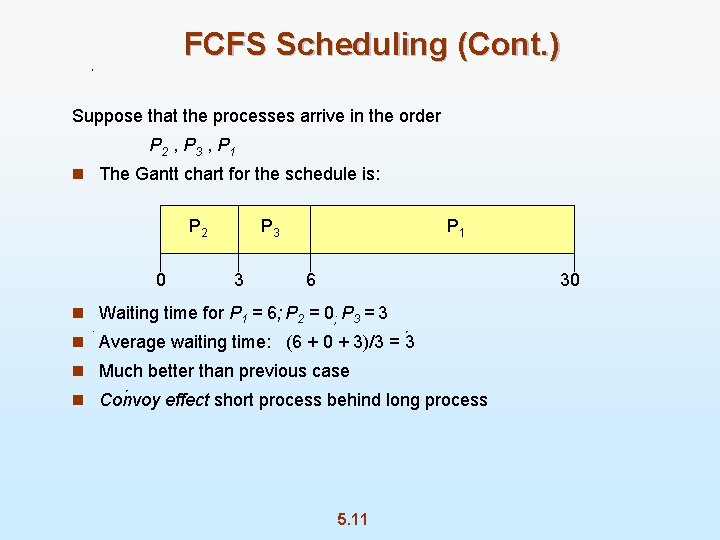

FCFS Scheduling (Cont. ) Suppose that the processes arrive in the order P 2

FCFS Scheduling (Cont. ) Suppose that the processes arrive in the order P 2 , P 3 , P 1 n The Gantt chart for the schedule is: P 2 0 P 3 3 P 1 6 30 n Waiting time for P 1 = 6; P 2 = 0; P 3 = 3 n Average waiting time: (6 + 0 + 3)/3 = 3 n Much better than previous case n Convoy effect short process behind long process 5. 11

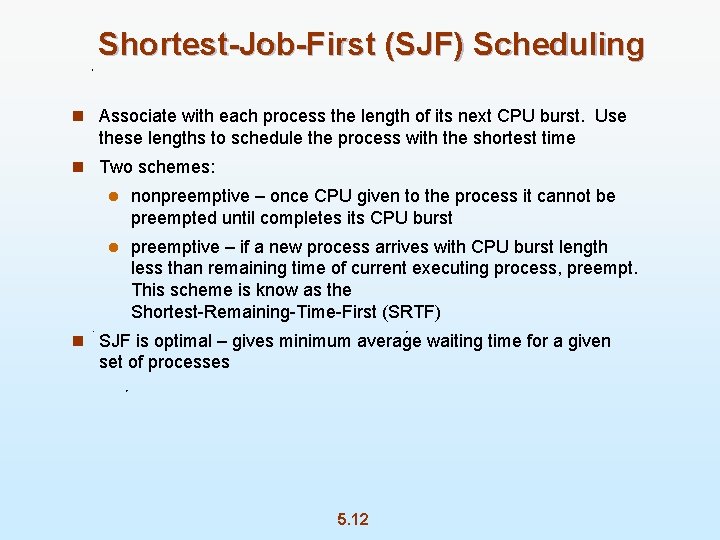

Shortest-Job-First (SJF) Scheduling n Associate with each process the length of its next CPU

Shortest-Job-First (SJF) Scheduling n Associate with each process the length of its next CPU burst. Use these lengths to schedule the process with the shortest time n Two schemes: l nonpreemptive – once CPU given to the process it cannot be preempted until completes its CPU burst l preemptive – if a new process arrives with CPU burst length less than remaining time of current executing process, preempt. This scheme is know as the Shortest-Remaining-Time-First (SRTF) n SJF is optimal – gives minimum average waiting time for a given set of processes 5. 12

Example of Non-Preemptive SJF Process Arrival Time P 1 0. 0 7 P 2

Example of Non-Preemptive SJF Process Arrival Time P 1 0. 0 7 P 2 2. 0 4 P 3 4. 0 1 P 4 5. 0 4 Burst Time n SJF (non-preemptive) P 1 0 3 P 3 7 P 2 8 n Average waiting time = (0 + 6 + 3 + 7)/4 = 4 5. 13 P 4 12 16

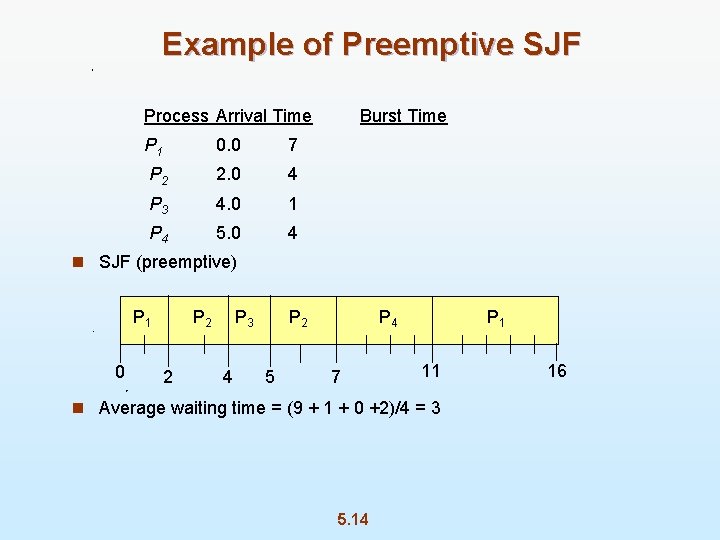

Example of Preemptive SJF Process Arrival Time P 1 0. 0 7 P 2

Example of Preemptive SJF Process Arrival Time P 1 0. 0 7 P 2 2. 0 4 P 3 4. 0 1 P 4 5. 0 4 Burst Time n SJF (preemptive) P 1 0 P 2 2 P 3 4 P 2 5 P 4 7 P 1 11 n Average waiting time = (9 + 1 + 0 +2)/4 = 3 5. 14 16

Determining Length of Next CPU Burst n Can only estimate the length n Can

Determining Length of Next CPU Burst n Can only estimate the length n Can be done by using the length of previous CPU bursts, using exponential averaging 5. 15

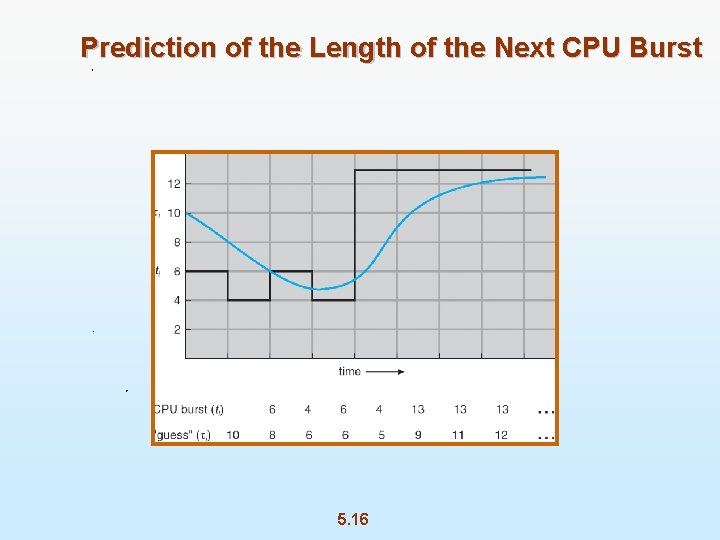

Prediction of the Length of the Next CPU Burst 5. 16

Prediction of the Length of the Next CPU Burst 5. 16

Examples of Exponential Averaging n =0 n+1 = n l Recent history does not

Examples of Exponential Averaging n =0 n+1 = n l Recent history does not count n =1 l n+1 = tn l Only the actual last CPU burst counts n If we expand the formula, we get: n+1 = tn+(1 - ) tn -1 + … +(1 - )j tn -j + … l +(1 - )n +1 0 n Since both and (1 - ) are less than or equal to 1, each successive term has less weight than its predecessor 5. 17

Priority Scheduling n A priority number (integer) is associated with each process n The

Priority Scheduling n A priority number (integer) is associated with each process n The CPU is allocated to the process with the highest priority (smallest integer highest priority) l Preemptive l nonpreemptive n SJF is a priority scheduling where priority is the predicted next CPU burst time n Problem Starvation – low priority processes may never execute n Solution Aging – as time progresses increase the priority of the process 5. 18

Round Robin (RR) n Each process gets a small unit of CPU time (time

Round Robin (RR) n Each process gets a small unit of CPU time (time quantum), usually 10 -100 milliseconds. After this time has elapsed, the process is preempted and added to the end of the ready queue. n If there are n processes in the ready queue and the time quantum is q, then each process gets 1/n of the CPU time in chunks of at most q time units at once. No process waits more than (n-1)q time units. n Performance l q large FIFO l q small q must be large with respect to context switch, otherwise overhead is too high 5. 19

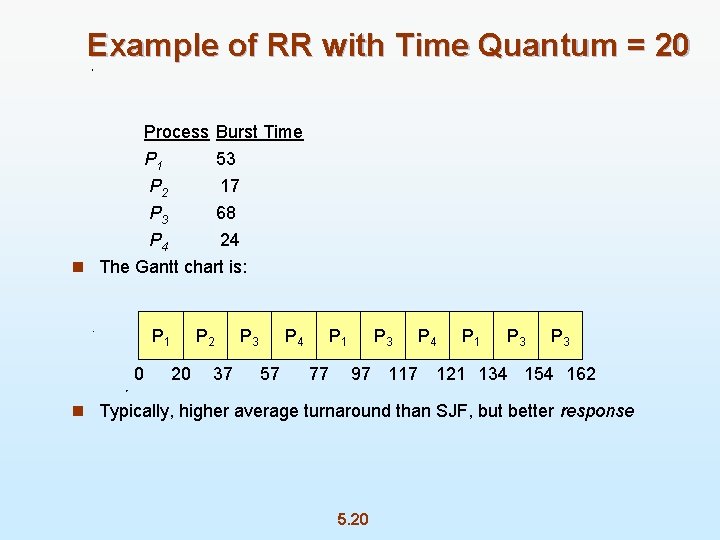

Example of RR with Time Quantum = 20 Process Burst Time P 1 53

Example of RR with Time Quantum = 20 Process Burst Time P 1 53 P 2 17 P 3 68 P 4 24 n The Gantt chart is: P 1 0 P 2 20 37 P 3 P 4 57 P 1 77 P 3 P 4 P 1 P 3 97 117 121 134 154 162 n Typically, higher average turnaround than SJF, but better response 5. 20

Time Quantum and Context Switch Time 5. 21

Time Quantum and Context Switch Time 5. 21

Turnaround Time Varies With The Time Quantum 5. 22

Turnaround Time Varies With The Time Quantum 5. 22

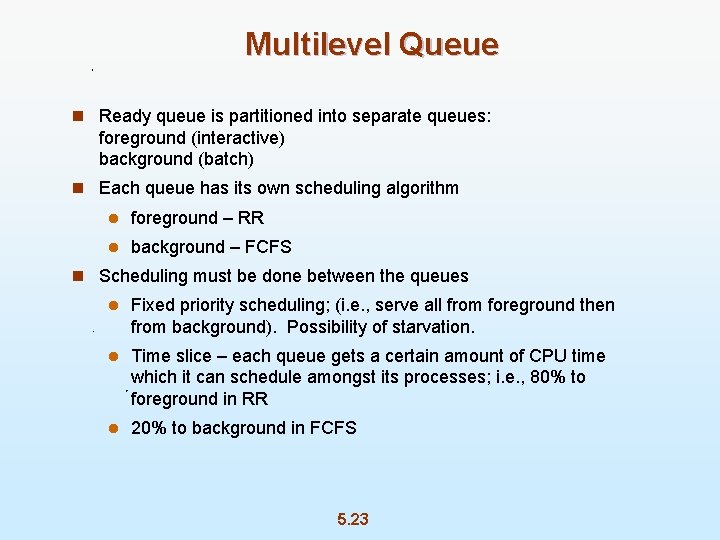

Multilevel Queue n Ready queue is partitioned into separate queues: foreground (interactive) background (batch)

Multilevel Queue n Ready queue is partitioned into separate queues: foreground (interactive) background (batch) n Each queue has its own scheduling algorithm l foreground – RR l background – FCFS n Scheduling must be done between the queues l Fixed priority scheduling; (i. e. , serve all from foreground then from background). Possibility of starvation. l Time slice – each queue gets a certain amount of CPU time which it can schedule amongst its processes; i. e. , 80% to foreground in RR l 20% to background in FCFS 5. 23

Multilevel Queue Scheduling 5. 24

Multilevel Queue Scheduling 5. 24

Multilevel Feedback Queue n A process can move between the various queues; aging can

Multilevel Feedback Queue n A process can move between the various queues; aging can be implemented this way n Multilevel-feedback-queue scheduler defined by the following parameters: l number of queues l scheduling algorithms for each queue l method used to determine when to upgrade a process l method used to determine when to demote a process l method used to determine which queue a process will enter when that process needs service 5. 25

Example of Multilevel Feedback Queue n Three queues: l Q 0 – RR with

Example of Multilevel Feedback Queue n Three queues: l Q 0 – RR with time quantum 8 milliseconds l Q 1 – RR time quantum 16 milliseconds l Q 2 – FCFS n Scheduling l A new job enters queue Q 0 which is served FCFS. When it gains CPU, job receives 8 milliseconds. If it does not finish in 8 milliseconds, job is moved to queue Q 1. l At Q 1 job is again served FCFS and receives 16 additional milliseconds. If it still does not complete, it is preempted and moved to queue Q 2. 5. 26

Multilevel Feedback Queues 5. 27

Multilevel Feedback Queues 5. 27

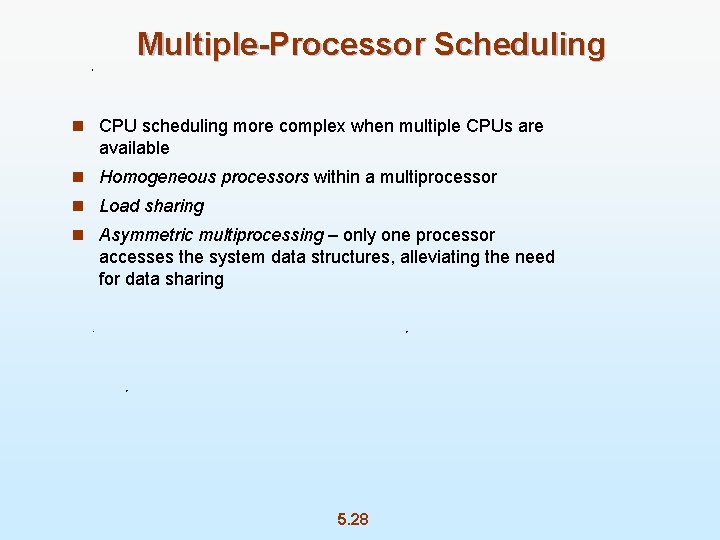

Multiple-Processor Scheduling n CPU scheduling more complex when multiple CPUs are available n Homogeneous

Multiple-Processor Scheduling n CPU scheduling more complex when multiple CPUs are available n Homogeneous processors within a multiprocessor n Load sharing n Asymmetric multiprocessing – only one processor accesses the system data structures, alleviating the need for data sharing 5. 28

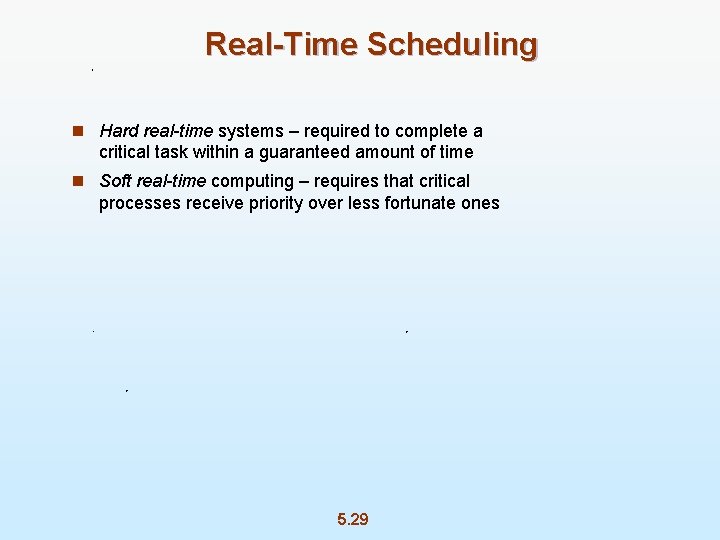

Real-Time Scheduling n Hard real-time systems – required to complete a critical task within

Real-Time Scheduling n Hard real-time systems – required to complete a critical task within a guaranteed amount of time n Soft real-time computing – requires that critical processes receive priority over less fortunate ones 5. 29

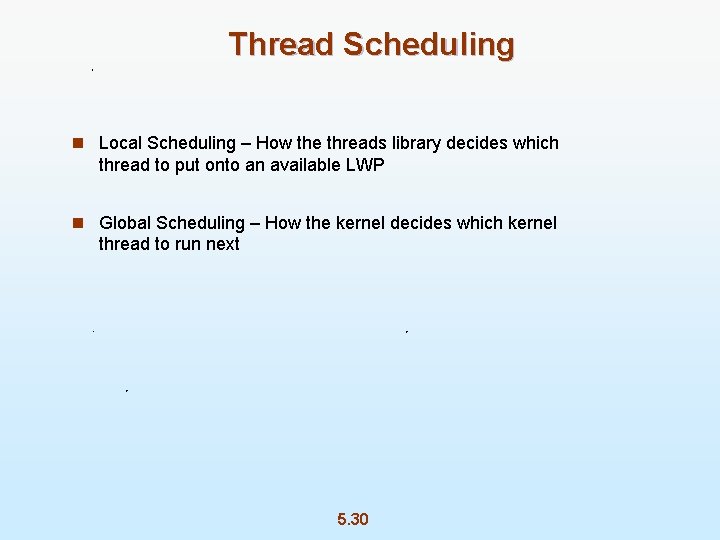

Thread Scheduling n Local Scheduling – How the threads library decides which thread to

Thread Scheduling n Local Scheduling – How the threads library decides which thread to put onto an available LWP n Global Scheduling – How the kernel decides which kernel thread to run next 5. 30

Pthread Scheduling API #include <pthread. h> #include <stdio. h> #define NUM THREADS 5 int

Pthread Scheduling API #include <pthread. h> #include <stdio. h> #define NUM THREADS 5 int main(int argc, char *argv[]) { int i; pthread t tid[NUM THREADS]; pthread attr t attr; /* get the default attributes */ pthread attr init(&attr); /* set the scheduling algorithm to PROCESS or SYSTEM */ pthread attr setscope(&attr, PTHREAD SCOPE SYSTEM); /* set the scheduling policy - FIFO, RT, or OTHER */ pthread attr setschedpolicy(&attr, SCHED OTHER); /* create threads */ for (i = 0; i < NUM THREADS; i++) pthread create(&tid[i], &attr, runner, NULL); 5. 31

Pthread Scheduling API /* now join on each thread */ for (i = 0;

Pthread Scheduling API /* now join on each thread */ for (i = 0; i < NUM THREADS; i++) pthread join(tid[i], NULL); } /* Each thread will begin control in this function */ void *runner(void *param) { printf("I am a threadn"); pthread exit(0); } 5. 32

Operating System Examples n Solaris scheduling n Windows XP scheduling n Linux scheduling 5.

Operating System Examples n Solaris scheduling n Windows XP scheduling n Linux scheduling 5. 33

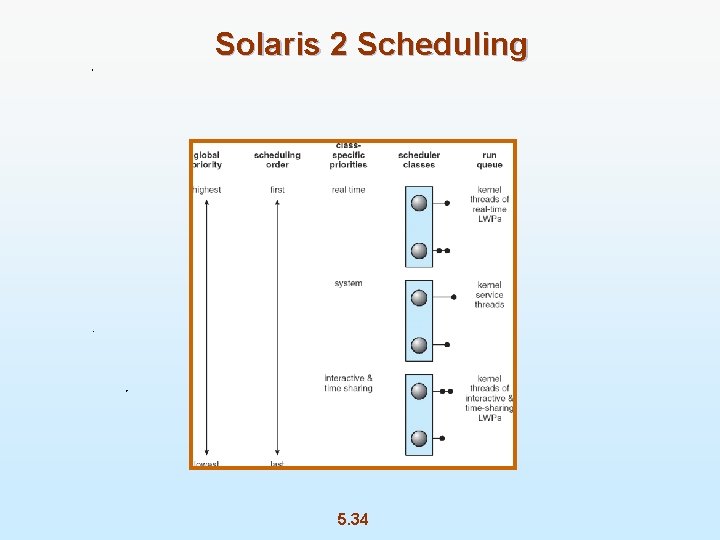

Solaris 2 Scheduling 5. 34

Solaris 2 Scheduling 5. 34

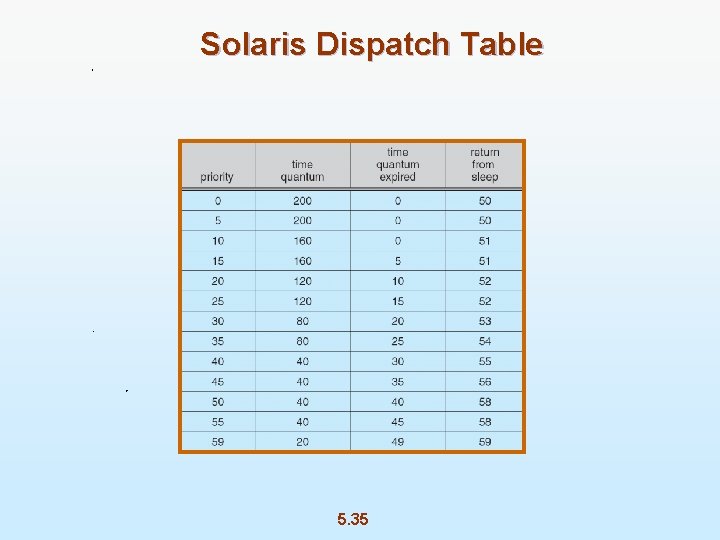

Solaris Dispatch Table 5. 35

Solaris Dispatch Table 5. 35

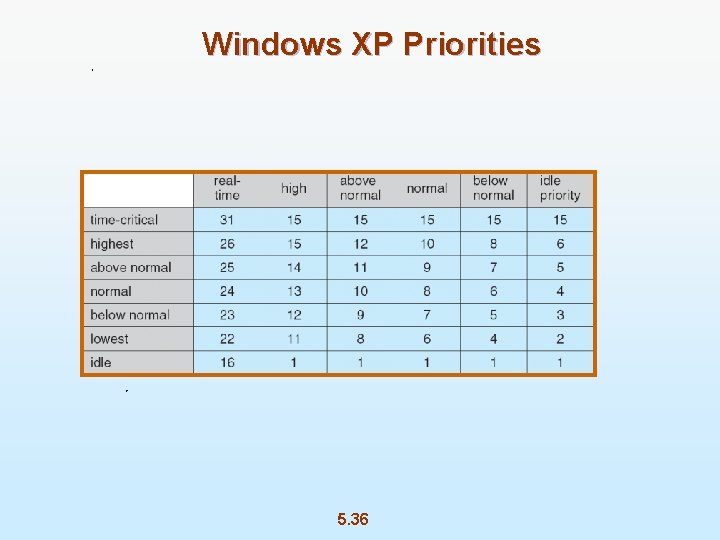

Windows XP Priorities 5. 36

Windows XP Priorities 5. 36

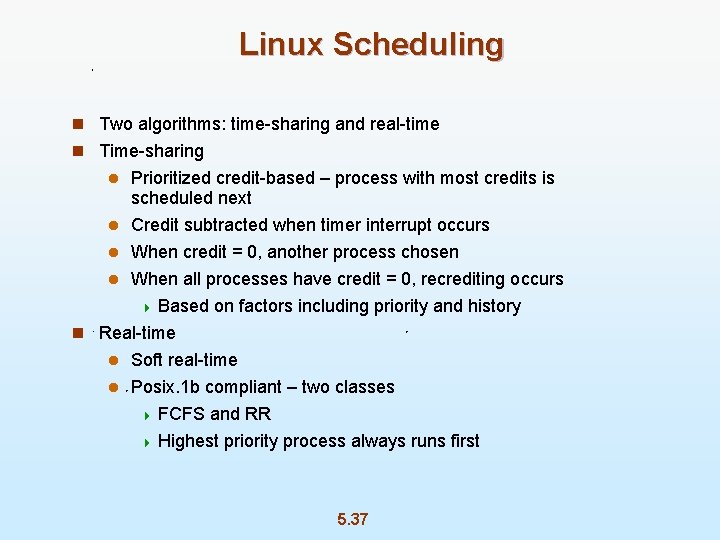

Linux Scheduling n Two algorithms: time-sharing and real-time n Time-sharing Prioritized credit-based – process

Linux Scheduling n Two algorithms: time-sharing and real-time n Time-sharing Prioritized credit-based – process with most credits is scheduled next l Credit subtracted when timer interrupt occurs l When credit = 0, another process chosen l When all processes have credit = 0, recrediting occurs 4 Based on factors including priority and history n Real-time l Soft real-time l l Posix. 1 b compliant – two classes 4 FCFS and RR 4 Highest priority process always runs first 5. 37

The Relationship Between Priorities and Time-slice length 5. 38

The Relationship Between Priorities and Time-slice length 5. 38

List of Tasks Indexed According to Prorities 5. 39

List of Tasks Indexed According to Prorities 5. 39

Algorithm Evaluation n Deterministic modeling – takes a particular predetermined workload and defines the

Algorithm Evaluation n Deterministic modeling – takes a particular predetermined workload and defines the performance of each algorithm for that workload n Queueing models n Implementation 5. 40
