Chapter 13 The Spinal Nerves

Chapter 13 The Spinal Nerves

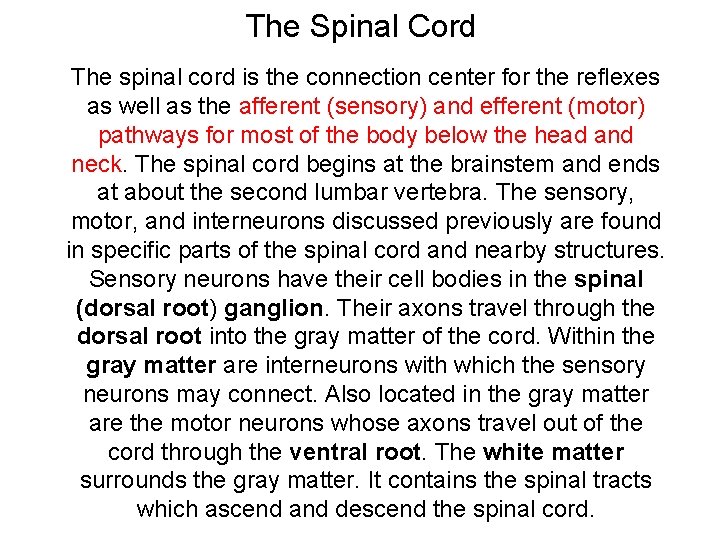

The Spinal Cord The spinal cord is the connection center for the reflexes as

The Spinal Cord The spinal cord is the connection center for the reflexes as well as the afferent (sensory) and efferent (motor) pathways for most of the body below the head and neck. The spinal cord begins at the brainstem and ends at about the second lumbar vertebra. The sensory, motor, and interneurons discussed previously are found in specific parts of the spinal cord and nearby structures. Sensory neurons have their cell bodies in the spinal (dorsal root) ganglion. Their axons travel through the dorsal root into the gray matter of the cord. Within the gray matter are interneurons with which the sensory neurons may connect. Also located in the gray matter are the motor neurons whose axons travel out of the cord through the ventral root. The white matter surrounds the gray matter. It contains the spinal tracts which ascend and descend the spinal cord.

Spinal Nerves

Spinal Nerves

Meninges Surrounding both the spinal cord and the brain are the meninges, a three

Meninges Surrounding both the spinal cord and the brain are the meninges, a three layered covering of connective tissue. The dura mater is the tough outer layer. Beneath the dura is the arachnoid which is like a spider web in consistency. The arachnoid has abundant space within and beneath it (the subarachnoid space) which contains cerebrospinal fluid, as does the space beneath the dura mater (subdural space). This cerebrospinal fluid supplies buoyancy for the spinal cord and brain to help provide shock absorption. The pia mater is a very thin layer which adheres tightly to the surface of the brain and spinal cord. It follows all contours and fissures (sulci) of the brain and cord.

Anatomy of the Spinal Cord

Anatomy of the Spinal Cord

Anatomy of the Spinal Cord

Anatomy of the Spinal Cord

Anatomy of the Spinal Cord Upper limbs lower limbs

Anatomy of the Spinal Cord Upper limbs lower limbs

Spinal Nerves At 31 places along the spinal cord the dorsal and ventral roots

Spinal Nerves At 31 places along the spinal cord the dorsal and ventral roots come together to form spinal nerves. Spinal nerves contain both sensory and motor fibers, as do most nerves. Spinal nerves are given numbers which indicate the portion of the vertebral column in which they arise. There are 8 cervical (C 1 -C 8), 12 thoracic (T 1 -T 12), 5 lumbar (L 1 L 5), 5 sacral (S 1 -S 5), and 1 coccygeal nerve. Nerve C 1 arises between the cranium and atlas (1 st cervical vertebra) and C 8 arises between the 7 th cervical and 1 st thoracic vertebra. All the others arise below the respective vertebra or former vertebra in the case of the sacrum. Since the actual cord ends at the second lumbar vertebra, the later roots arise close together on the cord and travel downward to exit at the appropriate point. These nerve roots are called the cauda equina because of their resemblance to a horses tail.

Anatomy of the Spinal Cord

Anatomy of the Spinal Cord

Spinal Nerve Anatomy

Spinal Nerve Anatomy

Anatomy of the Spinal Cord

Anatomy of the Spinal Cord

Branches of Spinal Nerves Deep muscles of skin+dorsal surface Autonomic Upper/lower limbs+skin lat/vent trunk

Branches of Spinal Nerves Deep muscles of skin+dorsal surface Autonomic Upper/lower limbs+skin lat/vent trunk Vertebrae, blood vessels, meninges of cord

Spinal nerves join together in plexuses. A plexus is an interconnection of fibers which

Spinal nerves join together in plexuses. A plexus is an interconnection of fibers which form new combinations as the "named" or peripheral nerves. There are four voluntary plexuses (there also some autonomic plexuses): 1. The cervical plexus 2. The brachial plexus 3. The lumbar plexus 4. The sacral plexus. Each plexus gives rise to new combinations of fibers as the peripheral nerves.

Intercostal Nerves Spinal nerves T 2 -T 12 do not enter into the plexuses.

Intercostal Nerves Spinal nerves T 2 -T 12 do not enter into the plexuses. • Anterior ramus innervates intercostal muscles, abdominal muscles and overlying skin • Posterior ramus innervates deep back muscles and skin of the posterior thorax

Plexuses Cervical Plexus-the phrenic nerve travels through the thorax to innervate the diaphragm. Occipital,

Plexuses Cervical Plexus-the phrenic nerve travels through the thorax to innervate the diaphragm. Occipital, auricular and supraclavicular (skin-head/neck). Ansa cervalis (infra and geniohyoid muscles). Brachial Plexus- Axillary nerve-innervates the deltoid muscle and shoulder, along with the posterior aspect of the upper arm. Musculocutaneous nerve- innervates anterior skin of upper arm and elbow flexors. ・Radial nerve - innervates dorsal aspect of the arm and extensors of the elbow, wrist, and fingers, abduction of thumb. ・Median nerve - innervates the middle elbow, wrist and finger flexors, adducts the thumb. ・Ulnar nerve - innervates the medial aspect wrist and finger flexors. Lumbar Plexus-genitofemoral-to the external genitalia・obturator-to the adductor muscles. femoral-innervates the skin and muscles of upper thigh, including the quadriceps. Sacral Plexus gluteal nerves (superior and inferior) - superior innervates the gluteus medius and minimus, inferior innervates the gluteus maximus. ・sciatic nerve - the body's largest nerve, consisting of two major branches, the tibial and common peroneal. Together they innervate most all of leg including the flexors of the knee, part of adductor magnus, muscles for plantar flexion, dorsiflexion, and other movements of the foot and toes.

The Cervical Plexus Sensory Branches (superficial) • Lesser occipital- C 2 -skin of scalp

The Cervical Plexus Sensory Branches (superficial) • Lesser occipital- C 2 -skin of scalp post/sup to ear • Great auricular- C 2/3 -skin ant/inf/over ear • Transverse cervical- C 2/3 -skin ant neck • Supraclavicular- C 3/4 -skin over shest /shoulder Motor Branches (deep) • Ansa cervicalis- C 1, 2/3 sup/inf parts: infrahyoid/geniohyoid, geniohyoid • Phrenic- C 3/5 -diaphram • Segmental branches- C 1 -5, deep neck, levator scapulae, mid scalenes

Cervical Plexus

Cervical Plexus

The Brachial Plexus • Dorsal scapular- C 5 -levator scapulae, rhomboids • Long thoracic-

The Brachial Plexus • Dorsal scapular- C 5 -levator scapulae, rhomboids • Long thoracic- C 5 -C 7 -serratus anterior • Subclavius- C 5/6 -subclavius muscle • Musculocutaneous- C 5 -C 7 -coricobrachialis, biceps, brachialis • Lateral Pectoral- C 5 -C 7 -Pectoralis major • Upper subscapular- C 5/6 -Subscapularis • Thoracodorsal- C 6 -C 8 latissimus dorsi • Lower subscapular- C 5/6 subscapularis and teres major • Axillary- C 5/6 deltoid and teres minor • Median- C 5 -T 1 flexors of forearm except carpi ulnaris, skin/muscles lat palm • Radial- Triceps, extensor muscles of arm/forearm, skin • Medial pectoral- C 8 -T 1 pectoralis major and minor • Medial cutaneous arm/forearm- C 8 -T 1 -skin of med and post arm/forearm • Ulnar- C 8 -T 1, flex carpi ulnaris, flex dig profundis, hand muscles skin med

The Brachial Plexus

The Brachial Plexus

Injuries to the brachial plexus radial ulnar median C 5 -C 6 Long Thoracic

Injuries to the brachial plexus radial ulnar median C 5 -C 6 Long Thoracic

The Lumbar Plexus • Iliohypogastric- L 1 -anterior lateral abdominal wall, skin inf abdomen

The Lumbar Plexus • Iliohypogastric- L 1 -anterior lateral abdominal wall, skin inf abdomen • Ilioinguinal- L 1 -ant lat abdominal wall, skin med thigh, genitalia • Genitofemoral- L 1/2 -skin ant thigh, genitalia • lateralcutaneous- L 2/3 -skin over lat/ant/post thigh • Femoral- L 2 -L 4 -thigh flexors/entensors skin-med thigh and foot • Obturator L 2 -L 4 -leg adductor muscles

The Sacral Plexus • Superior gluteal- L 4/5 and S 1, gluteus minimus, medius,

The Sacral Plexus • Superior gluteal- L 4/5 and S 1, gluteus minimus, medius, tensor fasciae • Inferior gluteal- L 5 -S 2 gluteus maximus • Piriformis- S 1/2 piriformis • Quadratus femoris- L 4/5 and S 1 -quadratus femoris • Obturator- L 5 -S 2 Obturator • Perforating cutaneous- S 2/3 skin over inf med buttock • Posterior cutaneous- S 1 -S 3 skin over anal region, inf lat buttock, genetialia • Sciatic- L 4 -S 3 tibial and common fibular • Prudendal- S 2 -S 4 perineum, genetalia

Lumbar and Sacral Plexuses

Lumbar and Sacral Plexuses

The Spinal Tracts The white matter of the spinal cord contains tracts which travel

The Spinal Tracts The white matter of the spinal cord contains tracts which travel up and down the cord. Many of these tracts travel to and from the brain to provide sensory input to the brain, or bring motor stimuli from the brain to control effectors. Ascending tracts, those which travel toward the brain are sensory, descending tracts are motor. Motor or sensory tract? Most sensory tracts names begin with spino, indicating origin in the spinal cord, and their name will end with the part of the brain where the tract leads. For example the spinothalamic tract travels from the spinal cord to the thalamus. Tracts whose names begin with a part of the brain are motor. For example the corticospinal tract begins with fibers leaving the cerebral cortex and travels down toward motor neurons in the cord.

The dermatomes are somatic or musculocutaneous areas served by fibers from specific spinal nerves.

The dermatomes are somatic or musculocutaneous areas served by fibers from specific spinal nerves. The map of the dermatomes is useful in diagnosing the origin of certain somatic pain, numbness, tingling etc. when these symptoms are caused by pressure or inflammation of the spinal cord or nerve roots. Referred pain is caused when the sensory fibers from an internal organ enter the spinal cord in the same root as fibers from a dermatome. The brain is poor at interpreting visceral pain and instead interprets it as pain from the somatic area of the dermatome. So pain in the heart is often interpreted as pain in the left arm or shoulder, pain in the diaphragm is interpreted as along the left clavicle and neck, and the "stitch in your side" you sometimes feel when running is pain in the liver as its vessels vasoconstrict.

Dermatomes

Dermatomes

The Spinal Tracts

The Spinal Tracts

Spinal Cord Tracts

Spinal Cord Tracts

Spinal Circuits

Spinal Circuits

Spinal Circuits-stretch reflex

Spinal Circuits-stretch reflex

Spinal Circuits-tendon reflex

Spinal Circuits-tendon reflex

Spinal Circuits-flexor reflex

Spinal Circuits-flexor reflex

Spinal Circuits-crossed extensor reflex

Spinal Circuits-crossed extensor reflex

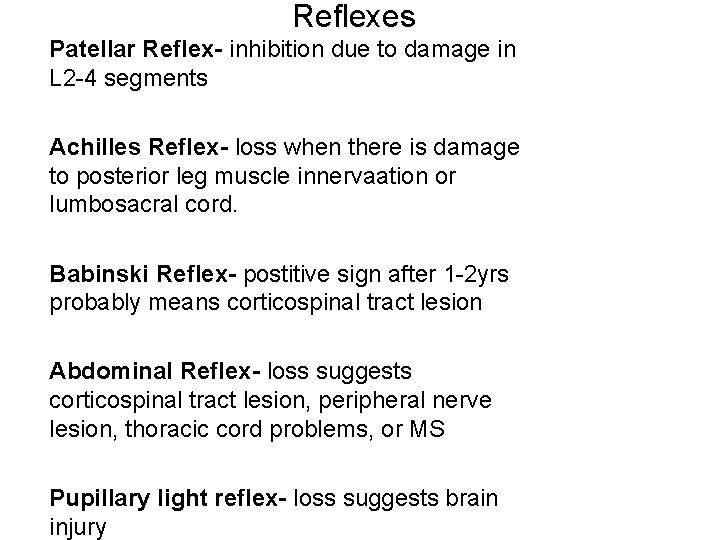

Reflexes Patellar Reflex- inhibition due to damage in L 2 -4 segments Achilles Reflex-

Reflexes Patellar Reflex- inhibition due to damage in L 2 -4 segments Achilles Reflex- loss when there is damage to posterior leg muscle innervaation or lumbosacral cord. Babinski Reflex- postitive sign after 1 -2 yrs probably means corticospinal tract lesion Abdominal Reflex- loss suggests corticospinal tract lesion, peripheral nerve lesion, thoracic cord problems, or MS Pupillary light reflex- loss suggests brain injury

Spinal Injury

Spinal Injury

End of Chapter 13

End of Chapter 13
