Chapter 10 Regulation of Transcription Initiation Copyright (c) by W. H. Freeman and Company

Chapter 10 Regulation of Transcription Initiation Copyright (c) by W. H. Freeman and Company

10. 1 Bacterial gene control: the Jacob. Monod model Figure 10 -2 Copyright (c)

10. 1 Bacterial gene control: the Jacob. Monod model Figure 10 -2 Copyright (c) by W. H. Freeman and Company

10. 1 Experimental evidence for cis-acting DNA sequences Figure 10 -3 Copyright (c) by

10. 1 Experimental evidence for cis-acting DNA sequences Figure 10 -3 Copyright (c) by W. H. Freeman and Company

10. 1 Experimental evidence for transacting genes/proteins Figure 10 -4 Copyright (c) by W.

10. 1 Experimental evidence for transacting genes/proteins Figure 10 -4 Copyright (c) by W. H. Freeman and Company

10. 2 Bacterial transcription initiation z RNA polymerase initiates transcription of most genes at

10. 2 Bacterial transcription initiation z RNA polymerase initiates transcription of most genes at a unique DNA position lying upstream of the coding sequence z The base pair where transcription initiates is termed the transcription-initiation site or start site z By convention, the transcription-initiation site in the DNA sequence is designated +1, and base pairs extending in the direction of transcription (downstream) are assigned positive numbers which those extending in the opposite direction (upstream) are assigned negative numbers z Various proteins (RNA polymerase, activators, repressors) interact with DNA at or near the promoter to regulate transcription initiation Copyright (c) by W. H. Freeman and Company

10. 2 DNase I footprinting assays identify protein-DNA interactions Figure 10 -6 Copyright (c)

10. 2 DNase I footprinting assays identify protein-DNA interactions Figure 10 -6 Copyright (c) by W. H. Freeman and Company

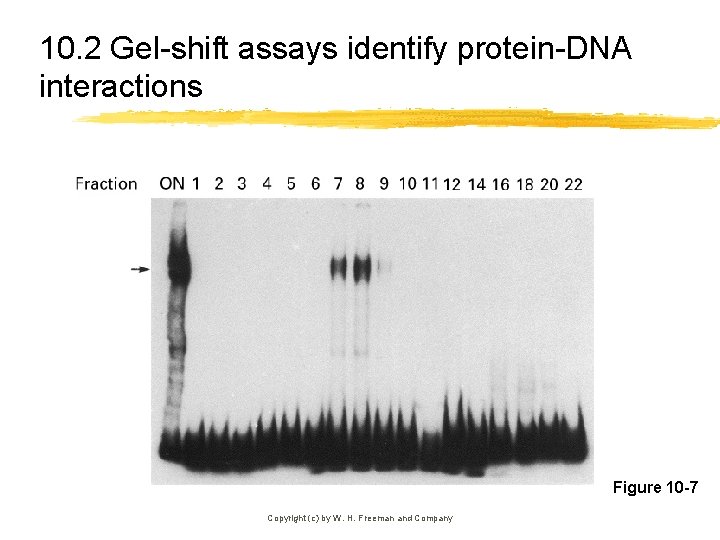

10. 2 Gel-shift assays identify protein-DNA interactions Figure 10 -7 Copyright (c) by W.

10. 2 Gel-shift assays identify protein-DNA interactions Figure 10 -7 Copyright (c) by W. H. Freeman and Company

10. 2 The footprint of RNA polymerase and lac repressor on the lac control

10. 2 The footprint of RNA polymerase and lac repressor on the lac control region Figure 10 -8 Copyright (c) by W. H. Freeman and Company

10. 2 The lac control region contains three critical cis-acting sites Figure 10 -9

10. 2 The lac control region contains three critical cis-acting sites Figure 10 -9 Copyright (c) by W. H. Freeman and Company

10. 2 RNA polymerase binds to specific promoter sequences to initiate transcription Each subunit

10. 2 RNA polymerase binds to specific promoter sequences to initiate transcription Each subunit has a specific function Figure 10 -10 Copyright (c) by W. H. Freeman and Company

10. 2 Differences in E. coli promoter sequences affect the frequency of transcription initiation

10. 2 Differences in E. coli promoter sequences affect the frequency of transcription initiation Copyright (c) by W. H. Freeman and Company Figure 10 -11

10. 2 Most operator sequences are short inverted repeats The lac operator Figure 10

10. 2 Most operator sequences are short inverted repeats The lac operator Figure 10 -12 Copyright (c) by W. H. Freeman and Company

10. 2 Most bacterial repressors are dimers containing helices that insert into adjacent major

10. 2 Most bacterial repressors are dimers containing helices that insert into adjacent major grooves of operator DNA Figure 10 -13 Copyright (c) by W. H. Freeman and Company

10. 2 Ligand-induced conformational changes alter affinity of many repressors for DNA Tryptophan binding

10. 2 Ligand-induced conformational changes alter affinity of many repressors for DNA Tryptophan binding induces a conformational change in the trp aporepressor Figure 10 -14 Copyright (c) by W. H. Freeman and Company

10. 2 Positive control of the lac operon is exerted by c. AMP-CAP =

10. 2 Positive control of the lac operon is exerted by c. AMP-CAP = catabolite activator protein Figure 10 -16 Copyright (c) by W. H. Freeman and Company

10. 2 Cooperative binding of c. AMP-CAP and RNA polymerase to the lac contol

10. 2 Cooperative binding of c. AMP-CAP and RNA polymerase to the lac contol region activates transcription Figure 10 -17 Copyright (c) by W. H. Freeman and Company

10. 2 Transcription from some promoters is initiated by alternative sigma ( ) factors

10. 2 Transcription from some promoters is initiated by alternative sigma ( ) factors Copyright (c) by W. H. Freeman and Company

10. 2 Activation of 54 -containing RNA polymerase at gln. A promotor by Ntr.

10. 2 Activation of 54 -containing RNA polymerase at gln. A promotor by Ntr. C Figure 10 -19 Copyright (c) by W. H. Freeman and Company

10. 2 Visualization of DNA looping and interaction of bound Ntr. C and 54

10. 2 Visualization of DNA looping and interaction of bound Ntr. C and 54 - polymerase Figure 10 -20 Copyright (c) by W. H. Freeman and Company

10. 2 Many bacterial responses are controlled by two-component regulatory systems The Pho. R/Pho.

10. 2 Many bacterial responses are controlled by two-component regulatory systems The Pho. R/Pho. B two-component regulatory system in E. coli Figure 10 -21 Copyright (c) by W. H. Freeman and Company
