CATALYTIC STRIPPER EMERY OIL REMOVAL EFFICIENCY M Irwin
- Slides: 17
CATALYTIC STRIPPER EMERY OIL REMOVAL EFFICIENCY M. Irwin, A. M. Boies, J. J. Swanson, H. -J. Schulz ºCatalytic Instruments
BACKGROUND ºCatalytic Instruments Gmb. H & Co. KG specialise in the production of innovative aerosol instrumentation and services founded on “catalytic stripper” (CS) technology Catalytic Stripper (CS) Common component of a Volatile Particle Remover (VPR) More robust than a simple thermodenuder/evaporation tube for the new proposed sub-23 nm roll-off Passes current challenge aerosol test (tetracontane) Next challenge: “ > 99% removal efficiency of polydisperse alkane or emery oil with count median diameter > 50 nm and mass > 1 mg/m 3” 2
VOLATILE PARTICLE REMOVER VPR A VPR is deployed to ensure only the solid fraction of aerosol is measured by the Particle Number Counter (PNC) Legislated levels are for the VPR system as a whole To ensure robustness, we tested the CS at undiluted levels Acronym PSP PTT PCF VPR PNC CS PND 2 Definition Particle Sampling Probe Particle Transfer Tube Particle pre-classifier Volatile Particle Remover Particle Number Counter Catalytic Stripper Particle Number Diluter 2
EXPERIMENTAL GOALS 01 Performance with dilution 02 Performance without dilution Examine the removal efficiency of the CS 015 under expected load conditions, i. e. with concentration appropriate to PND 1 operating at a dilution factor of at least 10 Examine the removal efficiency of the CS 015 without any dilution stages—”worst case scenario”, i. e. with no or failed PND 1
EXPERIMENTAL SETUP • • Emery oil diluted in n-propanol 1. 5 L/min flow rate through CS 015 operated at 350ºC SMPS with multiple charge correction enabled
EMERY OIL SIZE DISTRIBUTION - DILUTED
EMERY OIL CS REMOVAL EFFICIENCY Number removal efficiency = 99. 8% Mass removal efficiency = 99. 99%
EMERY OIL CS REMOVAL EFFICIENCY Number removal efficiency = 99. 8% Mass removal efficiency = 99. 99%
EMERY OIL SIZE DISTRIBUTION - UNDILUTED

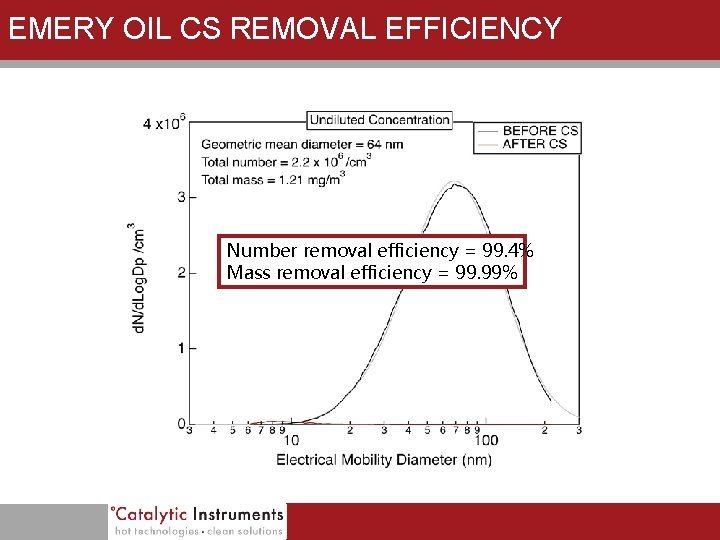

EMERY OIL CS REMOVAL EFFICIENCY Number removal efficiency = 99. 4% Mass removal efficiency = 99. 99%
EMERY OIL CS REMOVAL EFFICIENCY Number removal efficiency = 99. 4% Mass removal efficiency = 99. 99%
WHAT ABOUT THIS RESIDUAL MODE? Not all particles removed? These are contaminant particles that form from metallic ionic compounds present in the mixture (n-propanol and emery oil) These compounds form small metallic nanoparticles when the solvent evaporates This can demonstrated in two ways 1) pure generation technique (no solvent) 2) a tandem CS
RESULTS SUMMARY CONCENTRATION 9. 9 x 105 /cc DILUTED GMD 56 nm 0. 15 mg/m 3 2. 2 x 106 /cc UNDILUTED GMD 64 nm 1. 21 mg/m 3 NUMBER REMOVAL EFFICIENCY MASS REMOVAL EFFICIENCY 99. 80% 99. 99% 99. 40% 99. 99%
CONCLUSIONS 01 Performance with dilution 02 Performance without dilution 03 Application Note CI-00070 Removal efficiency target of > 99% reach for diluted concentration of Emery Oil, w. r. t number and mass Removal efficiency target of > 99% reach for raw concentration of Emery Oil, w. r. t number and mass Scan the QR code to the right to download the application note pdf with detailed explanation and more data. 14
15
CONCLUSIONS 01 Performance with dilution Number removal efficiency > 99. 8% Mass removal efficiency > 99. 99%
CONCLUSIONS 02 Performance without dilution Number removal efficiency > 99. 4% Mass removal efficiency > 99. 99%
