CASTOR: CERN’s data management system Data and storage mgmt workshop 17/3/2003 Ben Couturier, Jean-Damien Durand, CERN IT-ADC 17/3/2003 CASTOR: CERN's data management system
![Introduction CERN Advanced STORage Manager Hierarchical Storage Manager used to store user Introduction • CERN Advanced STORage Manager – Hierarchical Storage Manager used to store user](https://slidetodoc.com/presentation_image_h/9e69dd6a0f8986ae47a3bb9e72abaf65/image-2.jpg)

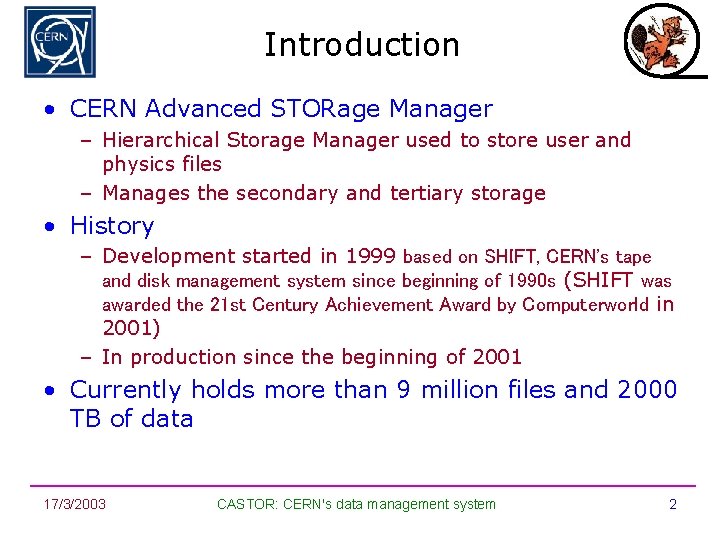

Introduction • CERN Advanced STORage Manager – Hierarchical Storage Manager used to store user and physics files – Manages the secondary and tertiary storage • History – Development started in 1999 based on SHIFT, CERN's tape and disk management system since beginning of 1990 s (SHIFT was awarded the 21 st Century Achievement Award by Computerworld in 2001) – In production since the beginning of 2001 • Currently holds more than 9 million files and 2000 TB of data 17/3/2003 CASTOR: CERN's data management system 2
![Main Characteristics 1 CASTOR Namespace All files belong to the castor hierarchy Main Characteristics (1) • CASTOR Namespace – All files belong to the “/castor” hierarchy](https://slidetodoc.com/presentation_image_h/9e69dd6a0f8986ae47a3bb9e72abaf65/image-3.jpg)
Main Characteristics (1) • CASTOR Namespace – All files belong to the “/castor” hierarchy – The rights are standard UNIX rights • POSIX Interface – The files are accessible through a standard POSIX interface, all calls are rfio_xxx (e. g. rfio_open, rfio_close…) • RFIO Protocol – All remote file access done using the Remote File IO protocol, developed at CERN. 17/3/2003 CASTOR: CERN's data management system 3
![Main Characteristics 2 Modularity The components in CASTOR have well defined roles Main Characteristics (2) • Modularity – The components in CASTOR have well defined roles](https://slidetodoc.com/presentation_image_h/9e69dd6a0f8986ae47a3bb9e72abaf65/image-4.jpg)
Main Characteristics (2) • Modularity – The components in CASTOR have well defined roles and interfaces, it is possible to change a component without affecting the whole system • Highly Distributed System – CERN uses a very distributed configuration with many disk servers/tape servers. – Can also run in more limited environment • Scalability – The number of disk servers, tape servers, name servers… is not limited – Use of RDBMS (Oracle, My. SQL) to improve the scalability of some critical components 17/3/2003 CASTOR: CERN's data management system 4
![Main Characteristics 3 Tape drive sharing A large number of drives can Main Characteristics (3) • Tape drive sharing – A large number of drives can](https://slidetodoc.com/presentation_image_h/9e69dd6a0f8986ae47a3bb9e72abaf65/image-5.jpg)
Main Characteristics (3) • Tape drive sharing – A large number of drives can be shared between users or dedicated to some users/experiments – Drives can be shared with other applications: with TSM, for example • High Performance Tape Mover – Use of threads and circular buffers – Overlaid device and network I/O • Grid Interfaces – A Grid. FTP daemon interfaced with CASTOR is currently in test – A SRM Interface (V 1. 0) for CASTOR has been developed 17/3/2003 CASTOR: CERN's data management system 5
![Hardware Compatibility CASTOR runs on Linux Solaris AIX HPUX Digital UNIX IRIX Hardware Compatibility • CASTOR runs on: – Linux, Solaris, AIX, HP-UX, Digital UNIX, IRIX](https://slidetodoc.com/presentation_image_h/9e69dd6a0f8986ae47a3bb9e72abaf65/image-6.jpg)
Hardware Compatibility • CASTOR runs on: – Linux, Solaris, AIX, HP-UX, Digital UNIX, IRIX – The clients and some of the servers run on Windows NT/2 K • Supported drives – DLT/SDLT, LTO, IBM 3590, STK 9840, STK 9940 A/B (and old drives already supported by SHIFT) • Libraries – SCSI Libraries – ADIC Scalar, IBM 3494, IBM 3584, Odetics, Sony DMS 24, STK Powderhorn 17/3/2003 CASTOR: CERN's data management system 6
![CASTOR Components Central servers Name Server Volume Manager Volume and CASTOR Components • Central servers – Name Server – Volume Manager – Volume and](https://slidetodoc.com/presentation_image_h/9e69dd6a0f8986ae47a3bb9e72abaf65/image-7.jpg)
CASTOR Components • Central servers – Name Server – Volume Manager – Volume and Drive Queue Manager (Manages the volume and drive queues per device group) – UPV (Authorization daemon) • “Disk” subsystem – RFIO (Disk Mover) – Stager (Disk Pool Manager and Hierarchical Resource Manager) • “Tape” Subsystem – RTCOPY daemon (Tape Mover) – Tpdaemon (PVR) 17/3/2003 CASTOR: CERN's data management system 7
![CASTOR Architecture CUPV VDQM server NAME server RFIO Client STAGER RTCPD TAPE MOVER RFIOD CASTOR Architecture CUPV VDQM server NAME server RFIO Client STAGER RTCPD (TAPE MOVER) RFIOD](https://slidetodoc.com/presentation_image_h/9e69dd6a0f8986ae47a3bb9e72abaf65/image-8.jpg)
CASTOR Architecture CUPV VDQM server NAME server RFIO Client STAGER RTCPD (TAPE MOVER) RFIOD (DISK MOVER) DISK POOL 17/3/2003 TPDAEMON (PVR) VOLUME manager CASTOR: CERN's data management system MSGD 8
![CASTOR Setup at CERN Disk servers 140 disk servers CASTOR Setup at CERN • Disk servers – ~ 140 disk servers – ~](https://slidetodoc.com/presentation_image_h/9e69dd6a0f8986ae47a3bb9e72abaf65/image-9.jpg)
CASTOR Setup at CERN • Disk servers – ~ 140 disk servers – ~ 70 TB of staging pools – ~ 40 stagers • Tape drives and servers Model Nb Drives Nb Servers 9940 B 21 20 9940 A 28 10 9840 15 5 3590 4 2 DLT 7000 6 2 LTO 6 3 SDLT 2 1 • Libraries – 2 sets of 5 Powderhorn silos (2 x 27500 cartridges) – 1 Timberwolf (1 x 600 cartridges) – 1 L 700 (1 x 600 cartridges) 17/3/2003 CASTOR: CERN's data management system 9
![Evolution of Data in CASTOR 1732003 CASTOR CERNs data management system 10 Evolution of Data in CASTOR 17/3/2003 CASTOR: CERN's data management system 10](https://slidetodoc.com/presentation_image_h/9e69dd6a0f8986ae47a3bb9e72abaf65/image-10.jpg)
Evolution of Data in CASTOR 17/3/2003 CASTOR: CERN's data management system 10
![Tape Mounts per group 1732003 CASTOR CERNs data management system 11 Tape Mounts per group 17/3/2003 CASTOR: CERN's data management system 11](https://slidetodoc.com/presentation_image_h/9e69dd6a0f8986ae47a3bb9e72abaf65/image-11.jpg)
Tape Mounts per group 17/3/2003 CASTOR: CERN's data management system 11
![Tape Mounts per drive type 1732003 CASTOR CERNs data management system 13 Tape Mounts per drive type 17/3/2003 CASTOR: CERN's data management system 13](https://slidetodoc.com/presentation_image_h/9e69dd6a0f8986ae47a3bb9e72abaf65/image-12.jpg)
Tape Mounts per drive type 17/3/2003 CASTOR: CERN's data management system 13
![ALICE Data Challenge Migration rate of 300 MBs sustained for a week ALICE Data Challenge • Migration rate of 300 MB/s sustained for a week –](https://slidetodoc.com/presentation_image_h/9e69dd6a0f8986ae47a3bb9e72abaf65/image-13.jpg)
ALICE Data Challenge • Migration rate of 300 MB/s sustained for a week – Using 18 STK T 9940 B drives – ~ 20 disk servers managed by 1 stager – A separate name server was used for the data challenge 17/3/2003 CASTOR: CERN's data management system 14
![1732003 CASTOR CERNs data management system 15 17/3/2003 CASTOR: CERN's data management system 15](https://slidetodoc.com/presentation_image_h/9e69dd6a0f8986ae47a3bb9e72abaf65/image-14.jpg)
17/3/2003 CASTOR: CERN's data management system 15
