ATM900 Series Acoustic Telemetry Modems Introduction and Overview
- Slides: 27
ATM-900 Series Acoustic Telemetry Modems Introduction and Overview Communication Group: Justin Manley – Senior Director of Business Development Debbie King – Product Line Manager Adam Lipper – Applications Engineer Joe Borden – Applications Engineer Presenter: Adam Lipper – Applications Engineer
Overview • Acoustic Data Telemetry – Why do I need it? – Where can I use it? – What applications does acoustic telemetry have? • Teledyne Benthos ATM-900 Series Modems – – – Standard Operating Modes Available Options Hardware Upgrades Standard Modem Configurations ATM-900 Series Firmware Standard Features • Question and Answer
Why do I need Acoustic Telemetry? • To send real-time data • To receive real-time data • Wires are expensive and fragile • Want to use water as medium
Where can I use Acoustic Telemetry? • Anywhere • High Noise, cold temperatures, deep water, shallow water • Long distances, short distances • With other acoustic devices
What applications does acoustic telemetry have? • Send real-time data • Receive real-time data • ADCP’s, AUV’s, stress probe, CTD, tide gauge, etc.
Standard Features • Capable of sending hardware break to Teledyne RD Instruments Acoustic Doppler Current Profiler • Data logger for instrument data • Bi-directional half duplex • Ranging • Single RS-232 instrument or single RS 422 instrument, RS-485 • Device Enable Sends full hardware break to ADCP to wake any ADCP not a software break. 6144 KB (6 MB) for logging data Two way communications, one direction at a time Range from one modem to another Capable of interfacing to just about any RS 232 instrument Can sink 20 m. A current at 40 V DC Max
Standard Features • Three housing options: ATM-910 Series 500 meter depth rated PVC ATM-920 Series 2000 meter depth rated aluminum ATM-960 Series 6000 meter depth rated aluminum • Remote transducer head options • UDB-9400 Deck Unit capable of AC/DC power operations • Low Frequency (LF) 9 – 14 k. Hz Medium Frequency (MF) 16 – 21 k. Hz Interoperability Band C 22 – 27 k. Hz • Power level adjustment to control amount of energy in water. • Internal band pass filter to eliminate out of band noise. • Internal batteries or 12 -36 V DC operation
ATM-903 Models Similar to ATM-885 -4 G OEM PCB • 6000 Meter Depth Rated transducer • ATM-903 is customer integrated electronics • Requires – Dry electronics space – 12 -36 V DC power – Bulkhead penetration for transducer connection • All ATM-900 Series Modems • Any ATM-900 -xxx is a spare board set
ATM-910 Models All New! • 500 Meter Depth Rated as indicated by 1 in model number • ATM-914 has remote transducer with internal batteries • ATM-915 has integral transducer with internal batteries • ATM-916 has integral transducer with no batteries • All ATM-900 Series Modems
ATM-920 Models Similar to ATM-885 -4 G • 2000 Meter Depth Rated as indicated by 2 in model number • ATM-924 has remote transducer with internal batteries • ATM-925 has integral transducer with internal batteries • ATM-926 has integral transducer with no batteries • All ATM-900 Series Modems
ATM-960 Models Similar to ATM-887 -4 G • 6000 Meter Depth Rated as indicated by 6 in model number • ATM-964 has remote transducer with internal batteries • ATM-965 has integral transducer with internal batteries • ATM-966 has integral transducer with no batteries • All ATM-900 Series Modems
UDB-9400 Series Deck Unit • UDB-9400 Series Deck Units, Three Models – UDB-9400 M – Multi Channel [Navigation, Modems, Releases] – UDB-9400 E – Export Series, Single Channel [Modems, Releases] – UDB-9400 A – Acoustics Series, Single Channel [Releases] • Transducer Cables (B-270 -197 -x) – – – 25 Meter -1 Cable 50 Meter -2 Cable 75 Meter -3 Cable 100 Meter -4 Cable 200 Meter -5 Cable • Transducer (B-270 -167 -x) – – – LF Omni-Directional (-1) 185 d. B Output MF Omni-Directional (-2) 183 d. B Output Band C Omni-Directional (-3) 178 d. B Output Oil Filled LF Omni-Directional (-4) 192 d. B Output Directional transducers are possible
Standard Operational Modes • Online Mode – Data is transferred from one modem to another • Command Mode – Commands are entered and parsed • Data Logger Mode – Data is logged to flash storage area
Available Options Available Now • Dual serial port • Multi-channel receive • High capacity data logger storage (4 GB SDHC Card) • PSK co-processor support for ATM-900 Series • Standard Real-Time Clock (2 PPM accuracy) Available Soon • In-Band Acoustic Data Recorder (Port 1 RS-232/RS-422 user selectable and Port 2 RS-232 only) (for LBL systems)
Always Available • Technical Support • Applications Engineering (pre-quote, during sale, post sale) • Technical Sales information • Training, on-site or at factory for you and your customers
The Applications

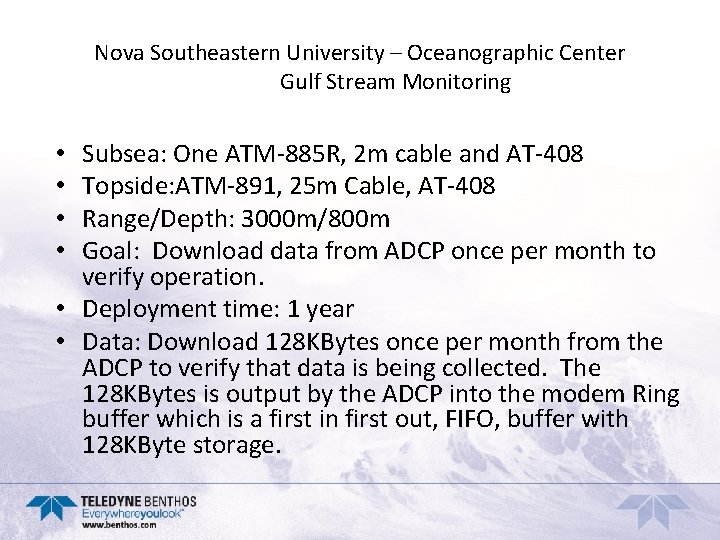

Nova Southeastern University – Oceanographic Center Gulf Stream Monitoring Subsea: One ATM-885 R, 2 m cable and AT-408 Topside: ATM-891, 25 m Cable, AT-408 Range/Depth: 3000 m/800 m Goal: Download data from ADCP once per month to verify operation. • Deployment time: 1 year • Data: Download 128 KBytes once per month from the ADCP to verify that data is being collected. The 128 KBytes is output by the ADCP into the modem Ring buffer which is a first in first out, FIFO, buffer with 128 KByte storage. • •
Nova Southeastern University – Oceanographic Center
Nova Southeastern University – Oceanographic Center
Nova Southeastern University – Oceanographic Center
BMT Scientific Marine Services William Offshore Spar – Devils Tower • Subsea: One ATM-885 Directional and One ATM-885 Omnidirectional • Topside: ATM-891, 200 m cable and AT-408 hull mounted to Spar • Range/Depth: 2000 m & 1000 m/1890 m & 800 m • Goal: Transfer ADCP data from two ADCP’s at different depths in the same water column. • Deployment time: 2 years and 1 year • Data: 1200 byte current profiles sent from each ADCP every 20 minutes • Notes: External battery packs are in use to extend deployment time to 1 and 2 years.
BMT Scientific Marine Services William Offshore Spar – Devils Tower
BMT Scientific Marine Services William Offshore Spar – Devils Tower
BMT Scientific Marine Services William Offshore Spar – Devils Tower
BMT Scientific Marine Services William Offshore Spar – Devils Tower
Questions?
Teledyne Benthos Thank you for your attention.
