ATLANTIS update Sean Ferguson Product Manager ATLANTIS DENTSPLY

™ ATLANTIS update Sean Ferguson Product Manager, ATLANTIS™ DENTSPLY Implants, North America

ATLANTIS™ update • ATLANTIS Abutment Insertion Guide (AAIG) • ATLANTIS ISUS (Implant SUpra. Structures)

ATLANTIS™ Abutment Insertion Guide Pre-launch

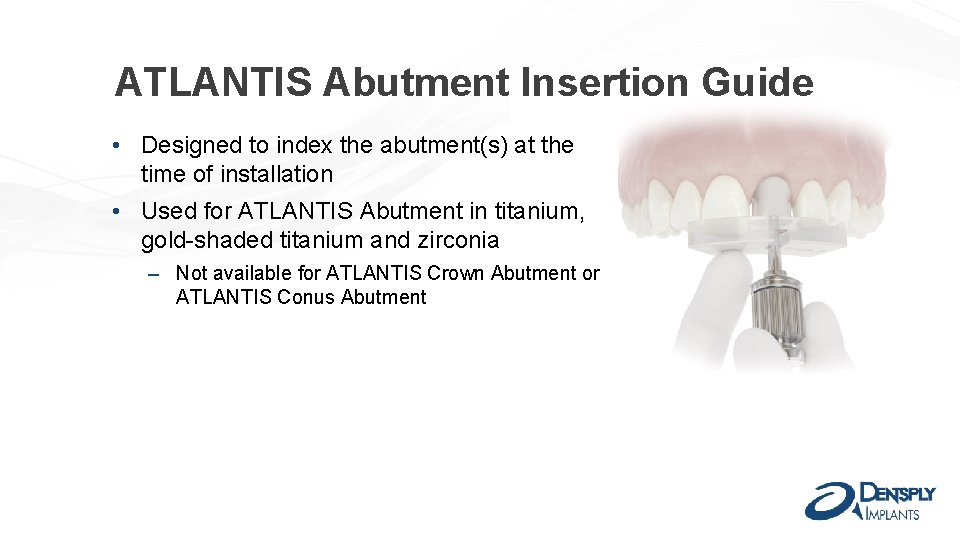

ATLANTIS Abutment Insertion Guide • Designed to index the abutment(s) at the time of installation • Used for ATLANTIS Abutment in titanium, gold-shaded titanium and zirconia ‒ Not available for ATLANTIS Crown Abutment or ATLANTIS Conus Abutment

Benefits • Easier and quicker installation – By holding the guide instead of the smaller abutment. The guide will also hold the abutment securely. • When pressure on the gingiva (e. g. contour tissue) it can be more difficult to find correct rotation – An insertion guide will help, since it is guided by the neighboring teeth. • Since the ATLANTIS Abutment Insertion Guide conforms to the abutment margin, it can keep tissue from collapsing over the margin during crown cementation.

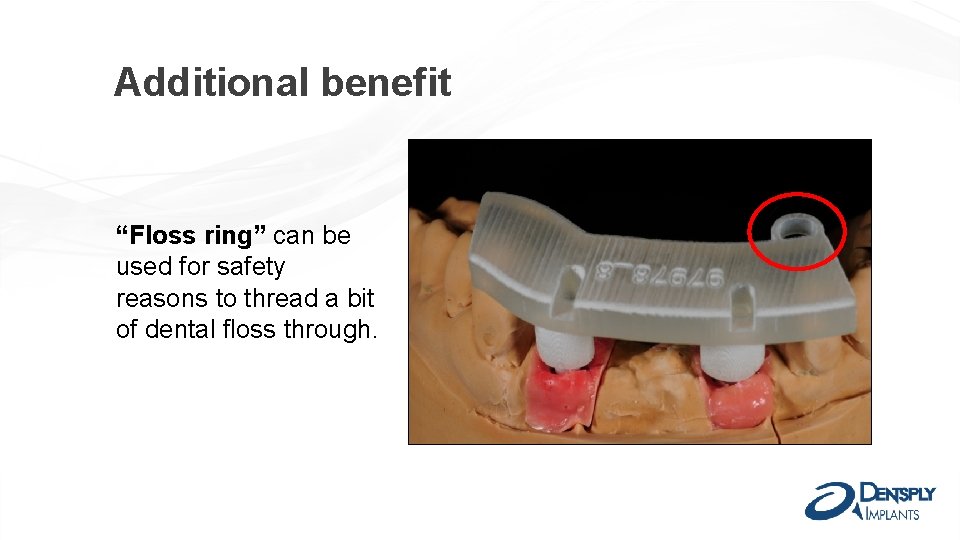

Additional benefit “Floss ring” can be used for safety reasons to thread a bit of dental floss through.

ATLANTIS™ Abutment Insertion Guide —Fulfills need for additional value and functionality Lab-produced insertion guide ATLANTIS™ Abutment Insertion Guide Key clinical/market need is a reliable, functional guide that adds value by: • • Increasing chair side productivity during final abutment placement Improves abutment insertion reliability

Images courtesy of Dr. Arnie Rosen

Facilitates accurate circumferential alignment without the need for an integral-indexed connection Zir Plus ”Hex-less” Connection Designs Ti ATLANTIS™ Abutment Insertion Guide

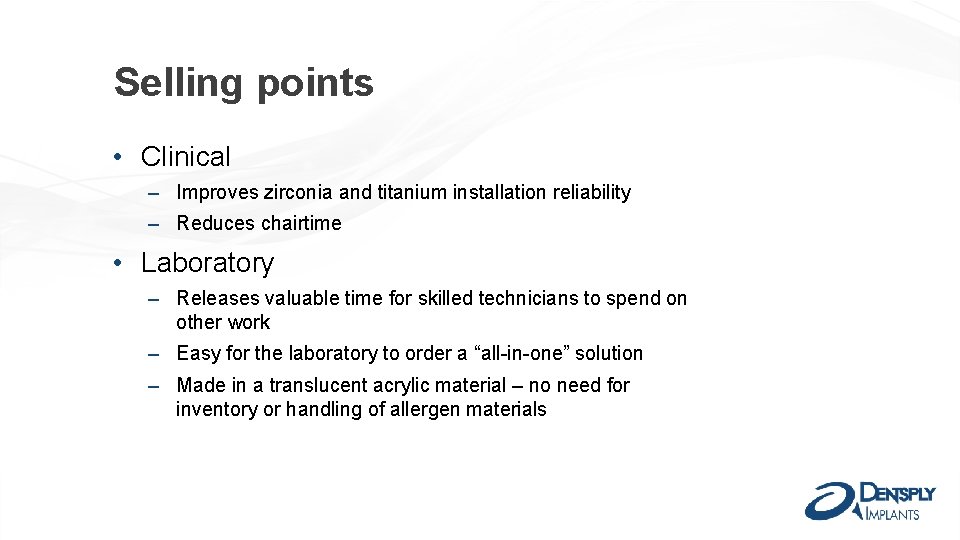

Selling points • Clinical ‒ Improves zirconia and titanium installation reliability ‒ Reduces chairtime • Laboratory ‒ Releases valuable time for skilled technicians to spend on other work ‒ Easy for the laboratory to order a “all-in-one” solution ‒ Made in a translucent acrylic material – no need for inventory or handling of allergen materials

“ Doctors could previously only place one abutment at a time. With the ATLANTIS Abutment Insertion Guide, all they need to do is find the connection with the adjacent teeth and they can place multiple abutments at once. Several, very high-end dentists have told us it’s the fastest seating jig they’ve ever seen. For bridge work, it’s phenomenal. Way easier and faster to seat with this. “ Bobby Williams, CDT Synergy Ceramics and Techsource Dental, Plano, TX

ATLANTIS™ ISUS — Product enhancements

Suprastructures for optimal results ATLANTIS™ ISUS 2 in 1* ATLANTIS™ ISUS Bar – removable prostheses ATLANTIS™ ISUS Bridge ATLANTIS™ ISUS Hybrid – fixed prostheses *ATLANTIS ISUS 2 in 1 not available in Canada (Q 2 2015) Now available*

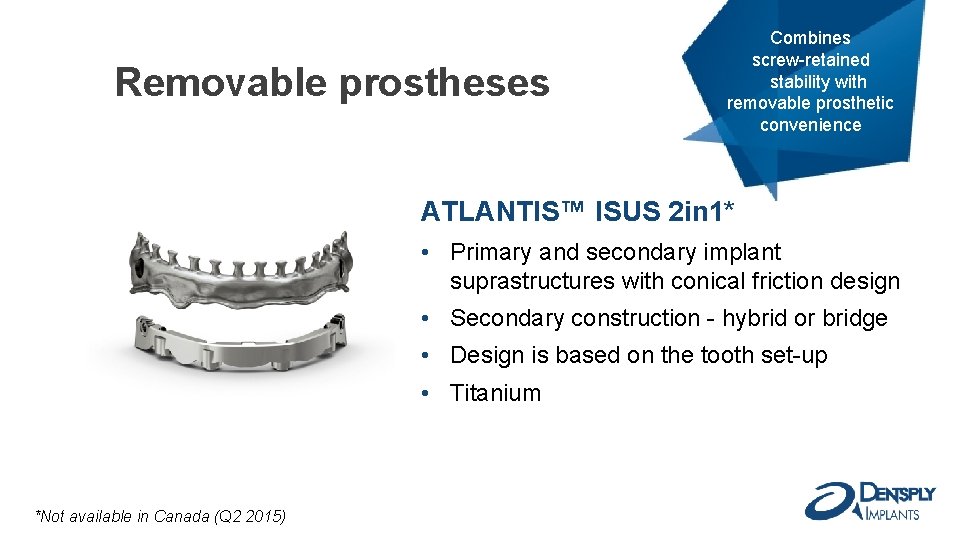

Removable prostheses Combines screw-retained stability with removable prosthetic convenience ATLANTIS™ ISUS 2 in 1* • Primary and secondary implant suprastructures with conical friction design • Secondary construction - hybrid or bridge • Design is based on the tooth set-up • Titanium *Not available in Canada (Q 2 2015)

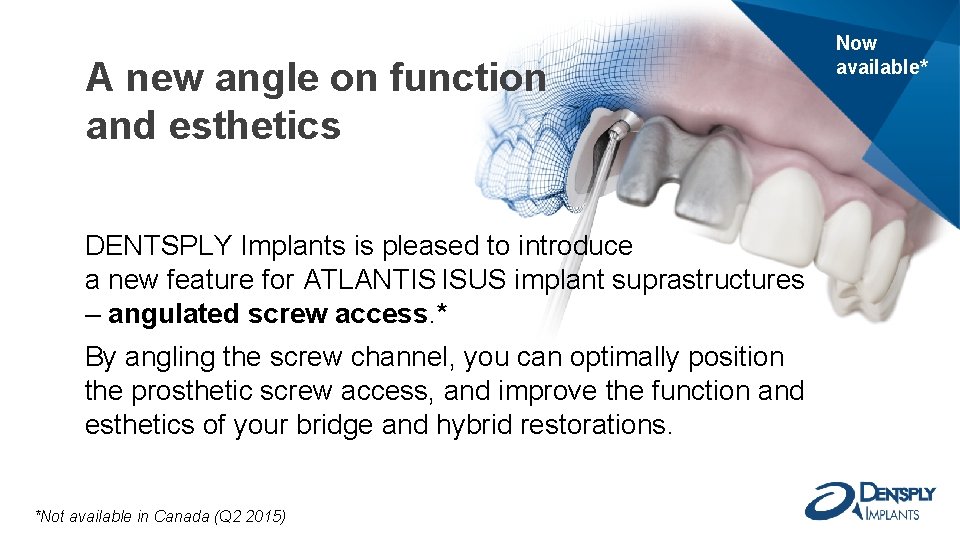

A new angle on function and esthetics DENTSPLY Implants is pleased to introduce a new feature for ATLANTIS ISUS implant suprastructures – angulated screw access. * By angling the screw channel, you can optimally position the prosthetic screw access, and improve the function and esthetics of your bridge and hybrid restorations. *Not available in Canada (Q 2 2015) Now available*

A new angle on function and esthetics Angulated screw access allows the prosthetic screw access channel to be angled up to 30 degrees off the implant/ abutment axis, for optimal esthetics and function. • Function and esthetics you can rely on • Simple restorative procedure with reduced chairtime
