ACTi NVR 3 POS Integration with NCR Aloha

ACTi NVR 3 POS Integration with NCR Aloha 2015/12/3

Challenges you’re facing while using POS system • How can I avoid the fraud transaction? transaction • How can I do operation management and discover a fraudulent behavior from employees? employees • How can I resolve transaction disputes? disputes

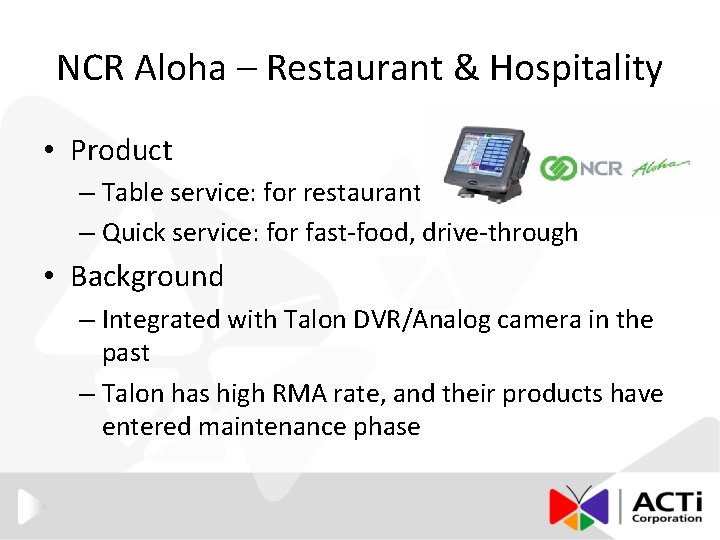

NCR Aloha – Restaurant & Hospitality • Product – Table service: for restaurant – Quick service: for fast-food, drive-through • Background – Integrated with Talon DVR/Analog camera in the past – Talon has high RMA rate, and their products have entered maintenance phase

Applicable product • Now: Software NVR 3 Corporate – 1 free bundled camera channel • Future: new ENR series Q 4, 2016 – License structure TBD – ENR 150/P, ENR 160/P, ENR 170, ENR 180/P, ENR 190 • License structure for NVR 3 Part number MSRP Camera per channel LNVR 3003 -00001 Check with ACTi sales POS per register LPOS 3000 -00001 Check with ACTi sales

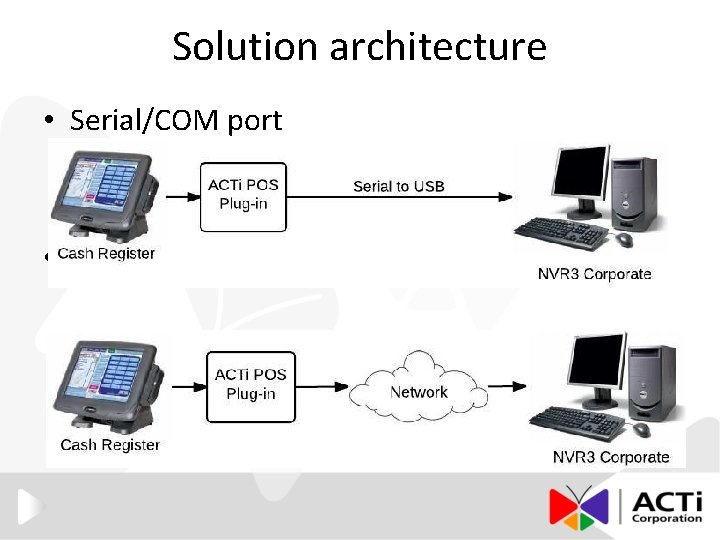

Solution architecture • Serial/COM port • TCP/IP

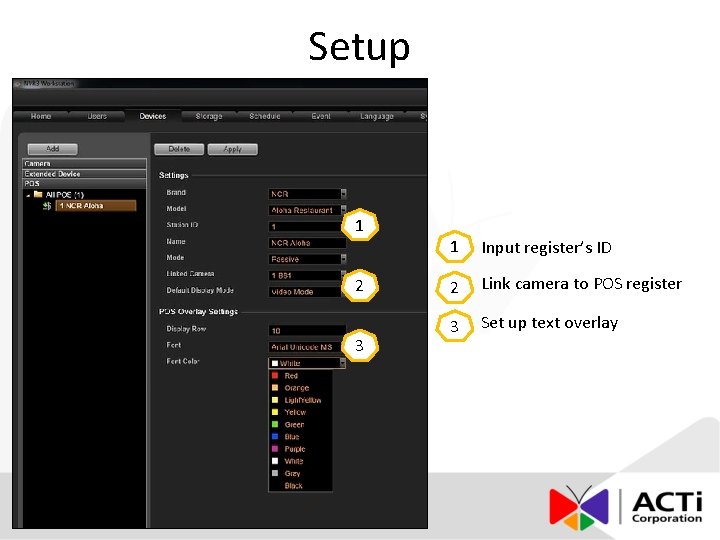

Setup 1 2 3 1 Input register’s ID 2 Link camera to POS register 3 Set up text overlay

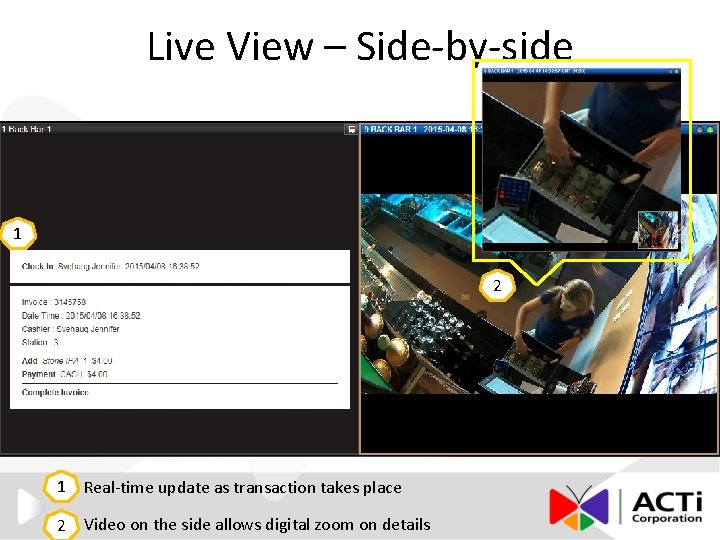

Live View – Side-by-side 1 2 1 Real-time update as transaction takes place 2 Video on the side allows digital zoom on details

Live View – Text Overlay 1 2 Direct text-overlay allows efficient use of layout Text-overlay and side-byside are interchangeable on both live view and playback page

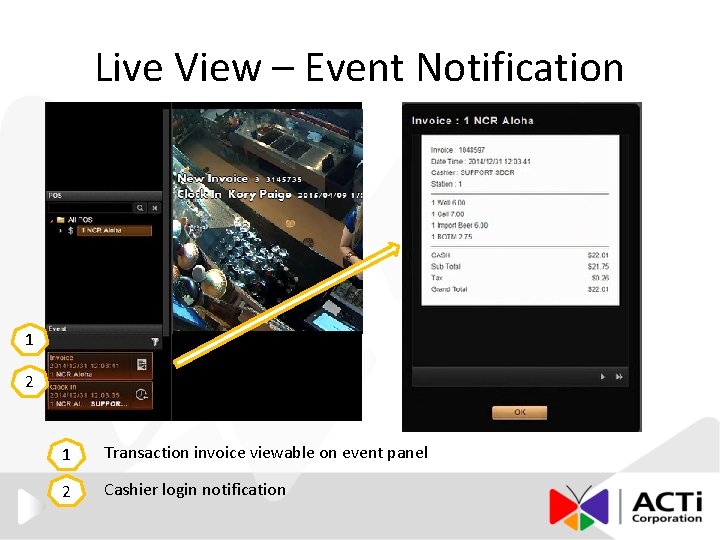

Live View – Event Notification 1 2 1 Transaction invoice viewable on event panel 2 Cashier login notification

Playback 1 1 Synchronized playback up to 64 channels with transaction

Search 1 1 Playback allows text-based search including purchased item, cashier’s name, and payment method

Search Result 1 2 1 Search result displays today’s transaction 2 Trace back to previous dates to show other results

Search to Invoice Preview 1 2 Click on each entry to preview invoice

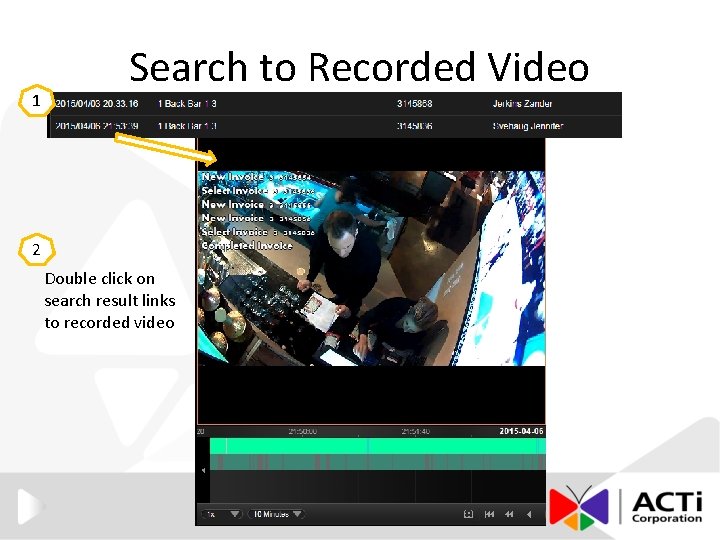

1 Search to Recorded Video 2 Double click on search result links to recorded video

Supported Brand • Successful project reference – Player Sports bar in San Diego, CA • 16 camera system on GNR 3000 • http: //www 2. acti. com/success/1435 – Sapori Ristorante in Newport Beach, CA • 35 camera system on GNR 3000

POS Partnership • Other supported brand • Welcome for POS partnership to complete your security management and operational management along with ACTi solution
