Integration and Analytics POS Integration with NVR Introduction

Integration and Analytics POS Integration with NVR

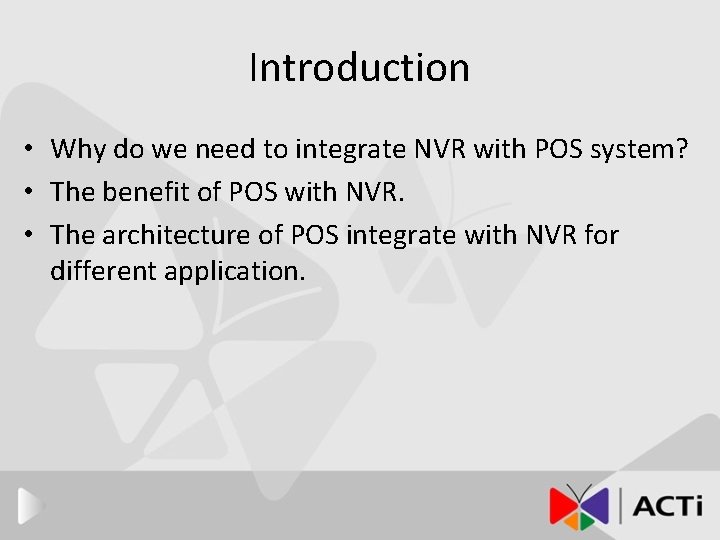

Introduction • Why do we need to integrate NVR with POS system? • The benefit of POS with NVR. • The architecture of POS integrate with NVR for different application.

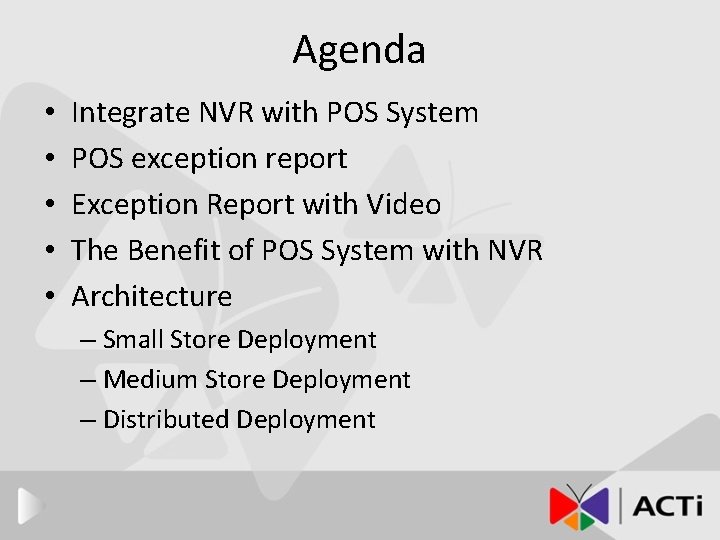

Agenda • • • Integrate NVR with POS System POS exception report Exception Report with Video The Benefit of POS System with NVR Architecture – Small Store Deployment – Medium Store Deployment – Distributed Deployment

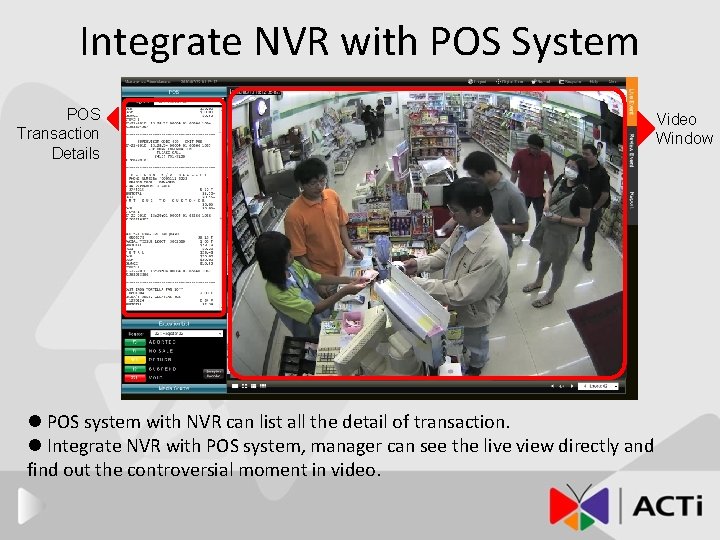

Integrate NVR with POS System POS Transaction Details l POS system with NVR can list all the detail of transaction. l Integrate NVR with POS system, manager can see the live view directly and find out the controversial moment in video. Video Window

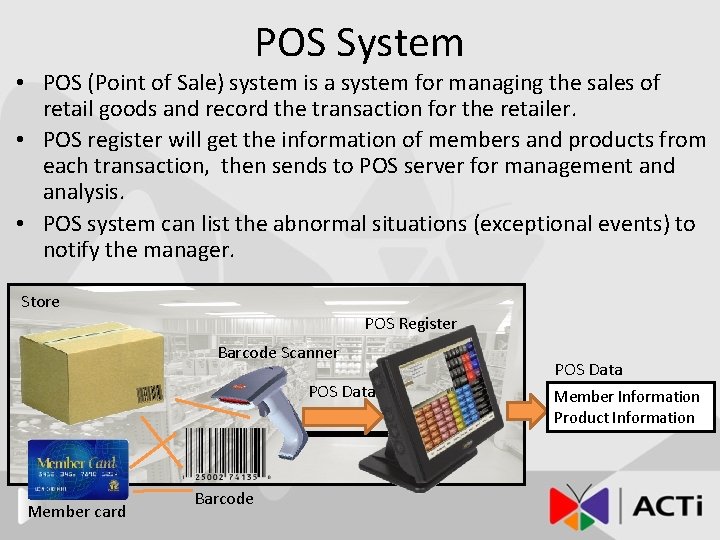

POS System • POS (Point of Sale) system is a system for managing the sales of retail goods and record the transaction for the retailer. • POS register will get the information of members and products from each transaction, then sends to POS server for management and analysis. • POS system can list the abnormal situations (exceptional events) to notify the manager. Store POS Register Barcode Scanner POS Data Member card Barcode POS Data Member Information Product Information

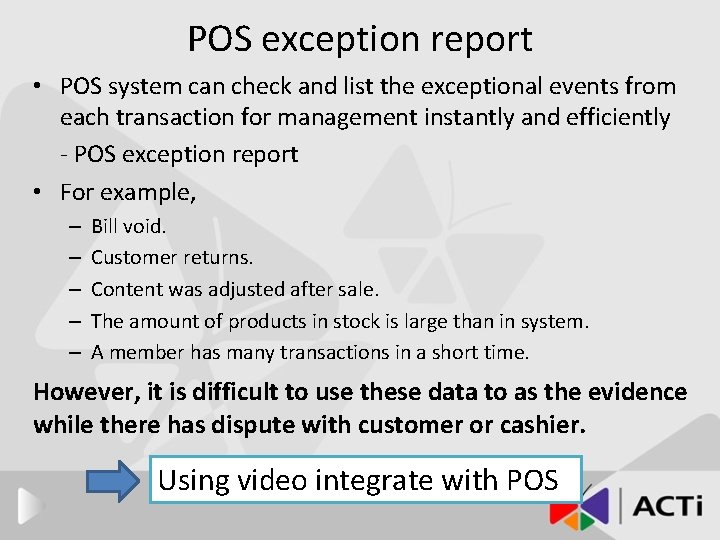

POS exception report • POS system can check and list the exceptional events from each transaction for management instantly and efficiently - POS exception report • For example, – – – Bill void. Customer returns. Content was adjusted after sale. The amount of products in stock is large than in system. A member has many transactions in a short time. However, it is difficult to use these data to as the evidence while there has dispute with customer or cashier. Using video integrate with POS

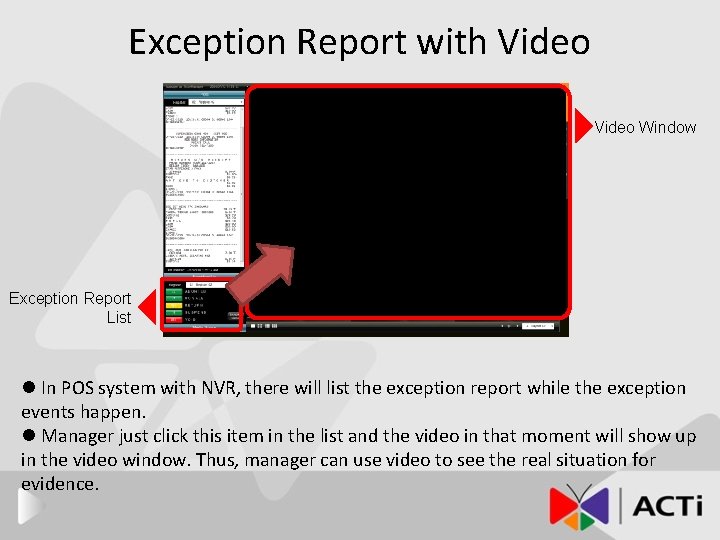

Exception Report with Video Window Exception Report List l In POS system with NVR, there will list the exception report while the exception events happen. l Manager just click this item in the list and the video in that moment will show up in the video window. Thus, manager can use video to see the real situation for evidence.

The Benefit of POS System with NVR • Real time to see the video of transaction. • Managers or loss prevention department can manipulate POS system to audit exceptional events efficiently to reduce theft and fraud transaction. • Ease to search the video on exception list.

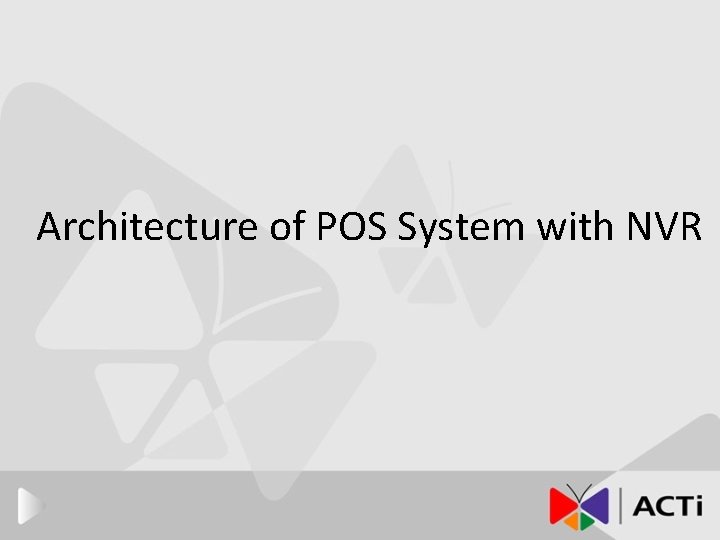

Architecture of POS System with NVR

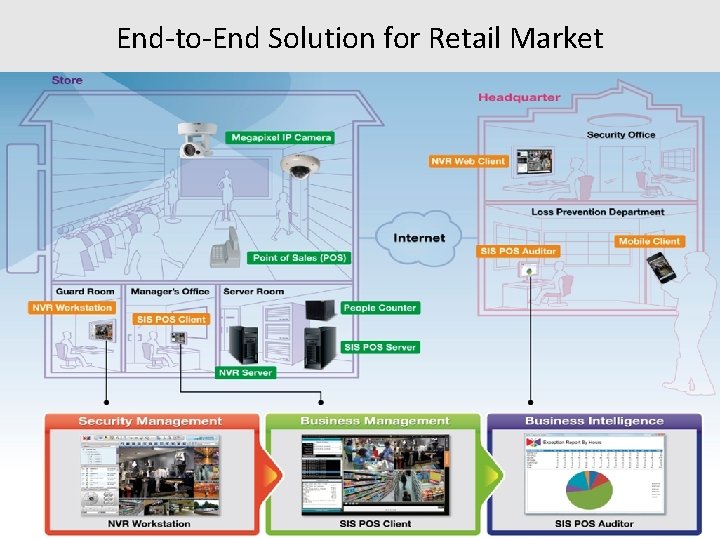

End-to-End Solution for Retail Market

Small Store Deployment Store Video IP Camera POS Data POS Server/Client with NVR POS Register POS Data Video

Medium Store Deployment Store Manager’s Office IP Camera Video POS Data POS Client (with video) POS Register POS Server (with NVR Server) IP Camera POS Register POS Data 12 Video POS Register NVR Workstation (Video Only) Guard Room

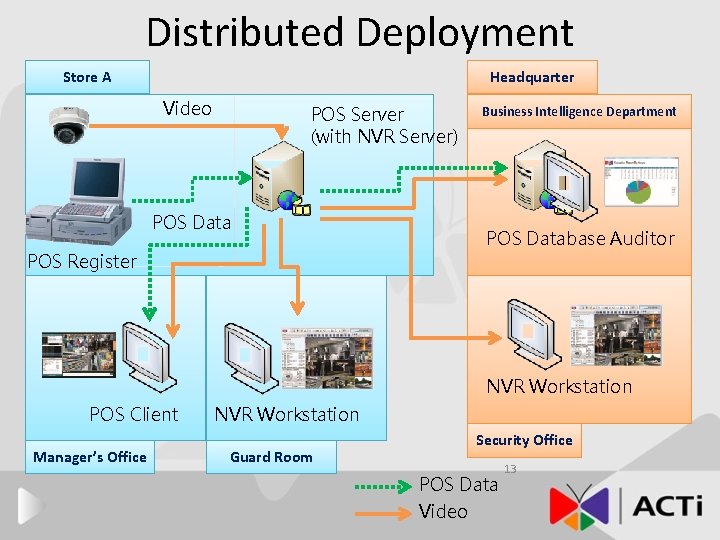

Distributed Deployment Store A Headquarter Video POS Server (with NVR Server) POS Data Business Intelligence Department POS Database Auditor POS Register NVR Workstation POS Client Manager’s Office NVR Workstation Security Office Guard Room POS Data Video 13
