Accelerated Memory Production Inc Headquartered in Santa Ana

Accelerated Memory Production, Inc.

Headquartered in Santa Ana, CA Member of JEDEC since 1995 Member of Small Form Factor Group ISO 9001 -2008 ISO 14001 -2004 Over 30 years of experience President : Richard Mc. Cauley

PRODUCT • DRAM Modules • Compact Flash • SOLID STATE Storage Solutions

DRAM Modules • • RDRAM VLP RDIMM UDIMM SOC DIMM SOR DIMM Mini-RDIMM

SODIMM, SO-CDIMM, SO-RDIMM DDR 3 - 512 MB to 8 GB DDR 2 - 256 MB to 4 GB DDR 1 - 256 MB to 2 GB SDRAM – 32 MB to 1 GB

DIMM, VLP RDIMM, UDIMM, VLP UDIMM, MINI RDIMM DDR 3 - 512 MB to 16 GB DDR 2 - 256 MB to 4 GB DDR 1 - 128 MB to 2 GB SDRAM – 64 MB to 1 GB

COMPACT FLASH MLC – 128 MB to 32 GB SLC – 128 MB to 16 GB ATA FLASH 16 MB to 1 GB

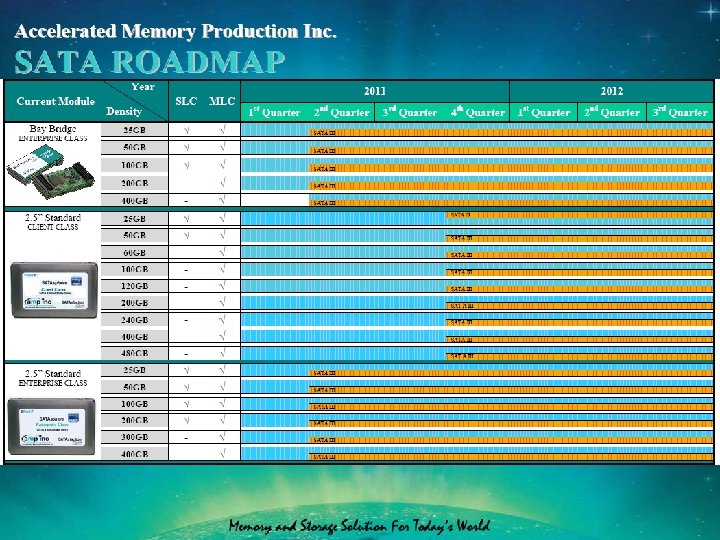

SATA DRIVES SATAsphere Series 2. 5”SATA II Solid State Drive, Client Class MLC PART NUMBER AMP 25 S 025 -NM 7 RBC(I) AMP 25 S 050 -NM 8 RBC(I) AMP 25 S 060 -NM 8 RBC(I) AMP 25 S 100 -NM 9 RBC(I) AMP 25 S 120 -NM 9 RBC(I) AMP 25 S 200 -NM 1 RBC(I) AMP 25 S 240 -NM 1 RBC(I) AMP 25 S 400 -NM 2 RBC(I) AMP 25 S 480 -NM 2 RBC(I) CAPACITY 25 GB 50 GB 60 GB 100 GB 120 GB 200 GB 240 GB 400 GB 480 GB Sequential Read Transfer: Up to 260 MB/s (@128 K blocks) Sequential Write Transfer: Up to 260 MB/s (@128 K blocks) Random Read IOPS: 30, 000 (@4 K blocks) Random Write IOPS: 30, 000 burst/10, 000 sustained (@4 K blocks) * C=Commercial Temperature * I= Industrial Temperature SLC PART NUMBER AMP 25 S 025 -NS 7 RBC(I) AMP 25 S 050 -NS 8 RBC(I) CAPACITY 25 GB 50 GB

SATAsphere Series 2. 5”SATA II Solid State Drive Enterprise Class MLC PART NUMBER AMP 25 S 025 -NM 7 SDC(I) AMP 25 S 050 -NM 8 SDC(I) AMP 25 S 100 -NM 9 SDC(I) AMP 25 S 200 -NM 1 SDC(I) AMP 25 S 300 -NM 2 SDC(I) AMP 25 S 400 -NM 2 SDC(I) Sequential Read &Write Transfer: 260 MB/s (@128 K blocks) Random Read &Write IOPS: 30, 000 (@4 K blocks) * C=Commercial Temperature * I= Industrial Temperature CAPACITY 25 GB 50 GB 100 GB 200 GB 300 GB 400 GB SLC PART NUMBER AMP 25 S 025 -NS 7 SDC(I) AMP 25 S 050 -NS 8 SDC(I) AMP 25 S 100 -NS 9 SDC(I) AMP 25 S 200 -NS 1 SDC(I) CAPACITY 25 GB 50 GB 100 GB 200 GB

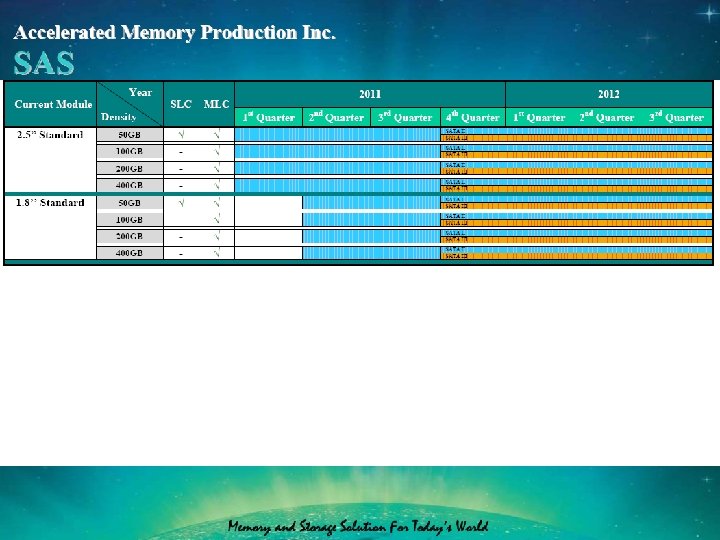

SATAsphere Series 2. 5”SAS Solid State Drive Enterprise Class MLC PART NUMBER AMP 25 A 025 -NM 7 SDC(I) AMP 25 A 050 -NM 8 SDC(I) AMP 25 A 100 -NM 9 SDC(I) AMP 25 A 200 -NM 1 SDC(I) AMP 25 A 300 -NM 2 SDC(I) AMP 25 A 400 -NM 2 SDC(I) Sequential Read &Write Transfer: 260 MB/s (@128 K blocks) Random Read &Write IOPS: 30, 000 (@4 K blocks) * C=Commercial Temperature * I= Industrial Temperature CAPACITY 25 GB 50 GB 100 GB 200 GB 300 GB 400 GB

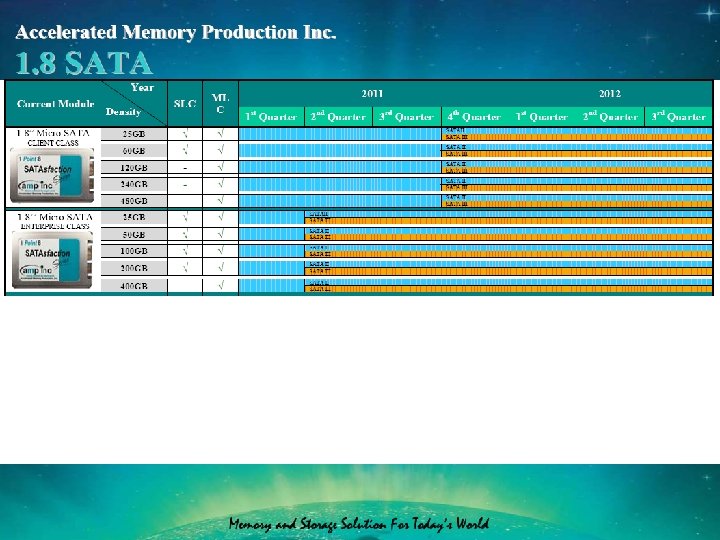

SATAsphere Series SATA 1. 8” SSD 1. 8” Micro SATA SSD, - Client Class MLC Part Number AMP 181025 -NM 8 RBC(I) AMP 181060 -NM 9 RBC(I) AMP 181120 -NM 1 RBC(I) AMP 181240 -NM 2 RBC(I) AMP 181480 -NM 3 RBC(I) SLC Capacity 25 GB 60 GB 120 GB 240 GB 480 GB Sequential Read Transfer: Up to 260 MB/s (@128 K blocks) Sequential Write Transfer: Up to 260 MB/s (@128 K blocks) Random Read IOPS: 30, 000 (@4 K blocks) Random Write IOPS: 30, 000 burst/10, 000 sustained (@4 K blocks) * C=Commercial Temperature * I= Industrial Temperature Part Number AMP 181025 -NS 8 RBC(I) AMP 181050 -NS 9 RBC(I) Capacity 25 GB 50 GB

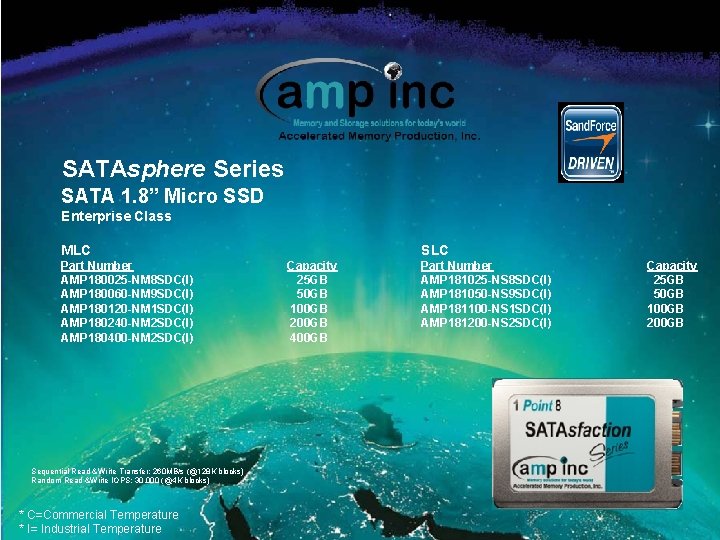

SATAsphere Series SATA 1. 8” Micro SSD Enterprise Class MLC Part Number AMP 180025 -NM 8 SDC(I) AMP 180060 -NM 9 SDC(I) AMP 180120 -NM 1 SDC(I) AMP 180240 -NM 2 SDC(I) AMP 180400 -NM 2 SDC(I) Sequential Read &Write Transfer: 260 MB/s (@128 K blocks) Random Read &Write IOPS: 30, 000 (@4 K blocks) * C=Commercial Temperature * I= Industrial Temperature SLC Capacity 25 GB 50 GB 100 GB 200 GB 400 GB Part Number AMP 181025 -NS 8 SDC(I) AMP 181050 -NS 9 SDC(I) AMP 181100 -NS 1 SDC(I) AMP 181200 -NS 2 SDC(I) Capacity 25 GB 50 GB 100 GB 200 GB

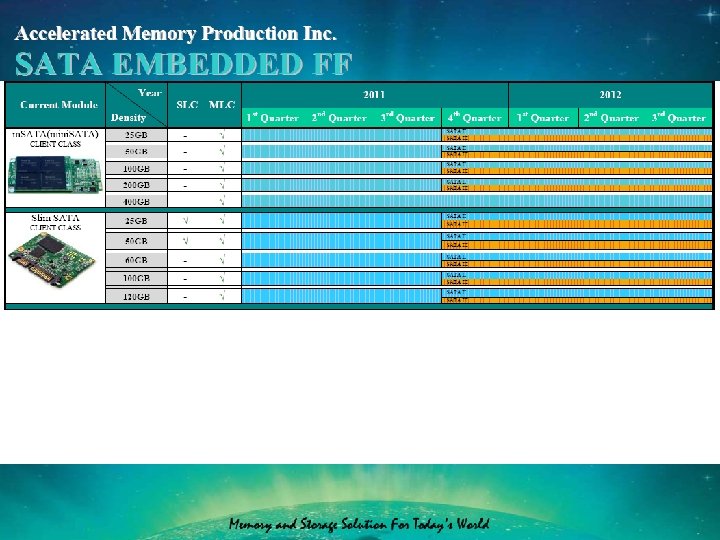

SATAsphere Series Slim SATA(MO-297 A) Client Class MLC PART NUMBER AMP 0 FS 025 -NM 9 RBC(I) AMP 0 FS 050 -NM 1 RBC(I) AMP 0 FS 060 -NM 1 RBC(I) AMP 0 FS 100 -NM 2 RBC(I) AMP 0 FS 120 -NM 2 RBC(I) SLC CAPACITY 25 GB 50 GB 60 GB 100 GB 120 GB Sequential Read Transfer: Up to 260 MB/s (@128 K blocks) Sequential Write Transfer: Up to 260 MB/s (@128 K blocks) Random Read IOPS: 30, 000 (@4 K blocks) Random Write IOPS: 30, 000 burst/10, 000 sustained (@4 K blocks) * C=Commercial Temperature * I= Industrial Temperature PART NUMBER AMP 0 FS 025 -NS 9 RBC(I) AMP 0 FS 060 -NS 1 RBC(I) CAPACITY 25 GB 60 GB

SATAsphere Series m. SATA(mini. SATA) Solid State Drive(70 mm) Client Class MLC PART NUMBER AMPM 7 S 025 -NM 7 RBC(I) AMPM 7 S 050 -NM 8 RBC(I) AMPM 7 S 100 -NM 9 RBC(I) AMPM 7 S 200 -NM 1 RBC(I) AMPM 7 S 400 -NM 2 RBC(I) SLC CAPACITY 25 GB 60 GB 100 GB 240 GB 480 GB Sequential Read Transfer: Up to 260 MB/s (@128 K blocks) Sequential Write Transfer: Up to 260 MB/s (@128 K blocks) Random Read IOPS: 30, 000 (@4 K blocks) Random Write IOPS: 30, 000 burst/10, 000 sustained (@4 K blocks) * C=Commercial Temperature * I= Industrial Temperature PART NUMBER AMPM 7 S 025 -NS 8 RBC(I) AMPM 7 S 060 -NS 1 RBC(I) CAPACITY 25 GB 60 GB

Internal Mini SATA Solid State Drive(SSD) HOST INTERFACE SATA 2. 6 Compliant, 3 GB/s and 1. 5 GB/s support Native Command Queuing (up to 32 commands) SMART Command Transport PERFORMANCE Sequential Read & Write Transfer: 260 MB/s (@ 128 K blocks) Random Read & Write IOPS: 30, 000 (@ 4 K Blocks ) RELIABILITY Technology- Dura. Class technology represents a set of NAND flash management features that work in tandem to deliver world class SSD reliability, performance and power efficiency that differentiate amp inc’s SSD’s from competative solutions. Of particular importance in the use of processing elements to optimally overcome a number of the inherent issues associated with commodity NAND flash memory. Duraclass features includes: Dura. Write, which optimizes the number of program cycles to the flash effectively extending flash rated endurance by 20 x or more when compared to standard controllers. RAISE (Redundant Array of Independent Silicon Elements), which deliver an orders-of-magnitude improvement in drive reliability versus today’s best enterprise HDDs and SSDs. The result is single-drive RAID-like protection and recovery from potentially catastrophic flash block failures – all while avoiding the inefficiencies of traditional RAID Advanced Wear Leveling and Monitoring, Optimized wear leveling algorithms further extending flash endurance. Advanced Read/Program Disturb Management, which safeguards against errant re-programming of cells during read and program cycles. Recycler, which intelligently performs garbage collection with the least impact on flash endurance. - MTBF (Mean Time between Failures) 10 Mhours (max), True MTBF calculationsmust be based on usage requirements. - Power Loss Protection Super Capacitor - ECC Recovery Up to 24 bytes correctable per 512 -byte sector. configuration and - Unrecoverable Read Errors Read unrecoverable bit error rate (UBER) 10 e-17 - Data Encryption 128 -bit AES-compliant - Protect Health Monitoring Self-Monitoring, Analysis and Reporting Technology (SMART) w/ enterprise attributes - Operating System Windows XP 32 -Bit and 64 -Bit; Windows Vista 32 -Bit & 64 Bit; Window 7 32 -Bit & 64 -Bit; Linux - Power Requirements Standard SATA Power Connector 5 V - Performance Optimization TRIM (requires OS support) POWER CONSUMPTION Input voltage: + 5 VDC, 5 %( 4. 75 V ~ 5. 25 V) 2 W in operation. 5 W in standby TEMPERATURE RANGE Operating: 0ºC ~ 70ºC (Commercial) -40ºC ~ 85ºC (Industrial)

SSD Test Process • Visual Inspection • Power up Test • Sand. Force Mptool • M 7305 SATA Tester • Flexstar 60 E Enviro chamber • FLEXSTAR 416 B SSD Burn in chamber

Quality Control Process ISO-9001: 2008 Certification ISO-14001: 2004 Certification Quality Controlled Documentation for all products Certification of compliance required for all assemblies In process audit 100% Functional Test for all parts 100% Final Inspection for all assemblies AQL of Receiving and Shipping Audit

Quality Policy amp inc consistently provides products and services that meet or exceed the requirements and expectations of our customers. We continuously strive for improvement of our quality management system. We are committed to work in partnership with our customers to enhance their respect and loyalty.

Our commitment and goal to quality and excellence are reflected in our products and services to you. We are confident in complete customer satisfaction of our products and services. We have the knowledge, dedication, and resources to provide you with the highest quality products.

The delicate environmental balance of our planet is a sacred responsibility we all share. At amp inc, we take this responsibility very seriously. Our dedication to preservation and environmental awareness is reflected an all that we do. From the reducereuse-recycle focus of our office and business operations, to advanced manufacturing and delivery systems, we work hard to ensure environmental sensitivity throughout our business. Certification to the ISO: 14001: 2004 standard, which assist companies in the creation and maintenance of an Environmental Management System, effectively demonstrates our on-going concern and commitment. We invite you to join amp inc in this core belief by working with us to create a greener, healthier global environment.

Our Vision is to partner with our customers and help them to succeed in today and tomorrows market. Thank you for your continued business.
